Soldering is an essential skill for anyone working with electronics, DIY projects, or circuit repairs. It allows you to create strong, conductive connections between components. Whether you're a beginner or looking to improve your technique, this guide covers the tools you need, step-by-step soldering techniques, and useful tips to get started.
1. What is Soldering?
Soldering is the process of joining two metal components by melting a filler metal (solder) to form a strong electrical connection. It is commonly used in electronics, PCB assembly, and wire connections.
🔹 Types of Soldering:
- Soft Soldering (Electronics Work) – Uses low melting point solder (typically lead-free tin-based solder).
- Hard Soldering (Brazing & Silver Soldering) – Used in plumbing and metalwork, requiring higher temperatures.
2. Essential Tools for Soldering
| Tool | Purpose |
|---|---|
| Soldering Iron | Heats up to melt solder and create electrical connections. |
| Soldering Iron Stand | Holds the hot soldering iron safely when not in use. |
| Solder | Metal alloy (typically tin and lead or tin and silver) that bonds components. |
| Flux | Cleans and improves the flow of solder for better joints. |
| Soldering Sponge or Brass Tip Cleaner | Cleans the tip of the soldering iron. |
| Helping Hands or PCB Holder | Holds small components for easier soldering. |
| Wire Cutters & Strippers | Trims excess wire and removes insulation. |
| Desoldering Pump (Solder Sucker) | Removes solder if mistakes are made. |
| Heat Shrink Tubing or Electrical Tape | Insulates and protects soldered joints. |
3. Choosing the Right Soldering Iron & Solder
A. Soldering Iron Types
- Basic Soldering Iron – Fixed temperature, affordable, good for beginners.
- Adjustable Temperature Soldering Iron – Allows control over heat (ideal for precision soldering).

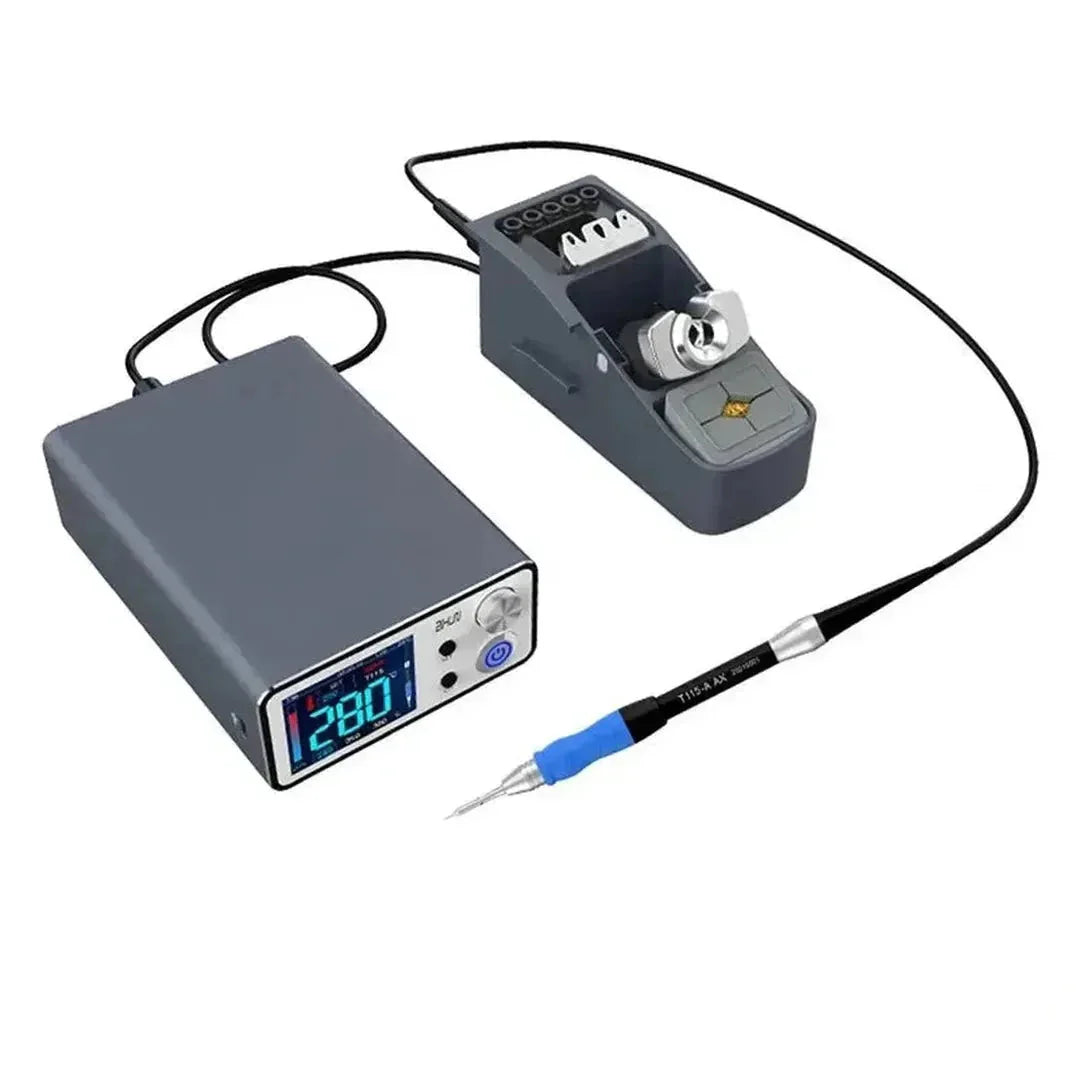

- Soldering Station – Advanced tool with temperature control and safety features.
💡 Tip: Use a soldering iron with adjustable temperature (300°C - 400°C) for better control.
B. Types of Solder
- Lead-Based Solder (60/40 Tin-Lead, Sn/Pb) – Easier to work with but contains lead (avoid for health & safety).
- Lead-Free Solder (Tin-Silver, Sn/Ag) – Environmentally friendly but requires higher heat.
💡 Tip: For beginners, use 60/40 Rosin-Core Solder (Tin/Lead) as it melts easily and flows well.
4. Step-by-Step Soldering Guide
Step 1: Preparing Your Workspace
✅ Work in a ventilated area to avoid inhaling fumes.
✅ Keep a heat-resistant surface for safety.
✅ Turn on your soldering iron and set it to 350°C (662°F).
Step 2: Preparing Components
- Clean the soldering iron tip using a wet sponge or brass cleaner.
- Apply flux to component leads and solder pads (for cleaner connections).
- Position the components using a PCB holder or helping hands.
Step 3: Making a Solder Joint
- Heat the Joint: Place the soldering iron tip on the component lead and pad.
- Apply Solder: Feed solder to the joint (not directly on the iron).
- Remove and Let Cool: Lift the iron while keeping the joint steady.
- Check for a Good Joint: The solder should be shiny, smooth, and cone-shaped.
Step 4: Cleaning Up
✅ Trim excess leads using wire cutters.
✅ Clean the soldered area with isopropyl alcohol to remove flux residue.
5. Common Soldering Mistakes & How to Fix Them
| Mistake | Cause | Fix |
|---|---|---|
| Cold Joint (Dull, Weak Solder) | Not enough heat | Reheat and add fresh solder |
| Too Much Solder (Blob Joint) | Excess solder applied | Use a desoldering pump and reapply |
| Bridging (Short Circuit) | Solder touching multiple pads | Use desoldering braid to remove excess |
| Burnt Components | Too much heat applied | Use lower temperature and work quickly |
6. Desoldering (Fixing Mistakes & Removing Components)
If you need to remove soldered parts, use these methods:
- Desoldering Pump (Solder Sucker) – Sucks up melted solder.
- Desoldering Braid (Wick) – Absorbs molten solder when heated.
- Hot Air Rework Station – Ideal for removing SMD (Surface Mount) components.
💡 Tip: Reheat the solder and gently lift the component to avoid damaging the PCB.
7. Advanced Soldering Techniques
✅ Tinning Wires – Coat wires with solder before connecting them to improve strength.
✅ Surface Mount Soldering (SMD Soldering) – Uses tweezers and a fine-tip soldering iron.
✅ Soldering Large Components (Heat Management) – Preheat large metal parts to ensure even heat distribution.
8. Safety Tips for Soldering
⚠ Work in a well-ventilated area or use a fume extractor.
⚠ Always unplug the soldering iron when not in use.
⚠ Use heat-resistant gloves when working on high-temperature components.
⚠ Never touch the soldering iron tip directly (it can reach over 400°C).
⚠ Wash your hands after handling solder, especially if using leaded solder.
9. Practical Soldering Projects for Beginners
🔹 Soldering an LED Circuit – Practice soldering LEDs and resistors to a PCB.
🔹 Building a Simple Audio Amplifier – Assemble a small audio amplifier kit.
🔹 Repairing a Broken Headphone Cable – Fix damaged wiring with soldering.
🔹 Soldering an Arduino Shield – Connect sensors and modules to an Arduino board.
10. Conclusion
Soldering is an essential skill for anyone working in electronics, DIY projects, and repairs. By using the right tools, proper techniques, and safety precautions, you can create strong, reliable electrical connections for your projects.
💡 Ready to start soldering? Grab a soldering kit and begin practicing on a simple circuit board! 🚀
