Creating a Camera Server with the ESP32-CAM

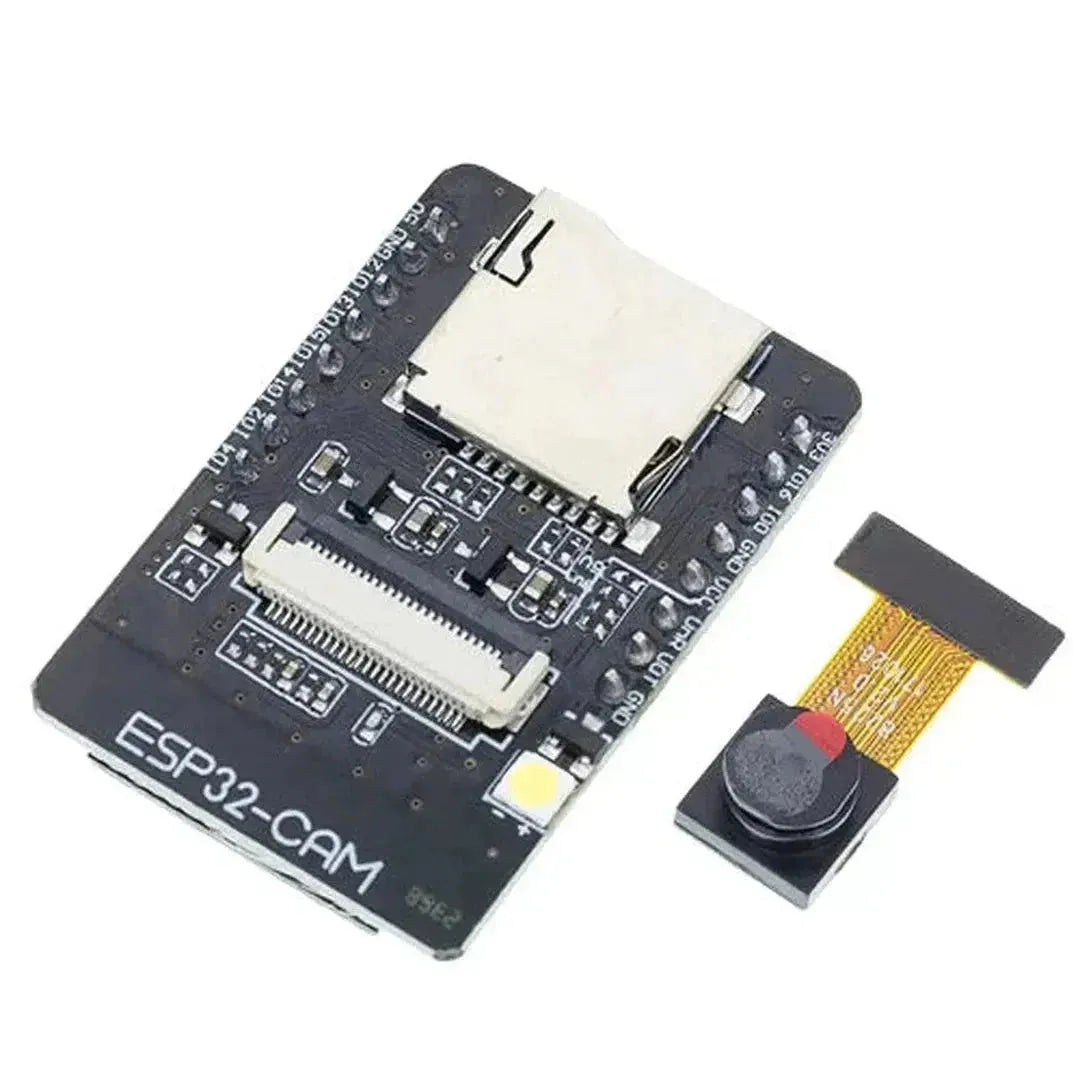

The ESP32-CAM is a low-cost microcontroller with a built-in camera module, capable of capturing images and streaming live video. By setting it up as a camera server, you can access the video feed via a web browser or integrate it into IoT applications. This tutorial will guide you through creating a camera server with the ESP32-CAM.

What You Will Need

ESP32-CAM Module
FTDI Programmer (USB-to-Serial adapter)
Jumper Wires
Breadboard (optional)
A computer with the Arduino IDE installed

Step 1: Setting Up the Arduino IDE

1. Install the ESP32 Board Package

Open the Arduino IDE.
Go to File > Preferences.

In the "Additional Board Manager URLs" field, add:

https://dl.espressif.com/dl/package_esp32_index.json

Click OK.
Go to Tools > Board > Boards Manager.
Search for "ESP32" and install the package by Espressif Systems.

2. Install the CameraWebServer Example

The ESP32 Board Package includes a CameraWebServer example. You don’t need any additional libraries.

Step 2: Wiring the ESP32-CAM

To upload code, you’ll need to connect the ESP32-CAM to an FTDI programmer. Here’s how to wire it:

ESP32-CAM Pin	FTDI Programmer Pin
GND	GND
5V	VCC (5V)
U0R	TX
U0T	RX
GND	GND (IO0 to GND for flashing)

Important: Connect the IO0 pin to GND to put the ESP32-CAM into flash mode.

Step 3: Uploading the Code

1. Select the Board and Port

Go to Tools > Board and select AI-Thinker ESP32-CAM.
Under Tools, select the correct COM Port for your FTDI programmer.

2. Open the CameraWebServer Example

Go to File > Examples > ESP32 > Camera > CameraWebServer.

Replace the ssid and password variables with your Wi-Fi credentials:

const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

3. Adjust Camera Settings

Ensure the following lines match your ESP32-CAM model (e.g., AI-Thinker):

#define CAMERA_MODEL_AI_THINKER

Comment out other #define CAMERA_MODEL_ lines.

4. Upload the Code

Press the Reset button on the ESP32-CAM while IO0 is connected to GND.
Click Upload in the Arduino IDE.
Once the upload is complete, disconnect IO0 from GND and press the Reset button again.

Step 4: Accessing the Camera Server

Open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to 115200.
The ESP32-CAM will display its IP address after connecting to Wi-Fi. For example:
```
Camera Ready! Use 'http://192.168.1.100' to connect
```
Open the IP address in a web browser to access the camera server interface.

Step 5: Exploring the Camera Server

The web interface allows you to:

View the live video feed.
Adjust settings such as resolution, brightness, and contrast.
Switch between video streaming and image capture modes.

Troubleshooting

No output in the Serial Monitor: Ensure the correct COM port is selected and the ESP32-CAM is in flash mode during upload.
Camera not detected: Double-check the camera connection to the ESP32-CAM board.
Wi-Fi connection issues: Verify your SSID and password and ensure the network is within range.
Overheating: Avoid prolonged high-resolution streaming to prevent overheating.

Applications of the ESP32-CAM Camera Server

Home security systems
Remote monitoring (e.g., pet or wildlife cameras)
IoT projects with image capture or video streaming
Smart doorbell or intercom systems

Conclusion

You’ve successfully set up the ESP32-CAM as a camera server. This versatile module can be integrated into a wide variety of projects requiring video streaming or image capture. Experiment with different configurations and explore how the ESP32-CAM fits into your IoT ecosystem!
