How to Use a Soil Moisture Sensor with Arduino

A soil moisture sensor measures the volumetric water content in the soil, making it ideal for smart gardening, agricultural automation, and irrigation systems. This tutorial will guide you through connecting and using a soil moisture sensor with Arduino.

---

What You Will Need

1. Soil Moisture Sensor Module
2. Arduino Board (e.g., Uno, Mega, Nano)
3. Breadboard and Jumper Wires
4. A computer with the Arduino IDE installed

---

Step 1: Understanding the Soil Moisture Sensor

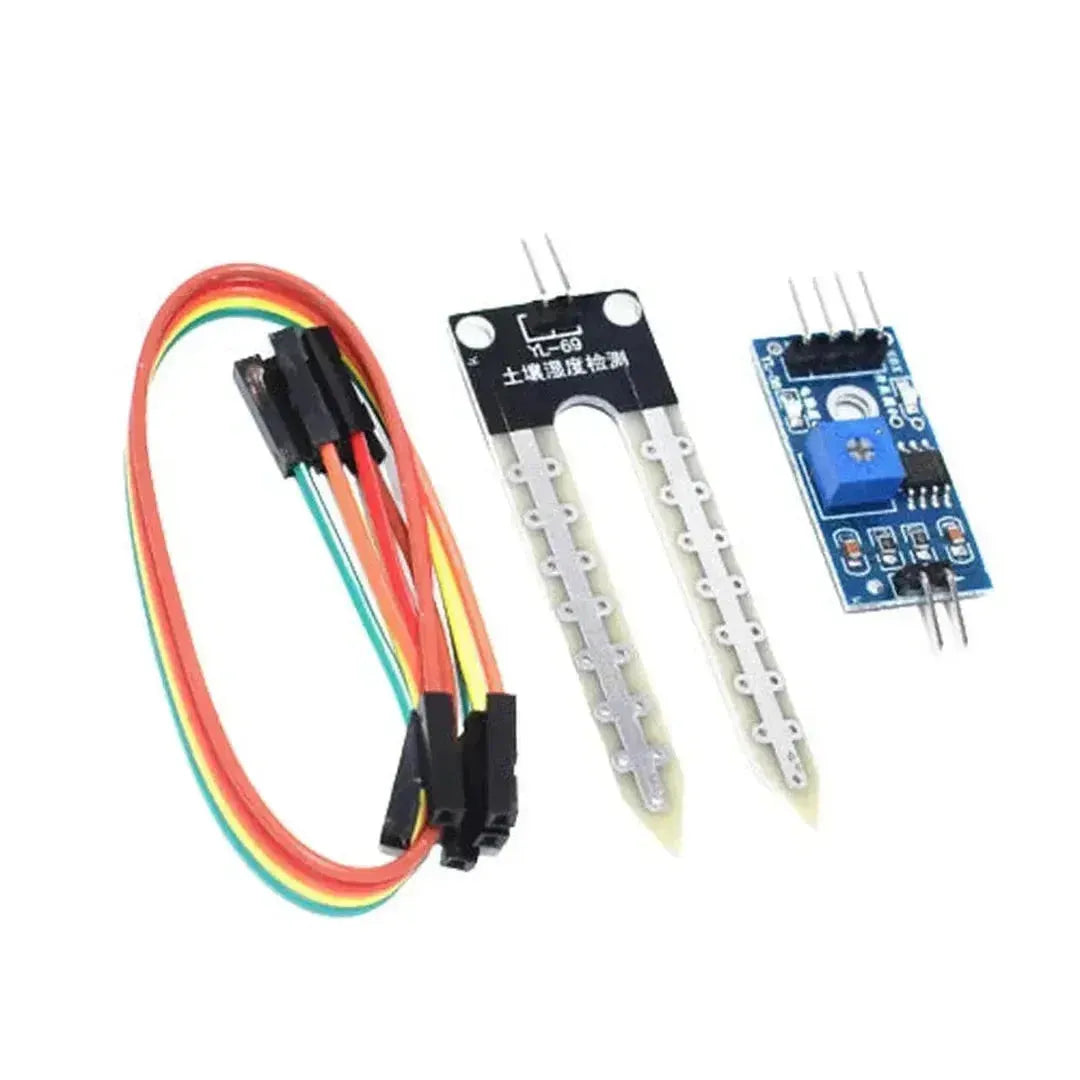

A typical soil moisture sensor consists of two parts:

• Probes: Measure soil conductivity to determine moisture levels.
• Control Module: Outputs analog and digital signals based on the probe readings.

Soil Moisture Sensor Pinout

Pin	Function
VCC	Power Supply (3.3V or 5V)
GND	Ground
A0	Analog Output
D0	Digital Output (adjustable sensitivity)

• Analog Output (A0): Provides a continuous moisture level reading.
• Digital Output (D0): Outputs HIGH or LOW based on the set threshold.

---

Step 2: Wiring the Soil Moisture Sensor to Arduino

Here’s how to connect the soil moisture sensor to an Arduino Uno:

Sensor Pin	Arduino Pin
VCC	5V
GND	GND
A0	A0
D0	Pin 2

---

Step 3: Upload the Code

Here’s an example sketch to read data from the sensor and display it on the Serial Monitor:

Example Code

#define digitalPin 2 // Connect sensor D0 to Arduino Pin 2
#define analogPin A0 // Connect sensor A0 to Arduino A0

void setup() {
  pinMode(digitalPin, INPUT);
  Serial.begin(9600);
  Serial.println("Soil Moisture Sensor Test");
}

void loop() {
  // Read digital output
  int digitalState = digitalRead(digitalPin);
  if (digitalState == LOW) {
    Serial.println("Soil is wet!");
  } else {
    Serial.println("Soil is dry.");
  }

  // Read analog output
  int analogValue = analogRead(analogPin);
  Serial.print("Analog Value: ");
  Serial.println(analogValue);

  delay(1000); // Wait for 1 second before the next reading
}

---

Step 4: Test the Setup

1. Connect the Arduino to your computer via USB.
2. Open the Arduino IDE and select the correct Board and Port under the Tools menu.
3. Upload the code to the Arduino by clicking Upload.
4. Open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to 9600.
5. Insert the sensor probes into the soil and observe the readings. The analog value will increase with moisture, and the digital output will change based on the set threshold.

---

Applications of the Soil Moisture Sensor

1. Automated irrigation systems
2. Smart gardening setups
3. Soil monitoring in agriculture
4. Environmental sensing projects

---

Troubleshooting

• No response from the sensor: Ensure proper wiring and verify that the sensor is powered correctly.
• Unstable readings: Ensure the probes are fully inserted into the soil and avoid corrosive environments.
• Digital output not working: Adjust the sensitivity using the onboard potentiometer.

---

Conclusion

You’ve successfully interfaced a soil moisture sensor with Arduino, enabling you to monitor soil conditions for various applications. Experiment further by integrating this sensor into automated irrigation systems or IoT platforms to create smarter gardening solutions!
