How to Use the BMP180 Barometric Pressure Sensor with Arduino

The BMP180 is a high-precision barometric pressure and temperature sensor that can be easily interfaced with Arduino using the I2C protocol. It is widely used in weather monitoring, altitude measurements, and IoT applications. This tutorial will guide you through connecting and using the BMP180 with Arduino.

---

What You Will Need

1. BMP180 Sensor Module
2. Arduino Board (e.g., Uno, Mega, Nano)
3. Breadboard and Jumper Wires
4. A computer with the Arduino IDE installed

---

Step 1: Understanding the BMP180

The BMP180 measures barometric pressure and temperature and can calculate altitude based on the pressure readings. It communicates with Arduino using the I2C protocol.

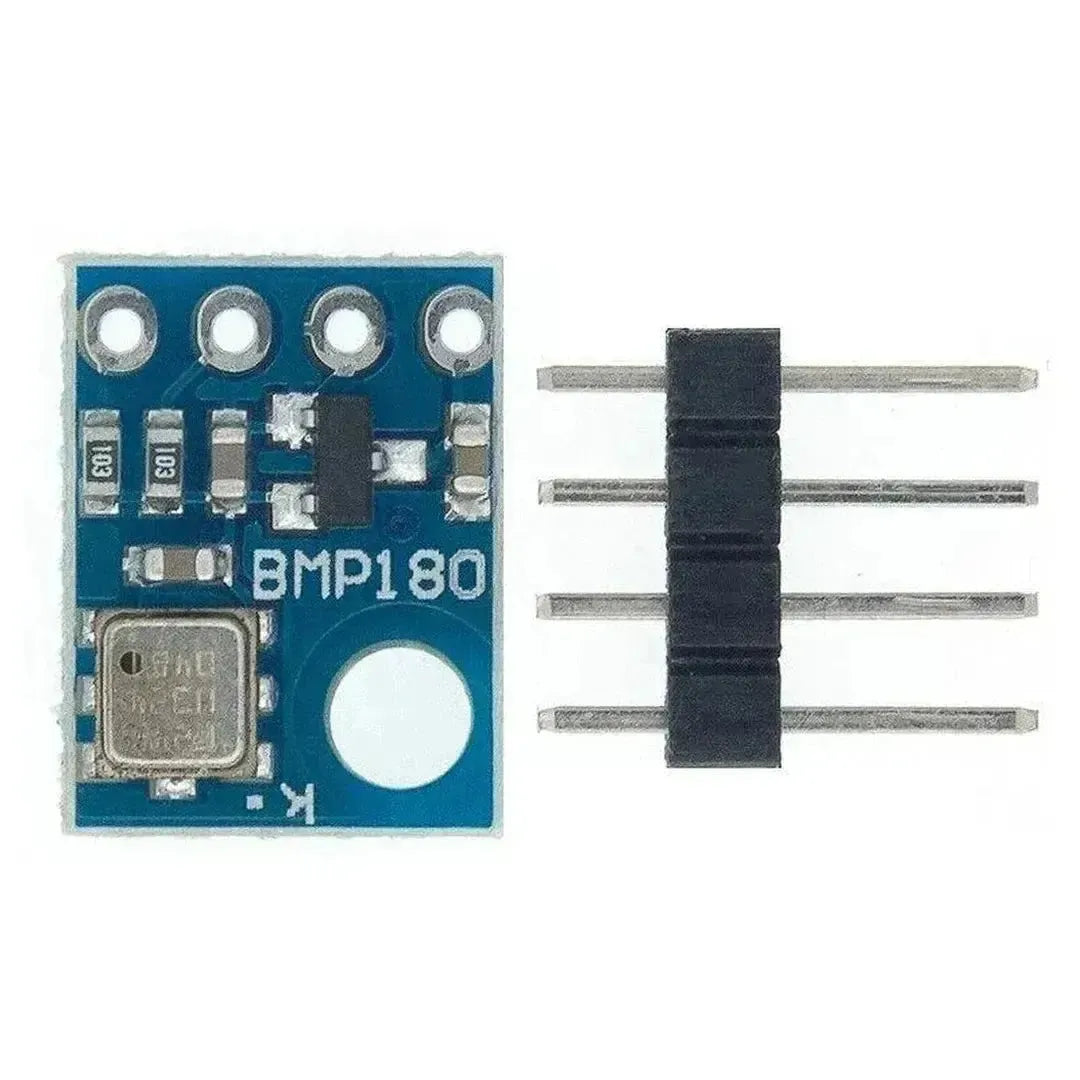

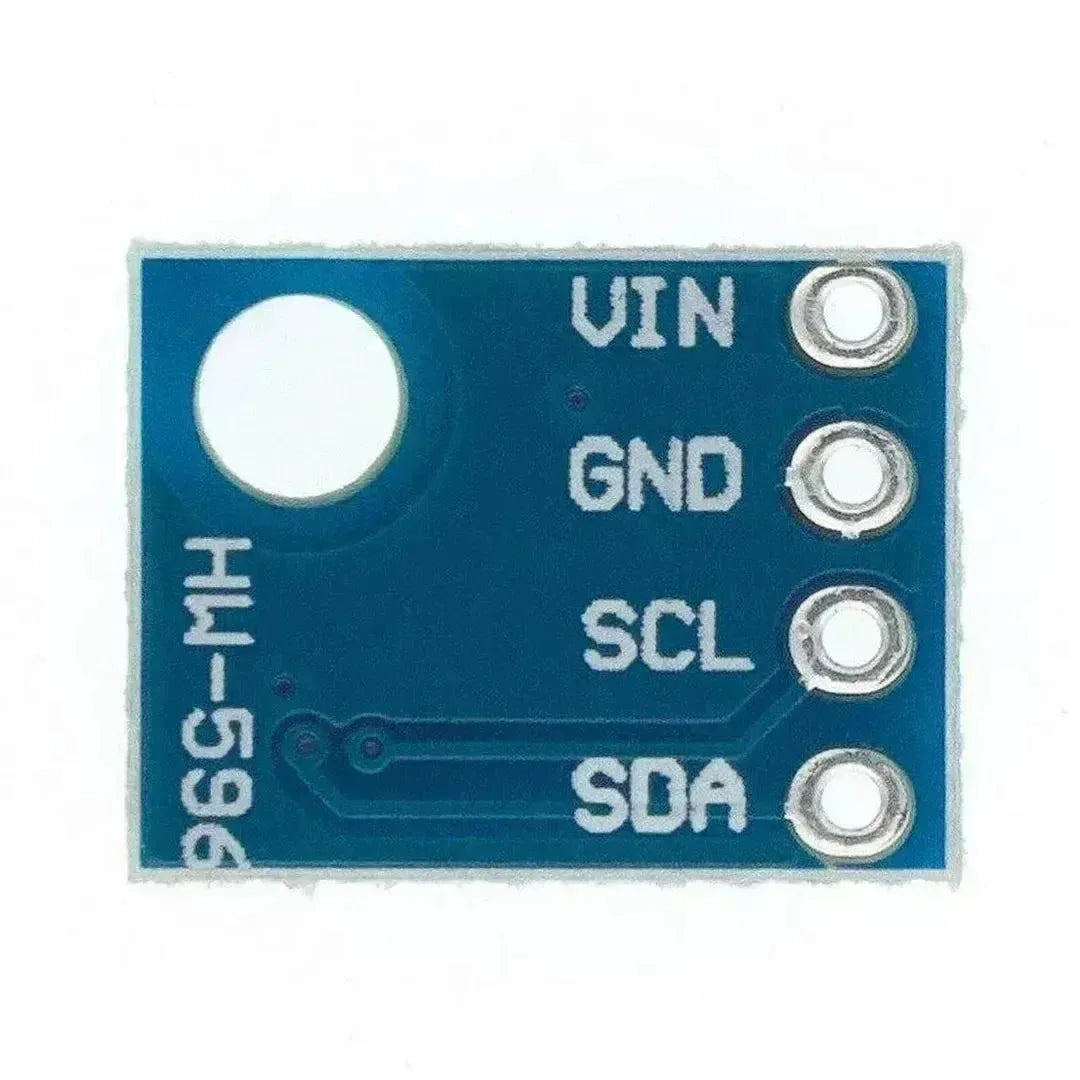

BMP180 Pinout

Pin	Function
VIN	Power Supply (3.3V/5V)
GND	Ground
SDA	I2C Data Line
SCL	I2C Clock Line

---

Step 2: Wiring the BMP180 to Arduino

Here’s how to connect the BMP180 to an Arduino Uno:

BMP180 Pin	Arduino Pin
VIN	5V
GND	GND
SDA	A4
SCL	A5

Note: For other Arduino boards, verify the I2C pins in your board's documentation (e.g., Mega uses pins 20 and 21 for SDA and SCL).

---

Step 3: Install the Required Library

The "Adafruit BMP085 Unified" library can be used for the BMP180 as it is fully compatible.

Steps to Install the Library:

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "Adafruit BMP085 Unified" and click Install.

---

Step 4: Upload the Code

Here’s an example sketch to read temperature, pressure, and calculate altitude:

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BMP085_U.h>

Adafruit_BMP085_Unified bmp = Adafruit_BMP085_Unified(10085);

void setup() {
  Serial.begin(9600);
  Serial.println("BMP180 Sensor Test");

  if (!bmp.begin()) {
    Serial.print("Could not find a valid BMP180 sensor, check wiring!");
    while (1);
  }
}

void loop() {
  sensors_event_t event;
  bmp.getEvent(&event);

  if (event.pressure) {
    // Display pressure
    Serial.print("Pressure: ");
    Serial.print(event.pressure);
    Serial.println(" hPa");

    // Display temperature
    float temperature;
    bmp.getTemperature(&temperature);
    Serial.print("Temperature: ");
    Serial.print(temperature);
    Serial.println(" °C");

    // Calculate altitude
    float seaLevelPressure = 1013.25; // hPa
    Serial.print("Altitude: ");
    Serial.print(bmp.pressureToAltitude(seaLevelPressure, event.pressure));
    Serial.println(" m");
    Serial.println();
  } else {
    Serial.println("Sensor error!");
  }

  delay(2000); // Wait 2 seconds before the next reading
}

---

Step 5: Test the Setup

1. Connect the Arduino to your computer via USB.
2. Open the Arduino IDE and select the correct Board and Port under the Tools menu.
3. Upload the code to the Arduino by clicking Upload.
4. Open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to 9600.
5. Observe the pressure, temperature, and altitude readings displayed in the Serial Monitor.

---

Applications of the BMP180

1. Weather monitoring systems
2. Altitude measurement in drones and aviation
3. IoT environmental monitoring
4. Barometric pressure data logging

---

Troubleshooting

• No response from the sensor: Check the wiring and ensure the correct I2C pins are used.
• Incorrect readings: Verify that the sensor is not exposed to extreme environmental conditions.
• Library errors: Ensure the "Adafruit BMP085 Unified" library is installed correctly.

---

Conclusion

You’ve successfully interfaced the BMP180 barometric pressure sensor with Arduino. This versatile sensor is ideal for projects requiring accurate pressure and temperature measurements. Experiment further by integrating it with data loggers, displays, or IoT platforms!
