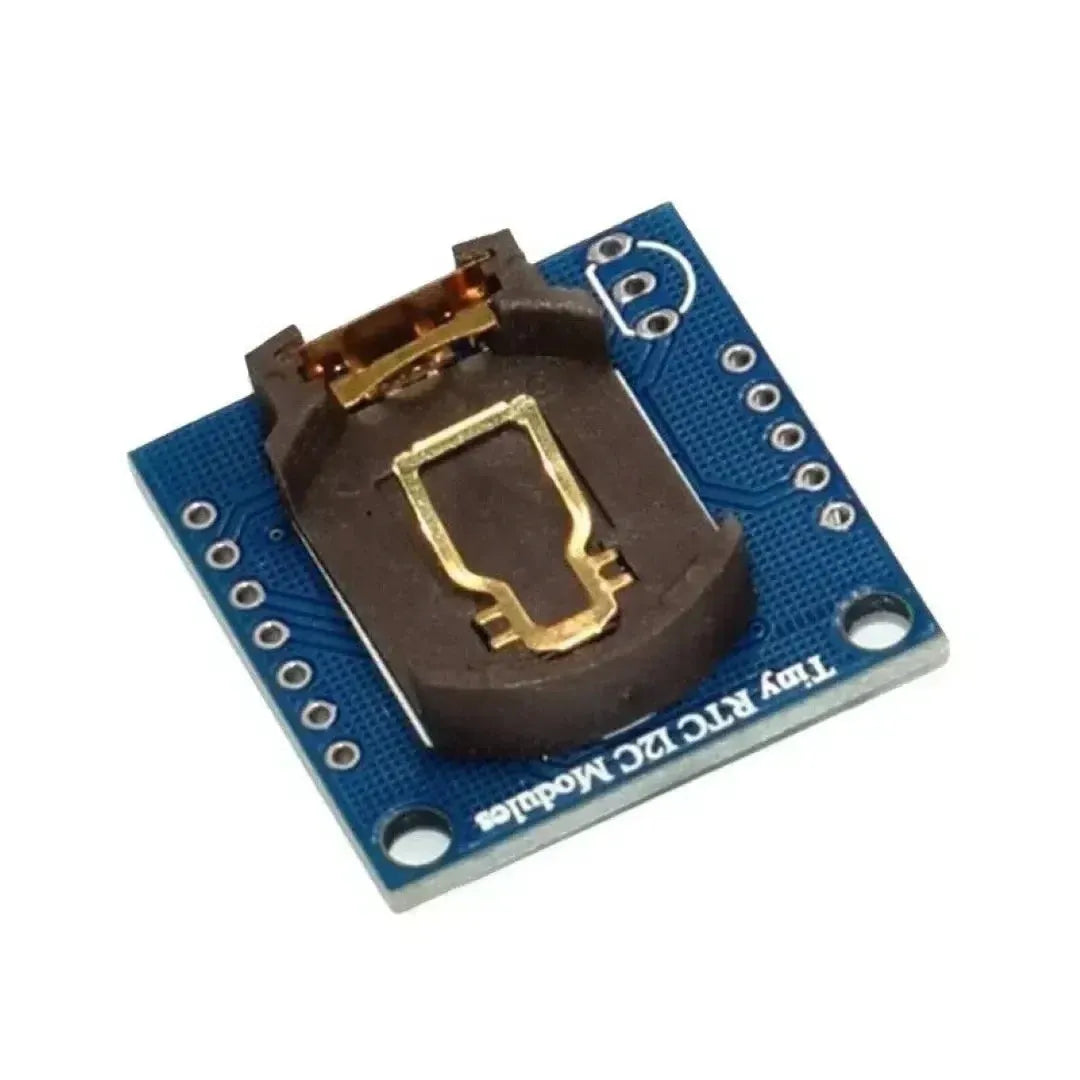

How to Use the DS1307 RTC with the Arduino

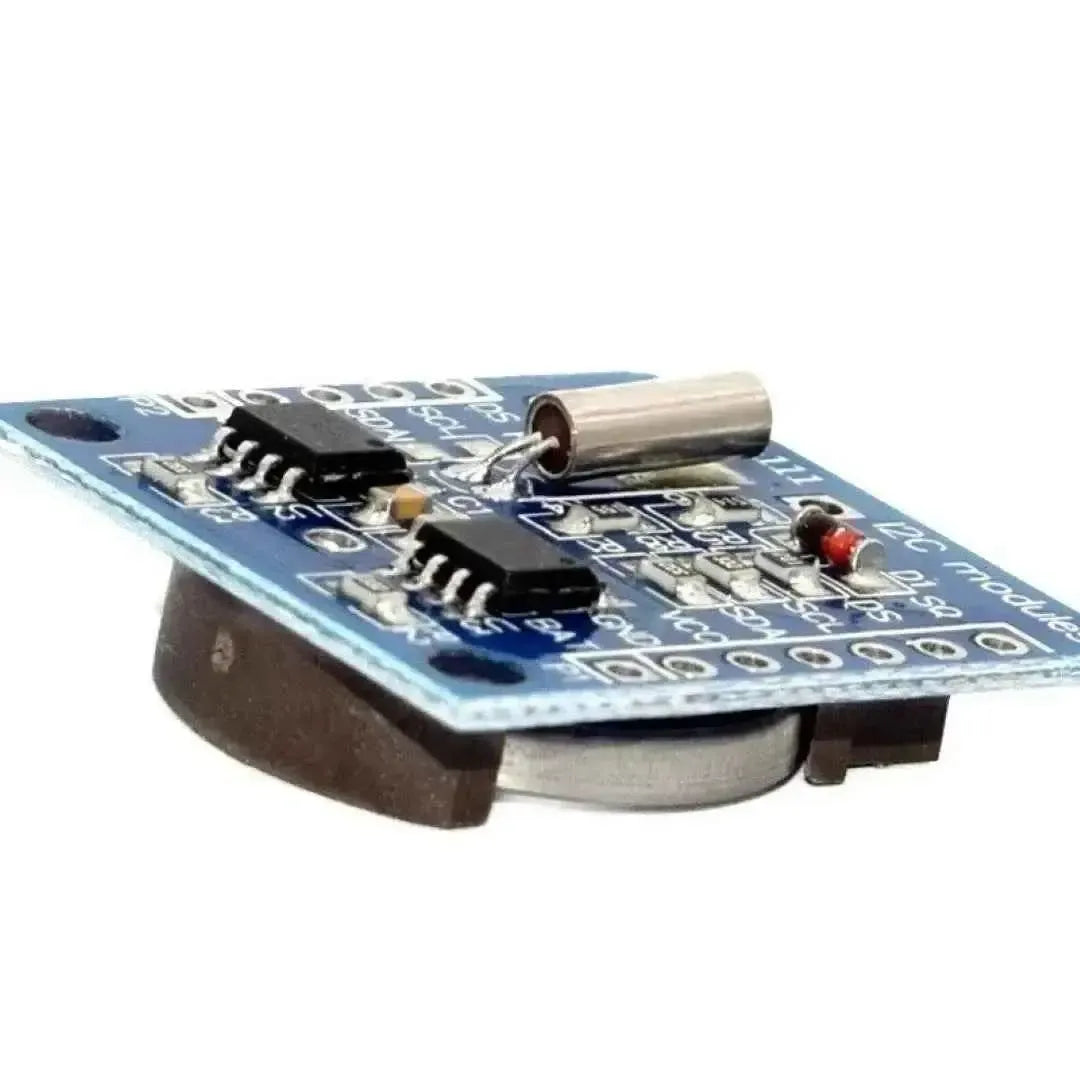

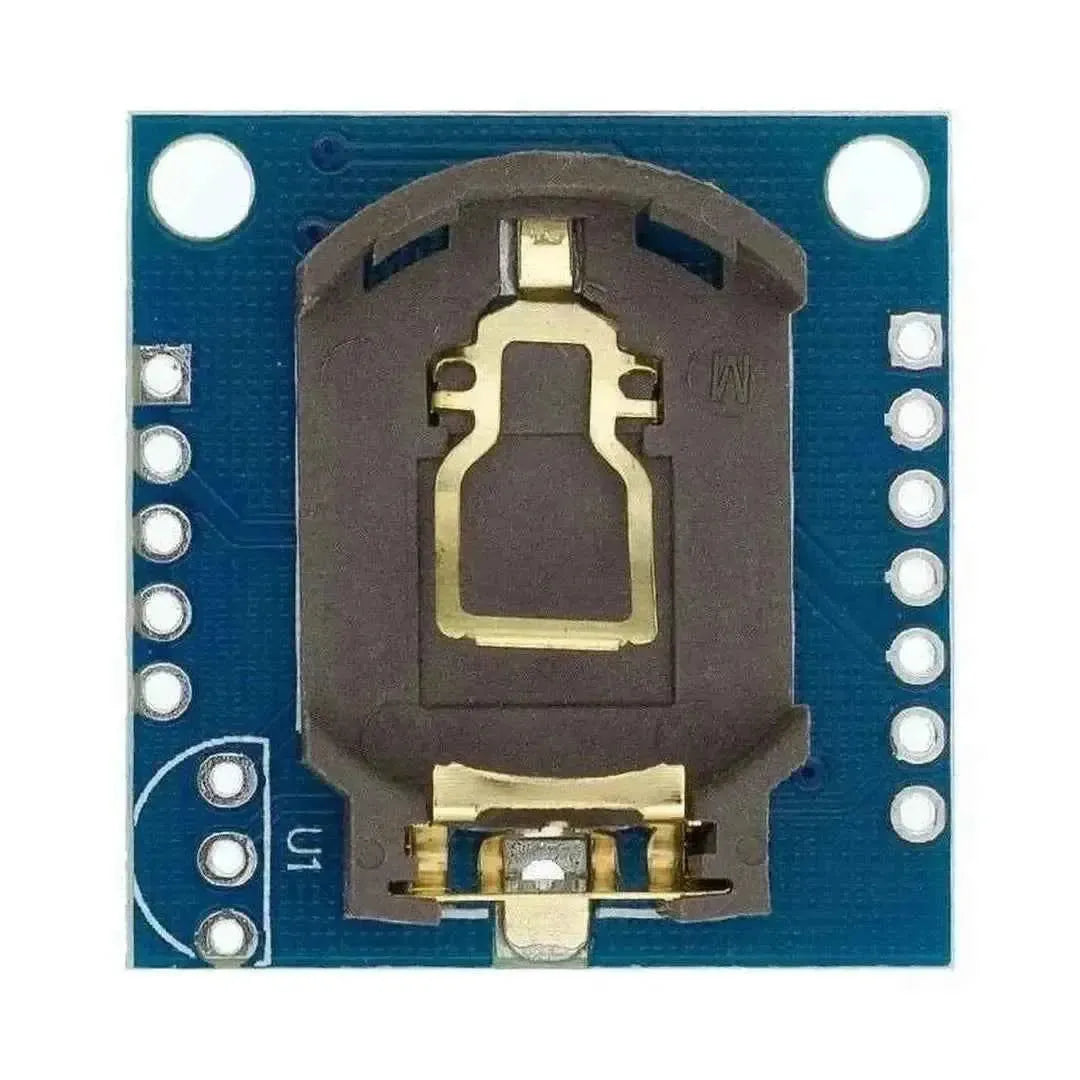

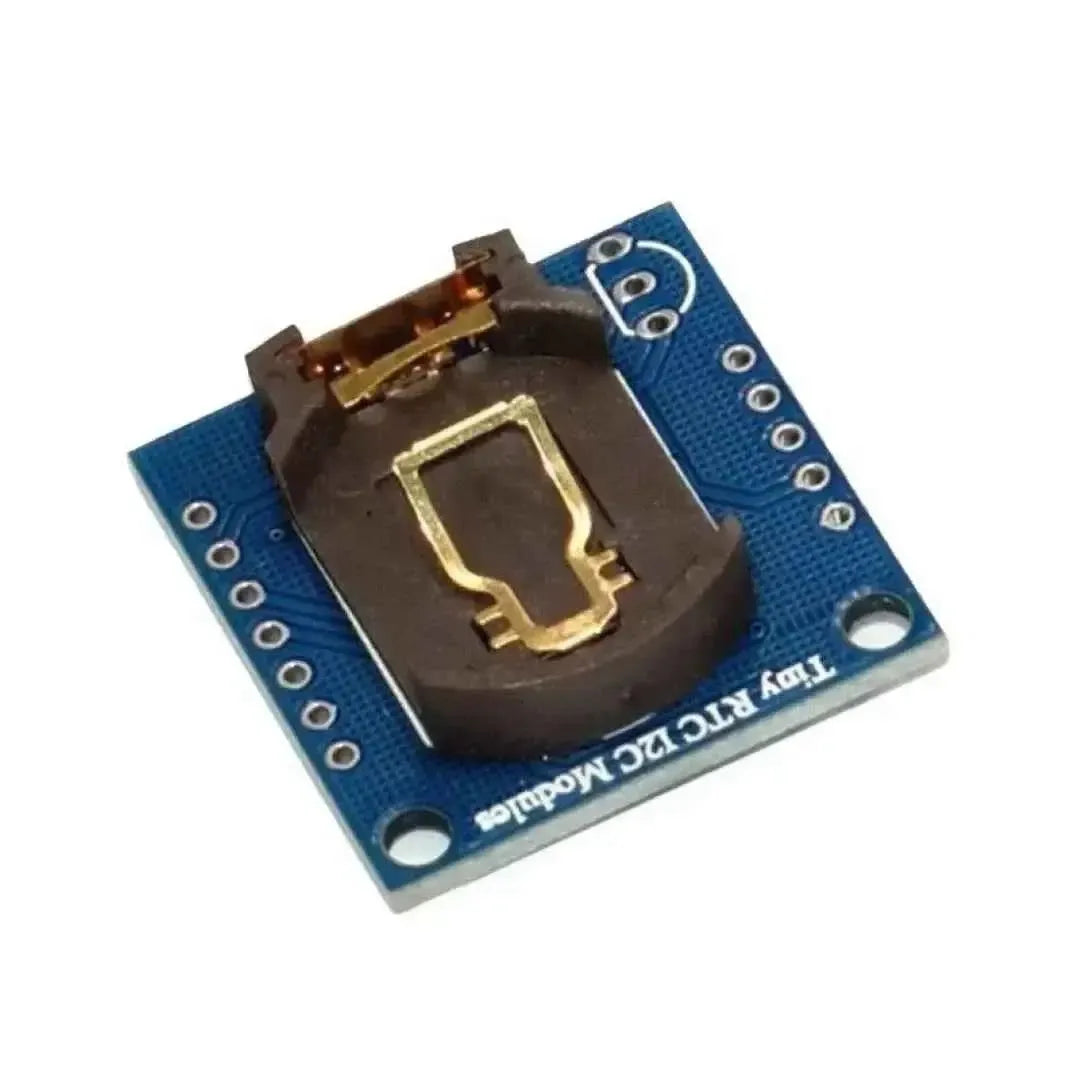

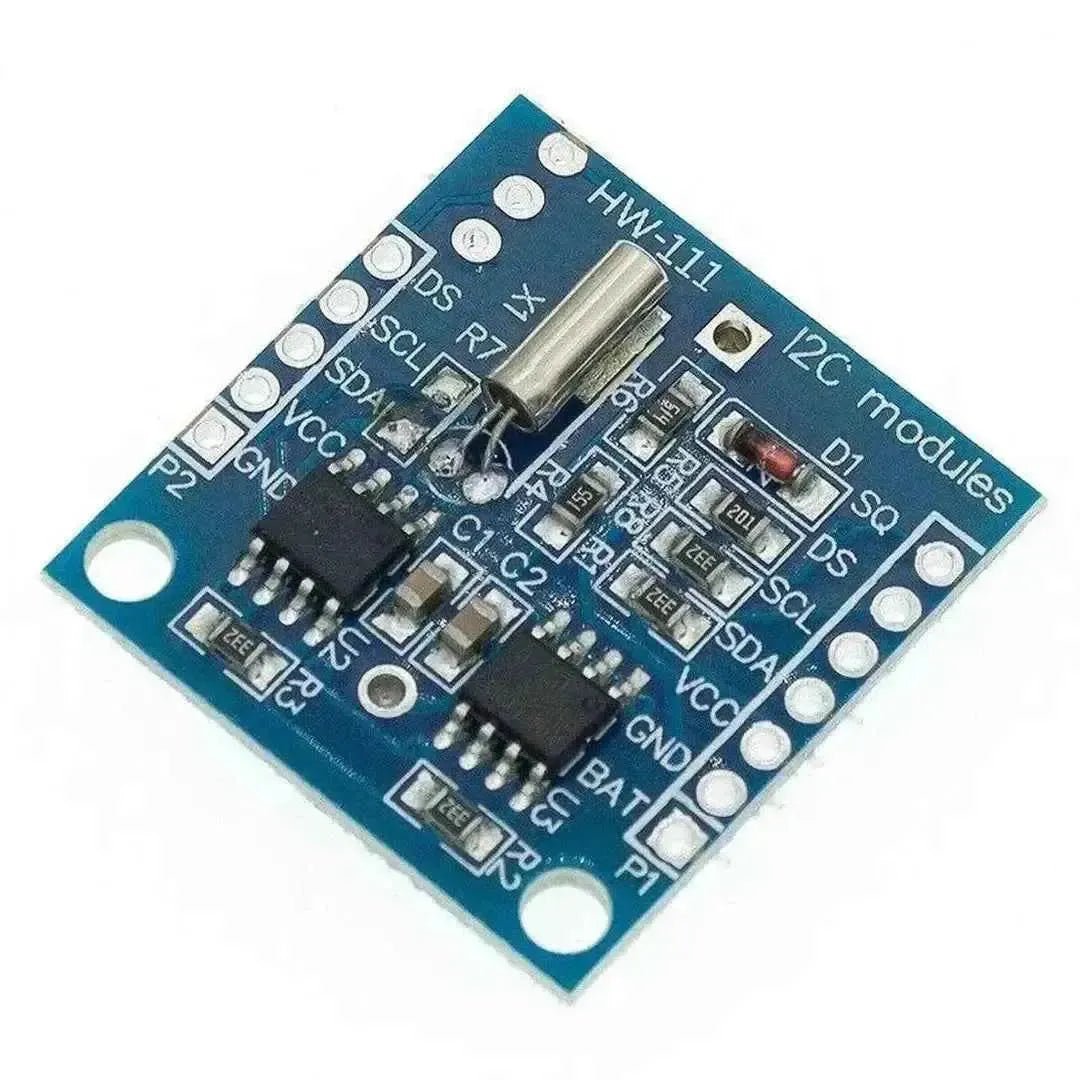

The DS1307 Real-Time Clock (RTC) is a widely used module for keeping time in Arduino projects. It maintains accurate time even when the Arduino is powered off, thanks to its onboard battery backup. In this tutorial, you’ll learn how to connect and program the DS1307 RTC module with the Arduino to display and update time.

---

What You Will Need

1. Arduino Board (e.g., Uno, Mega, Nano)
2. DS1307 RTC Module
3. Breadboard and Jumper Wires
4. A computer with the Arduino IDE installed
5. Libraries: RTClib

---

Step 1: Wiring the DS1307 RTC Module

The DS1307 RTC communicates with the Arduino via the I2C protocol.

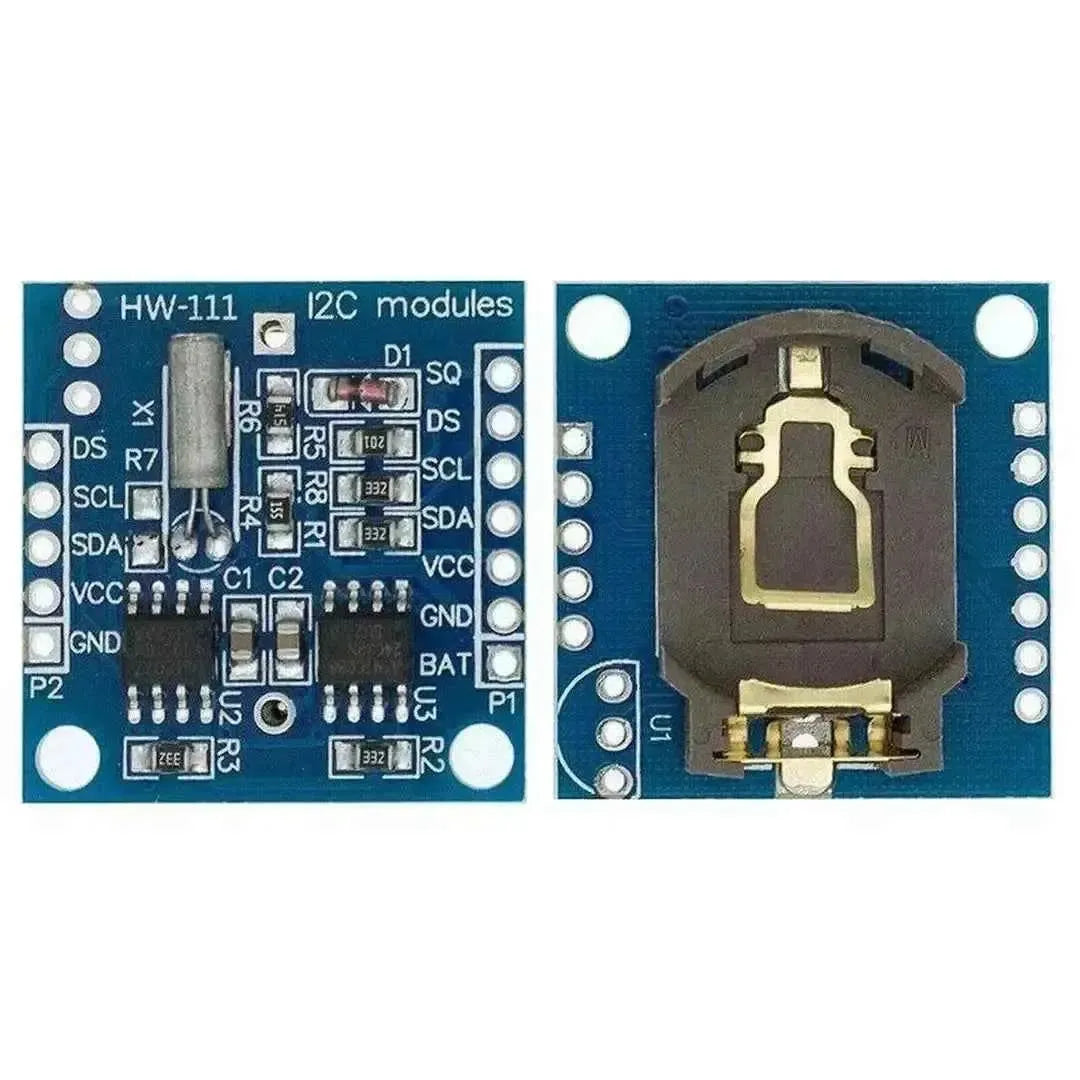

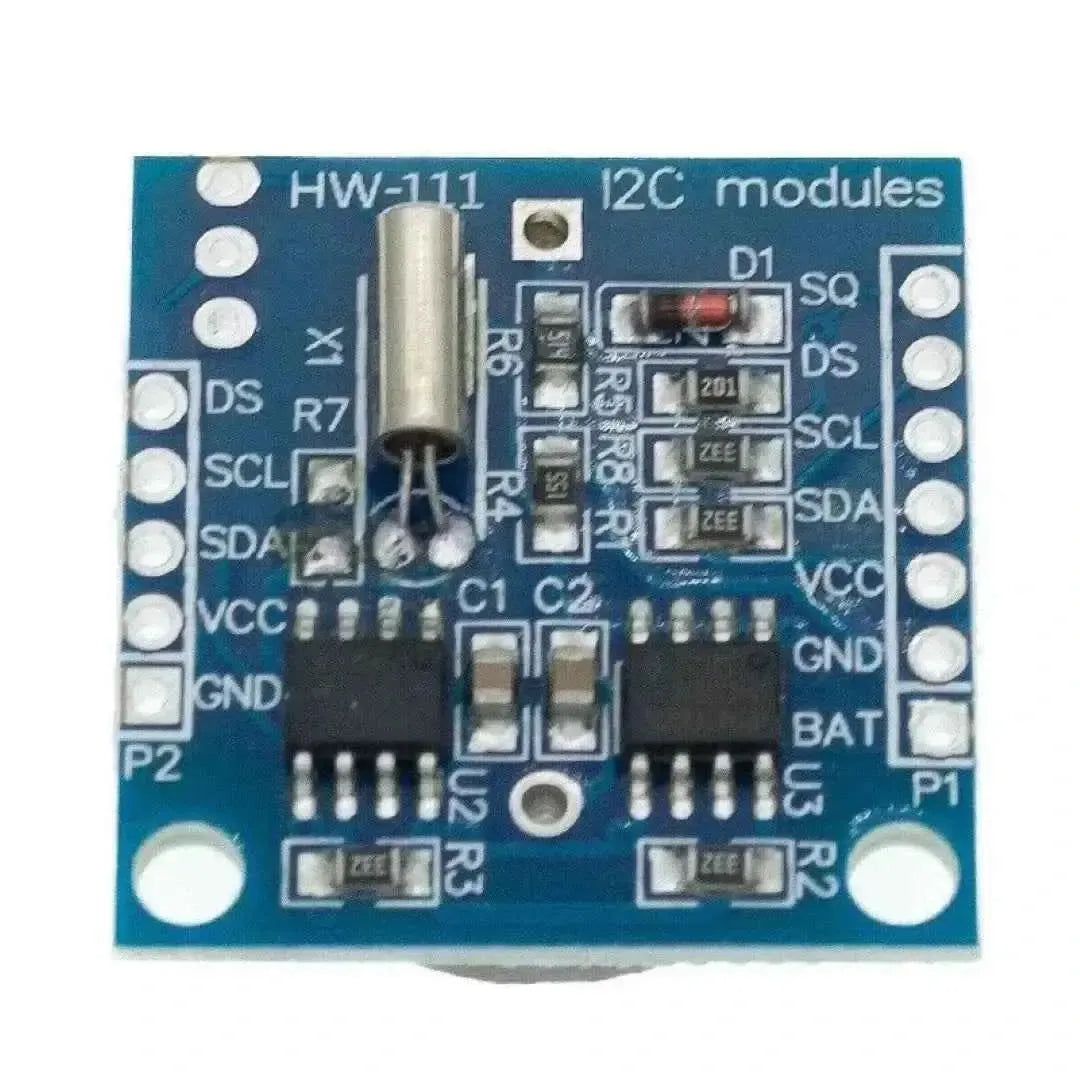

Connections

RTC Pin	Arduino Pin
VCC	5V
GND	GND
SDA	A4
SCL	A5

Note: If using an Arduino board with dedicated SDA and SCL pins (e.g., Mega), connect the RTC SDA/SCL pins to those instead.

---

Step 2: Installing the Required Library

To work with the DS1307 RTC, you’ll need the RTClib library.

Steps to Install RTClib

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "RTClib" in the Library Manager.
4. Click Install.

---

Step 3: Uploading Example Code

Here’s an example sketch to display the current date and time from the DS1307 module:

Example Code

#include <Wire.h>
#include <RTClib.h>

RTC_DS1307 rtc;

void setup() {
  Serial.begin(9600);

  // Initialize the RTC
  if (!rtc.begin()) {
    Serial.println("Couldn't find RTC");
    while (1);
  }

  // Check if the RTC is running
  if (!rtc.isrunning()) {
    Serial.println("RTC is NOT running! Setting the time...");
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
  }
}

void loop() {
  DateTime now = rtc.now();

  // Display the time
  Serial.print(now.hour());
  Serial.print(":");
  if (now.minute() < 10) {
    Serial.print("0");
  }
  Serial.print(now.minute());
  Serial.print(":");
  if (now.second() < 10) {
    Serial.print("0");
  }
  Serial.println(now.second());

  // Display the date
  Serial.print(now.day());
  Serial.print("/");
  Serial.print(now.month());
  Serial.print("/");
  Serial.println(now.year());

  delay(1000); // Update every second
}

---

Step 4: Adjusting the Time

If the RTC is not running or the time needs to be updated, you can use the following line in the setup() function:

rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));

• F(__DATE__) and F(__TIME__) are macros that set the date and time from your computer when you upload the sketch.

To set a specific time manually, use:

rtc.adjust(DateTime(2025, 1, 1, 12, 0, 0)); // YYYY, MM, DD, HH, MM, SS

---

Step 5: Using the RTC Data in Your Projects

The DS1307 can provide time data for a variety of applications, such as:

1. Data Logging: Timestamp sensor readings or events.
2. Alarms and Timers: Trigger actions based on specific times.
3. Clocks: Create digital or analog clocks with displays.

Example: Triggering an Action at a Specific Time

void loop() {
  DateTime now = rtc.now();

  // Check if it's 8:00 AM
  if (now.hour() == 8 && now.minute() == 0 && now.second() == 0) {
    Serial.println("It's 8:00 AM!");
  }

  delay(1000);
}

---

Troubleshooting

1. RTC Not Found:

   • Verify SDA and SCL connections.
   • Ensure the battery is installed correctly.

2. Incorrect Time:

   • Use rtc.adjust() to reset the time.
   • Check for a drained or missing RTC battery.

3. Inconsistent Data:

   • Ensure stable power supply to the Arduino and RTC module.

---

Applications of the DS1307 RTC

1. Real-time clocks and alarms
2. Time-based automation systems
3. Data logging with timestamps
4. Reminder systems

---

Conclusion

The DS1307 RTC module is an excellent tool for adding timekeeping functionality to your Arduino projects. By following this guide, you can set up the RTC, display time and date, and incorporate it into various applications. Experiment with combining the DS1307 with displays or sensors to build even more dynamic projects!
