The MAX3232 is an RS232-to-TTL level converter that allows Arduino to communicate with RS232 devices like older computers, GPS modules, and industrial equipment. It converts the voltage levels between RS232 (±12V) and TTL (0-5V or 0-3.3V), enabling seamless serial communication. This tutorial will guide you through connecting and using the MAX3232 with Arduino.
What You Will Need
- MAX3232 Module (or chip with capacitors)
- Arduino Board (e.g., Uno, Mega, Nano)
- RS232 Device (e.g., PC, GPS module)
- RS232 Serial Cable (if applicable)
- Jumper Wires
- A computer with the Arduino IDE installed

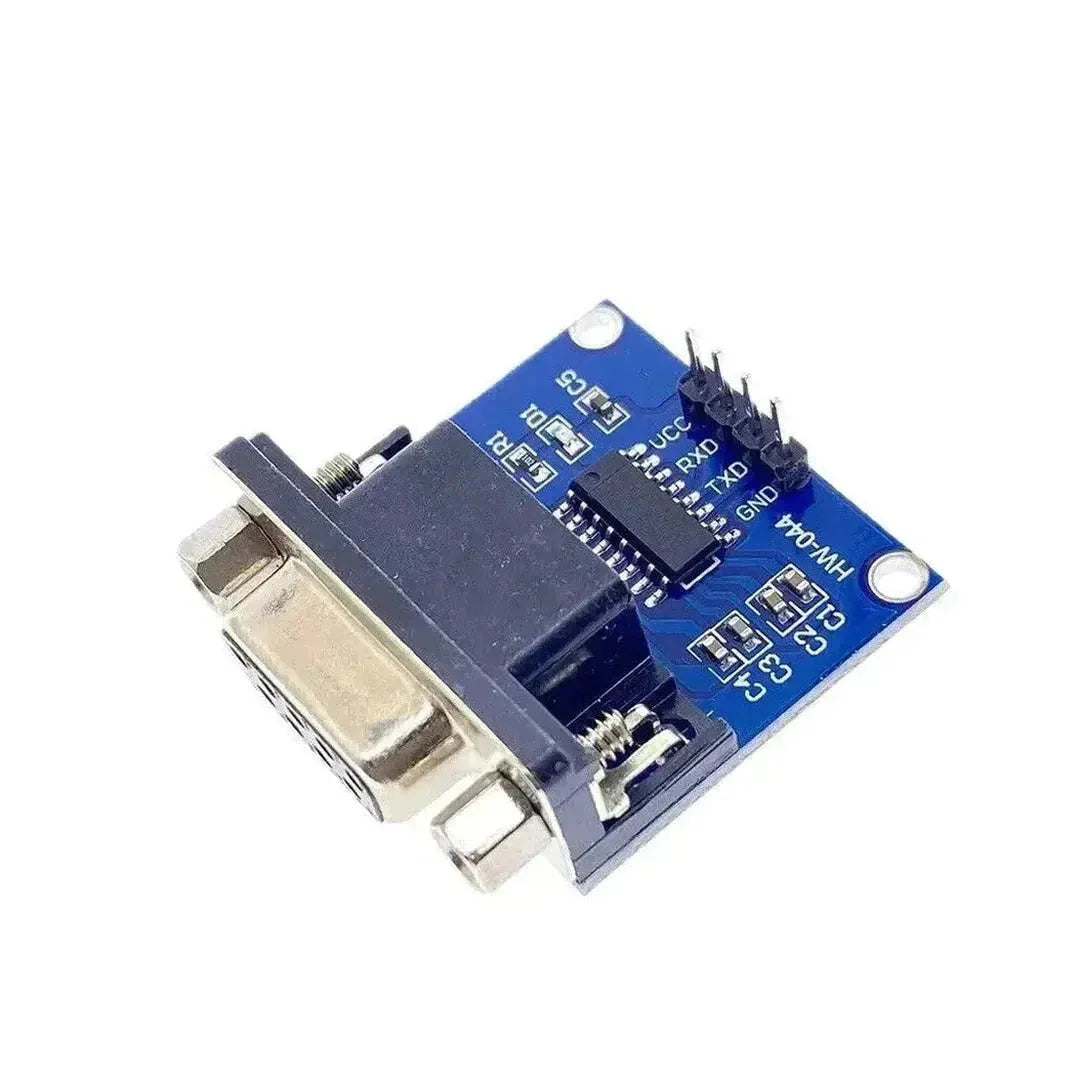

Step 1: Understanding the MAX3232 Module
The MAX3232 converts voltage levels for RS232 communication and supports both 3.3V and 5V logic levels.
MAX3232 Pinout
| Pin | Function |
|---|---|
| VCC | Power Supply (3.3V or 5V) |
| GND | Ground |
| T1IN | TTL Serial Input |
| R1OUT | TTL Serial Output |
| R1IN | RS232 Serial Input |
| T1OUT | RS232 Serial Output |
Note: Some modules have additional pins for a second RS232 channel (T2IN, R2OUT, etc.).
Step 2: Wiring the MAX3232 to Arduino
Connect the MAX3232 to Arduino
| MAX3232 Pin | Arduino Pin |
|---|---|
| VCC | 5V (or 3.3V) |
| GND | GND |
| T1IN | TX (Pin 1) |
| R1OUT | RX (Pin 0) |
Connect the RS232 Device to the MAX3232
| MAX3232 Pin | RS232 Pin |
|---|---|
| R1IN | RS232 TX (Pin 2) |
| T1OUT | RS232 RX (Pin 3) |
Important: Ensure your RS232 device's TX and RX pins are correctly mapped to the MAX3232's RX and TX pins.
Step 3: Upload the Arduino Code
Here’s an example sketch to send and receive data using the MAX3232 module:
Code Example: Echo Data from RS232 Device
void setup() {
Serial.begin(9600); // Initialize serial communication with the Arduino (TTL)
Serial.println("MAX3232 RS232-to-TTL Test");
}
void loop() {
// Check if data is available from the RS232 device
if (Serial.available()) {
char data = Serial.read(); // Read data from the RS232 device
Serial.print("Received: ");
Serial.println(data); // Print the received data to the Serial Monitor
// Echo the data back to the RS232 device
Serial.write(data);
}
}
Step 4: Test the Setup
- Connect the RS232 device to the MAX3232 module.
- Connect the Arduino to your computer via USB.
- Open the Arduino IDE and select the correct Board and Port under the Tools menu.
- Upload the code to the Arduino by clicking Upload.
- Open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to
9600. - Send data from the RS232 device and observe the output in the Serial Monitor.
- The Arduino will echo the received data back to the RS232 device.
Applications of the MAX3232
- Connecting Arduino to legacy RS232 devices (e.g., PCs, PLCs, modems).
- Interfacing with RS232-based sensors and GPS modules.
- Building RS232-to-TTL converters for debugging or communication.
- Industrial automation and control systems.
Troubleshooting
- No communication: Double-check the wiring, especially TX and RX connections.
- Incorrect baud rate: Ensure the baud rate matches between the RS232 device and Arduino.
- Voltage mismatch: Verify that the MAX3232 module is powered with the correct voltage (3.3V or 5V).
- Data garbled: Check for proper grounding between devices and ensure cable quality.
Conclusion
You’ve successfully interfaced the MAX3232 RS232-to-TTL converter with Arduino, enabling communication with RS232 devices. This versatile module is essential for integrating Arduino with legacy or industrial systems. Experiment further by sending and receiving more complex data to enhance your projects!
