How to Use the MAX9814 Microphone Module with Arduino

The MAX9814 is an amplifier module with an automatic gain control (AGC) that is ideal for audio recording and sound detection applications. It provides clear audio input for projects like voice recognition, sound-activated systems, and audio measurement. This tutorial will guide you through connecting and using the MAX9814 microphone module with Arduino.

What You Will Need

1. MAX9814 Microphone Module
2. Arduino Board (e.g., Uno, Mega, Nano)
3. Breadboard and Jumper Wires
4. A computer with the Arduino IDE installed

---

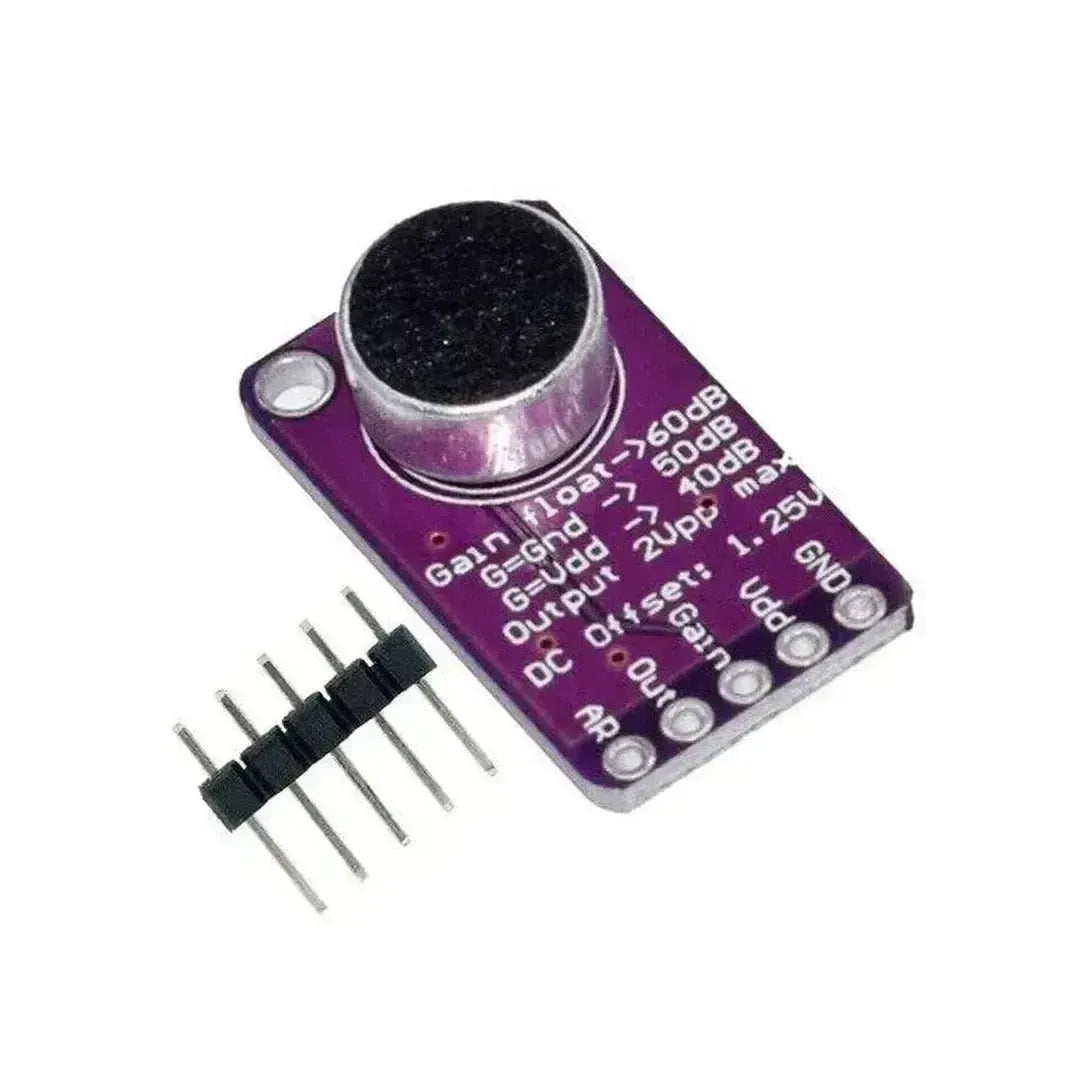

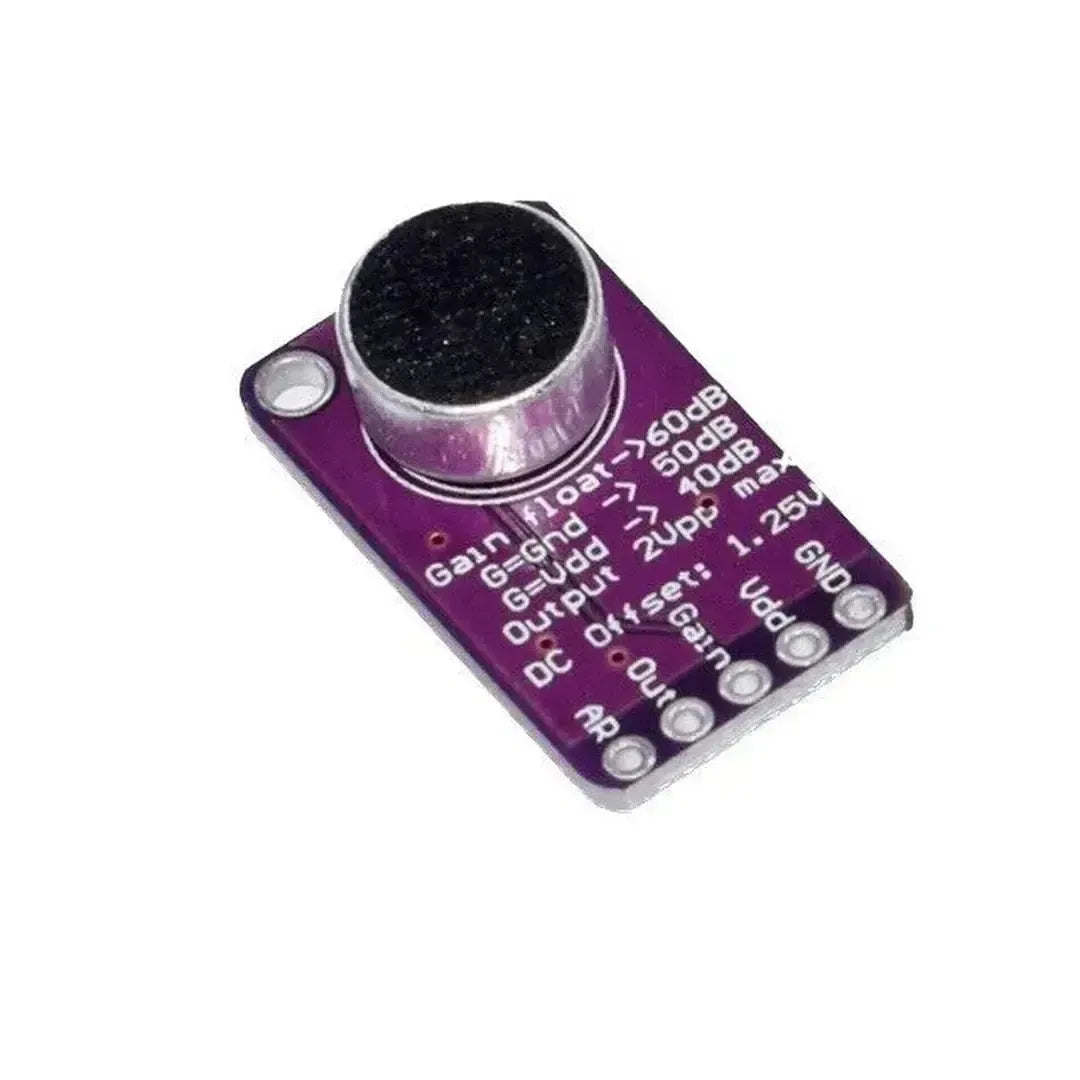

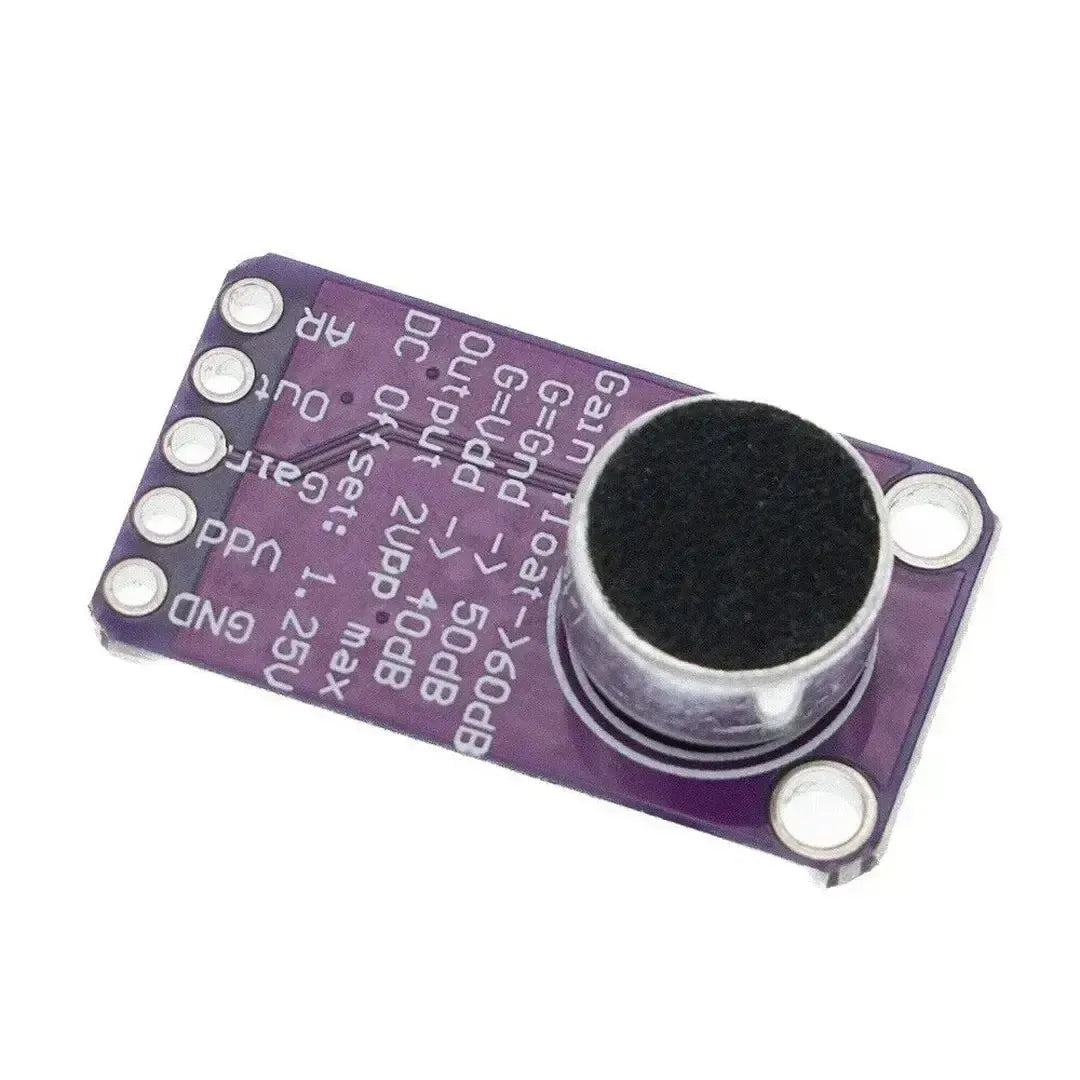

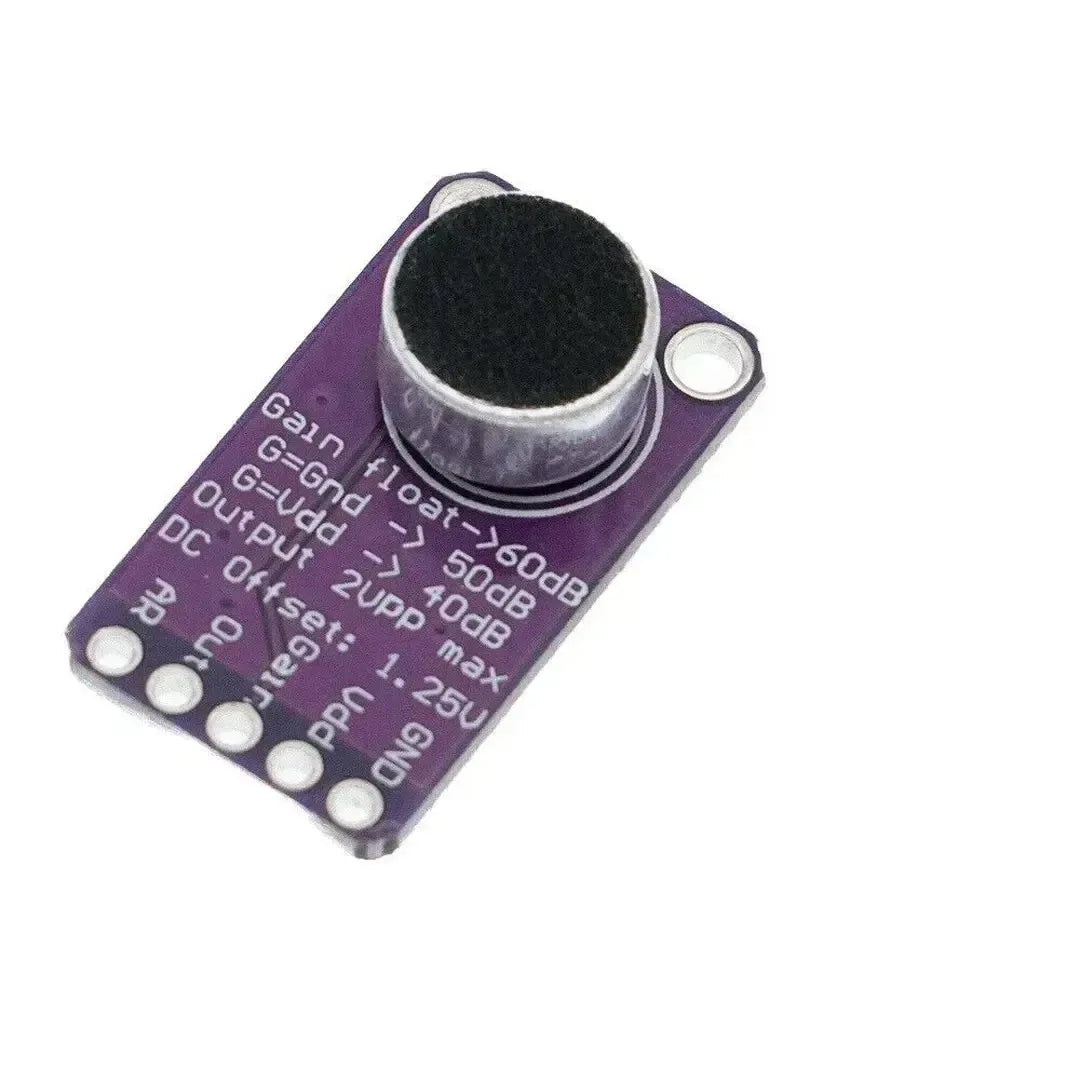

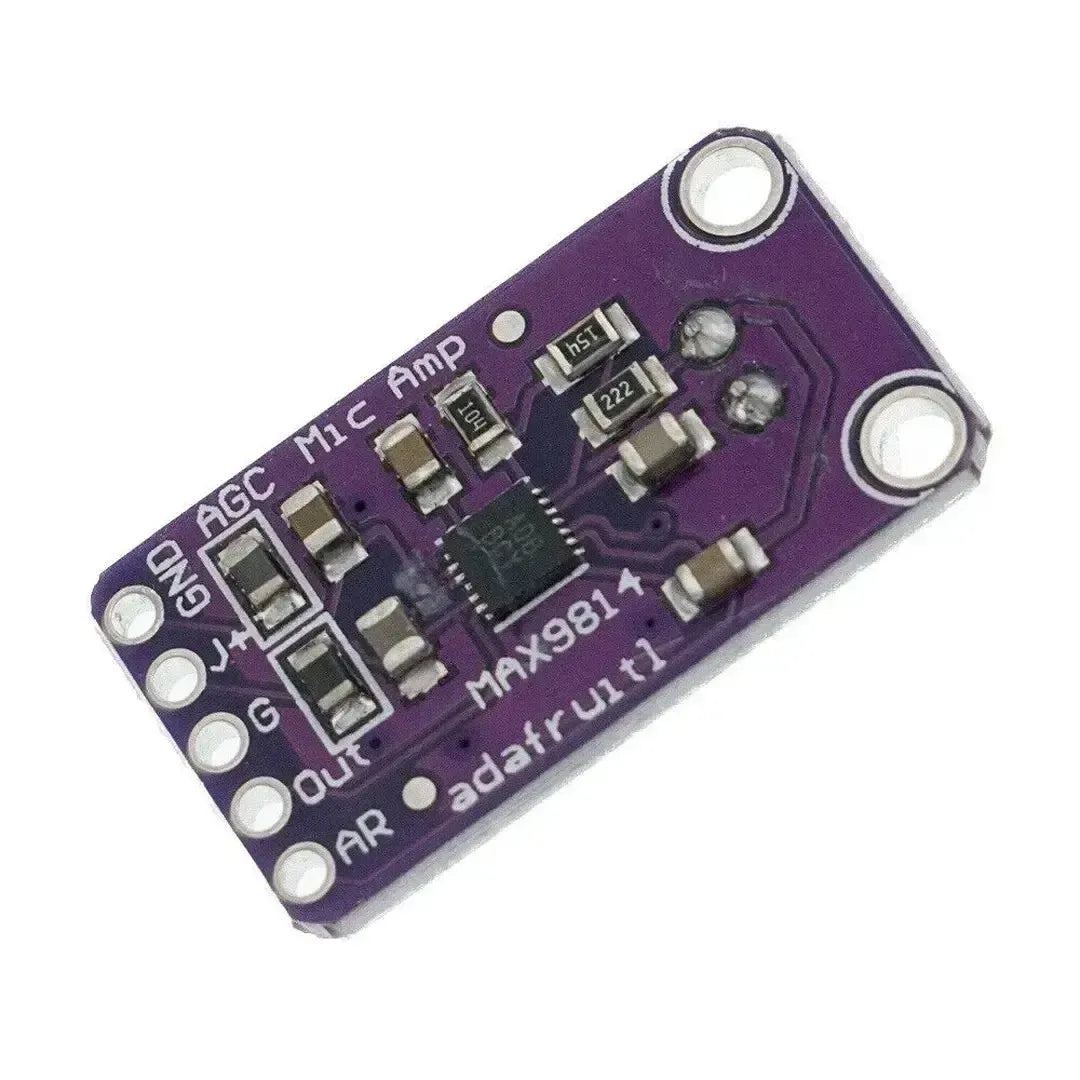

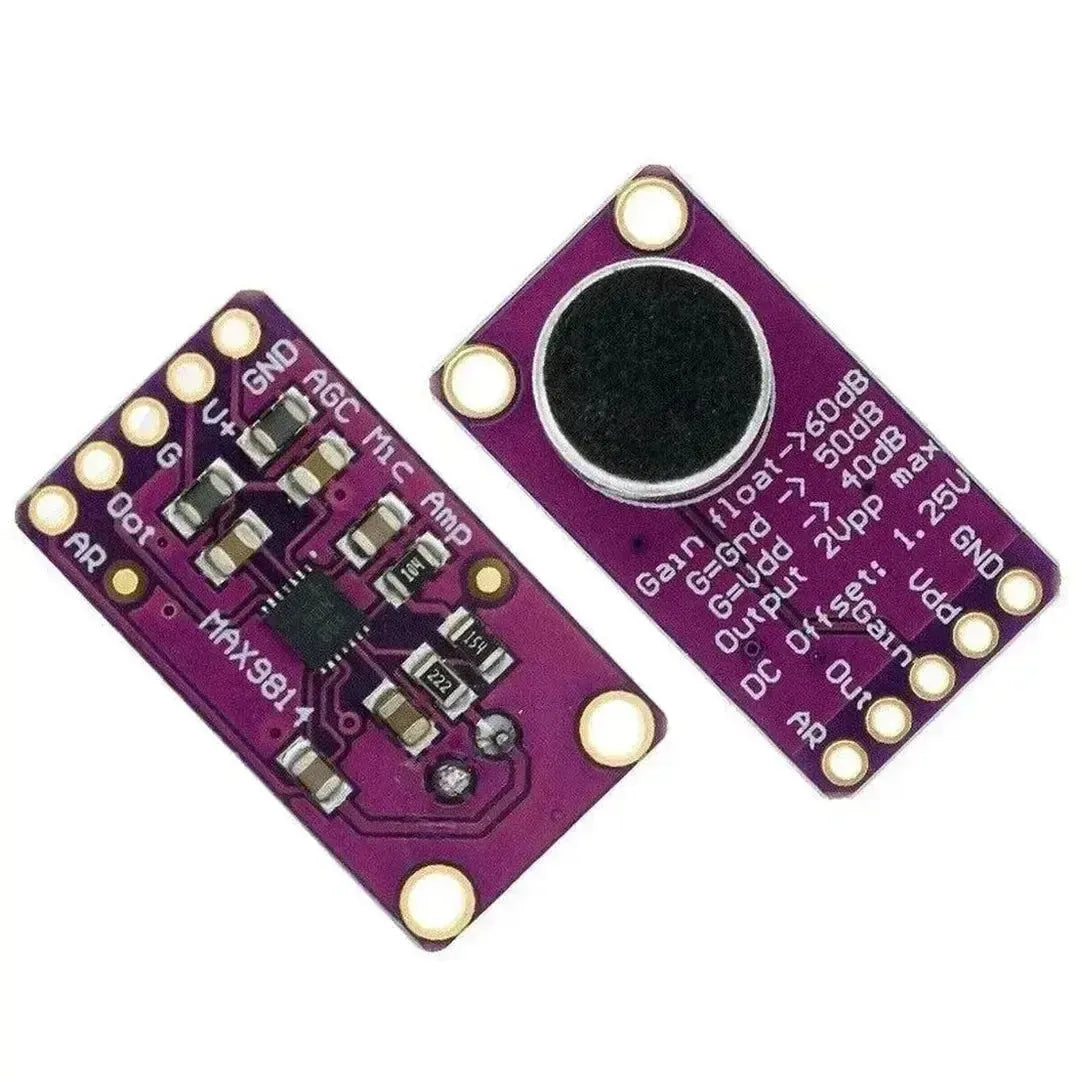

Step 1: Understanding the MAX9814 Module

The MAX9814 features:

• A built-in microphone.
• Automatic Gain Control (AGC) for consistent output.
• Three adjustable gain settings (40dB, 50dB, 60dB).

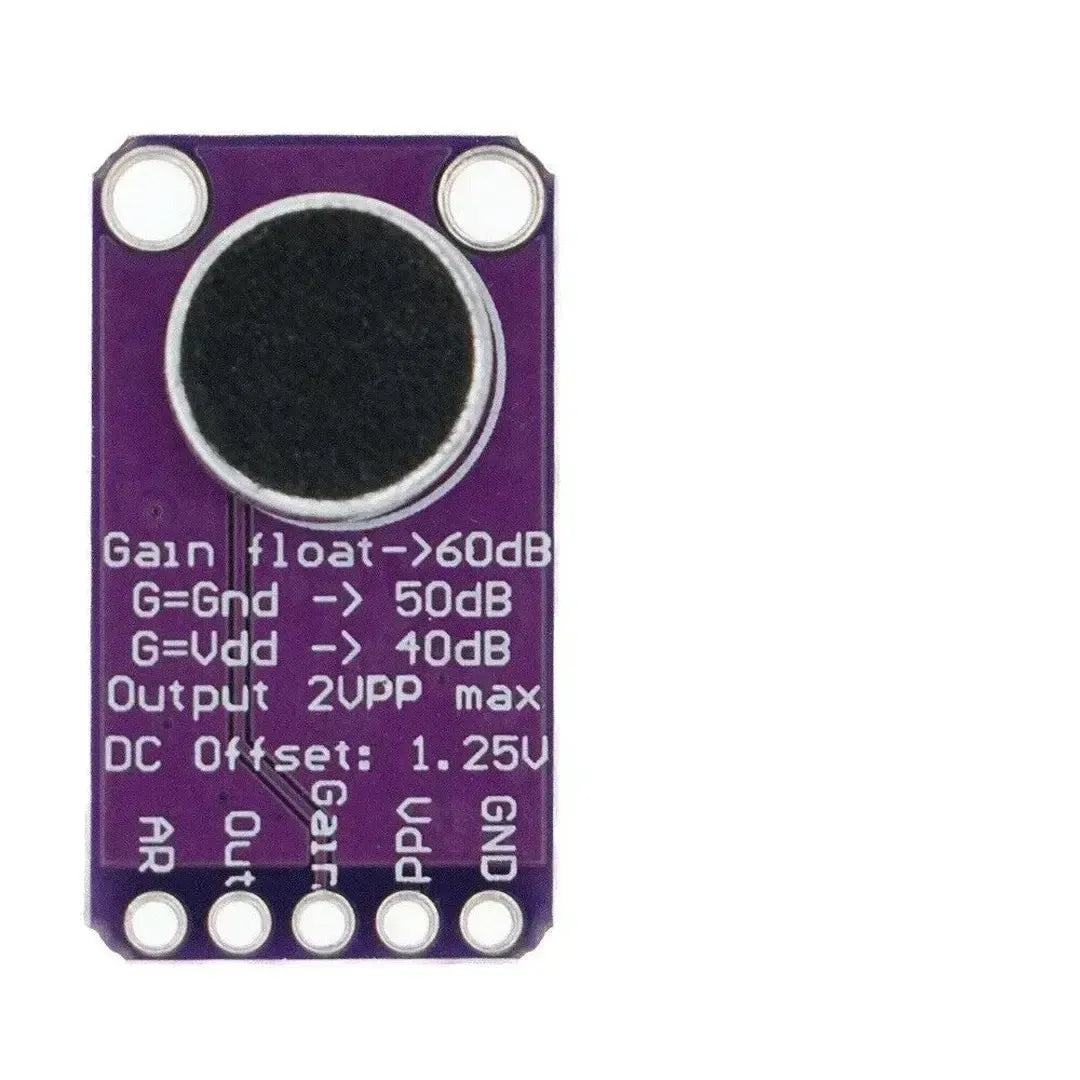

Pinout

Pin	Function
VCC	Power Supply (3.3V or 5V)
GND	Ground
OUT	Analog Output Signal

---

Step 2: Wiring the MAX9814 to Arduino

Below is the wiring for connecting the MAX9814 module to an Arduino Uno:

MAX9814 Pin	Arduino Pin
VCC	5V
GND	GND
OUT	A0

Note: The analog output (OUT) from the MAX9814 provides the audio signal for the Arduino to process.

---

Step 3: Upload the Code

Here’s an example sketch to read audio signals from the MAX9814 and display the amplitude on the Serial Monitor:

const int microphonePin = A0; // Connect MAX9814 OUT to A0

void setup() {
  Serial.begin(9600);
  Serial.println("MAX9814 Microphone Test");
}

void loop() {
  int audioValue = analogRead(microphonePin); // Read audio signal
  Serial.print("Audio Amplitude: ");
  Serial.println(audioValue);
  delay(10); // Small delay for smooth readings
}

---

Step 4: Test the Setup

1. Connect the Arduino to your computer via USB.
2. Open the Arduino IDE and select the correct Board and Port under the Tools menu.
3. Upload the code by clicking Upload.
4. Open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to 9600.
5. Speak or make a noise near the microphone. You should see amplitude values in the Serial Monitor change according to the sound intensity.

---

Optional: Visualize Audio Signal

If you want to visualize the audio signal in real time, you can use the Arduino Serial Plotter:

1. Replace the Serial.println(audioValue); line in the code with:

   Serial.println(audioValue);


2. Open the Serial Plotter (Tools > Serial Plotter) after uploading the code.
3. Observe the waveform as sound is detected by the microphone.

---

Step 5: Fine-Tuning the Module

1. Gain Adjustment:

   • The module’s gain can be adjusted by changing the onboard resistors. Most modules allow selecting between 40dB, 50dB, and 60dB.

2. Power Supply:

   • The module works with both 3.3V and 5V, but ensure a stable power supply to minimize noise.

---

Applications of the MAX9814

1. Voice recognition systems
2. Sound-activated projects
3. Environmental sound monitoring
4. Audio recording and measurement

---

Troubleshooting

• No response in Serial Monitor: Double-check the wiring, especially the OUT and GND connections.
• Noise or unstable readings: Ensure the module is powered with a clean 5V supply and keep the wiring short to reduce interference.
• Low sensitivity: Try increasing the gain or ensure the sound source is close to the microphone.

---

Conclusion

You’ve successfully interfaced the MAX9814 microphone module with Arduino and read audio amplitude values. This module’s high sensitivity and automatic gain control make it a versatile tool for audio-based projects. Experiment further by integrating the MAX9814 with other sensors or using it in sound-reactive systems!
