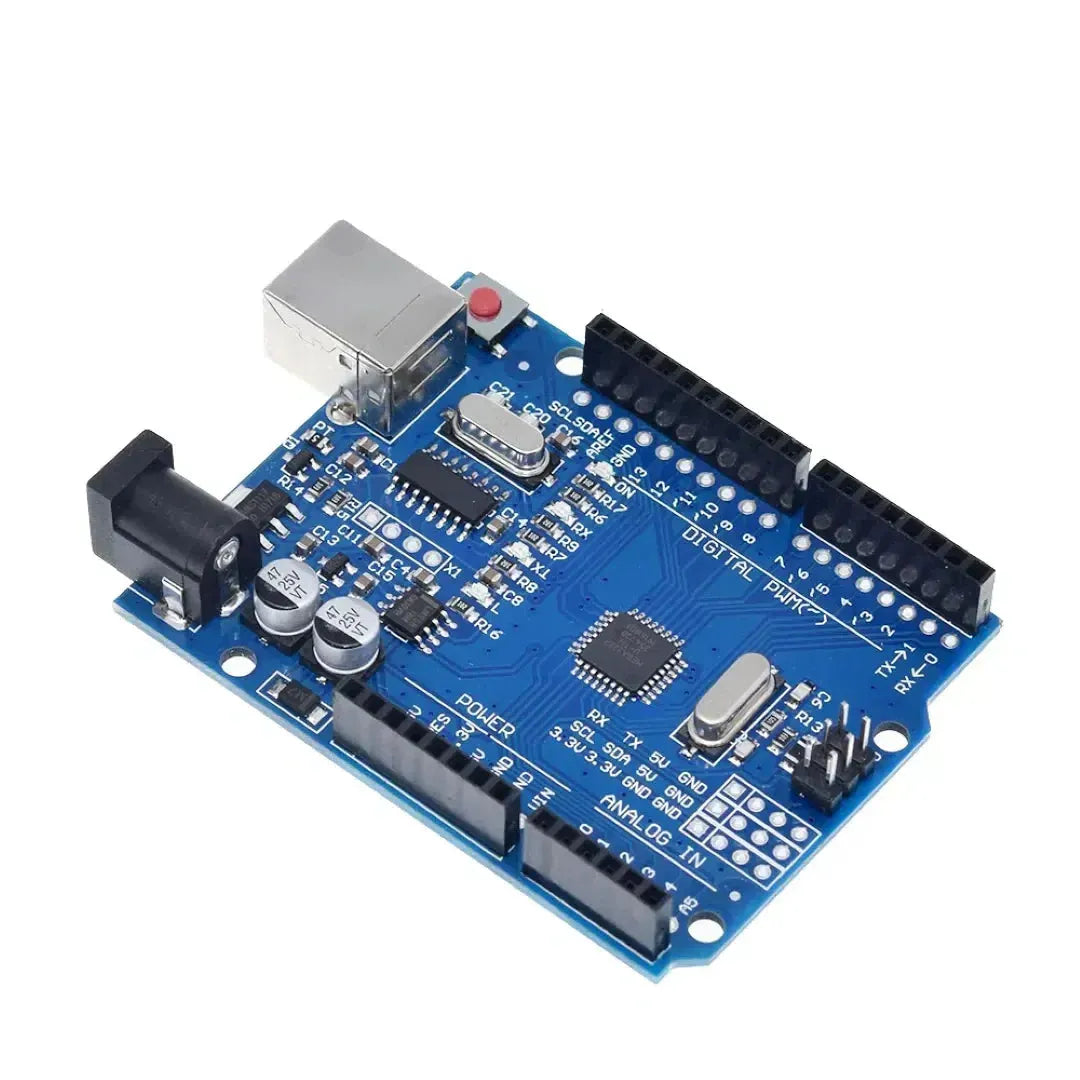

Measuring Current with the Arduino

Measuring current in electronic circuits is a common requirement for projects involving sensors, motors, LEDs, and other components. While Arduino cannot directly measure current, you can use external components like a current sensor or a shunt resistor to indirectly measure it. This tutorial will guide you through the process of measuring current with an Arduino.

---

What You Will Need

1. Arduino Board (e.g., Uno, Mega, Nano)
2. Current Sensor (e.g., ACS712, INA219) or Shunt Resistor
3. Breadboard and Jumper Wires
4. Load Device (e.g., LED, motor, or any component you want to measure current for)
5. Power Supply (5V or 12V depending on your load)
6. A computer with the Arduino IDE installed

---

Method 1: Using a Current Sensor

Current sensors like the ACS712 or INA219 simplify current measurement by providing an analog or digital output proportional to the current.

1. Using the ACS712 Current Sensor

The ACS712 sensor measures both AC and DC current and outputs an analog signal proportional to the current flowing through it.

Wiring Diagram

ACS712 Pin	Connection
VCC	Arduino 5V
GND	Arduino GND
OUT	Arduino Analog Pin (e.g., A0)
IP+	Positive Load Connection
IP-	Negative Load Connection

Example Code

#define sensorPin A0
const float sensitivity = 0.185; // Sensitivity for ACS712-05B (mV per A)
const int zeroPoint = 512; // Zero current output in ADC counts

void setup() {
  Serial.begin(9600);
}

void loop() {
  int sensorValue = analogRead(sensorPin);
  float voltage = (sensorValue / 1023.0) * 5.0; // Convert to voltage
  float current = (voltage - (zeroPoint / 1023.0) * 5.0) / sensitivity; // Calculate current

  Serial.print("Current: ");
  Serial.print(current, 3);
  Serial.println(" A");

  delay(1000);
}

---

2. Using the INA219 Current Sensor

The INA219 is a high-precision current sensor that communicates with Arduino via I2C, offering both current and voltage measurements.

Wiring Diagram

INA219 Pin	Connection
VCC	Arduino 5V
GND	Arduino GND
SDA	Arduino SDA (e.g., A4 on Uno)
SCL	Arduino SCL (e.g., A5 on Uno)
VIN+	Positive Load Connection
VIN-	Negative Load Connection

Example Code

Install the Adafruit INA219 Library via the Arduino Library Manager.

#include <Wire.h>
#include <Adafruit_INA219.h>

Adafruit_INA219 ina219;

void setup() {
  Serial.begin(9600);
  if (!ina219.begin()) {
    Serial.println("Failed to find INA219 chip");
    while (1);
  }
}

void loop() {
  float current_mA = ina219.getCurrent_mA();

  Serial.print("Current: ");
  Serial.print(current_mA);
  Serial.println(" mA");

  delay(1000);
}

---

Method 2: Using a Shunt Resistor

A shunt resistor is a low-resistance resistor placed in series with the load. By measuring the voltage drop across the shunt resistor, you can calculate the current using Ohm’s Law:

I = V / R

Wiring Diagram

Component	Connection
Shunt Resistor	In series with the load
Arduino Analog Pin	Across the shunt resistor
Load	Connected to power supply

Example Code

#define shuntPin A0
const float shuntResistance = 0.1; // Resistance in ohms

void setup() {
  Serial.begin(9600);
}

void loop() {
  int sensorValue = analogRead(shuntPin);
  float voltage = (sensorValue / 1023.0) * 5.0; // Convert to voltage
  float current = voltage / shuntResistance; // Calculate current

  Serial.print("Current: ");
  Serial.print(current, 3);
  Serial.println(" A");

  delay(1000);
}

---

Best Practices for Accurate Measurements

1. Choose the Right Sensor: Select a current sensor or shunt resistor suitable for your expected current range.
2. Calibrate Your Setup: Adjust the code for your specific sensor or shunt resistor to ensure accurate readings.
3. Minimize Noise: Use short, thick wires and avoid noisy environments to reduce measurement errors.
4. Monitor Power Limits: Ensure the sensor or shunt resistor can handle the maximum current without overheating.

---

Applications of Current Measurement

1. Monitoring battery consumption in IoT devices
2. Measuring current draw in motors
3. Testing LEDs and other components
4. Power management in embedded systems

---

Troubleshooting

• Incorrect Readings: Double-check sensor wiring and calibration values.
• No Output: Ensure the load is connected and current is flowing.
• Fluctuating Values: Add a capacitor across the sensor’s power supply to stabilize the readings.

---

Conclusion

Measuring current with an Arduino is straightforward when using the right tools like current sensors or shunt resistors. By following this guide, you can monitor current in your circuits accurately, enabling better power management and system diagnostics. Experiment with different sensors to find the best fit for your projects!
