Using a Rain/Snow Sensor with the Raspberry Pi

A Rain/Snow Sensor is a useful device for weather monitoring systems. It detects rainfall or snow and can trigger alerts or automate actions based on weather conditions. This guide explains how to use a Rain/Snow Sensor with the Raspberry Pi to monitor weather patterns and integrate the sensor into your projects.

What You Will Need

Raspberry Pi (any model with GPIO support, e.g., Pi 3, Pi 4)

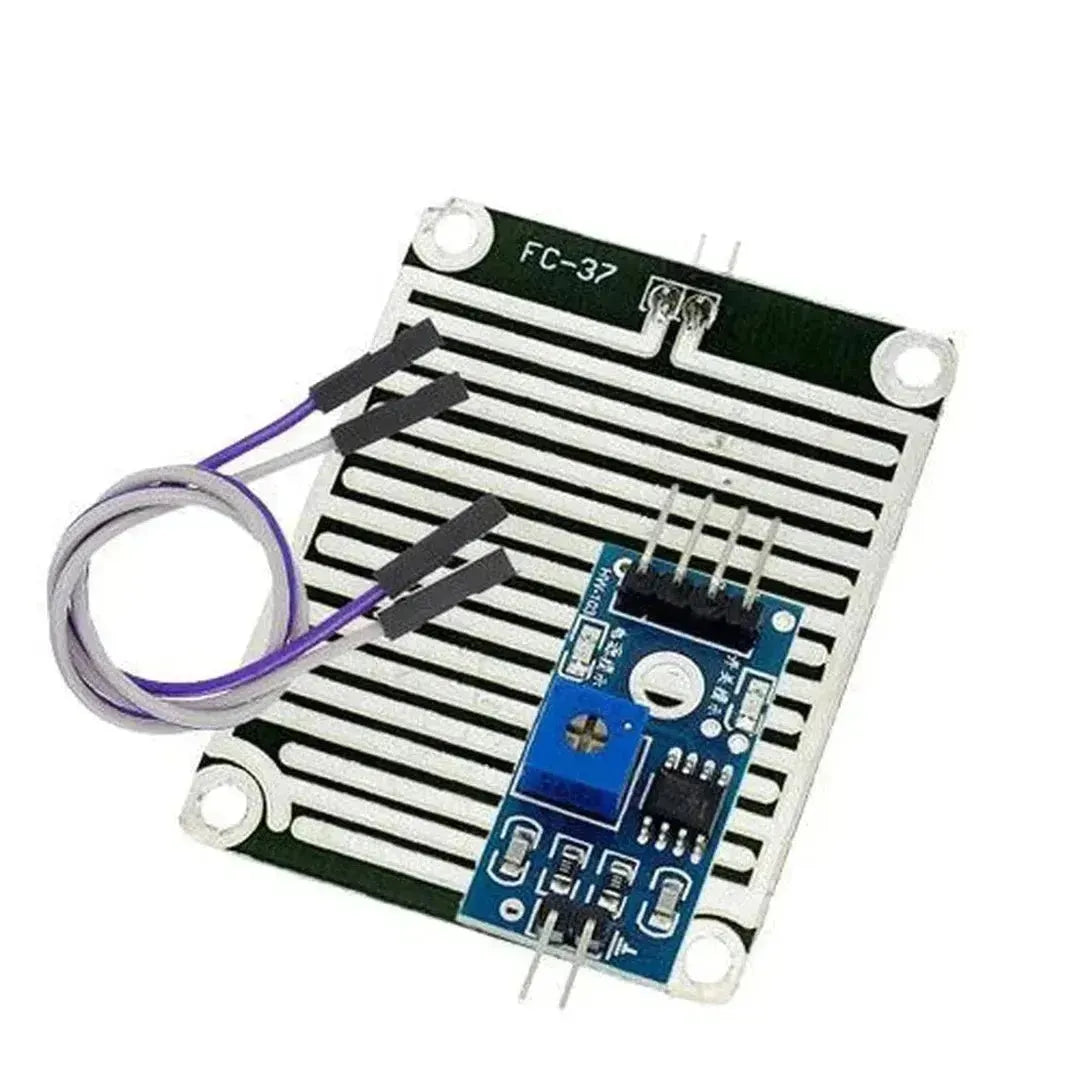

Rain/Snow Sensor (e.g., YL-83 or similar)
Breadboard and Jumper Wires
Python 3 installed on your Raspberry Pi
GPIO Pins on the Raspberry Pi

Step 1: Wiring the Rain/Snow Sensor to the Raspberry Pi

The Rain/Snow Sensor module usually has three main pins: VCC, GND, and an output pin that connects to the Raspberry Pi’s GPIO pin.

Connections

Rain/Snow Sensor Pin	Raspberry Pi Pin
VCC	3.3V (Pin 1)
GND	Ground (Pin 6)
Output	GPIO (e.g., Pin 17, GPIO 0)

Step 2: Enable GPIO on the Raspberry Pi

Ensure that your Raspberry Pi’s GPIO is enabled. It should be by default, but if not, you can enable it using:

sudo raspi-config

Navigate to Interface Options > GPIO and ensure it is enabled.

Step 3: Python Setup

We will use Python to read the output from the Rain/Snow Sensor.

Install RPi.GPIO library (if not already installed):

sudo apt update
sudo apt install python3-rpi.gpio

Write the Python Code to read the sensor’s output.

Python Code Example

import RPi.GPIO as GPIO
import time

# Set the GPIO mode
GPIO.setmode(GPIO.BCM)

# Pin configuration
sensor_pin = 17  # Pin 17 for rain/snow sensor output

# Set up the GPIO pin as input
GPIO.setup(sensor_pin, GPIO.IN)

def rain_detected(channel):
    print("Rain or Snow Detected!")

# Attach an event detection to the sensor pin
GPIO.add_event_detect(sensor_pin, GPIO.RISING, callback=rain_detected)

try:
    print("Monitoring for rain/snow...")
    while True:
        time.sleep(1)  # Keep the script running

except KeyboardInterrupt:
    print("Exiting...")
    GPIO.cleanup()

Step 4: Running the Python Code

Save the Python code in a file, e.g., rain_sensor.py.
Run the script:
```
python3 rain_sensor.py
```

This script will continuously monitor the sensor for changes. When the sensor detects rain or snow (usually indicated by a low or high signal), it triggers the callback function rain_detected().

Step 5: Testing the Sensor

Manual Test: Trigger the sensor by manually spraying water or placing the sensor under a light rain. If the sensor is working, the console should print "Rain or Snow Detected!" when the sensor detects water.
Sensor Calibration: Some sensors have adjustable sensitivity. If your sensor provides a potentiometer, you can adjust it to make it more or less sensitive.

Step 6: Applications of the Rain/Snow Sensor

Weather Stations: Integrate the sensor into a weather station for rain or snow detection.
Smart Irrigation Systems: Use the sensor to prevent watering if it detects rain or snow.
Automated Roof Cleaning Systems: Trigger cleaning mechanisms based on rain or snow detection.
Alert Systems: Set up email or SMS alerts when rain or snow is detected.

Troubleshooting

No Output from Sensor:
- Double-check your wiring connections.
- Ensure that the sensor is properly powered (VCC to 3.3V and GND to ground).
Inconsistent Readings:
- If the sensor is overly sensitive or not sensitive enough, try adjusting the potentiometer (if available) to fine-tune the sensor's detection threshold.
No Rain Detection:
- Verify that the sensor is in a place where it can effectively detect rain or snow.
- You can use the GPIO.input(sensor_pin) function to manually read the sensor's state and debug.

Conclusion

Using a Rain/Snow Sensor with the Raspberry Pi is a great way to add weather monitoring functionality to your projects. By following this guide, you can easily set up the sensor and begin integrating it into various applications such as weather stations or smart home systems. The sensor is simple to wire and use, making it a perfect addition to IoT projects.
