Using the NEO-6M GPS Module with the Raspberry Pi

The NEO-6M GPS module is a popular choice for adding GPS functionality to Raspberry Pi projects. It provides precise location, altitude, and timing data, making it ideal for navigation, geolocation, and time synchronization applications. This guide will walk you through setting up and using the NEO-6M GPS module with a Raspberry Pi.

---

What You Will Need

1. Raspberry Pi (any model with GPIO support, e.g., Pi 3, Pi 4)

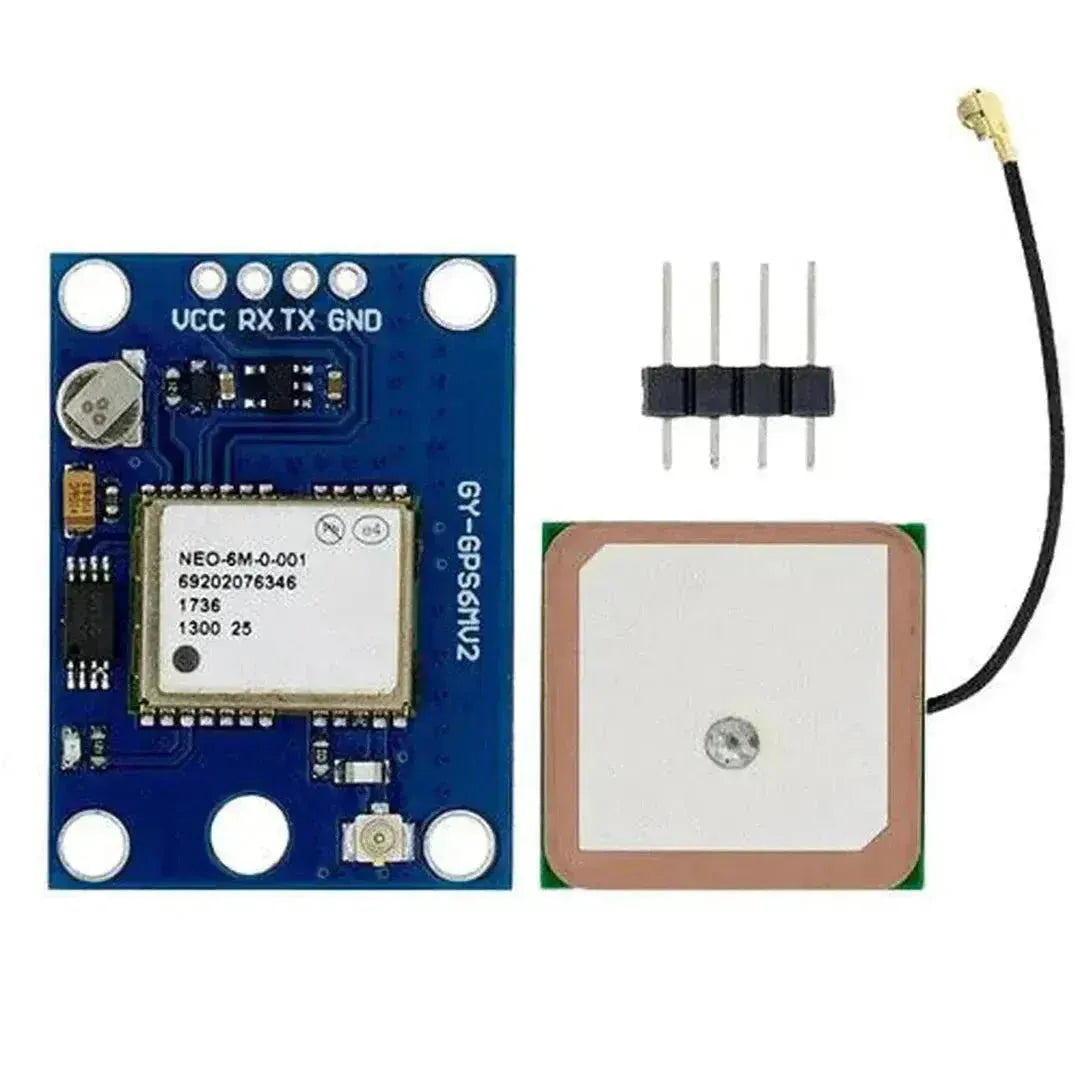

2. NEO-6M GPS Module
3. Breadboard and Jumper Wires
4. A computer with SSH access to the Raspberry Pi or a connected keyboard and monitor
5. Python installed on the Raspberry Pi

---

Step 1: Wiring the NEO-6M to the Raspberry Pi

The NEO-6M communicates with the Raspberry Pi using the UART (serial) interface.

Connections

NEO-6M Pin	Raspberry Pi Pin
VCC	3.3V (Pin 1)
GND	Ground (Pin 6)
TXD	RXD (Pin 10, GPIO15)
RXD	TXD (Pin 8, GPIO14)

Note: Ensure the NEO-6M is powered with 3.3V or 5V as specified by your module. Check the module’s datasheet.

---

Step 2: Enable the UART on the Raspberry Pi

1. Open the Raspberry Pi configuration tool:

   sudo raspi-config


2. Navigate to Interface Options > Serial Port:
   • Select "No" when asked if you want a login shell over the serial interface.
   • Select "Yes" to enable the serial port hardware.
3. Reboot the Raspberry Pi:

   sudo reboot


---

Step 3: Install Required Tools and Libraries

1. Update your Raspberry Pi:

   sudo apt update && sudo apt upgrade -y


2. Install minicom for testing the GPS module:

   sudo apt install -y minicom


3. Install Python libraries for serial communication and GPS parsing:

   pip install pyserial pynmea2


---

Step 4: Test the GPS Module

1. Open minicom to check if the GPS module is sending data:

   sudo minicom -b 9600 -o -D /dev/serial0


2. You should see GPS data in NMEA format (e.g., $GPGGA, $GPRMC). If not:
   • Check your wiring.
   • Ensure the module has a clear view of the sky to acquire satellite signals.
3. Exit minicom by pressing Ctrl+A, then Z, and selecting X.

---

Step 5: Read GPS Data Using Python

The following Python script reads and parses GPS data from the NEO-6M module.

Python Code Example

import serial
import pynmea2

def read_gps():
    # Open serial connection to GPS module
    gps_serial = serial.Serial("/dev/serial0", baudrate=9600, timeout=1)

    while True:
        try:
            line = gps_serial.readline().decode("ascii", errors="replace")
            if line.startswith("$GPGGA"):
                msg = pynmea2.parse(line)
                print(f"Latitude: {msg.latitude}, Longitude: {msg.longitude}")
                print(f"Altitude: {msg.altitude} {msg.altitude_units}")
        except pynmea2.ParseError as e:
            print(f"Parse error: {e}")
        except KeyboardInterrupt:
            print("Exiting...")
            break

if __name__ == "__main__":
    read_gps()

---

Step 6: Applications of the NEO-6M GPS Module

1. Navigation Systems: Create GPS trackers for vehicles or drones.
2. Geotagging: Record location data for photos or other events.
3. Time Synchronization: Use GPS data for highly accurate timekeeping.
4. IoT Devices: Enable location-based automation.

---

Troubleshooting

1. No GPS Data in Minicom:

   • Check the wiring (TXD and RXD connections).
   • Ensure the GPS module is powered correctly.
   • Place the module in an open area for better satellite reception.

2. Python Script Not Working:

   • Verify that the serial0 interface is enabled and accessible.
   • Ensure the Python libraries (pyserial, pynmea2) are installed.

3. Slow Satellite Acquisition:

   • Allow the GPS module time to acquire signals, especially on first use.
   • Use an external antenna if necessary.

---

Conclusion

The NEO-6M GPS module is a versatile and accurate tool for adding geolocation functionality to your Raspberry Pi projects. By following this guide, you can set up the GPS module and start capturing location data for a variety of applications. Experiment with integrating the GPS module into navigation, tracking, or IoT projects to fully utilize its capabilities!
