Using the TCS34725 with the Arduino

The TCS34725 is a color sensor capable of detecting the intensity of red, green, blue, and clear light. It is widely used in color detection projects, including robotics, home automation, and color-sensitive applications. This tutorial will guide you through setting up and using the TCS34725 color sensor with an Arduino.

---

What You Will Need

1. Arduino Board (e.g., Uno, Mega, Nano)
2. TCS34725 Color Sensor Module
3. Breadboard and Jumper Wires
4. A computer with the Arduino IDE installed
5. Libraries: Adafruit TCS34725 Library

---

Step 1: Understanding the TCS34725 Color Sensor

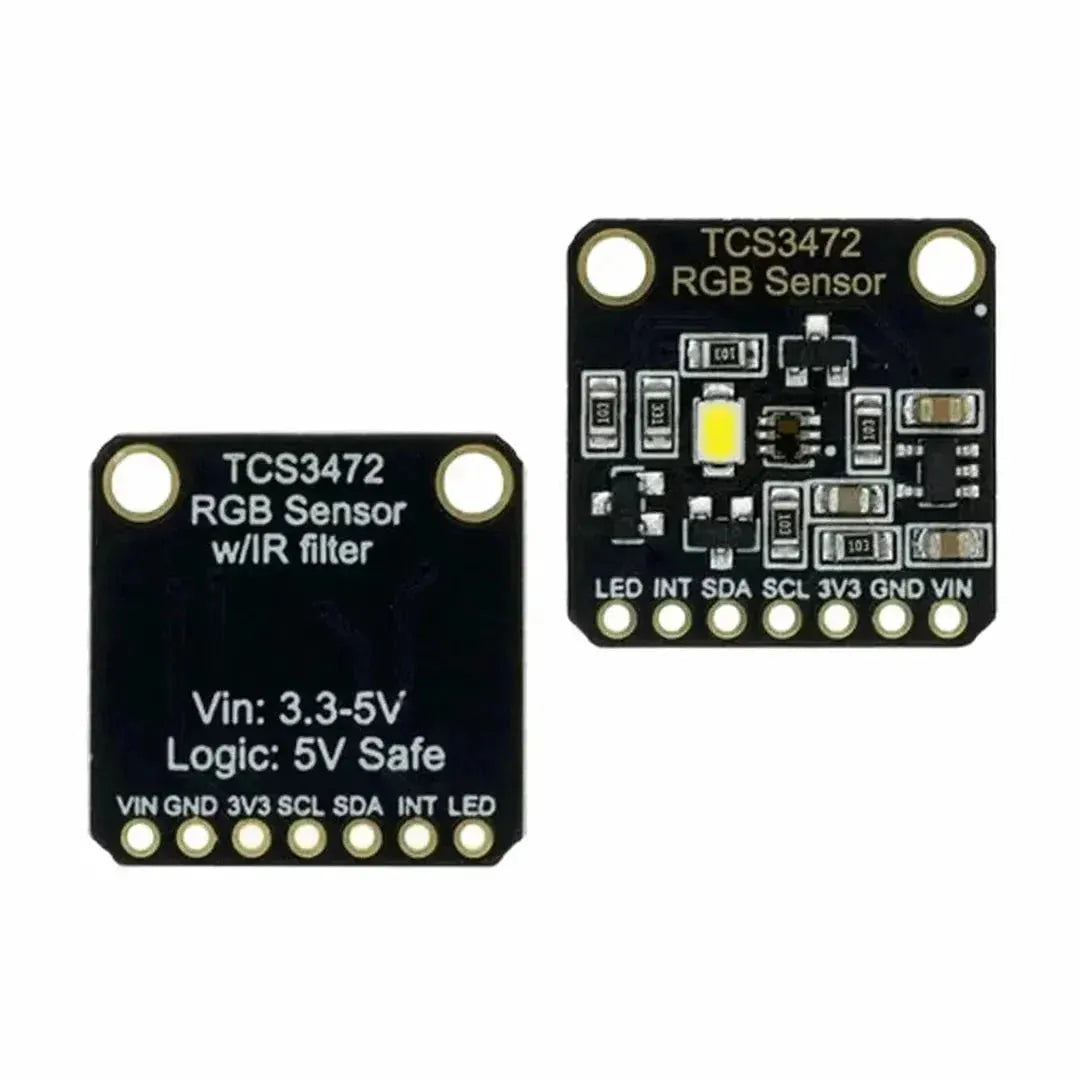

The TCS34725 is an I2C-compatible sensor that provides color and light intensity data. It includes:

• RGBC Sensor: Measures red, green, blue, and clear light intensities.
• IR Blocking Filter: Improves color accuracy under various lighting conditions.
• LED: Built-in white LED for consistent illumination (optional to use).

---

Step 2: Wiring the TCS34725 to the Arduino

The TCS34725 communicates with the Arduino via the I2C protocol.

Connections

Sensor Pin	Arduino Pin
VIN	5V
GND	GND
SDA	A4
SCL	A5

Note: For Arduino boards with dedicated SDA and SCL pins (e.g., Mega), connect the sensor’s SDA/SCL pins to those instead.

---

Step 3: Installing the Required Library

To use the TCS34725 sensor, you need the Adafruit TCS34725 library.

Steps to Install the Library

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "Adafruit TCS34725".
4. Click Install.

---

Step 4: Uploading Example Code

Here is a basic example to read and display the color values from the TCS34725 sensor.

Example Code

#include <Wire.h>
#include "Adafruit_TCS34725.h"

// Create an instance of the sensor
Adafruit_TCS34725 tcs = Adafruit_TCS34725(TCS34725_INTEGRATIONTIME_700MS, TCS34725_GAIN_1X);

void setup() {
  Serial.begin(9600);

  if (!tcs.begin()) {
    Serial.println("TCS34725 not found. Check your wiring or I2C address.");
    while (1); // Halt execution if sensor not found
  }

  Serial.println("TCS34725 is ready!");
}

void loop() {
  uint16_t r, g, b, c;
  float lux, colorTemp;

  // Get the raw data from the sensor
  tcs.getRawData(&r, &g, &b, &c);

  // Calculate color temperature and lux
  colorTemp = tcs.calculateColorTemperature_dn40(r, g, b, c);
  lux = tcs.calculateLux(r, g, b);

  // Print the results
  Serial.print("Red: "); Serial.print(r); Serial.print(" \t");
  Serial.print("Green: "); Serial.print(g); Serial.print(" \t");
  Serial.print("Blue: "); Serial.print(b); Serial.print(" \t");
  Serial.print("Clear: "); Serial.print(c); Serial.print(" \t");
  Serial.print("Color Temp: "); Serial.print(colorTemp); Serial.print(" K \t");
  Serial.print("Lux: "); Serial.println(lux);

  delay(1000); // Update every second
}

---

Step 5: Using the Data

1. Color Detection

You can map RGB values to identify specific colors. For example:

if (r > g && r > b) {
  Serial.println("Red Detected");
} else if (g > r && g > b) {
  Serial.println("Green Detected");
} else if (b > r && b > g) {
  Serial.println("Blue Detected");
}

2. Triggering Actions Based on Color

Use detected colors to control LEDs or motors. For example:

if (r > g && r > b) {
  digitalWrite(ledPin, HIGH); // Turn on red LED
}

3. Adjusting the Sensor

Modify the sensor’s gain and integration time for different lighting conditions:

• Integration Time: Determines the duration for light measurement. Options: 2.4ms to 700ms.
• Gain: Amplifies the signal. Options: 1x, 4x, 16x, 60x.

Example:

tcs.setIntegrationTime(TCS34725_INTEGRATIONTIME_154MS);
tcs.setGain(TCS34725_GAIN_4X);

---

Best Practices

1. Consistent Lighting: Use the sensor’s built-in LED or ensure stable lighting conditions.
2. Calibrate for Accuracy: Adjust gain and integration time for optimal readings.
3. Filter Noise: Use short wires and proper grounding to minimize electrical noise.

---

Troubleshooting

1. Sensor Not Detected:

   • Verify SDA and SCL connections.
   • Check the I2C address (default: 0x29).

2. Inaccurate Readings:

   • Ensure proper lighting and avoid shadows.
   • Adjust the gain and integration time.

3. Fluctuating Values:

   • Add a capacitor across the power supply to stabilize the sensor.

---

Applications of the TCS34725 Sensor

1. Color-based sorting in robotics
2. Ambient light sensing
3. Color calibration in photography
4. RGB LED control
5. Automated lighting systems

---

Conclusion

The TCS34725 is a powerful and easy-to-use color sensor for Arduino projects. By following this guide, you can integrate the sensor into your designs, enabling color detection, ambient light measurement, and more. Experiment with different configurations to explore the full potential of this versatile module!
