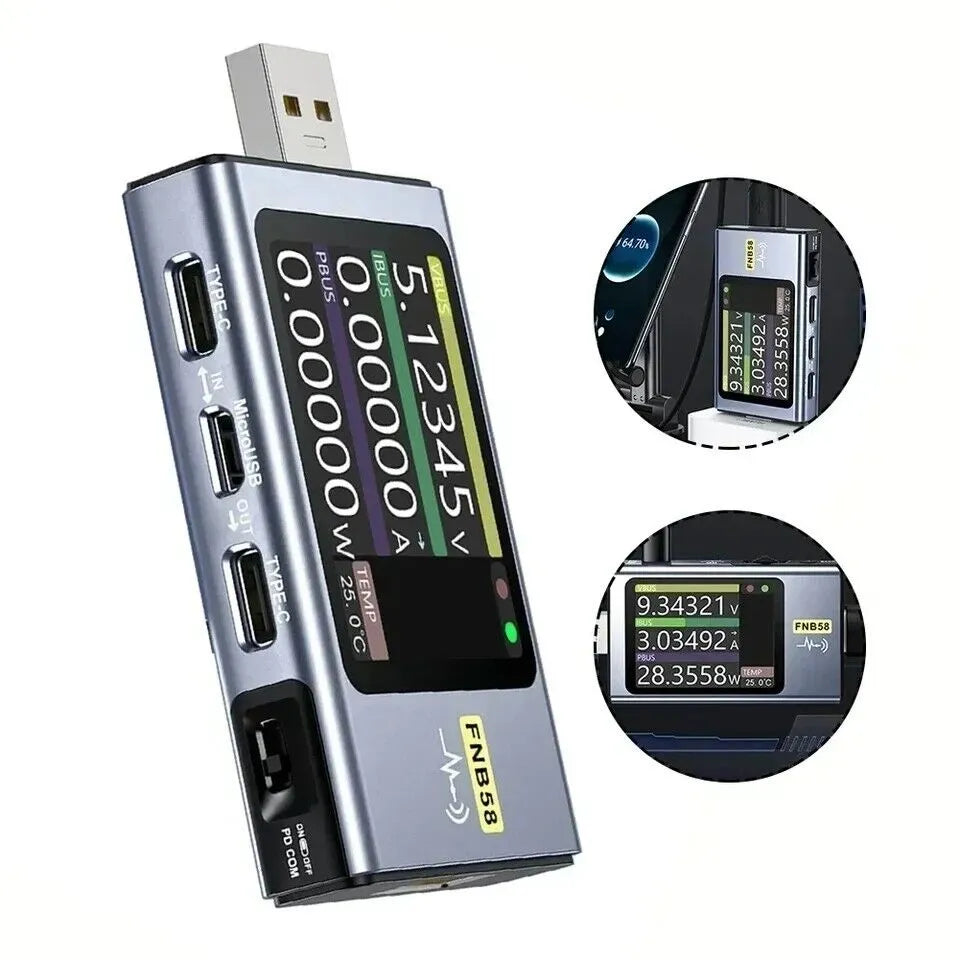

FNIRSI FNB58 USB Voltage Current Meter Voltmeter Ammeter

FNIRSI FNB58 USB Voltage and Current Meter | Voltmeter & Ammeter for Type-C Fast Charging Tests

Product Features:

1. Comprehensive Interface Compatibility:

   • Large, High-Definition Display: Features a 2.0-inch LCD screen with clear, easily readable measurement data.
   • Versatile Connectivity: Equipped with 5P high-current USB-A ports and a 24P full-pin Type-C input/output interface, enabling faster charging detection and testing.

2. Exceptional Precision and Compatibility:

   • Ultra-High Resolution: Offers a resolution of 0.00001, allowing real-time monitoring of minute changes in voltage, current, and power during charging processes.

3. Advanced Protocol Support:

   • Automatic Protocol Detection: Compatible with multiple charging protocols including PD2.0, PD3.0, PPS, QC2.0, QC3.0, QC4, FCP, SCP, AFC, PE, DASH VOOC, and SuperVOOC, ensuring versatile testing capabilities.

4. User-Friendly Interface:

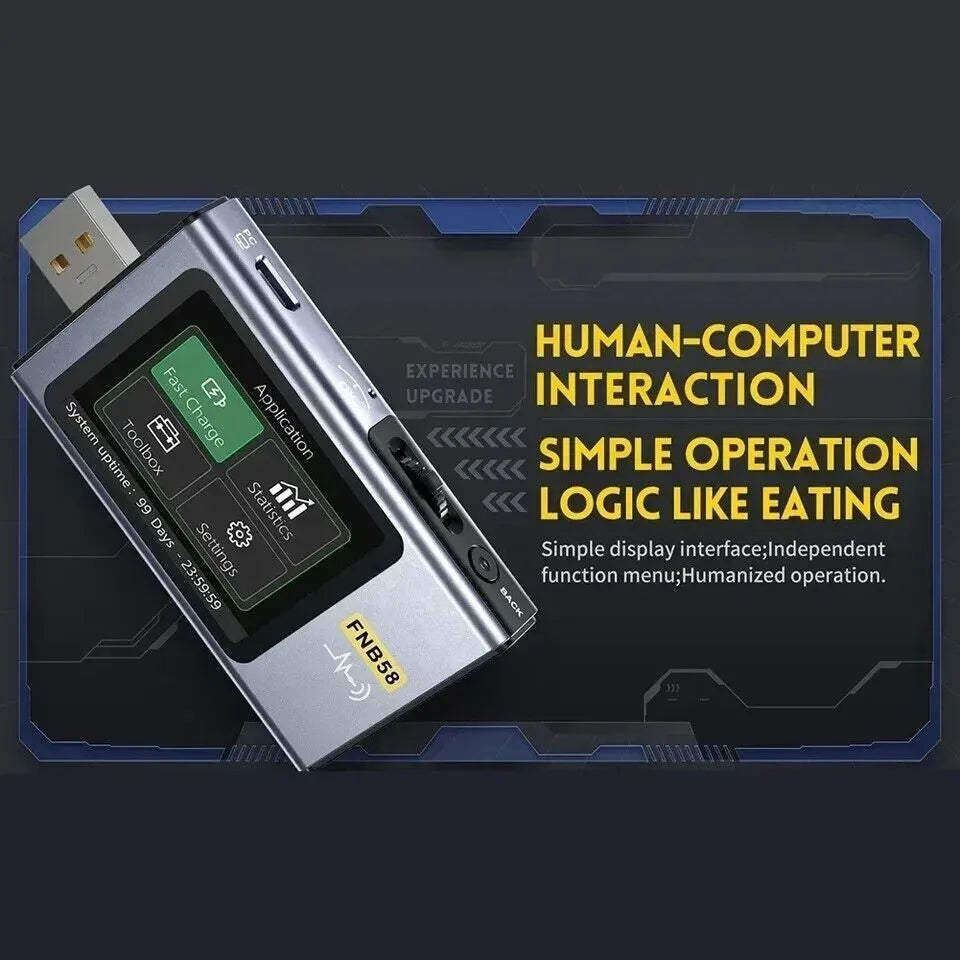

   • Intelligent Operation: Designed with a smartphone-like interface for simple and intuitive navigation.
   • Independent Function Menu: Provides easy access to various functions with a humanized operational design.

5. Comprehensive Energy Management:

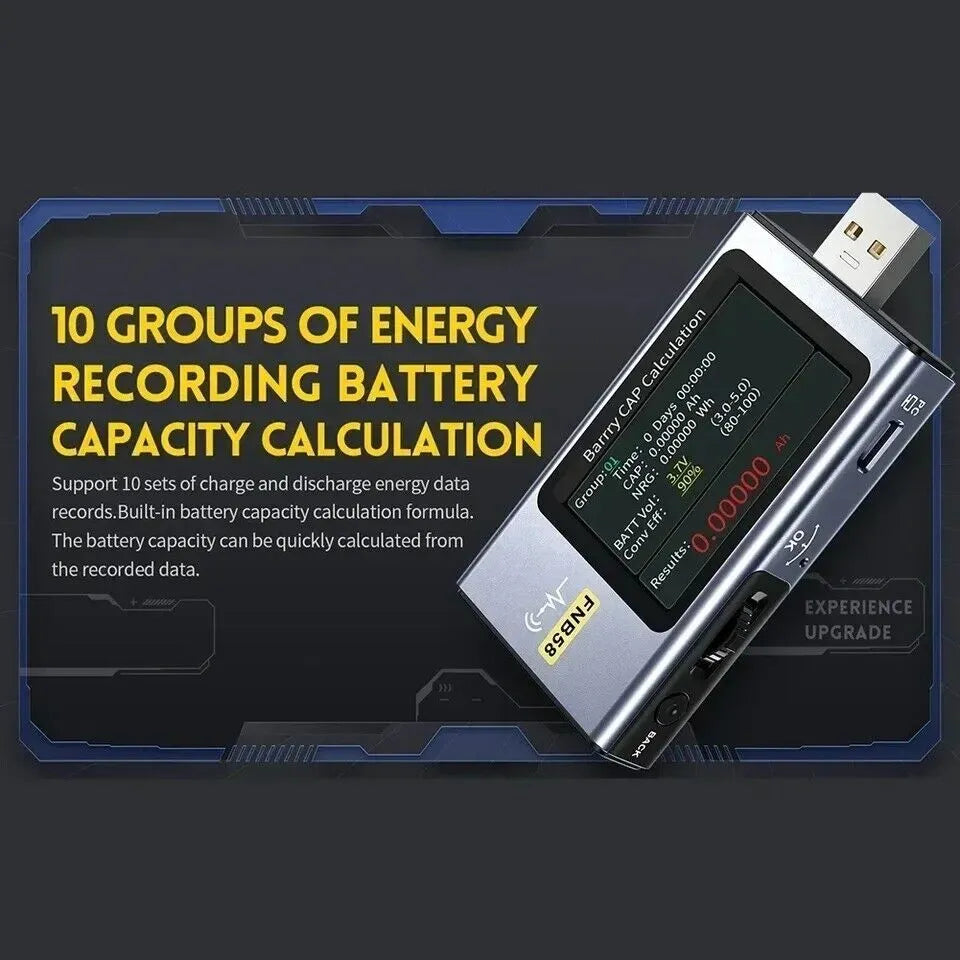

   • Energy Records: Capable of storing up to 10 groups of charge and discharge energy data.
   • Battery Capacity Calculation: Features a built-in formula to quickly calculate battery capacity based on recorded data.

6. Bluetooth Connectivity (Bluetooth Version Only):

   • Seamless Data Synchronization: Connects to Bluetooth APP and upper computer without the need for drivers.
   • Real-Time Alerts: Provides over-voltage and over-current alarms through the Bluetooth app for enhanced safety and monitoring.

Product Specifications:

• Monitoring Capabilities:

  • Voltage: 4~28V | Resolution: 0.00001V | Accuracy: ±(0.2% + 2)
  • Current: 0~7A | Resolution: 0.00001A | Accuracy: ±(0.5% + 2)
  • Power: 0~120W | Resolution: 0.00001W | Accuracy: ±(0.5% + 2)
  • Load Equivalent Internal Resistance: 0~9999.9Ω | Resolution: 0.0001Ω | Accuracy: ±(0.5% + 2)
  • D+/D- Voltage: 0~3.3V | Resolution: 0.001V | Accuracy: ±(1.0% + 2)
  • Device Temperature: Measured in °C and °F
  • Capacity Measurement: 0~9999.99Ah
  • Power Consumption: 0~9999.99Wh

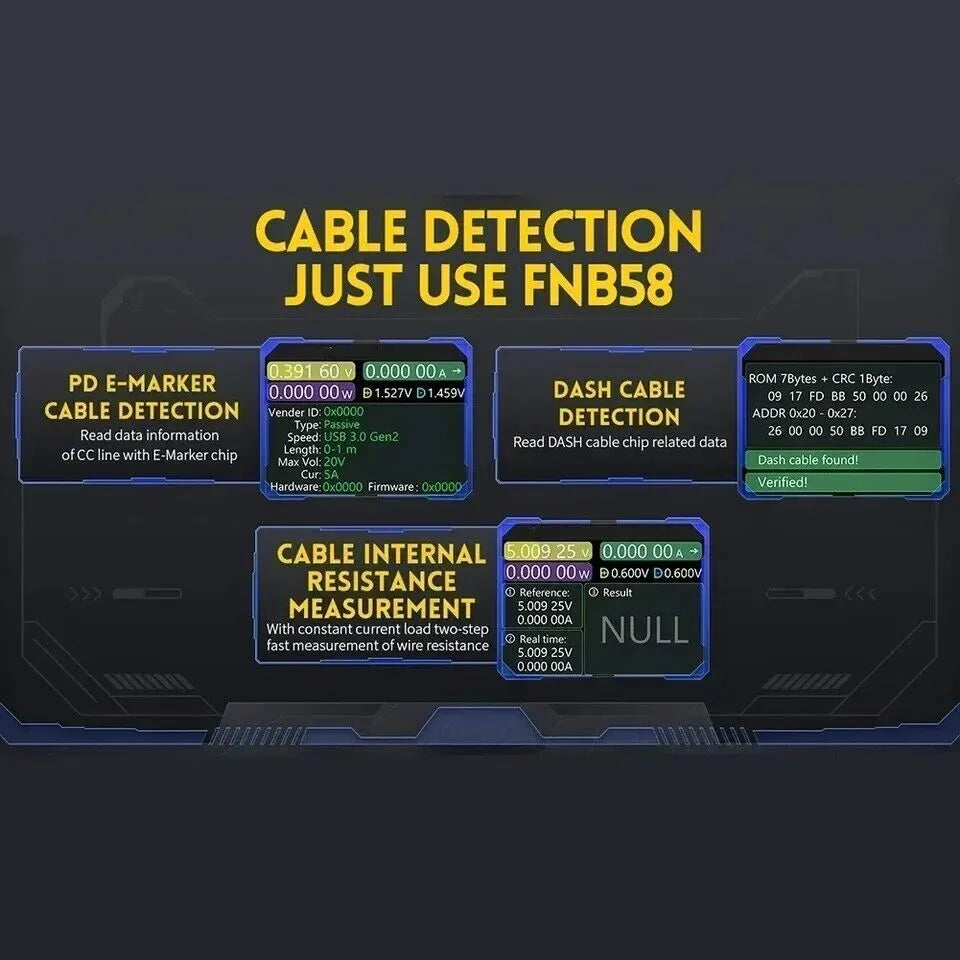

  • Cable Internal Resistance: 0~9999.9Ω

• Operational Features:

  • Equipment Running Time: Up to 99 days, 23 hours, 59 minutes, and 59 seconds
  • Recording Time: Up to 99 days, 23 hours, 59 minutes, and 59 seconds

Included in the Package:

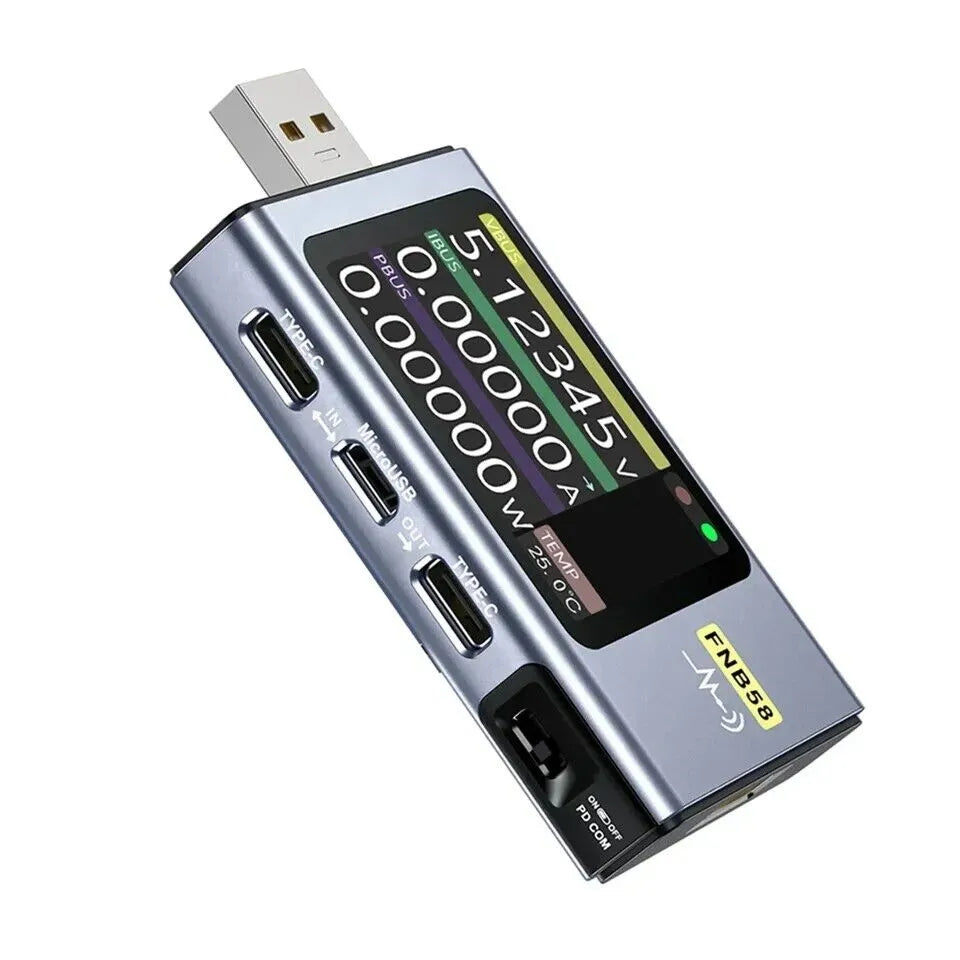

• Tester X1: The FNIRSI FNB58 USB Voltage and Current Meter unit.

Enhance your fast charging tests with the FNIRSI FNB58, offering precision, versatility, and user-friendly features to meet all your voltage and current monitoring needs.
