How to Use the RC522 RFID Module with Arduino

The RC522 is a popular RFID module used for wireless communication and identification. It is widely utilized in access control systems, contactless payment systems, and inventory tracking. This tutorial will guide you through interfacing the RC522 RFID module with Arduino to read RFID tags and cards.

---

What You Will Need

1. RC522 RFID Module
2. Arduino Board (e.g., Uno, Mega, Nano)

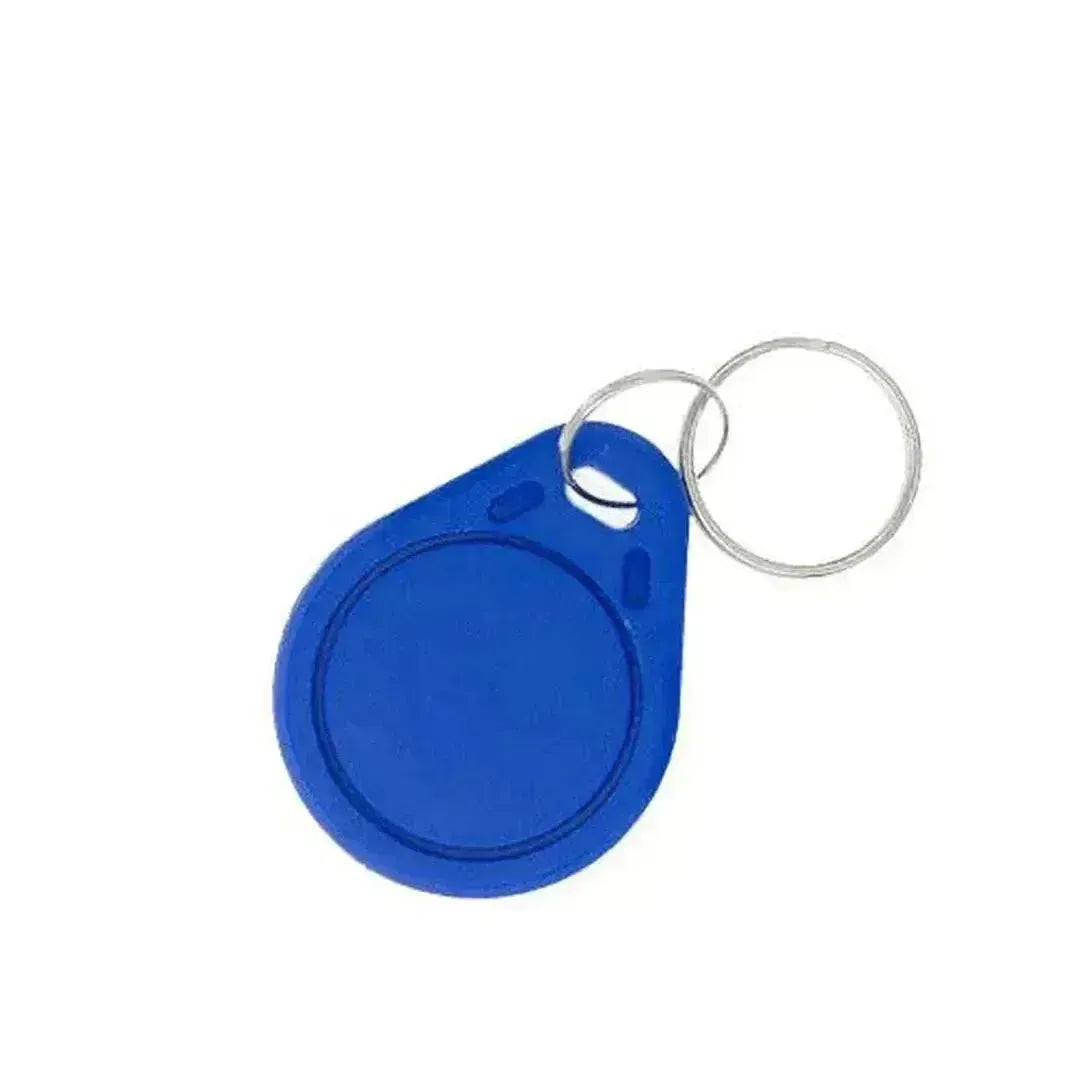

3. RFID Tags or Cards (13.56 MHz)
4. Breadboard and Jumper Wires
5. A computer with the Arduino IDE installed

---

Step 1: Understanding the RC522 RFID Module

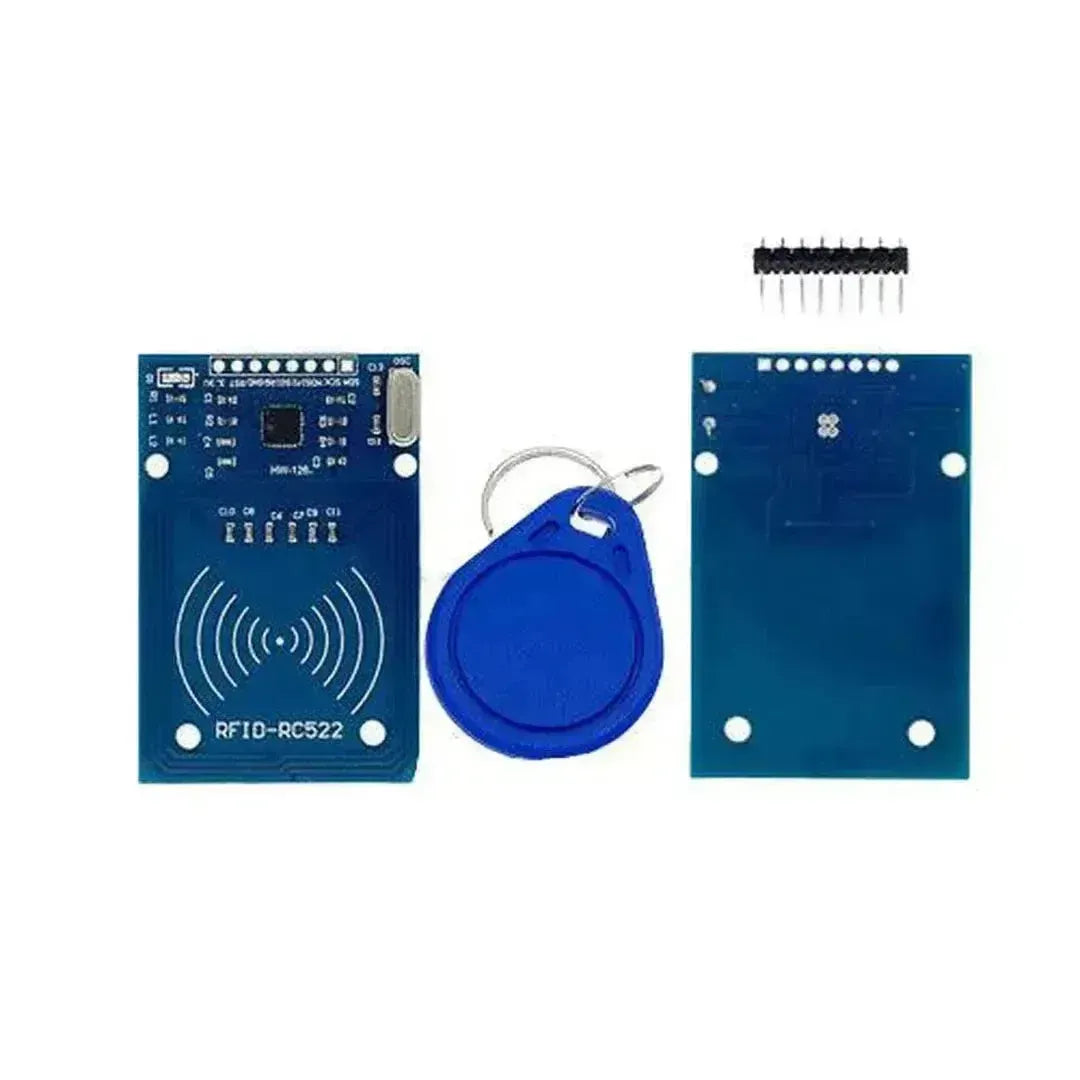

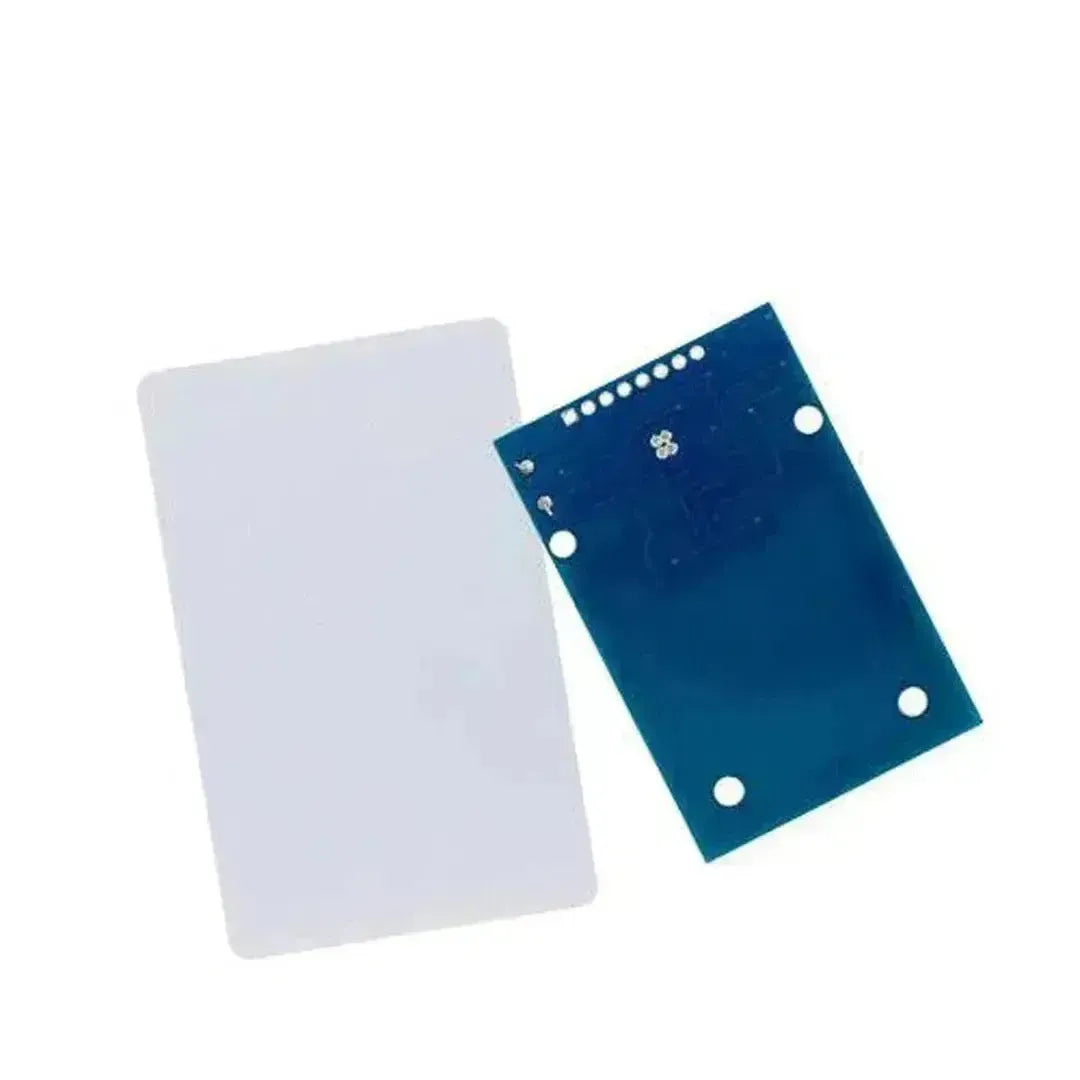

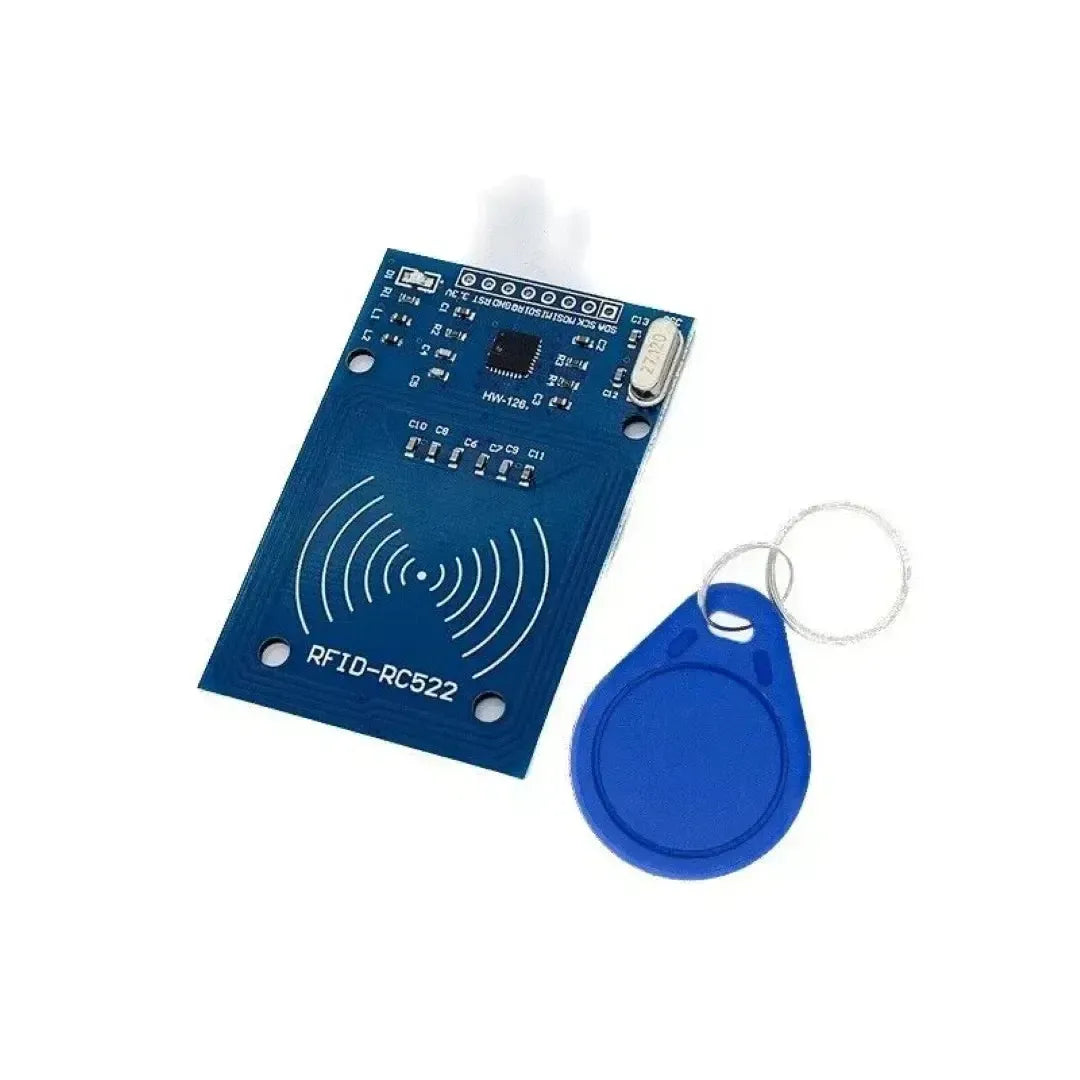

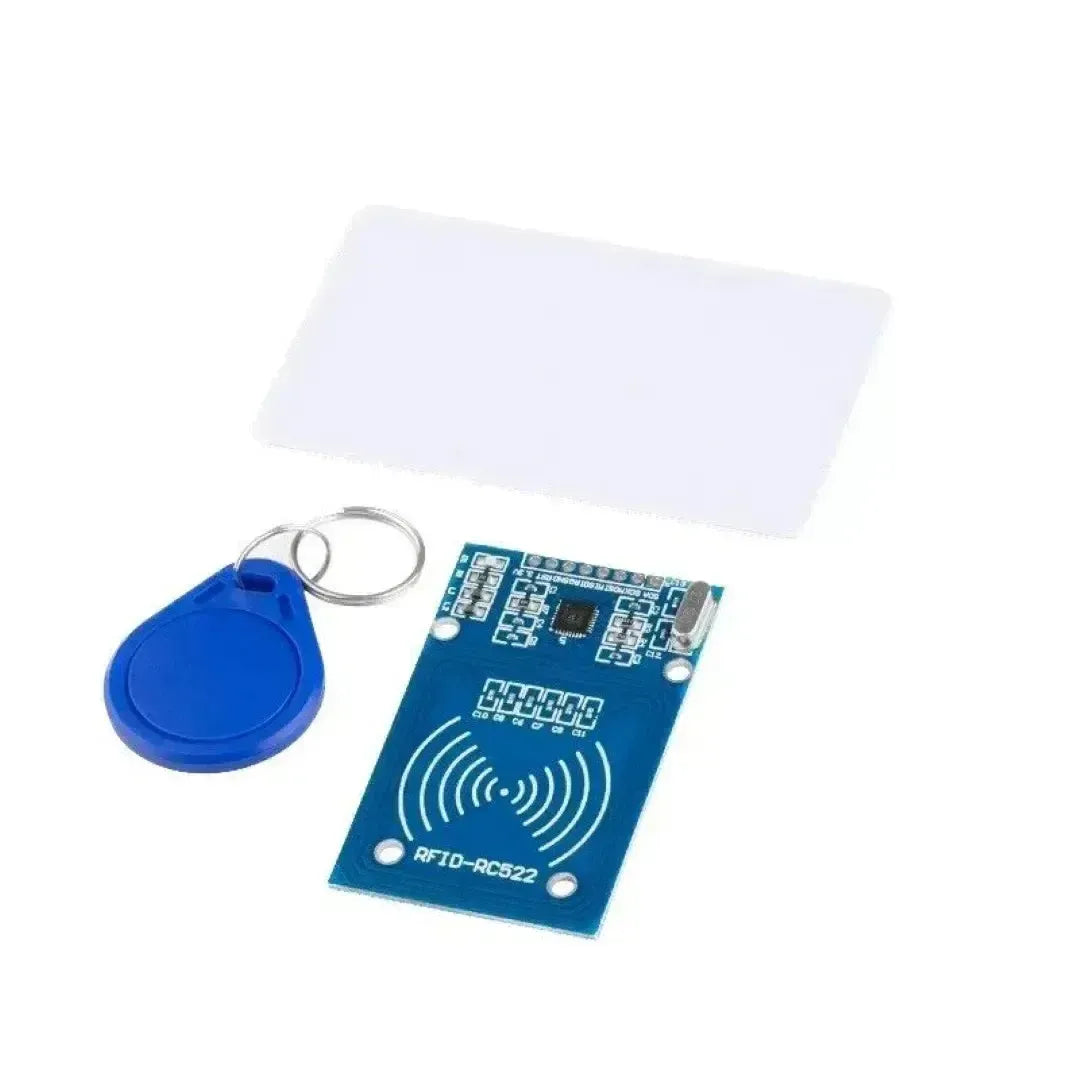

The RC522 RFID module operates at 13.56 MHz and communicates with a microcontroller using the SPI protocol. It comes with an RFID antenna and supports both reading and writing operations.

RC522 Pinout

Pin	Function
SDA	SPI SS (Slave Select)
SCK	SPI Clock
MOSI	SPI Data Input
MISO	SPI Data Output
IRQ	Interrupt Request (optional)
GND	Ground
RST	Reset
3.3V	Power Supply

Note: The RC522 operates on 3.3V logic; ensure your connections match your board's voltage requirements.

---

Step 2: Wiring the RC522 to Arduino

Here’s how to connect the RC522 RFID module to an Arduino Uno:

RC522 Pin	Arduino Pin
SDA	Pin 10
SCK	Pin 13
MOSI	Pin 11
MISO	Pin 12
IRQ	Not connected
GND	GND
RST	Pin 9
3.3V	3.3V

Note: For other Arduino boards, ensure you map the SPI pins correctly.

---

Step 3: Install the Required Library

To work with the RC522 module, install the "MFRC522" library.

Steps to Install:

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "MFRC522" and click Install.

---

Step 4: Upload the Code

Here’s an example sketch to read RFID tag data:

#include <SPI.h>
#include <MFRC522.h>

#define RST_PIN 9  // Reset pin
#define SS_PIN 10  // Slave select pin

MFRC522 rfid(SS_PIN, RST_PIN); // Create an instance of the MFRC522 library

void setup() {
  Serial.begin(9600);
  while (!Serial);

  SPI.begin();      // Initialize SPI bus
  rfid.PCD_Init();  // Initialize RFID reader

  Serial.println("RC522 RFID Reader Initialized");
}

void loop() {
  // Check for a new card
  if (!rfid.PICC_IsNewCardPresent() || !rfid.PICC_ReadCardSerial()) {
    return;
  }

  Serial.println("Card detected:");

  // Print the UID of the card
  Serial.print("UID: ");
  for (byte i = 0; i < rfid.uid.size; i++) {
    Serial.print(rfid.uid.uidByte[i] < 0x10 ? " 0" : " ");
    Serial.print(rfid.uid.uidByte[i], HEX);
  }
  Serial.println();

  rfid.PICC_HaltA(); // Halt the card
}

---

Step 5: Test the Setup

1. Connect the Arduino to your computer via USB.
2. Open the Arduino IDE and select the correct Board and Port under the Tools menu.
3. Upload the code to the Arduino by clicking Upload.
4. Open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to 9600.
5. Place an RFID tag or card near the module. The UID of the card will be displayed in the Serial Monitor.

---

Optional: Writing Data to an RFID Tag

To write data to an RFID tag, you can use the PICC_Write function in the MFRC522 library. Refer to the library examples for detailed write operations.

---

Applications of the RC522

1. Access control systems
2. Contactless payment systems
3. Inventory tracking and management
4. Smart attendance systems

---

Troubleshooting

• No response from the module: Check the wiring and ensure the SPI connections are correct.
• UID not detected: Ensure the tag is within the range of the RFID antenna.
• Library errors: Verify the MFRC522 library is installed correctly.

---

Conclusion

You’ve successfully interfaced the RC522 RFID module with Arduino, allowing you to read RFID tag data. This versatile module is perfect for projects requiring wireless communication and identification. Experiment with additional features like writing data to tags or integrating it into larger systems for advanced applications!
