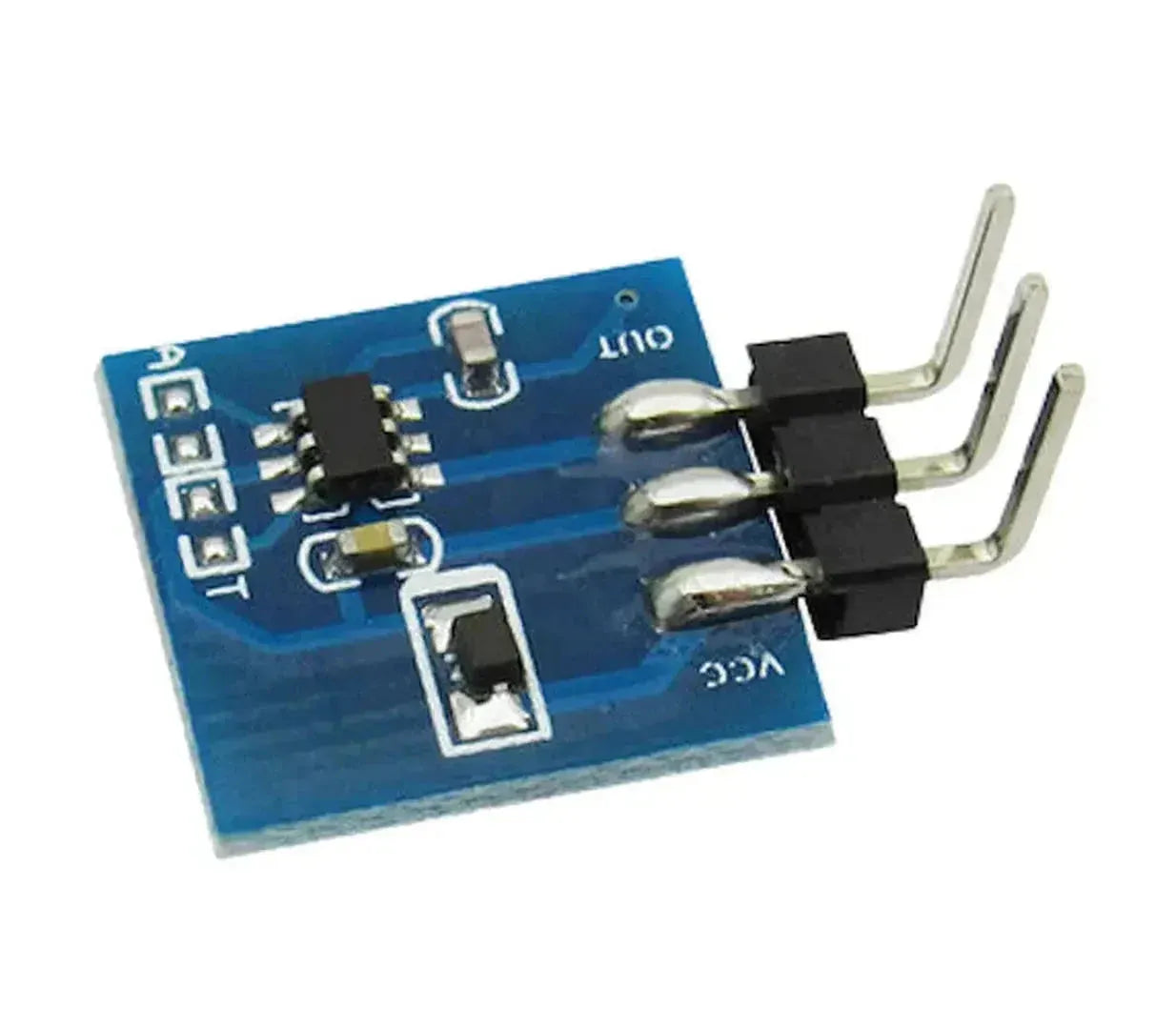

How to Use the TTP223 Touch Sensor Module with Arduino

The TTP223 is a capacitive touch sensor module that can replace traditional buttons in Arduino projects. It is easy to use, highly sensitive, and perfect for applications like touch-based controls, smart home devices, and interactive installations. This tutorial will guide you through connecting and using the TTP223 with Arduino.

---

What You Will Need

1. TTP223 Touch Sensor Module
2. Arduino Board (e.g., Uno, Mega, Nano)
3. Breadboard and Jumper Wires
4. A computer with the Arduino IDE installed

---

Step 1: Understanding the TTP223 Module

The TTP223 module detects capacitive touch and outputs a digital HIGH or LOW signal. It operates in two modes:

1. Active HIGH Mode: Outputs HIGH when touched (default).
2. Active LOW Mode: Outputs LOW when touched (can be changed by soldering configuration pads).

TTP223 Pinout

Pin	Function
VCC	Power Supply (2V-5.5V)
GND	Ground
OUT	Digital Output Signal

---

Step 2: Wiring the TTP223 to Arduino

Here’s how to connect the TTP223 module to an Arduino Uno:

TTP223 Pin	Arduino Pin
VCC	5V
GND	GND
OUT	Pin 2

---

Step 3: Upload the Code

Here’s an example sketch to read the touch input and display the status on the Serial Monitor:

Example Code

#define touchPin 2 // Connect TTP223 OUT pin to Arduino Pin 2

void setup() {
  pinMode(touchPin, INPUT);
  Serial.begin(9600);
  Serial.println("TTP223 Touch Sensor Test");
}

void loop() {
  int touchStatus = digitalRead(touchPin);

  if (touchStatus == HIGH) {
    Serial.println("Touched!");
  } else {
    Serial.println("Not touched");
  }

  delay(200); // Small delay for readability
}

---

Step 4: Test the Setup

1. Connect the Arduino to your computer via USB.
2. Open the Arduino IDE and select the correct Board and Port under the Tools menu.
3. Upload the code to the Arduino by clicking Upload.
4. Open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to 9600.
5. Touch the sensor, and observe the messages displayed in the Serial Monitor.

---

Optional: Controlling an LED

You can use the TTP223 to control an LED. Connect an LED to pin 13 (or any other digital pin) and modify the code as follows:

Modified Code

#define touchPin 2 // Connect TTP223 OUT pin to Arduino Pin 2
#define ledPin 13  // Connect LED to Arduino Pin 13

void setup() {
  pinMode(touchPin, INPUT);
  pinMode(ledPin, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  int touchStatus = digitalRead(touchPin);

  if (touchStatus == HIGH) {
    digitalWrite(ledPin, HIGH); // Turn on LED
    Serial.println("Touched!");
  } else {
    digitalWrite(ledPin, LOW); // Turn off LED
    Serial.println("Not touched");
  }

  delay(200); // Small delay for readability
}

---

Applications of the TTP223

1. Touch-sensitive light switches
2. Keyless entry systems
3. Smart home automation
4. Interactive art installations

---

Troubleshooting

• No response from the sensor: Ensure proper wiring and verify that the module is powered correctly.
• Unstable readings: Minimize environmental interference by avoiding excessive vibrations or conductive materials near the sensor.
• Output inverted: Check the module’s configuration pads and adjust if necessary for active LOW or HIGH mode.

---

Conclusion

You’ve successfully interfaced the TTP223 touch sensor module with Arduino. This simple and versatile module can replace mechanical buttons and enable touch-sensitive functionality in your projects. Experiment with integrating it into various applications for a sleek, modern interface!
