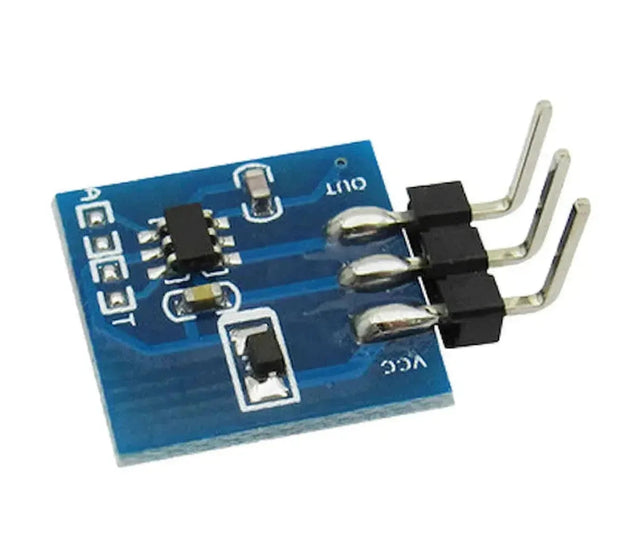

TTP223 Capacitive Touch Sensor Module

TTP223 Capacitive Touch Sensor Module

In stock

12 Sold

Regular price£2.68
Regular price £0.00Sale price £2.68
American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa

Description:

The TTP223B Capacitive Touch Sensor Module provides a touch-sensitive input, enabling you to create touch-based controls for various electronic projects without conventional physical push-buttons. Utilizing the TTP223B IC, this module detects changes in capacitance when a finger touches the designated area, switching between low-power mode and fast mode based on touch input.

Key Features:

  1. Capacitive Touch Sensing: Detects when a finger touches the module's surface, outputting a high signal.
  2. Low Power Mode: Outputs a low signal when not touched, conserving power.
  3. Fast Mode: Switches to fast mode upon touch, providing a quick response with a high signal output.
  4. Auto Power-Down: Automatically reverts to low-power mode after 12 seconds of no touch input, further saving energy.
  5. Easy Installation: Can be installed on non-metallic surfaces such as plastic, glass, wood, or even behind thin non-metallic materials like paper, allowing for concealed touch-sensitive buttons on walls, tabletops, and other surfaces.

Applications:

This capacitive touch switch module is ideal for various electronic projects requiring touch-based controls, including:

  1. Touch-sensitive lamp switches
  2. Touch-based control panels for home automation
  3. Touch-sensitive interactive displays and interfaces
  4. Hidden touch buttons in furniture or walls
  5. Touch-sensitive input for DIY electronic gadgets and toys

Specifications:

Item Min Typical Max Unit
Power supply voltage (VCC) 2.0 3 5.5 V
Output high (VOH) - 0.8VCC - V
Output low (VOL) - - 0.3VCC V
Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) - 8 - mA
Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) - 4 - mA
Response time (low power mode) - - 220 mS
Response time (touch mode) - - 60 mS

Summary:

The TTP223B-based capacitive touch switch module offers a modern, convenient, and innovative way to implement touch-sensitive controls in your projects, eliminating the need for traditional push-buttons. With low power consumption, a wide operating voltage range (2V to 5.5V), and easy installation on various surfaces, this module is perfect for enhancing the functionality and aesthetics of your electronic designs.
