Using the MAX30102 with the Raspberry Pi

The MAX30102 is a pulse oximeter and heart rate sensor capable of measuring SpO2 (blood oxygen saturation) and heart rate. When connected to a Raspberry Pi, it can be used for health monitoring and fitness applications. This guide explains how to set up and use the MAX30102 with a Raspberry Pi to read heart rate and SpO2 data.

What You Will Need

1. Raspberry Pi (any model with GPIO support, e.g., Pi 3, Pi 4)

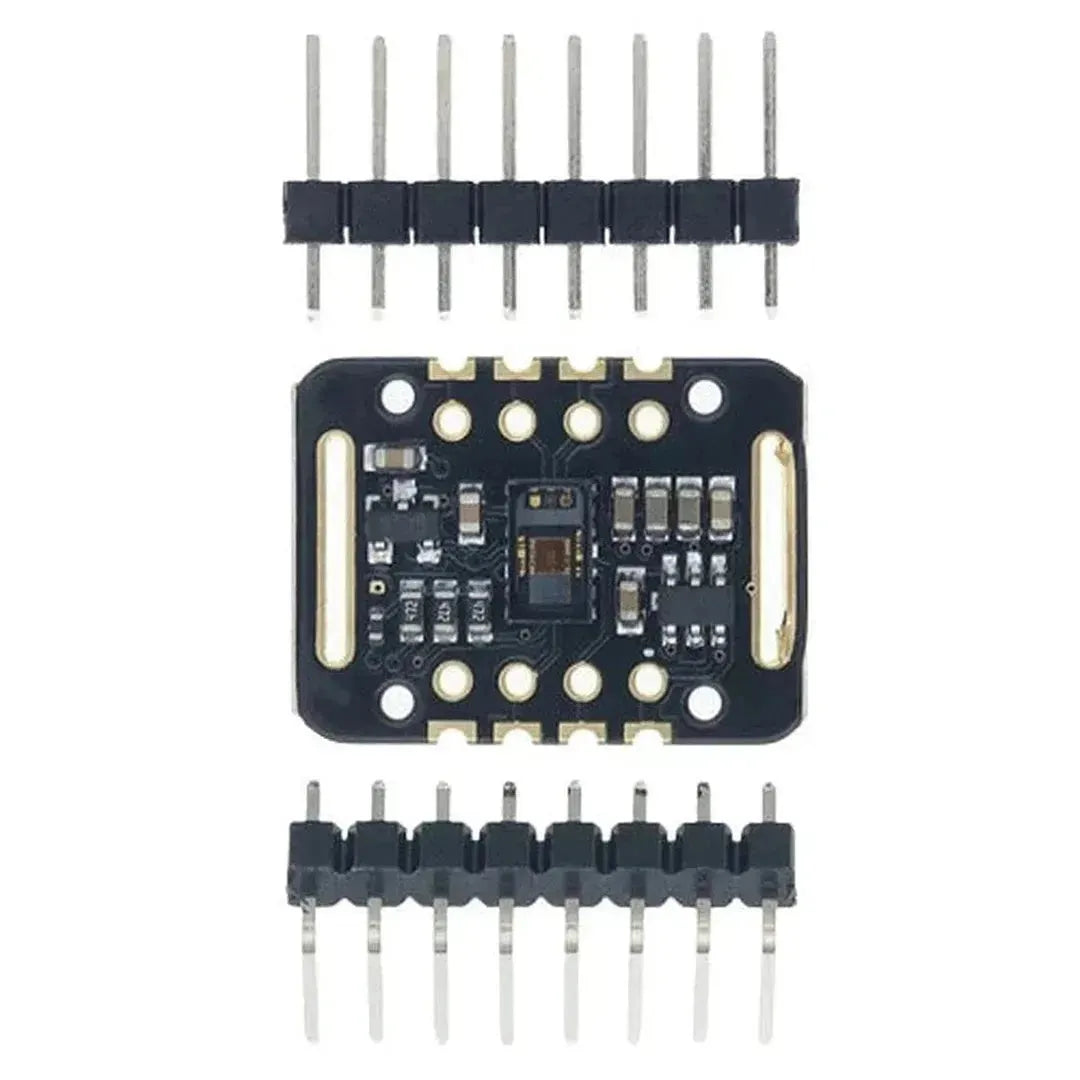

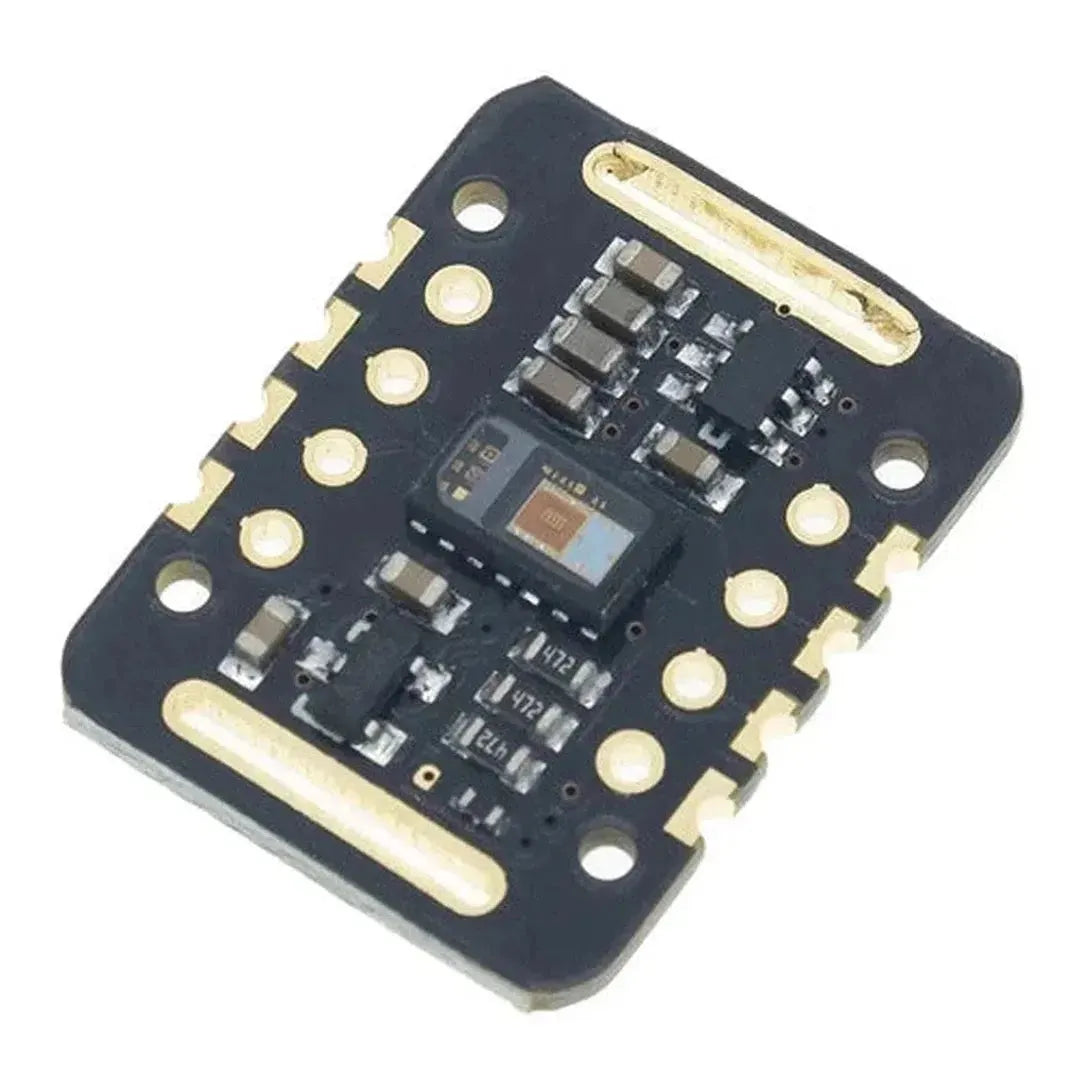

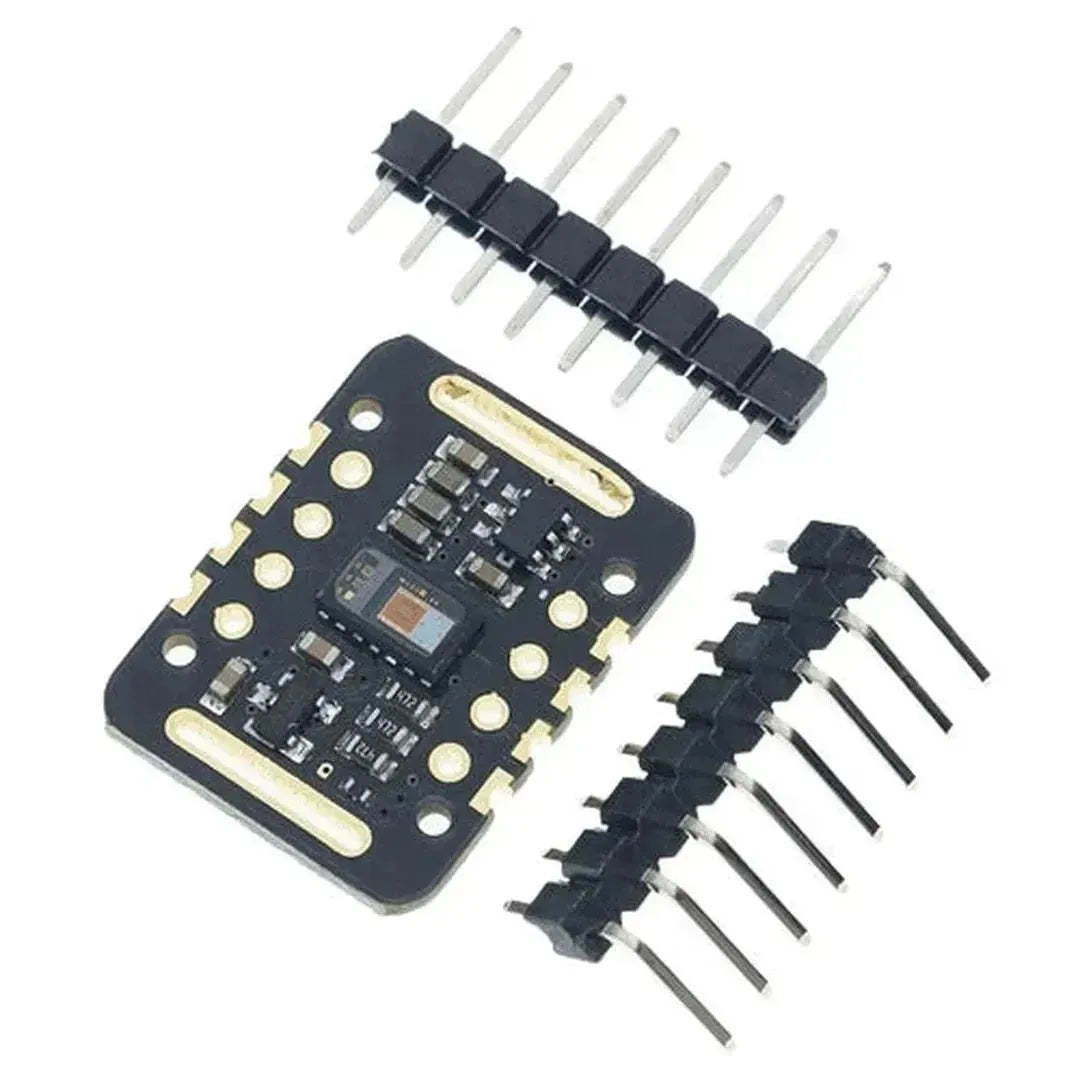

2. MAX30102 Sensor Module
3. Breadboard and Jumper Wires
4. A computer with SSH access to the Raspberry Pi or a connected keyboard and monitor
5. Python installed on the Raspberry Pi

Step 1: Wiring the MAX30102 to the Raspberry Pi

The MAX30102 uses the I2C protocol to communicate with the Raspberry Pi.

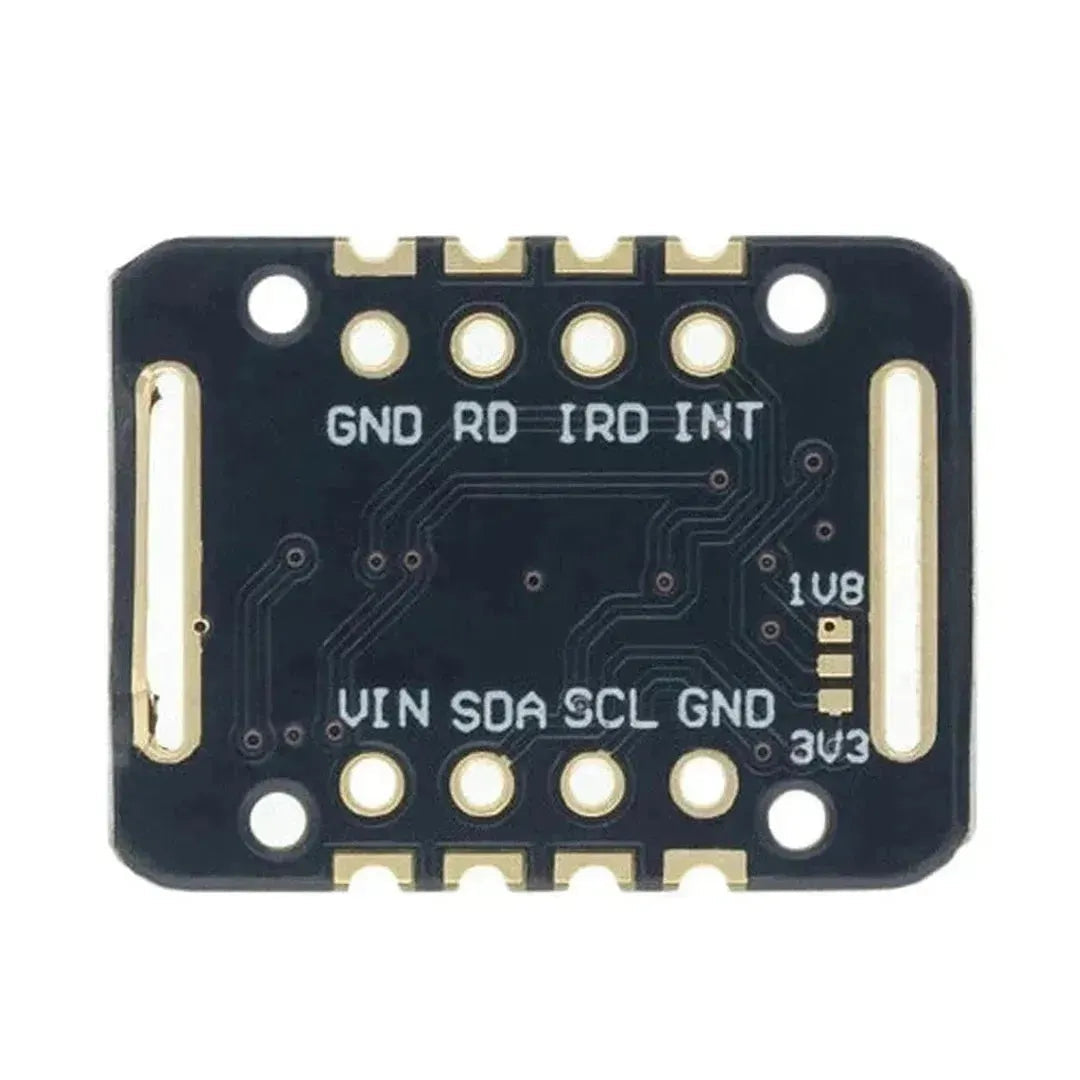

Connections (I2C Mode)

Note: Ensure the MAX30102 operates at 3.3V to avoid damaging the Raspberry Pi GPIO pins.

Step 2: Enable the I2C Interface on the Raspberry Pi

1. Open the Raspberry Pi configuration tool:

   sudo raspi-config


2. Navigate to Interface Options > I2C and enable it.
3. Reboot the Raspberry Pi:

   sudo reboot


Step 3: Install Required Libraries

1. Update your Raspberry Pi:

   sudo apt update && sudo apt upgrade -y


2. Install the I2C tools and Python libraries:

   sudo apt install -y i2c-tools python3-smbus python3-pip
   pip3 install max30102


3. Verify the MAX30102 is detected on the I2C bus:

   sudo i2cdetect -y 1


   You should see the device address (typically 0x57) in the output.

Step 4: Read Data from the MAX30102

The following Python script demonstrates how to read heart rate and SpO2 data from the MAX30102.

Python Code Example

import max30102
import time

# Initialize the MAX30102 sensor
m = max30102.MAX30102()

try:
    while True:
        red, ir = m.read_sequential()
        print(f"Red: {red}, IR: {ir}")
        time.sleep(1)

except KeyboardInterrupt:
    print("Exiting...")
finally:
    m.shutdown()

Step 5: Applications of the MAX30102

1. Health Monitoring: Measure heart rate and SpO2 levels for personal health tracking.
2. Fitness Tracking: Integrate into wearable devices for fitness monitoring.
3. IoT Health Projects: Transmit health data to cloud services for remote monitoring.

Troubleshooting

1. Device Not Detected:

   • Verify the SDA and SCL connections.
   • Ensure the I2C interface is enabled on the Raspberry Pi.

2. Inaccurate Readings:

   • Make sure the sensor is placed correctly on a fingertip or earlobe.
   • Minimize movement during measurements.

3. I2C Errors:

   • Ensure there are no conflicting devices on the I2C bus.

Conclusion

The MAX30102 sensor module provides an easy and reliable way to measure heart rate and SpO2 levels using a Raspberry Pi. By following this guide, you can set up the sensor and start building health and fitness monitoring applications. Experiment with different configurations and placements to optimize accuracy for your specific use case!
