Gigabyte X870E EAGLE X3D WIFI7 AMD AM5 Socket Motherboard
£264.59
X870E EAGLE X3D WIFI7 Motherboard
The X870E EAGLE X3D WIFI7 is engineered for high-performance AMD Ryzen™ gaming and creation setups, delivering advanced power, memory, storage, and connectivity features in an ATX form factor.
Key Features
-
X3D Turbo Mode 2.0
AI-enhanced performance tuning for X3D processors, with DDR5 overclocking support up to 9000 MT/s. -
DriverBIOS
Wi-Fi driver pre-installed for quick power-on and easy network setup. -
AMD Socket AM5 Support
Compatible with: - AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
-
AMD Ryzen™ 7000 Series Processors
-
Robust Power Delivery
Digital twin 14+2+2 phases VRM solution. -
Dual Channel DDR5 Memory
- 4 × DIMM slots
-
AMD EXPO™ and XMP memory module support
-
M.2 EZ-Flex (Exclusive Patented Design)
High-efficiency M.2 SSD heat dissipation with a flexible baseplate. -
WIFI EZ-Plug
Quick and easy Wi-Fi antenna installation. -
Tool-less EZ-Latch Design
- PCIe EZ-Latch Plus: Quick-release, screwless PCIe slots
- EZ-Latch Plus: Quick-release, screwless M.2 slots
-
EZ-Latch Click: Screwless M.2 heatsinks
-
Friendly UI
Multi-theme interface, AIO fan control, and Q-Flash auto scan in BIOS and software. -
Ultra-Fast Storage
4 × M.2 slots, including PCIe 5.0 x4 support. -
Efficient Thermal Design
VRM Thermal Armor Advanced and M.2 Thermal Guard Ext. -
Fast Networking
5GbE LAN and Wi-Fi 7 with directional ultra-high gain antenna. -
Extended Connectivity
HDMI and dual USB4 Type-C with DisplayPort Alt Mode. -
PCIe UD Slot
PCIe 5.0 x16 slot with reinforced strength for graphics cards.
Specifications
CPU
| Item | Details |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
Chipset
| Item | Details |
|---|---|
| Chipset | AMD X870E |
Memory
| Item | Details |
|---|---|
| Type | DDR5 |
| Supported Speeds | 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s |
| Slots | 4 × DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| Module Support | Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| OC Profiles | AMD EXPO™ and XMP support |
Onboard Graphics
| Item | Details |
|---|---|
| Integrated GPU | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| USB4 Display Output | 2 × USB4® Type-C® ports via ASMedia USB4® controller, supporting USB4 and DisplayPort video output, max resolution 3840×2160 @ 240 Hz |
| HDMI Output | 1 × HDMI port, max resolution 4096×2160 @ 60 Hz |
Audio
| Item | Details |
|---|---|
| Codec | Realtek® ALC1220 |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel support |
| Digital Output | S/PDIF Out support |
LAN
| Item | Details |
|---|---|
| Chip | Realtek® 5GbE LAN |
| Speeds | 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| Item | Details |
|---|---|
| Module | Qualcomm® Wi-Fi 7 QCNCM865 |
| Standards | 802.11a/b/g/n/ac/ax/be |
| Bands | 2.4 / 5 / 6 GHz |
| Bluetooth | Bluetooth 5.4 |
| Wireless | Supports 11be 320 MHz standard |
Expansion Slots
| Slot | Interface | Source | Mode Support |
|---|---|---|---|
| PCIEX16 | PCIe x16 | CPU | AMD Ryzen™ 9000/7000: PCIe 5.0 x16; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 |
| PCIEX4 | PCIe x16 (electrical x4) | Chipset | PCIe 4.0 x4 |
| PCIEX2 | PCIe x16 (electrical x2) | Chipset | PCIe 3.0 x2 |
Storage
| Connector | Source | Type | Key / Form Factor | Interface |
|---|---|---|---|---|
| M2A_CPU | CPU | M.2 | Socket 3, M key, 25110 / 22110 / 2580 / 2280 | Ryzen™ 9000/7000: PCIe 5.0 x4/x2; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2 |
| M2B_SB | Chipset | M.2 | Socket 3, M key, 22110 / 2280 | PCIe 4.0 x4/x2 |
| M2C_SB | Chipset | M.2 | Socket 3, M key, 22110 / 2280 | PCIe 4.0 x4/x2 |
| M2D_SB | Chipset | M.2 | Socket 3, M key, 22110 / 2280 | PCIe 4.0 x4/x2 |
| SATA | Chipset | 4 × SATA | — | SATA 6 Gb/s |
RAID Support
- NVMe SSD: RAID 0, 1, 5, 10
- SATA: RAID 0, 1, 10
USB Connectivity
CPU + ASMedia USB4® Controller
- 2 × USB4® Type-C® ports on back panel (DisplayPort supported)
CPU
- 1 × USB Type-C® port on back panel (USB 3.2 Gen 2)
Chipset + USB 3.2 Gen 1 Hub
- 4 × USB 3.2 Gen 1 ports via internal headers
Chipset
- 1 × USB Type-C® port with USB 3.2 Gen 2x2 via internal header
- 4 × USB 3.2 Gen 2 Type-A (red) on back panel
- 4 × USB 3.2 Gen 1 ports on back panel
- 4 × USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 × 24-pin ATX main power connector
- 2 × 8-pin ATX 12V power connectors
- 1 × CPU fan header
- 1 × CPU fan / water cooling pump header
- 4 × system fan headers
- 2 × system fan / water cooling pump headers
- 3 × addressable RGB Gen2 LED strip headers
- 1 × RGB LED strip header
- 4 × M.2 Socket 3 connectors
- 4 × SATA 6Gb/s connectors
- 1 × front panel header
- 1 × front panel audio header
- 1 × USB Type-C® header (USB 3.2 Gen 2x2)
- 2 × USB 3.2 Gen 1 headers
- 2 × USB 2.0/1.1 headers
- 1 × Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
- 1 × reset jumper
- 1 × Clear CMOS jumper
- 2 × temperature sensor headers
- 1 × noise detection header

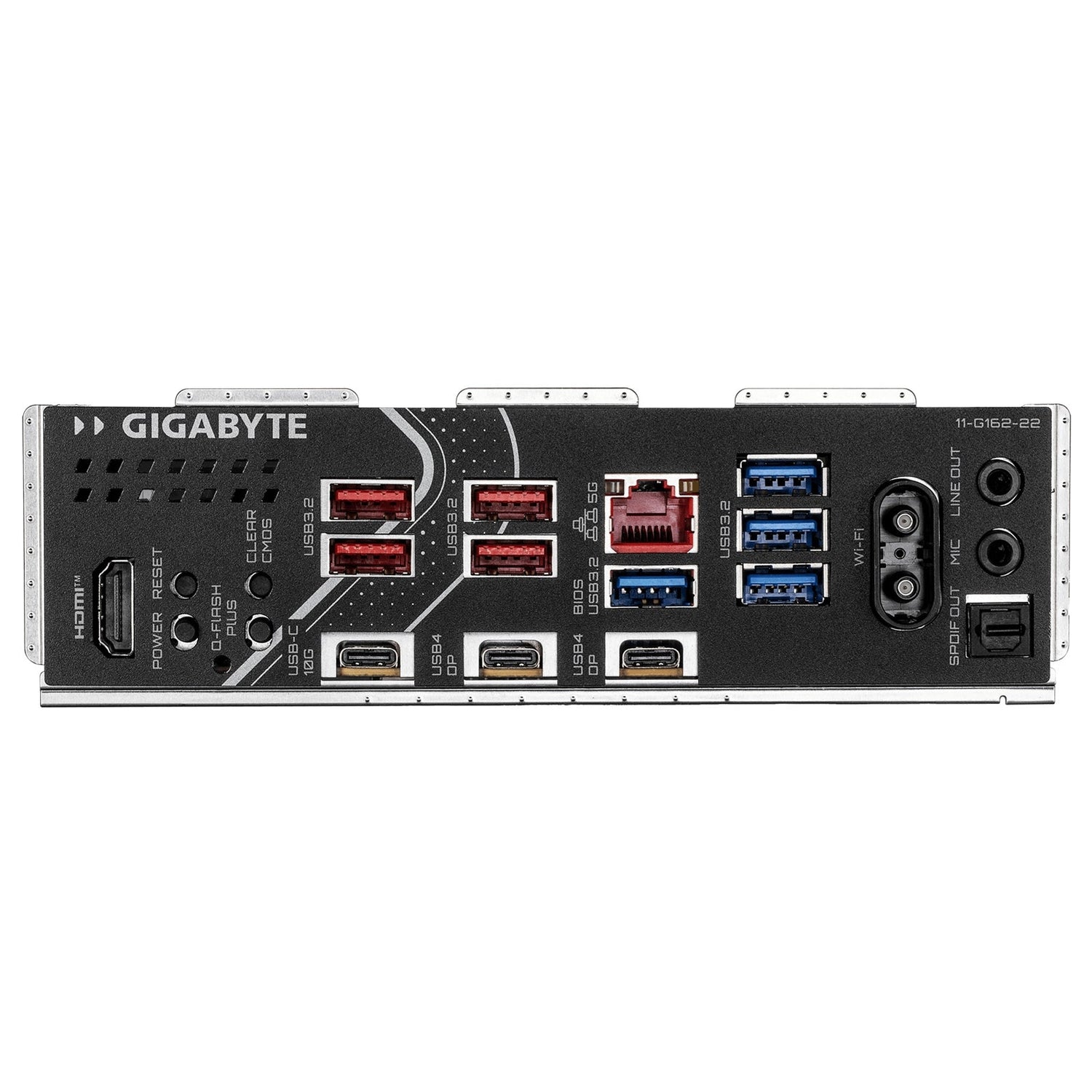

Back Panel Connectors
- 1 × HDMI port*
- 1 × reset button
- 1 × power button
- 1 × Clear CMOS button
- 1 × Q-Flash Plus button
- 4 × USB 3.2 Gen 2 Type-A ports (red)
- 1 × USB Type-C® port (USB 3.2 Gen 2)
- 2 × USB4® Type-C® ports (DisplayPort*)
- 1 × RJ-45 5GbE LAN port
- 4 × USB 3.2 Gen 1 ports
- 2 × antenna connectors (2T2R)
- 2 × audio jacks
- 1 × optical S/PDIF Out connector
*DisplayPort function via USB4 where supported.
I/O Controller & Monitoring
| Item | Details |
|---|---|
| Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, temperature, fan speed, water cooling flow rate |
| Alerts | Fan fail warning |
| Control | Fan speed control* |
| Additional | Noise detection |
*Fan/pump speed control support depends on the installed fan/pump.
BIOS
| Item | Details |
|---|---|
| Flash | 1 × 512 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
Form Factor
| Item | Details |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm × 24.4 cm |
