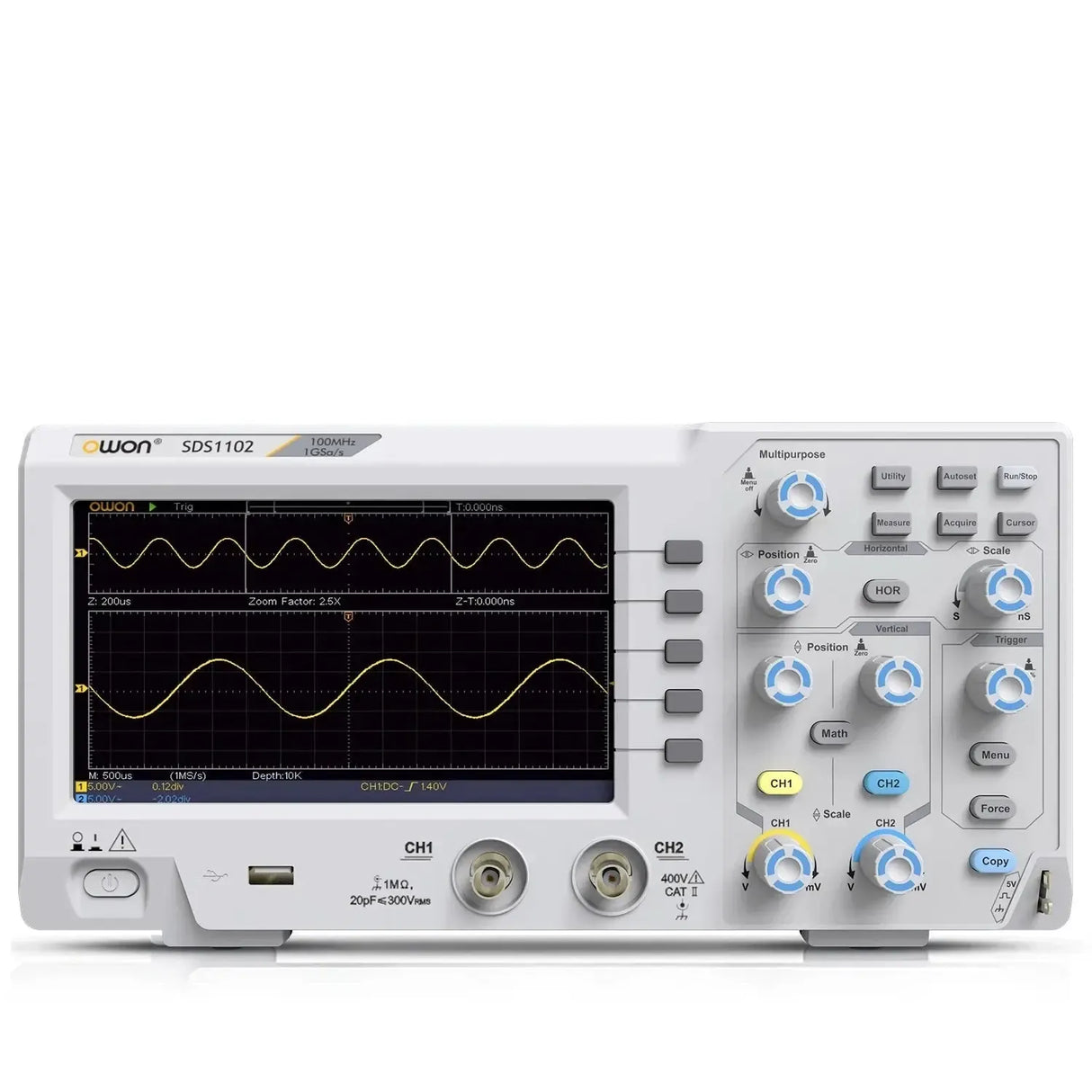

Owon SDS1102 Digital Oscilloscope

Experience Precision and Affordability with the Owon SDS1102 Digital Storage Oscilloscope

The Owon SDS1102 Digital Oscilloscope is a top-tier, budget-friendly solution designed for hobbyists, educators, and professionals alike. Featuring a robust 100MHz bandwidth, 2 channels, and an impressive 1GS/s sample rate, the SDS1102 ensures accurate and reliable measurements for all your electronic testing and analysis needs. Its sleek, ultra-thin design makes it perfect for any workspace, while the vibrant 7-inch high-resolution LCD provides clear and detailed waveform visuals, enhancing your user experience.

Key Features

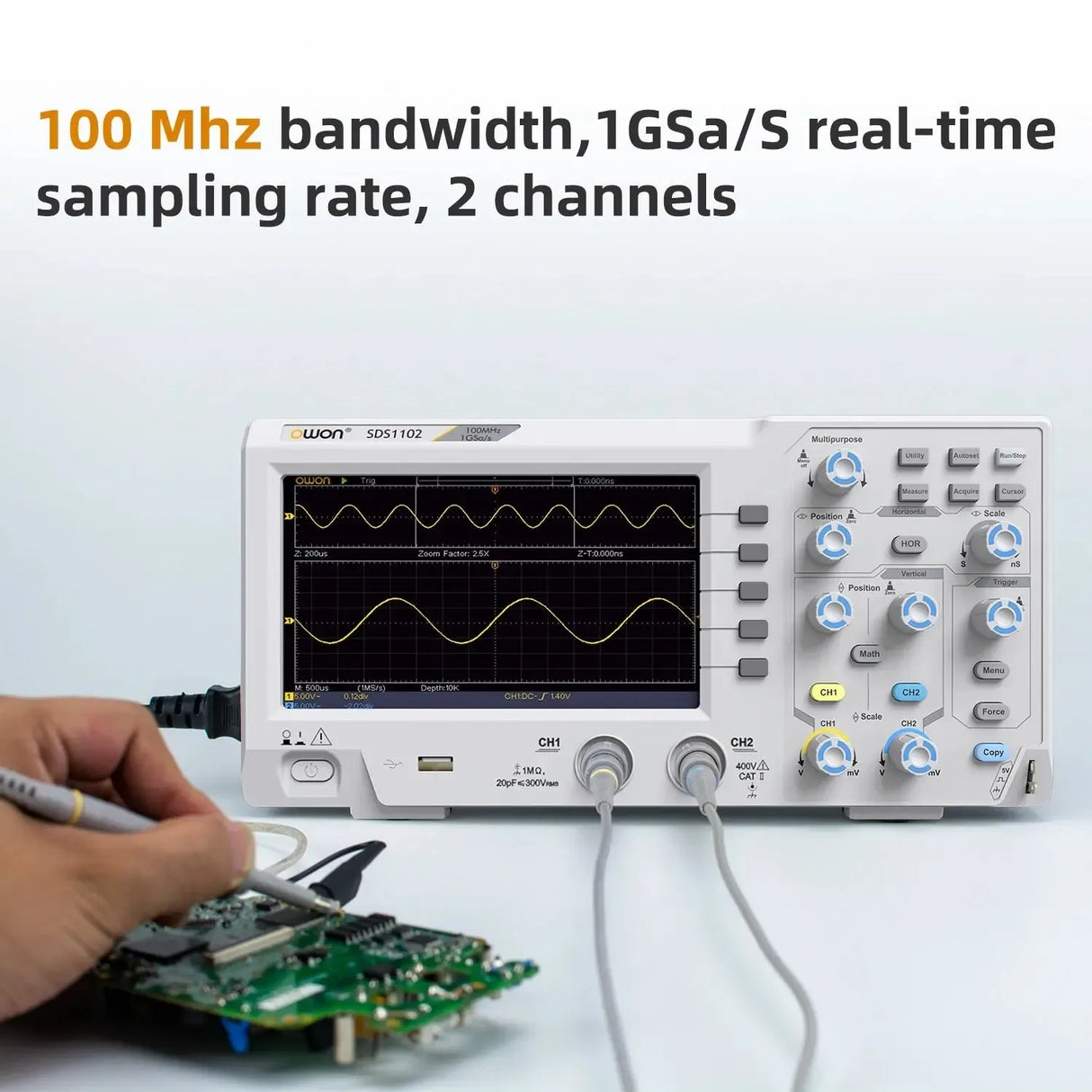

• High Bandwidth & Sample Rate: Capture a wide range of signal frequencies with 100MHz bandwidth and achieve precise waveform representation with a 1GS/s sample rate.
• Dual Channels: Monitor two signals simultaneously, boosting efficiency in troubleshooting and analysis.

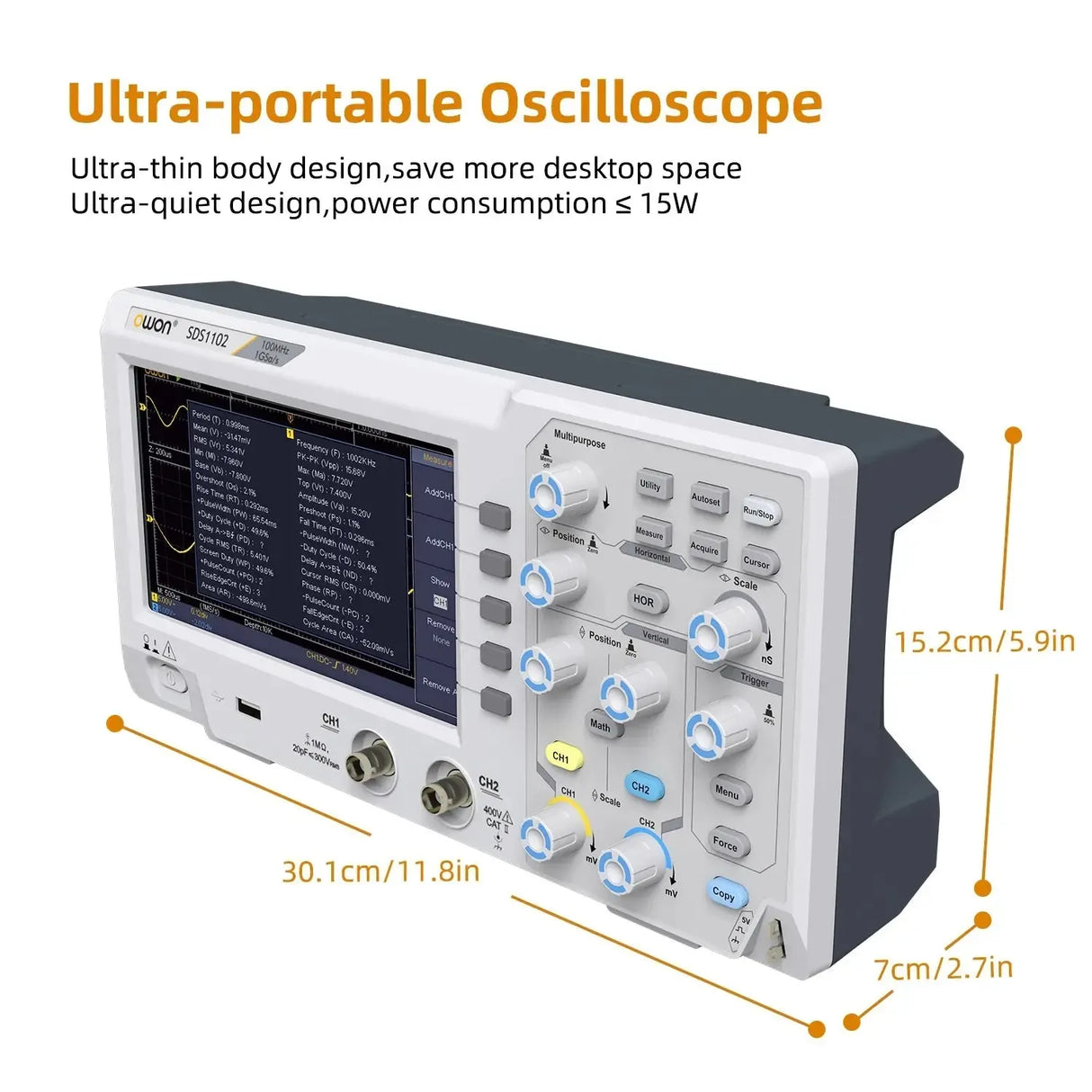

• Compact & Portable Design: Measuring 301mm (W) × 152mm (H) × 70mm (D) and weighing only 1.10 kg, the SDS1102 is easy to transport and integrates seamlessly into various work environments.

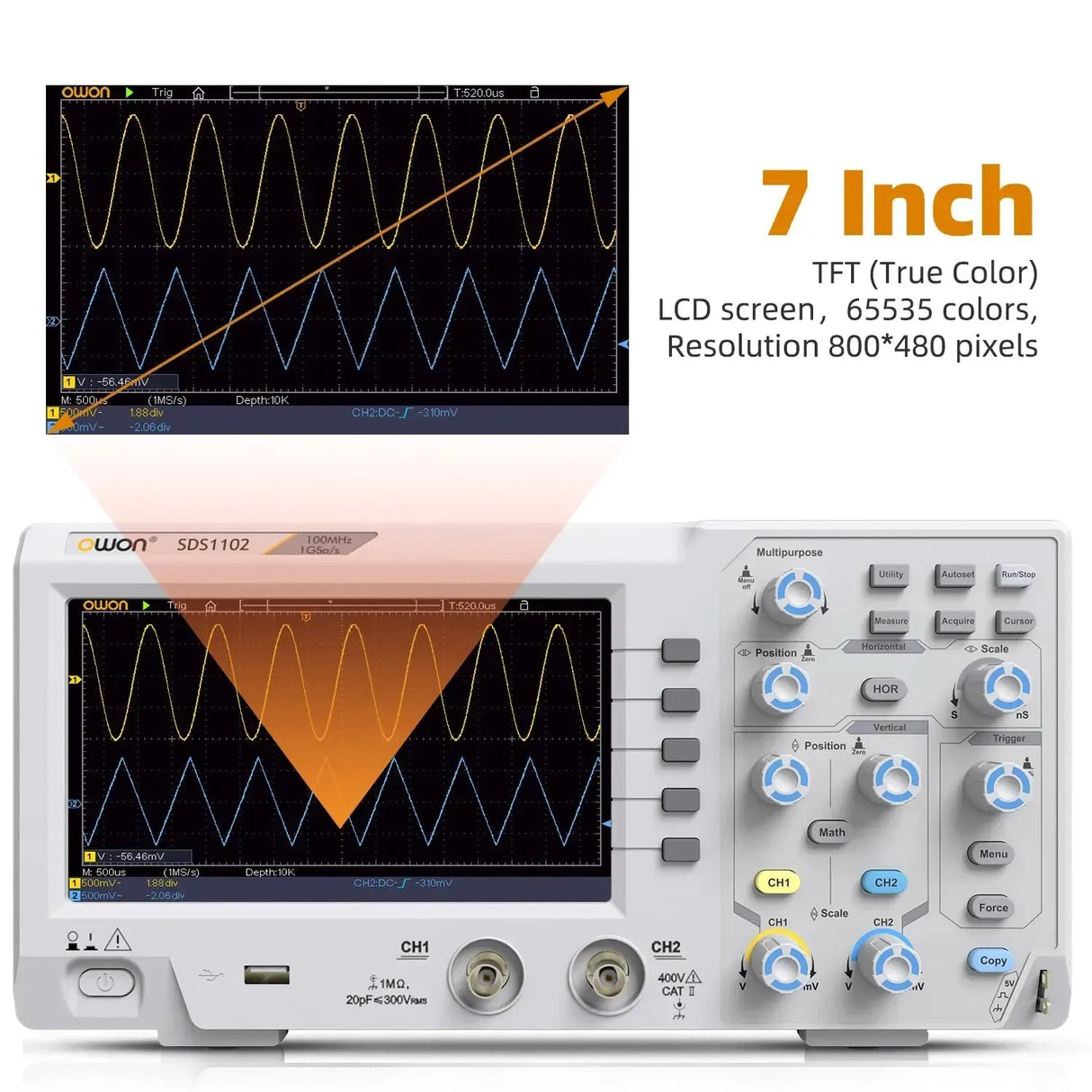

• High-Resolution Display: Enjoy crisp and clear waveform visualization on a 7" TFT LCD with 800 × 480 pixels and a user-friendly interface supporting multiple languages.
• Advanced Measurement Functions: Utilize edge and video trigger types, versatile operation modes (Auto, Normal, Single), detailed cursor measurements, and automatic measurements including Vpp, Vavg, RMS, frequency, and more.
• Comprehensive Waveform Analysis: Perform waveform math operations, store up to 16 waveforms, and visualize phase differences with Lissajous figures.

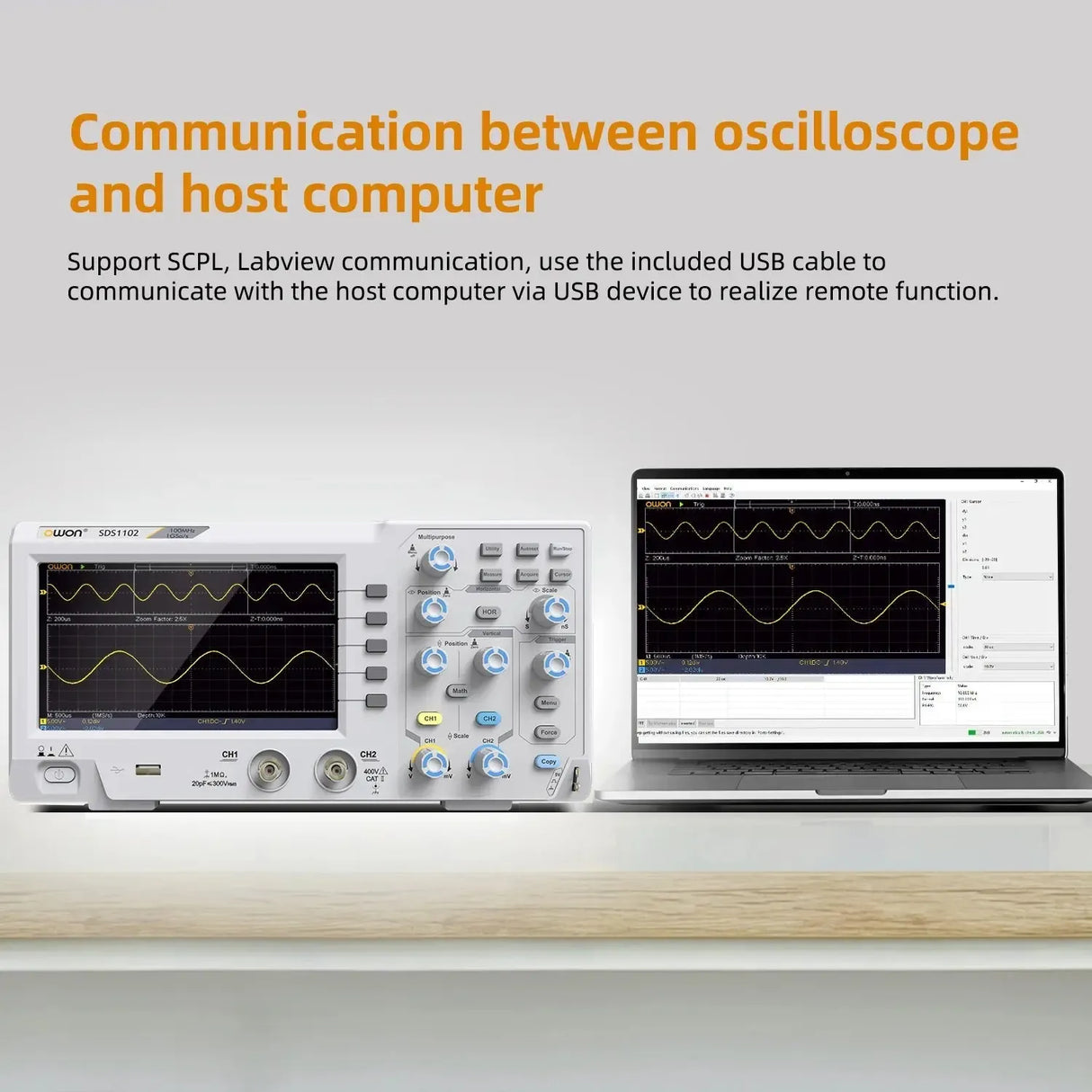

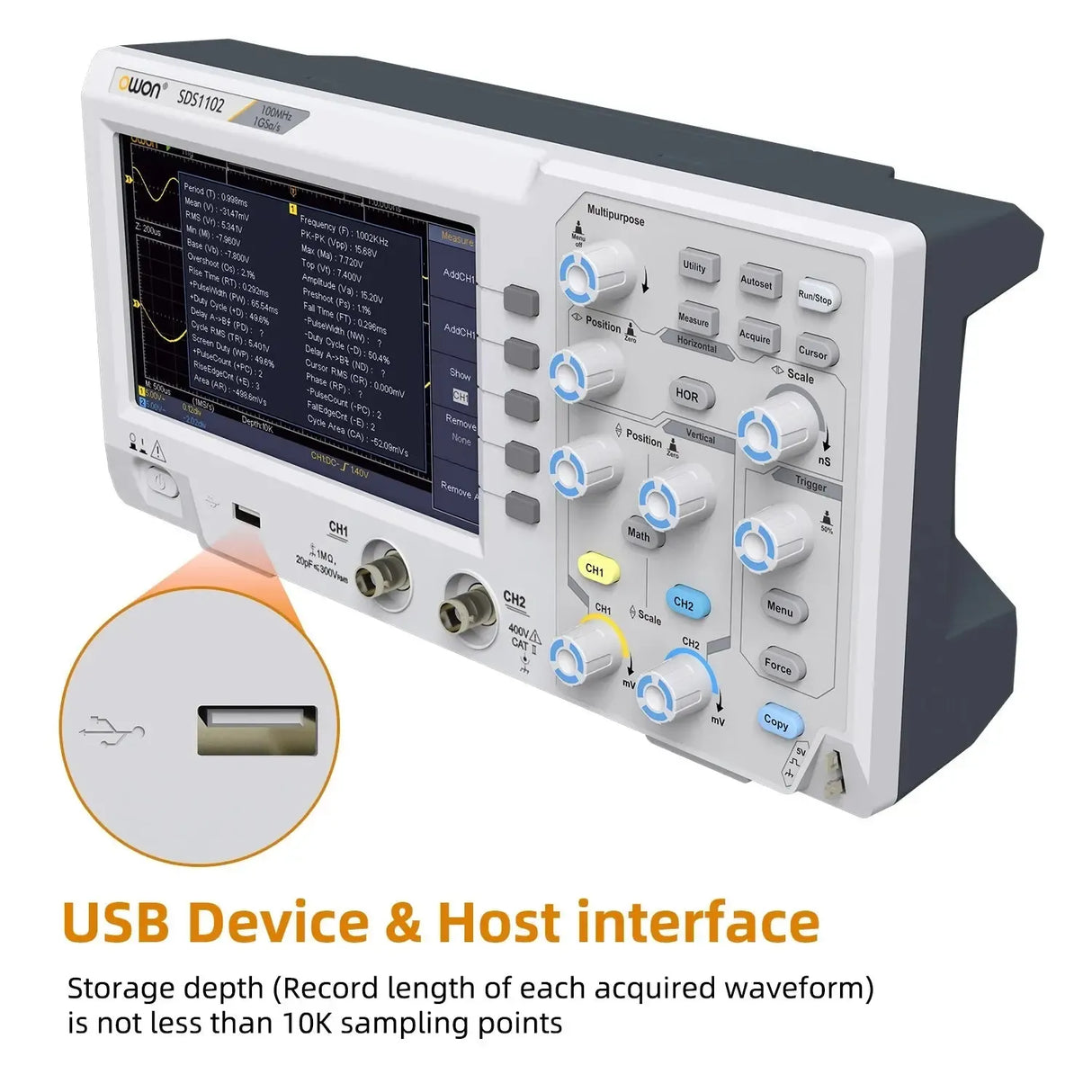

• Versatile Communication Interfaces: Seamlessly transfer data and update firmware via USB Host & Device, connect remotely through LAN and RS232, and use the built-in frequency counter for precise measurements.
• Enhanced Safety & Protection: Features overcurrent, overvoltage, overpower, and overtemperature protection, reverse polarity safeguards, intelligent fan control, and a built-in buzzer alarm for reliable operation.
• Precision & Accuracy: Achieve voltage measurement accuracy of ±10mV, current accuracy of ±10mA, phase difference accuracy of ±3 degrees, and DC gain accuracy of ±3%.
• Energy Efficient & Flexible Probing: With standby current drain below 0.05mA per channel and multiple probe attenuation factors (1X, 10X, 100X, 1000X), the SDS1102 is both efficient and versatile.

Specifications

• Model: SDS1102
• Bandwidth: 100MHz
• Sample Rate: 1GS/s
• Channels: 2
• Display: 7" color LCD, 800 x 480 pixels
• Input Impedance: 1MΩ ±2%, 20pF ±5pF
• Max Input Voltage: 400V PK-PK
• Dimensions (W x H x D): 301mm × 152mm × 70mm
• Weight: 1.10 kg
• Power Supply: 100V - 240V AC, 50/60Hz
• Power Consumption: <15W

Applications

• Education & Training: Ideal for electronics laboratories and classrooms, offering hands-on experience with high-precision measurements.
• Scientific Research: Perfect for experimental setups requiring detailed waveform analysis and data acquisition.
• Industrial Testing: Essential for quality control, product testing, and machinery diagnostics in manufacturing environments.
• Electronics Development: Crucial for prototyping and developing intricate electronic circuits and devices.
• Automotive Diagnostics: Useful for testing and diagnosing automotive electronic systems and components.
• Home & Hobby Projects: Enhances DIY electronics, robotics, and custom gadget development with reliable measurement capabilities.

Why Choose the Owon SDS1102?

• Affordability Meets Performance: Experience high-end oscilloscope features without breaking the bank.
• Reliable Precision: Ensure dependable measurements with high resolution and accuracy across all applications.
• User-Friendly Design: Navigate easily with a large, high-resolution display and intuitive controls suitable for both novices and experts.
• Multi-Functional: Benefit from a wide range of measurement modes, advanced waveform analysis tools, and versatile communication interfaces to meet all your testing needs.
• Durable & Portable: Built with high-quality materials for longevity while maintaining a lightweight and portable form factor.

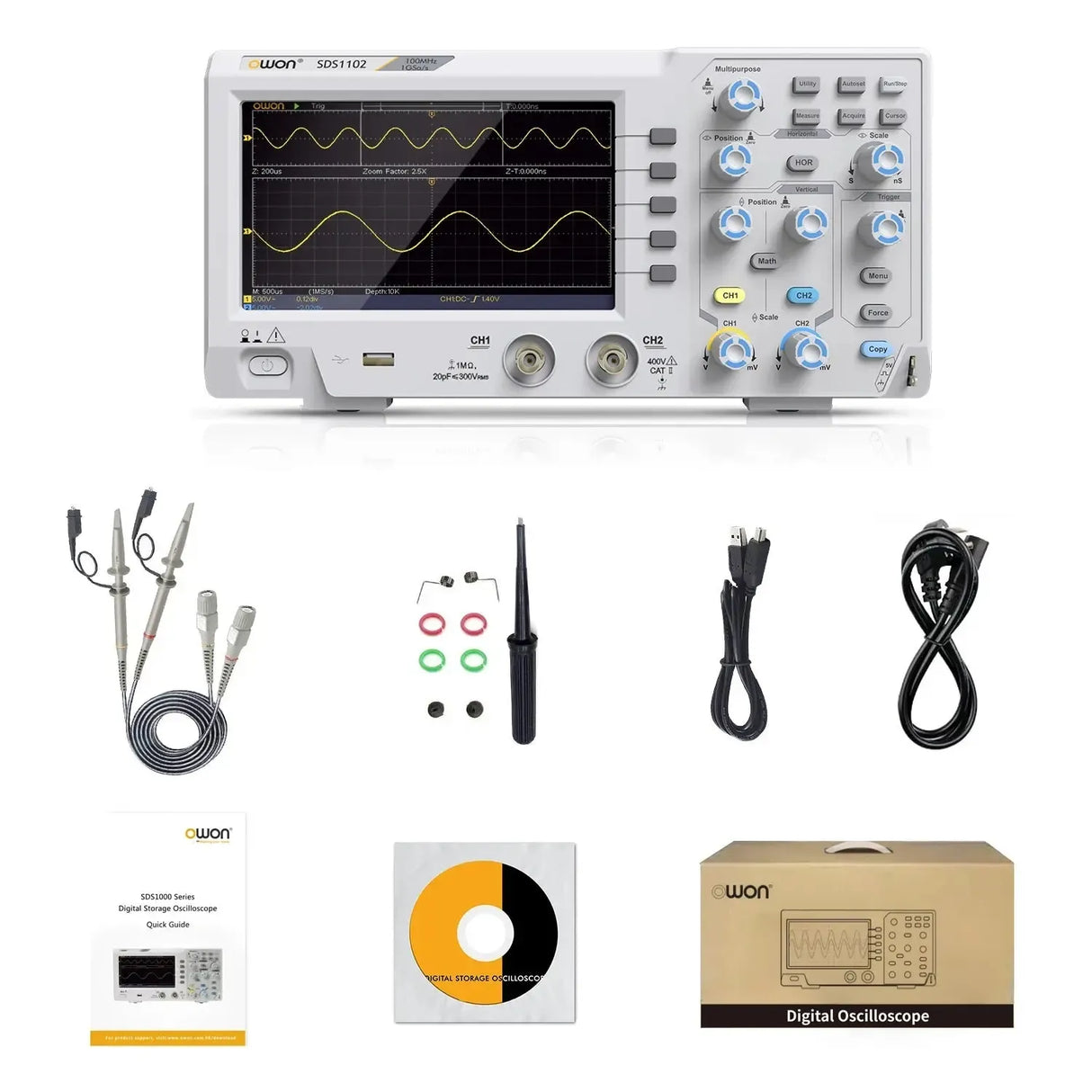

What's Included

• 1 × Owon SDS1102 Digital Storage Oscilloscope
• 1 × Power Cord
• 1 × Probe Set
• 1 × User Manual

Upgrade your electronic testing and measurement setup with the Owon SDS1102 Digital Oscilloscope. Whether you're a student, hobbyist, educator, or professional engineer, this oscilloscope provides the precision, reliability, and functionality you need to excel in your projects and research.

Order yours today and enjoy high-performance oscilloscope capabilities at an unbeatable price!
