TES200 74/40 Series Logic IC Tester

£ 31.20
(inc VAT)
1 Sold

Delivery and Shipping

Enjoy free shipping on all orders. We dispatch purchases within 1-2 business days for swift delivery, but please note that in some cases, such as international shipments, dispatch and delivery times may be longer.

Description

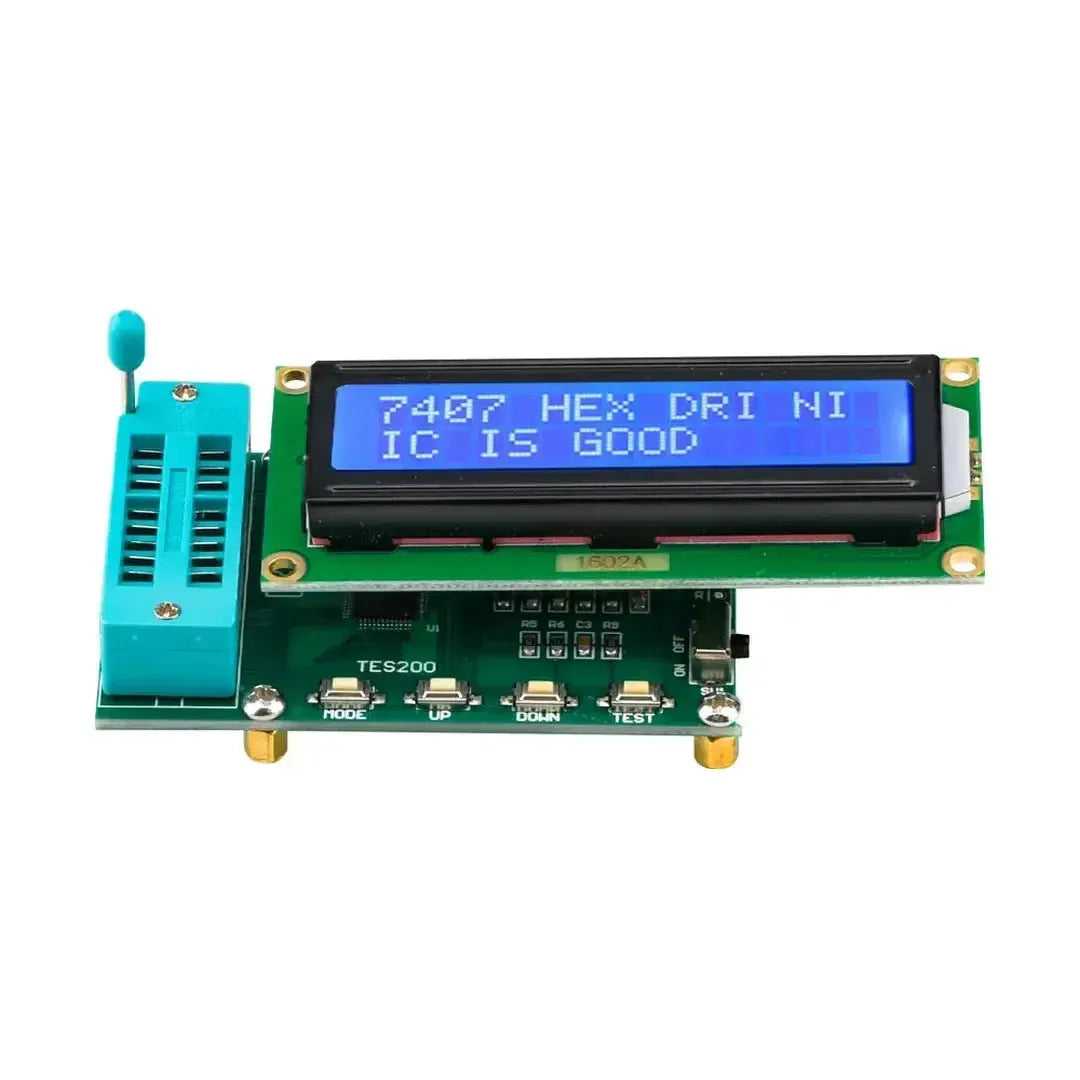

TES200 74/40 Series Logic IC Tester

Product Highlights:

  1. Wide Application: Tests over 200 types of digital integrations from the 74 and 40 series.
  2. Ease of Use: Simple key operations for selecting and testing ICs.
  3. Fast Response: Provides results in as little as 3 seconds.
  4. Power Supply: Operates on 7-12V DC.

Features:

  • Tests logic integration to determine which gate is faulty.
  • 7-12V operating voltage with <30mA current.
  • Operates within -40℃ to 65℃.
  • Includes functions for selecting and testing integration types via buttons.

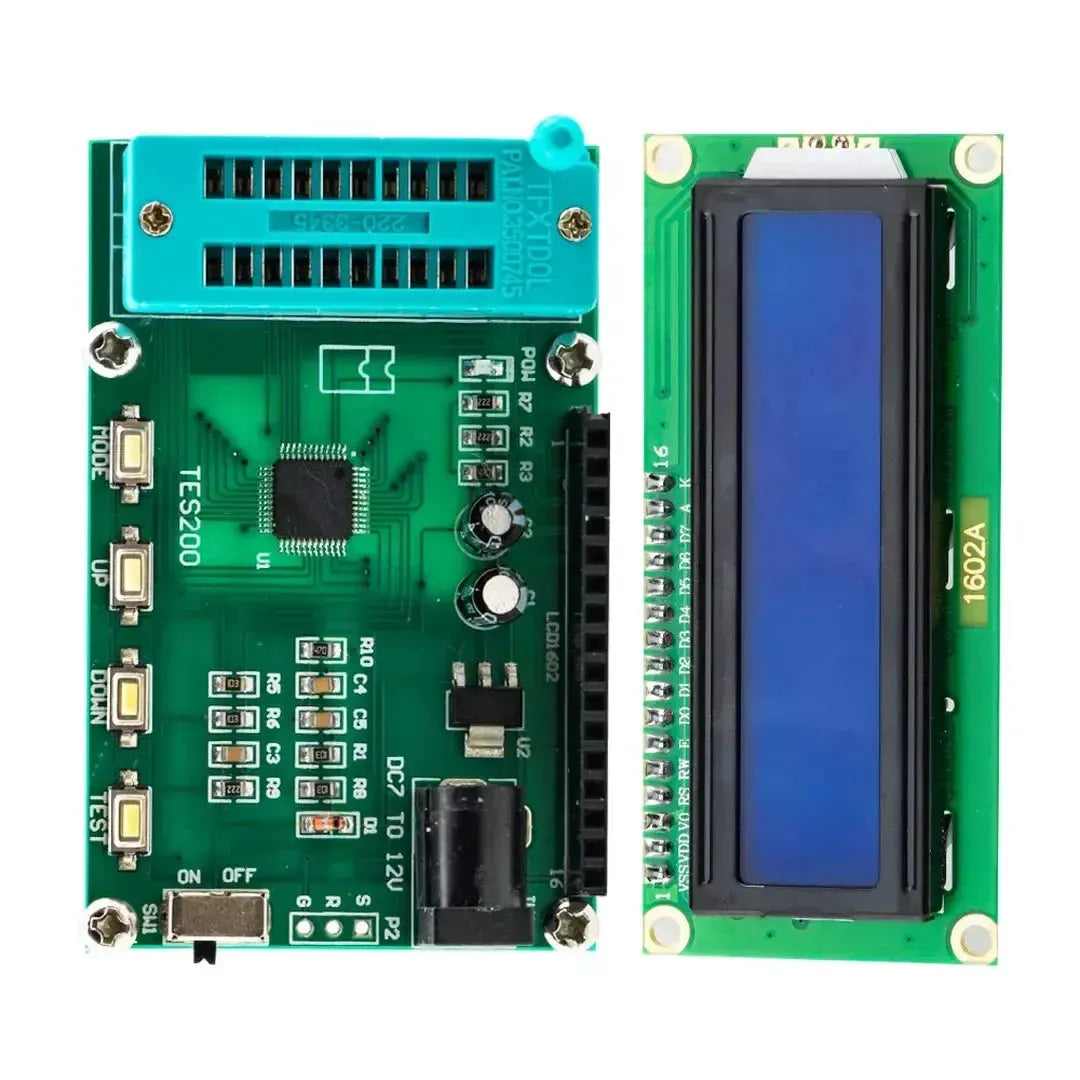

Interface:

  • Power Supply Interface: DC header D13 (internal positive, external negative).
  • Power Switch: ON/OFF state.
  • Buttons: MODE (select integration type), UP/DOWN (navigate integration types), TEST (initiate test).

Supported Series:

  • 74 Series:

    7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409

    7410 ,7411 ,7412 ,7413 ,7414 ,7415 ,7416 ,7417 ,7418 ,7419

    7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432

    7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443

    7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473

    7474 ,7475 ,7476 ,7477 ,7478 ,7480 ,7482 ,7483 ,7485 ,7486

    7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108

    74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134

    74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151

    74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164

    74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182

    74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247

    74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266

    74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353

    74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395

    74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670

  • 40,45 Series:

    cd4000, cd4001, cd4002, cd4006, cd4007, cd4008, cd4009, cd4010, cd4011, cd4012.

    cd4013, cd4014, cd4015, cd4016, cd4017, cd4018, cd4019, cd4020, cd4021, cd4022.

    cd4023, cd4024, cd4025, cd4026, cd4027, cd4028, cd4029, cd4030, cd4033, cd4035.

    cd4040, cd4042, cd4043, cd4044, cd4048, cd4049, cd4050, cd4051, cd4052, cd4053.

    cd4060, cd4066, cd4068, cd4069, cd4070, cd4071, cd4072, cd4073, cd4075, cd4076.

    cd4077, cd4078, cd4081, cd4082, cd4085, cd4093, cd4094, cd4099, cd4502, cd4503.

    cd4504, cd4510, cd4511, cd4512, cd4516, cd4518, cd4520, cd4522, cd4526, cd4529.

    cd4532, cd4539, cd4543, cd4555, cd4556, cd4584, cd40106, cd40110, cd40161, cd40162,cd40174, cd40175, cd40192, cd40193

Package Includes:

  • 1 x TES200 Logic IC Tester

This tool is ideal for digital integration tests in various applications, ensuring precise and rapid detection of faulty gates.
