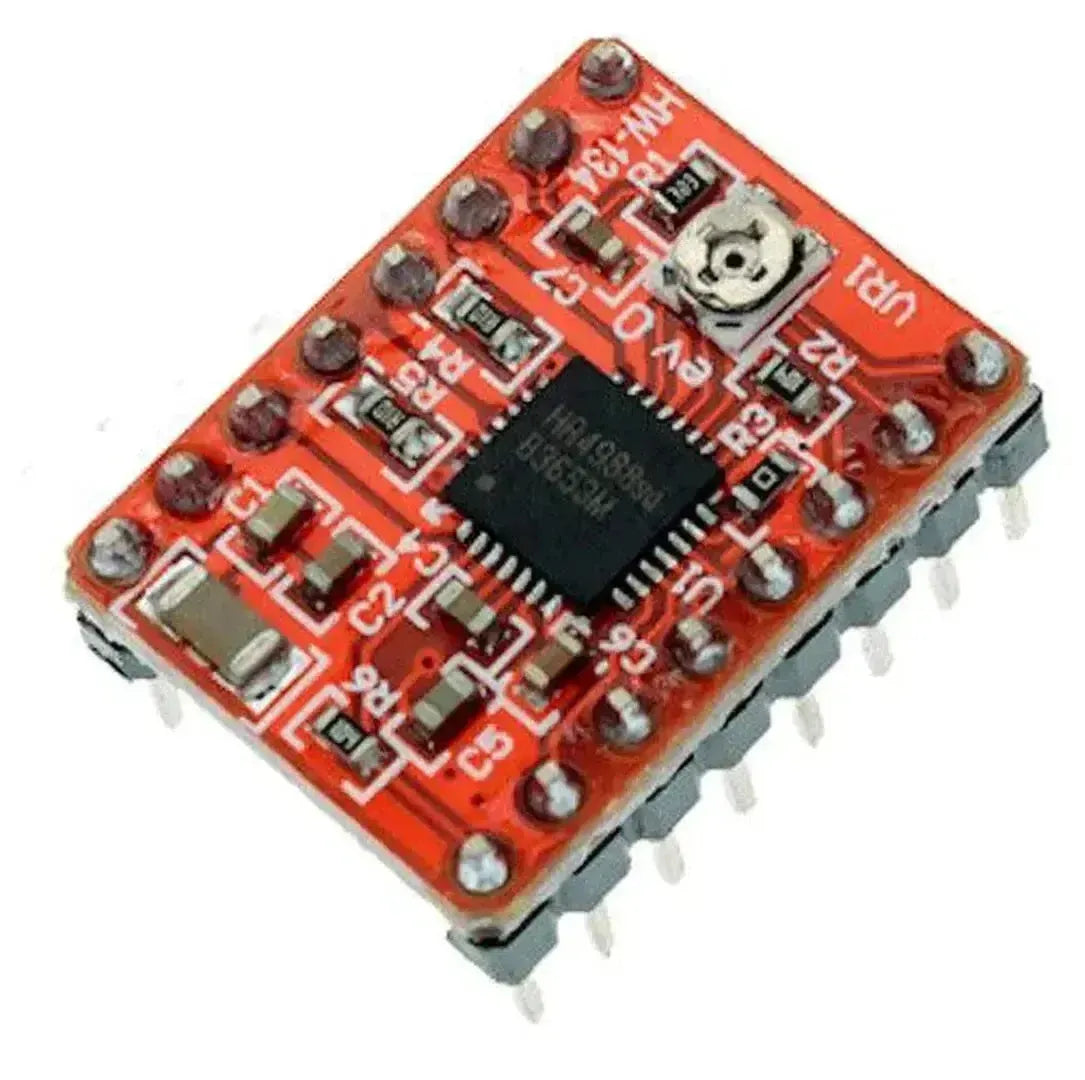

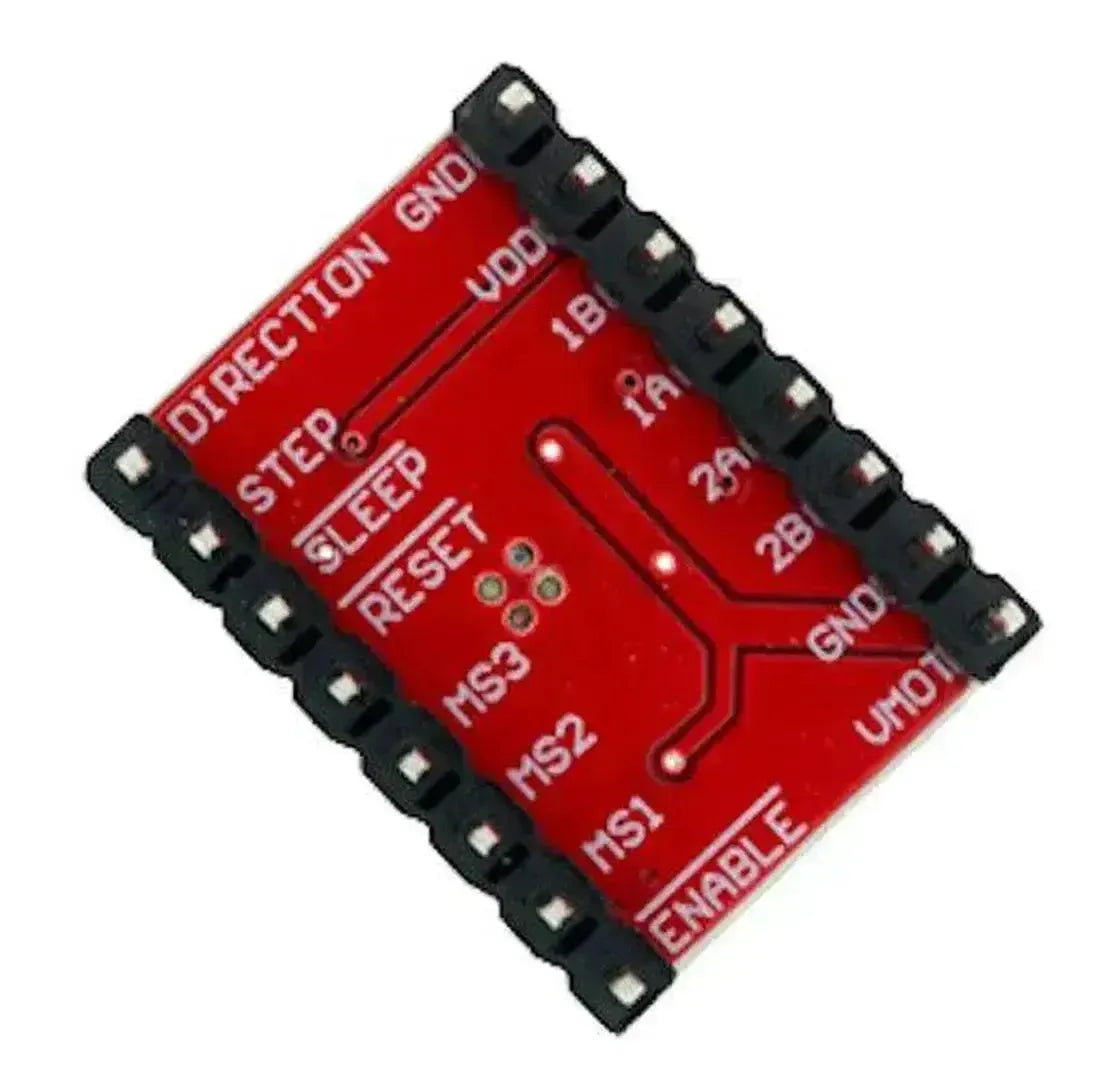

A4988 Stepper Motor Driver

A4988 Stepper Motor Driver

Unlock unmatched precision and control with the A4988 Stepper Motor Driver, your go-to solution for driving bipolar stepper motors effortlessly. Engineered for versatility and durability, this advanced module is perfect for a wide array of applications, including 3D printers, CNC machines, robotics, and sophisticated motion control systems. Whether you're striving for high-resolution movements or seeking smooth and consistent performance, the A4988 delivers exceptional accuracy and reliability with support for full, half, 1/4, 1/8, and 1/16 microstepping modes.

Key Features:

1. Wide Voltage Compatibility: Seamlessly operates within a broad voltage range of 8V to 35V and manages currents up to ±2A, providing the flexibility needed for diverse applications and varied motor specifications.
2. Advanced Current Control: Features automatic current decay mode detection and selection, enhancing motor performance and optimizing energy efficiency for extended operational longevity.
3. Comprehensive Protection Mechanisms: Equipped with thermal shutdown, under-voltage lockout (UVLO), and crossover-current protection to safeguard your motors and driver, ensuring maximum safety and durability during operation.
4. Seamless Integration: Intuitive step and direction control interface allows for straightforward incorporation into existing systems, simplifying the setup process for both developers and hobbyists.
5. Precision Adjustable Current Control: Easily customize the maximum current output using the integrated potentiometer, enabling tailored performance to match the specific requirements of your project.

Specifications:

• Dimensions: 0.6″ × 0.8″ – Compact design fits perfectly into tight spaces within your projects.
• Weight: Lightweight at only 1.3 g, ensuring minimal impact on your overall system.
• Operating Voltage: 8V to 35V – Supports a wide range of power supplies for diverse applications.
• Continuous Current per Phase: 1A – Delivers steady power for reliable motor operation.
• Maximum Current per Phase: 2A – Capable of handling higher current demands when necessary.
• Logic Voltage: 3V to 5.5V – Compatible with standard microcontroller logic levels.
• Microstep Resolutions: Full, 1/2, 1/4, 1/8, and 1/16 – Offers exceptional control over motor movements for smooth and precise operation.
• Reverse Voltage Protection: No – Ensure correct installation to avoid potential damage.
• Bulk Packaged: No – Single unit packaging for individual use.
• Header Pins Soldered: No – Provides flexibility for custom connections and configurations.

Why Choose the A4988 Stepper Motor Driver?

The A4988 Stepper Motor Driver is a premier choice for both enthusiasts and professionals, offering a perfect blend of functionality, reliability, and ease of use. Its compact form factor doesn’t compromise performance, making it ideal for both space-constrained projects and larger, more complex systems. With advanced microstepping capabilities, you can achieve smoother and more accurate motor movements, which is essential for high-precision applications like 3D printing and CNC machining.

Additionally, the A4988’s intelligent current control and comprehensive protection features ensure your motors operate efficiently and safely, minimizing the risk of overheating or damage. The driver’s easy integration means you can quickly set up and start controlling your motors without hassle, whether you’re a seasoned engineer or a DIY hobbyist. Adjusting the current to match your specific needs is straightforward, allowing for customized performance that adapts to various motor types and project requirements.

Ideal Applications:

• 3D Printers: Achieve precise layer heights and smooth movements for high-quality prints.
• CNC Machines: Ensure accurate cutting and machining with reliable motion control.
• Robotics: Power precise movements in robotic arms and other automated systems.
• Automated Systems: Implement in any system requiring controlled motion for optimal performance.

Customer Support and Reliability

Choosing the A4988 Stepper Motor Driver means investing in a solution backed by reliable performance and dedicated customer support. Whether you’re troubleshooting during setup or seeking advice on maximizing your project’s potential, our knowledgeable support team is here to assist you every step of the way. We are committed to ensuring your experience with the A4988 is seamless and successful.

Summary

The A4988 Stepper Motor Driver is the ideal choice for anyone seeking precise and dependable motor control. Its extensive feature set, including multiple microstepping modes, adjustable current control, and robust protection mechanisms, makes it suitable for a wide array of applications from 3D printing and CNC machining to advanced robotics. Compact yet powerful, the A4988 ensures your projects run smoothly and efficiently, providing the performance and reliability you need to bring your innovative ideas to life.
