12V Linear Actuator

£39.99

Product Overview
Upgrade your designs with our precision-engineered 12 V Linear Actuator. Built from rugged aluminum alloy and sealed to IP54 standards, this actuator delivers smooth, reliable motion for home automation, industrial machinery, robotics, and custom DIY projects. Choose from multiple stroke lengths and thrust ratings to perfectly match your application’s needs.

Key Features & Benefits

Robust Aluminum-Alloy Housing
Lightweight yet durable—resists corrosion and mechanical stress in demanding environments.
Built-in Limit Switches
Auto-stop at both ends prevents overtravel and motor burnout.
Stop-Anywhere Machine Lock
Hold the actuator at any position under load, giving you ultimate control.

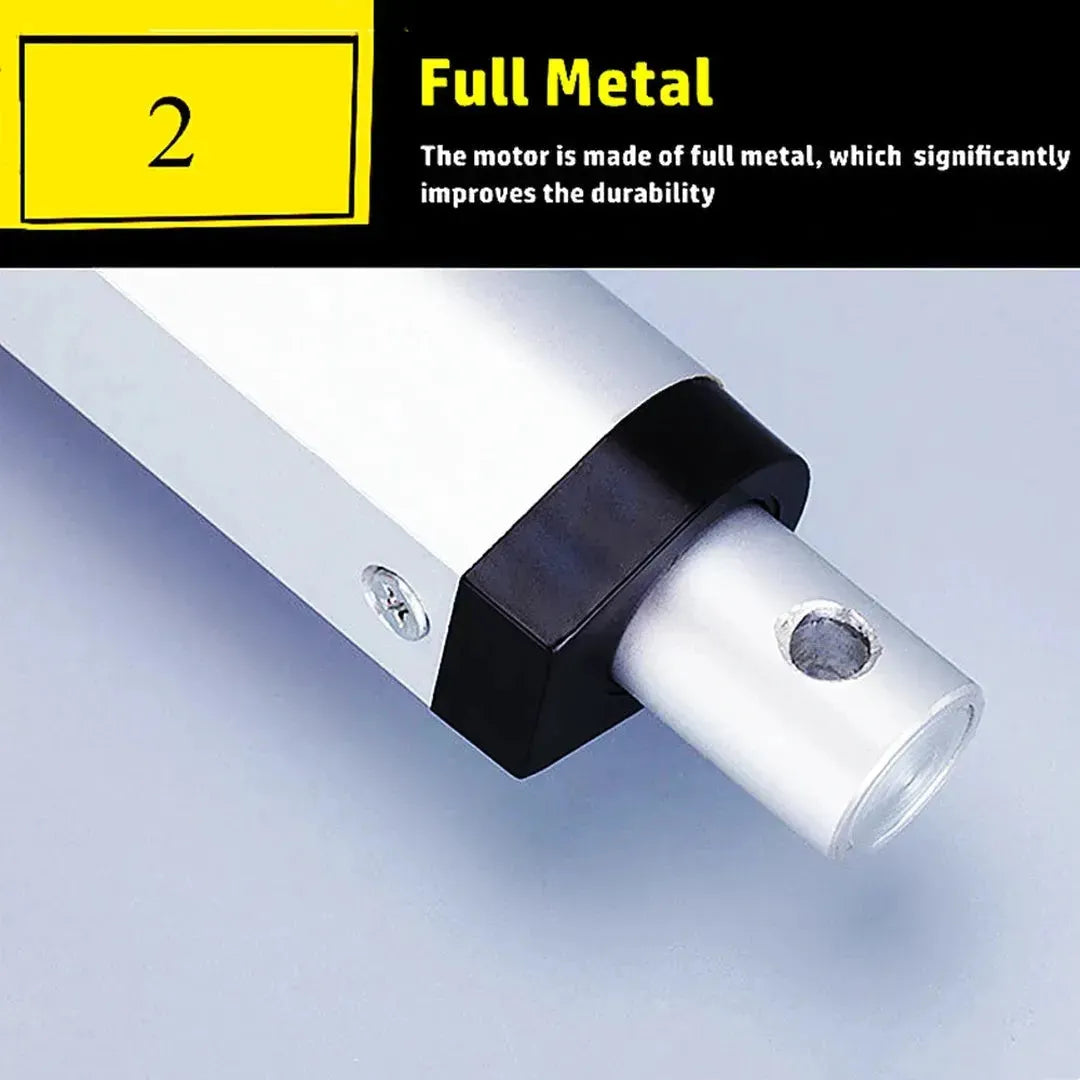

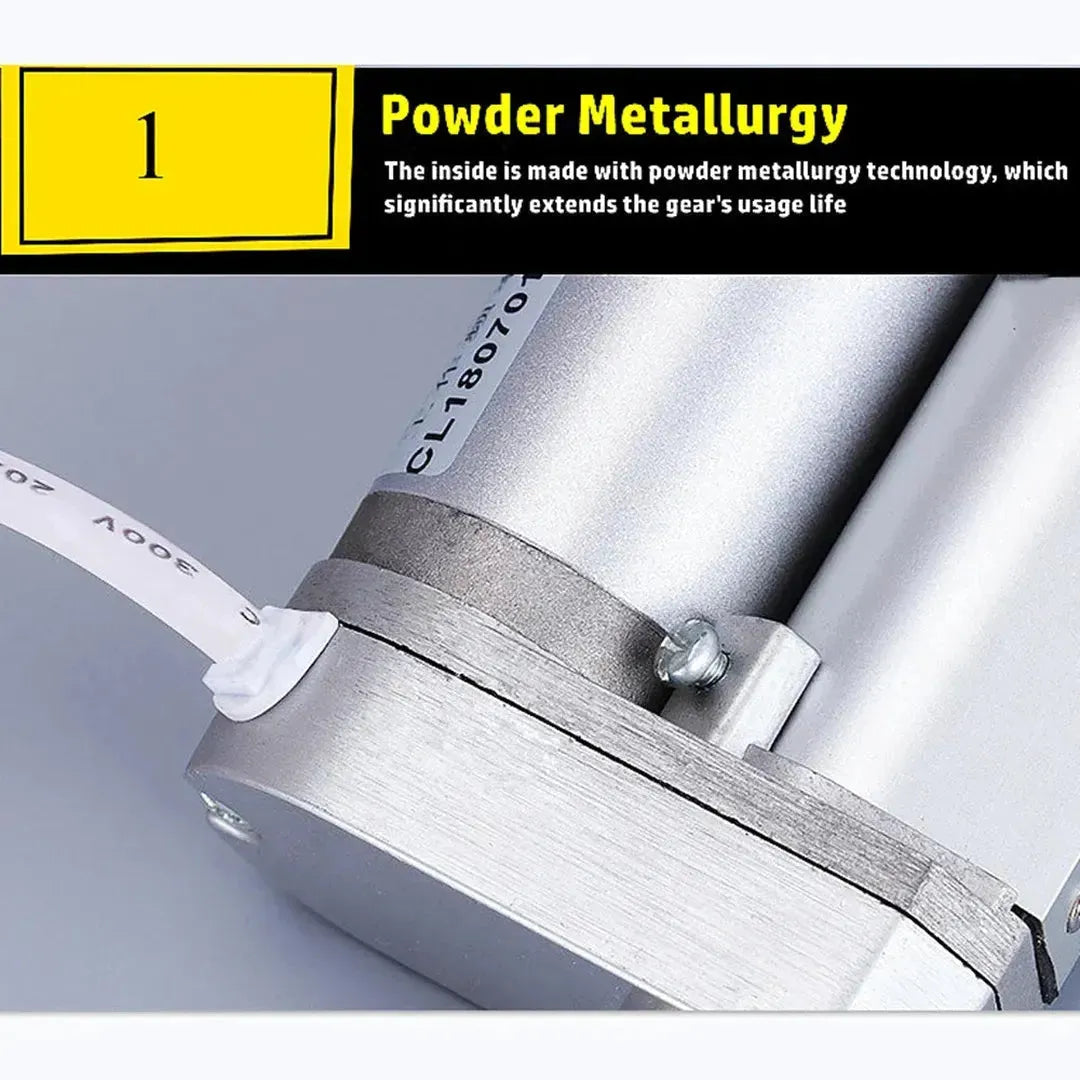

Premium Metal Gears
Long-life, low-backlash operation for smooth, jitter-free travel.
Quiet Operation (< 42 dB)
Ideal for noise-sensitive settings like medical devices or living spaces.
Wide Operating Temperature
–20 °C to +75 °C ensures reliable performance from cold outdoors to hot machinery rooms.
Dust & Splash Resistance (IP54)
Works worry-free in dusty workshops or splash-prone locales.

Technical Specifications

Parameter	Specification
Input Voltage	12 V DC
Rated Power	20 W (Max 30 W)
Material	Anodized Aluminum Alloy
Protection Class	IP54
Noise Level	< 42 dB
Operating Temp. Range	–20 °C to +75 °C
Duty Cycle	≤ 25%
Motor & Gearbox	Brushed DC with metal planetary gears
Mounting	Clevis-eye brackets at both ends

Performance Options

Stroke Lengths & Retracted/Extended Dimensions

Stroke	Retracted Length	Extended Length
50 mm	155 mm	205 mm
100 mm	205 mm	305 mm
150 mm	255 mm	405 mm
200 mm	305 mm	505 mm
250 mm	355 mm	605 mm

Thrust vs. Speed (Typical)

Thrust	Speed
100 N	30 mm/s
150 N	20 mm/s
200 N	15 mm/s
500 N	8 mm/s
1000 N	4 mm/s

Ideal Applications

Home Automation: Motorized curtains, adjustable desks, hidden compartments

Industrial Machinery: Valve actuators, conveyor stops, precision jigs

Robotics & Mechatronics: Gripper arms, linear slides, pan-tilt mechanisms

Automotive: Tailgate lifts, throttle controls, adjustable seating

DIY & Makers: Kinetic sculptures, theatrical props, interactive art

Why Choose Our Actuator?

Customizable Performance: Multiple strokes and thrust options let you dial in speed vs. force for any task.

Built-to-Last Design: Premium metal gears, limit switches, and sealed housing ensure years of dependable service.

Plug-and-Play Integration: Standard 12 V input and universal clevis-eye mounts make installation a breeze.

Silent Precision: Quiet operation and low backlash deliver smooth motion without the noise.

Transform the way your projects move order your 12 V Linear Actuator today and experience professional-grade linear motion in a compact, reliable package!
