3x4 Membrane Keypad
£3.99

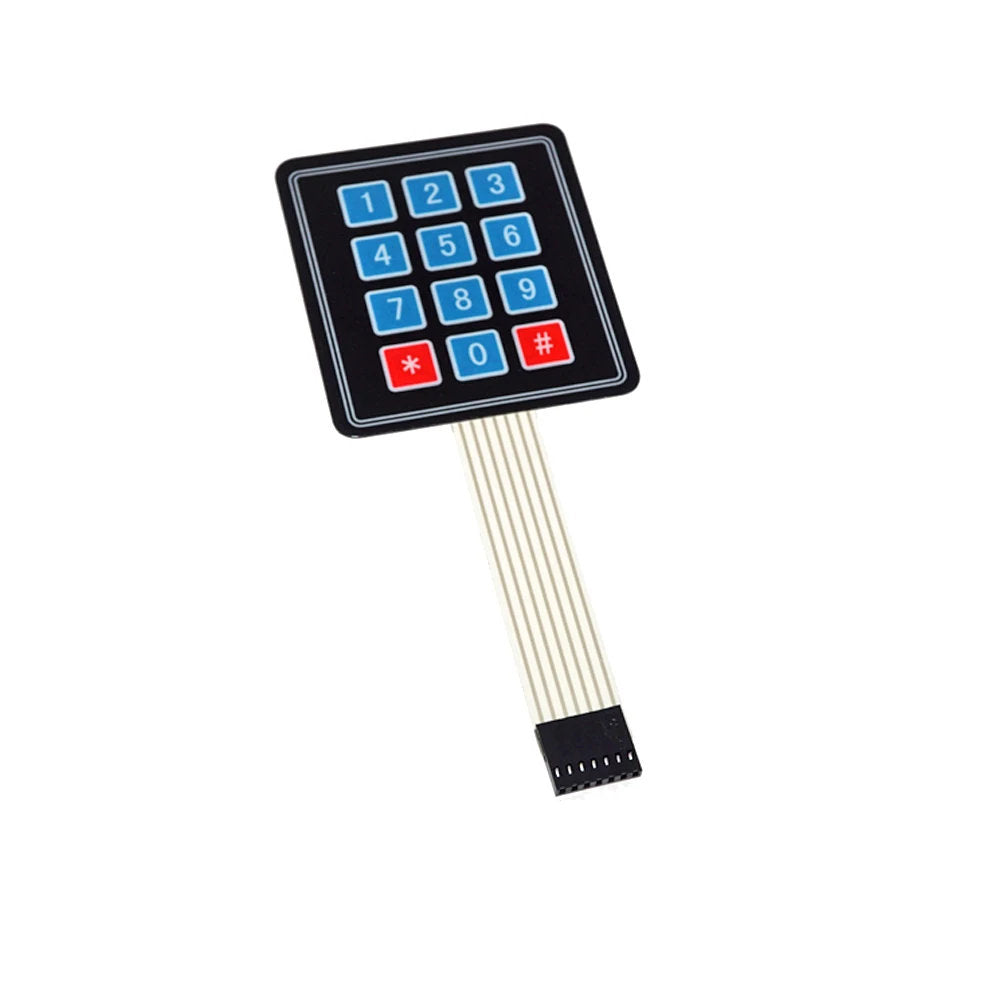

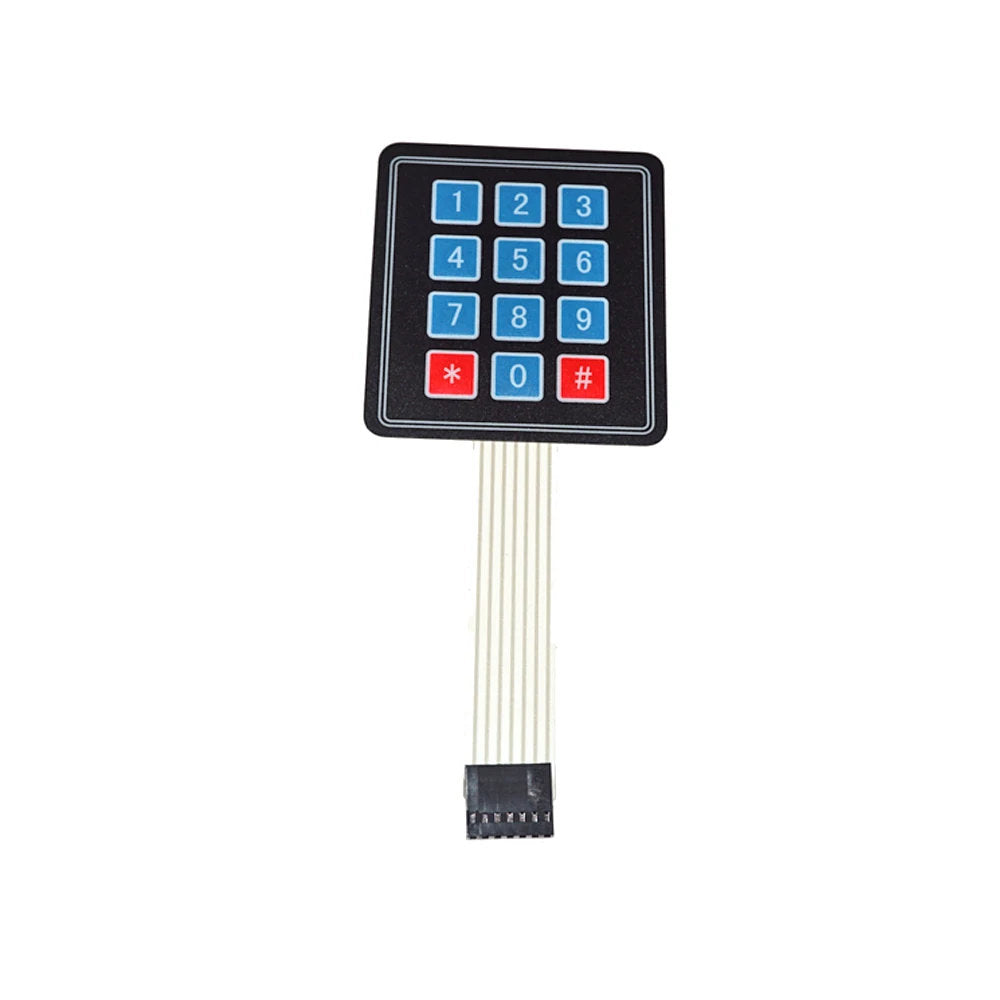

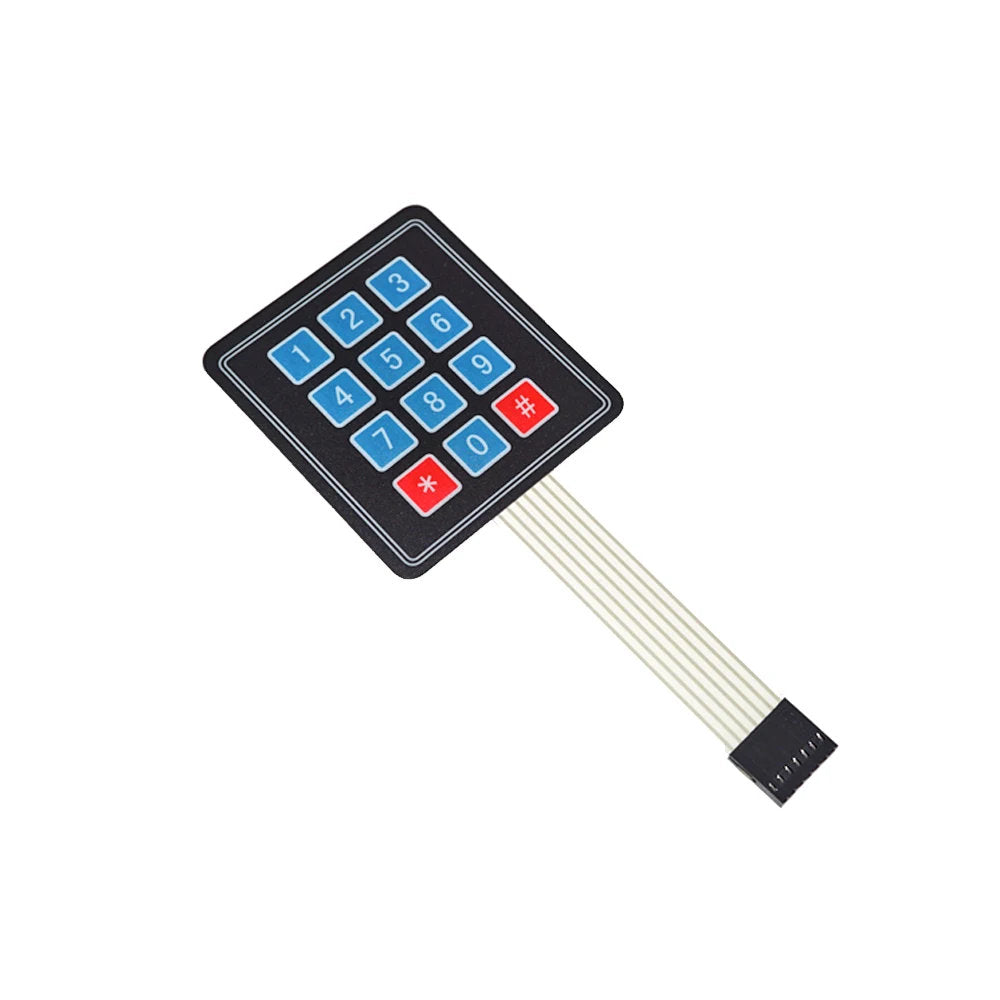

4×3 Matrix Array 12-Key Membrane Switch Keypad
A compact membrane switch keypad featuring a 4×3 matrix layout with self-adhesive mounting for straightforward installation. Designed for reliable electrical performance and long service life.
Key Features
-
4×3 matrix array with 12 keys
-

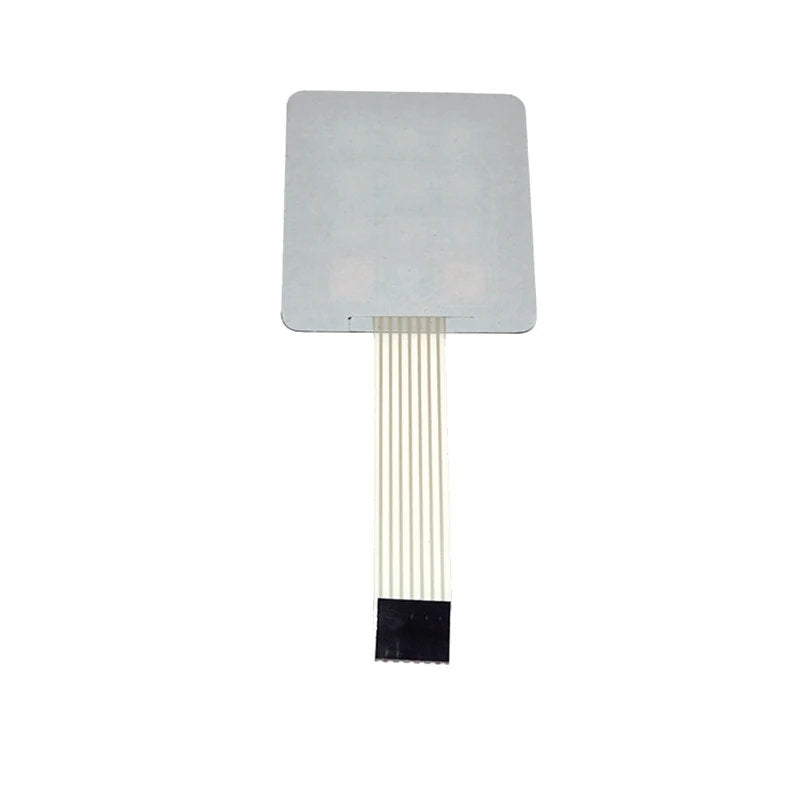

Self-adhesive mount style
-

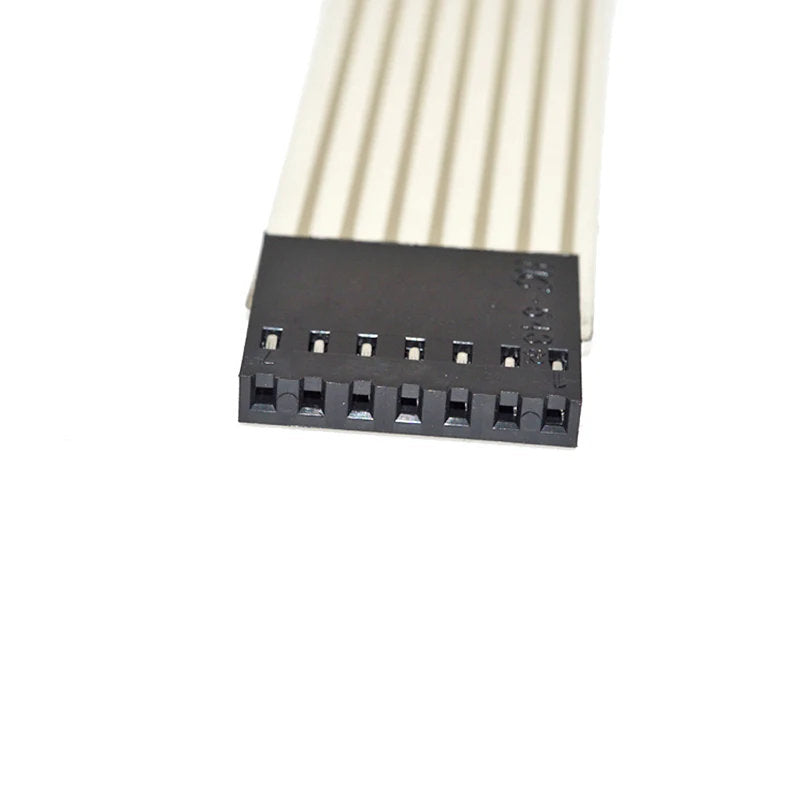

Dupont 7-pin connector with standard 0.1" (2.54 mm) pitch
-
Durable membrane switch construction
-
Stable electrical performance with low contact bounce
Technical Specifications
| Specification | Details |
|---|---|
| Pad Size | 69.2 × 76.9 × 0.8 mm |
| Cable Length | 3-1/3" (86 mm, including connector) |
| Connector | Dupont, 7 pins, 0.1" (2.54 mm) pitch |
| Mount Style | Self-adherence |
| Max. Circuit Rating | 35 VDC, 100 mA |
| Insulation Specification | 100 MΩ at 100 V |
| Dielectric Withstand | 250 VRms (60 Hz, 1 min) |
| Contact Bounce | ≤ 5 ms |
| Life Expectancy | 1,000,000 closures |
| Operating Temperature | −20 °C to +40 °C |
Package Contents
-
1 × 4×3 Matrix Array 12-Key Membrane Switch Keypad Keyboard
