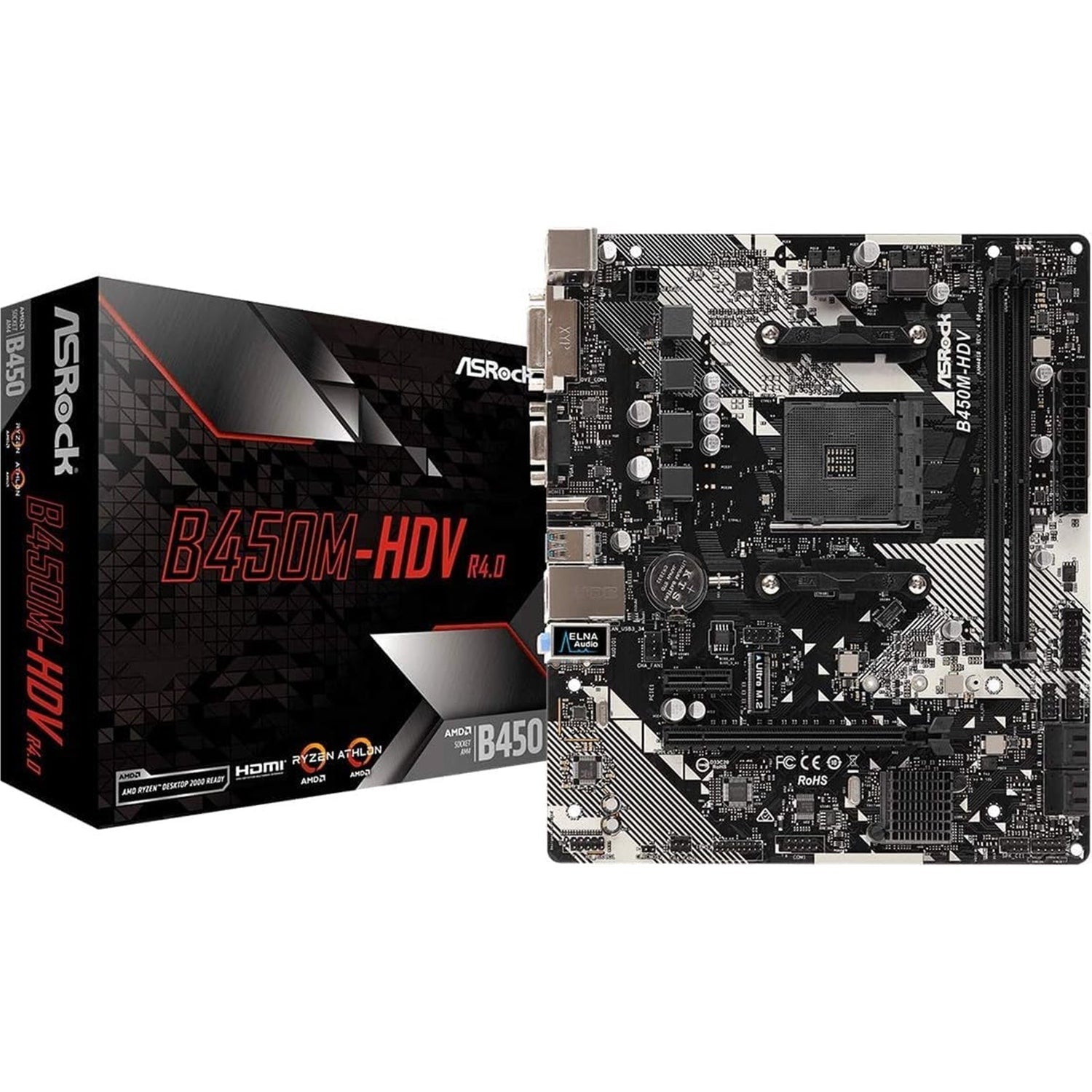

ASRock B450M-HDV R4.0 Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DVI-D / 1x HDMI Port

Name: ASRock B450M-HDV R4.0 Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DVI-D / 1x HDMI Port
Brand: ASROCK
Price: 56.25 GBP
Availability: OutOfStock

£56.25

(inc VAT)

Be the first to know when it's back in stock!

We Accept:

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Delivery and Shipping

Shipping & Processing

Order Processing

Same business-day for orders placed before 3 PM (GMT), except in rare cases when it may take 1 additional business day.
Larger or specialist items require up to 3 business days to process.

Delivery Options

Royal Mail 48

Free on orders over £20
£2.99 on orders under £20
Delivery in 2–3 business days

Tracked 24 (Next-Day) — £4.99
Standard (Large & Specialist Items)
- Free on orders over £20
- £6.99 on orders under £20
- Delivery in 2–14 business days (typically around 7 days)
- Processing may take up to 3 business days
International

We ship worldwide. Delivery options and estimated timeframes for your country are available at checkout.
Customs, duties, and import taxes are your responsibility.

You’ll receive tracking details as soon as your order ships [track your order here]. For full details, please see our [Shipping Policy].

ASRock B450M-HDV R4.0 Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DVI-D / 1x HDMI Port

£56.25

ASRock B450M-HDV R4.0 Micro ATX Motherboard

The ASRock B450M-HDV R4.0 is a Micro ATX motherboard designed for AMD AM4 processors, offering a solid foundation for modern desktops with versatile connectivity, multi-display support, and extensive storage options.

Key Features

Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
2 x DDR4 DIMM slots, supports up to DDR4 3200+(OC)*
1 x PCIe 3.0 x16 slot, 1 x PCIe 2.0 x1 slot
Graphics outputs: HDMI, DVI-D, D-Sub
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
4 x SATA3 ports
1 x Ultra M.2 (PCIe Gen3x4 & SATA3)*
6 x USB 3.1 Gen1 (2 front, 4 rear)
Realtek Gigabit LAN
*Actual support may vary by CPU

Specifications

Unique Features

ASRock Super Alloy
High Density Glass Fabric PCB
Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN ports)
ASRock Live Update & APP Shop

CPU

Item	Details
Socket	AMD AM4
Supported CPUs	Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Power Design	6 Power Phase design
Max CPU Power	Supports CPU up to 105W

Chipset

AMD Promontory B450

Memory

Feature	Details
Technology	Dual Channel DDR4
Slots	2 x DDR4 DIMM
Max Capacity	64GB*
Special	Supports Extreme Memory Profile (XMP); 15µ Gold Contact in DIMM Slots

Memory Support by CPU Series (ECC & non-ECC, un-buffered unless noted):

AMD Ryzen series CPUs (Vermeer): DDR4 3200 / 2933 / 2667 / 2400 / 2133
AMD Ryzen series CPUs (Matisse): DDR4 3200 / 2933 / 2667 / 2400 / 2133
AMD Ryzen series APUs (Cezanne): DDR4 3200 / 2933 / 2667 / 2400 / 2133
AMD Ryzen series APUs (Renoir): DDR4 3200 / 2933 / 2667 / 2400 / 2133
AMD Ryzen series CPUs (Pinnacle Ridge): DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133
AMD Ryzen series CPUs (Picasso): DDR4 2933 / 2667 / 2400 / 2133 non-ECC
AMD Ryzen series CPUs (Summit Ridge): DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133
AMD Ryzen series CPUs (Raven Ridge): DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC

* For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
** Due to OS limitations, under Windows® 32-bit, usable memory may be less than 4GB. No such limitation under Windows® 64-bit with a 64-bit CPU.

SR: Single rank DIMM (1Rx4 or 1Rx8)
DR: Dual rank DIMM (2Rx4 or 2Rx8)

BIOS

128Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree configuration
SMBIOS 2.3 support
DRAM Voltage multi-adjustment

Graphics

Feature	Details
Integrated Graphics	AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
APIs	DirectX 12, Pixel Shader 5.0
Shared Memory	Default 2GB, max up to 16GB**
Outputs	D-Sub, DVI-D, HDMI
Triple Monitor	Supported

Maximum Resolutions:

HDMI: up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
DVI-D: up to 1920x1200 @ 60Hz
D-Sub: up to 2048x1536 @ 60Hz

HDMI Features:

Auto Lip Sync, Deep Color (12bpc), xvYCC, HBR (High Bit Rate Audio)*
HDCP 1.4 with DVI-D and HDMI ports
Supports 4K Ultra HD (UHD) playback with HDMI port

* Compliant HDMI monitor required.
* Actual support may vary by CPU.
** Max shared memory 16GB requires 32GB system memory installed.

Audio

7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Supports Surge Protection

LAN

Feature	Details
Controller	Realtek RTL8111H
Speed	PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Features	Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE

Expansion Slots

AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, Pinnacle Ridge):
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge):
1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs:
1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
1 x PCI Express 2.0 x1 Slot*
Supports NVMe SSD as boot disks

Storage

Connector	Details
SATA	4 x SATA3 6.0 Gb/s, supports RAID 0, 1, 10, NCQ, AHCI, Hot Plug
Ultra M.2	1 x Ultra M.2 Socket, M Key type 2242/2260/2280, supports M.2 SATA3 6.0 Gb/s and M.2 PCI Express

M.2 PCIe up to Gen3 x4 (32 Gb/s) with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge, Pinnacle Ridge
M.2 PCIe up to Gen3 x2 (16 Gb/s) with Athlon series APU**
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
