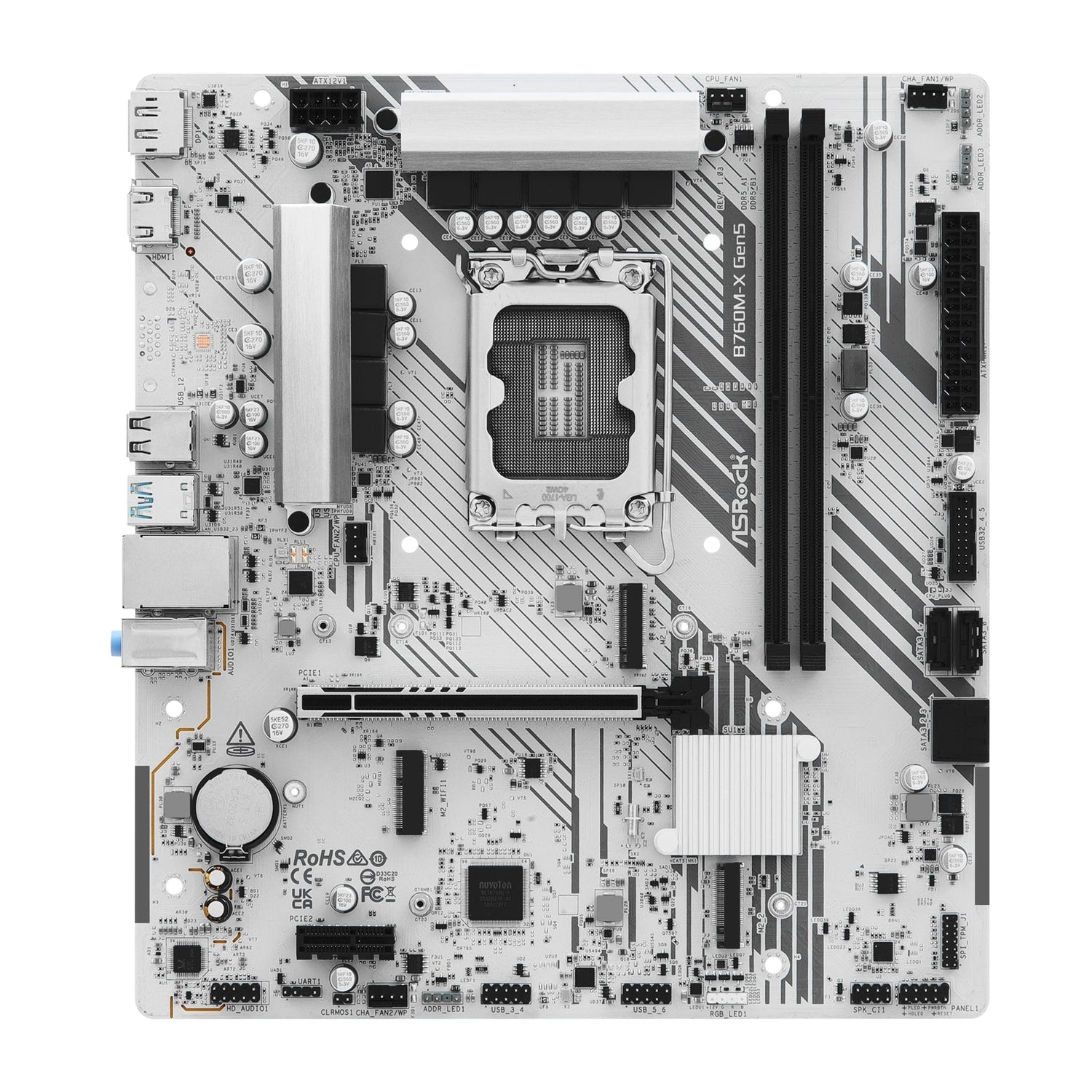

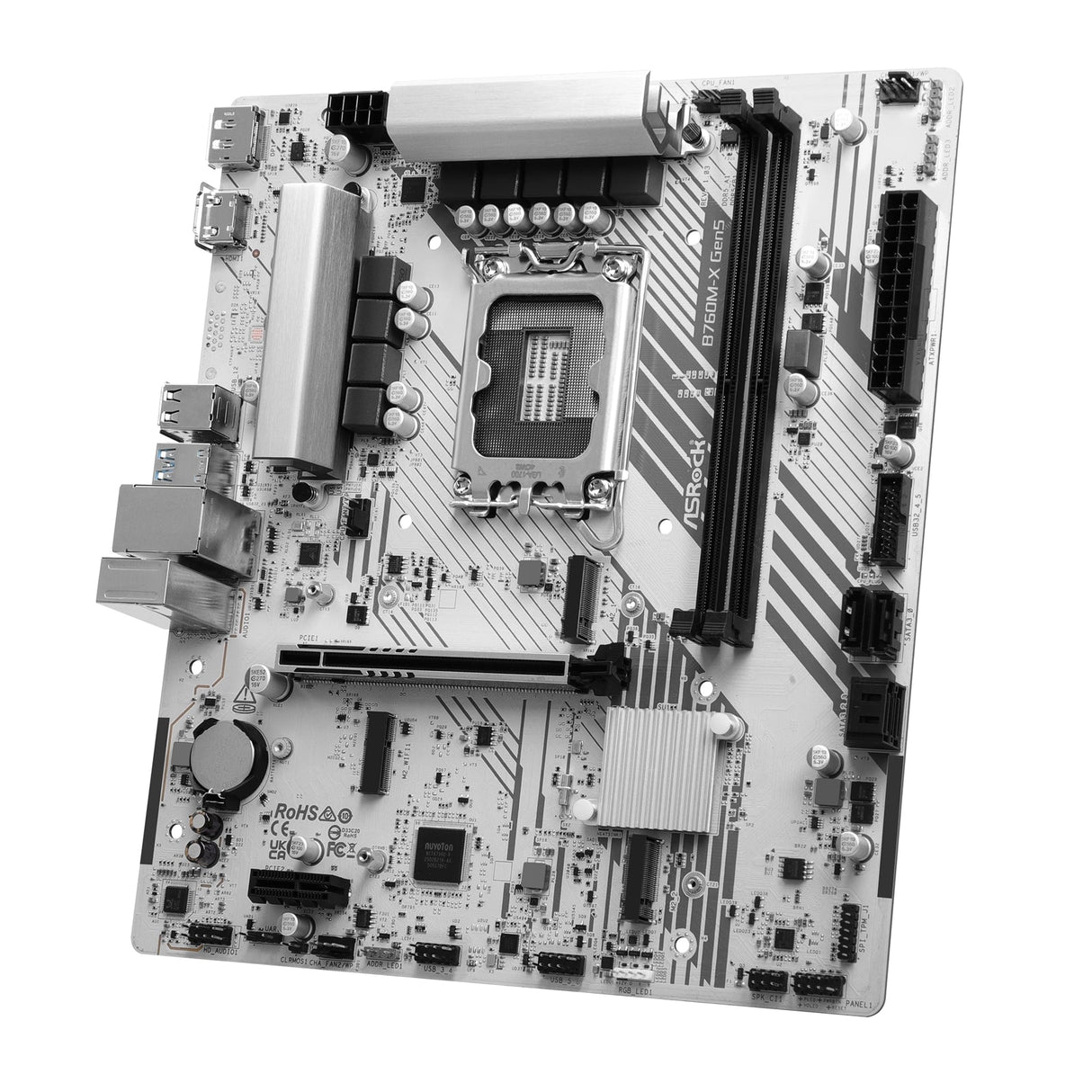

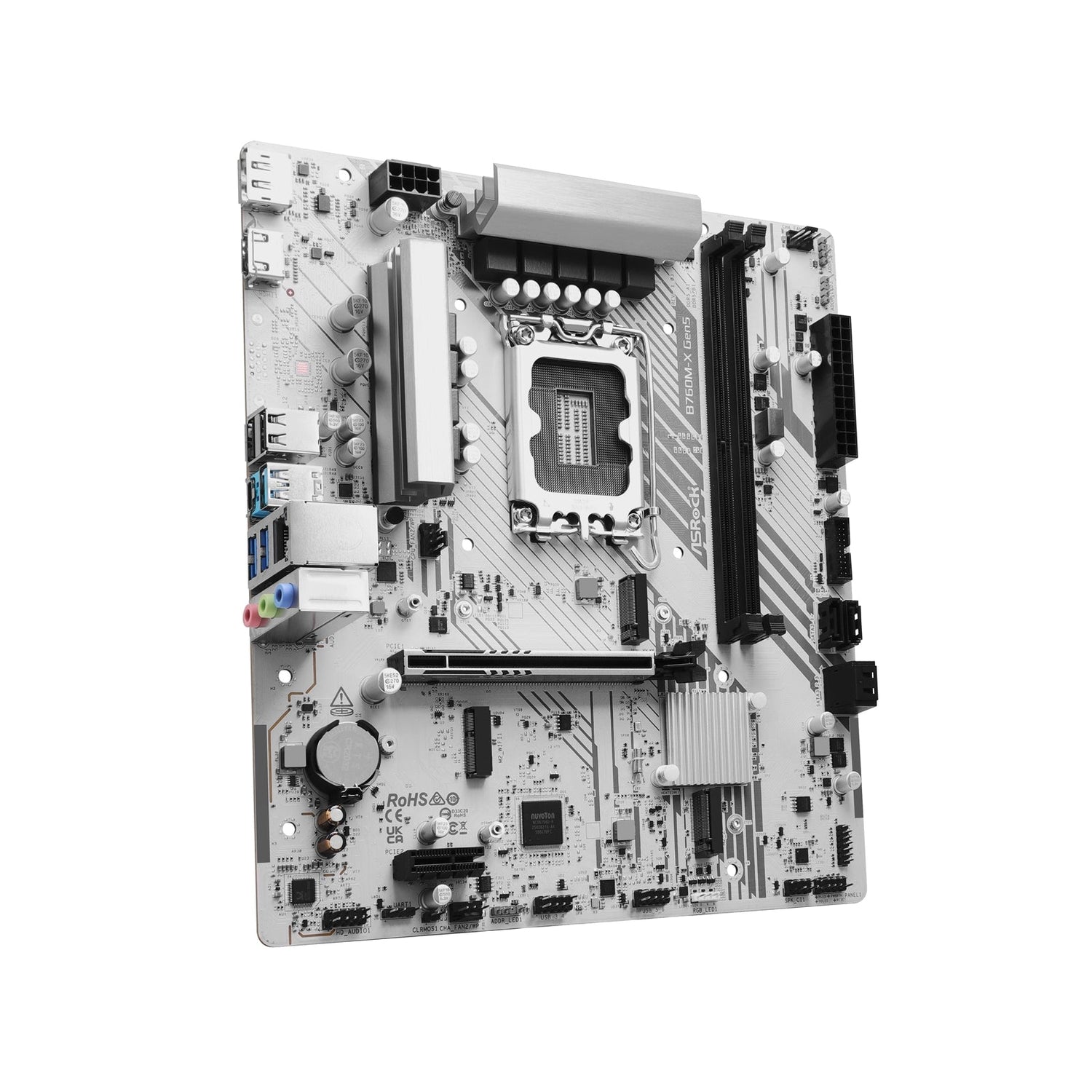

ASRock B760M-X Gen5 Intel 1700 Socket Motherboard
£79.87
ASRock B760M-X Gen5 Micro ATX Motherboard
The ASRock B760M-X Gen5 is a micro ATX motherboard designed for Intel® 14th, 13th, and 12th Gen Core™ processors, delivering PCIe Gen5 graphics support, DDR5 memory, and fast connectivity in a compact form factor.
Key Features
Superb Productivity
- PCIe Gen5 support for graphics
- Dual Channel DDR5 memory technology
Rock-Solid Durability
- 7+1+1 power phase design
- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
- 2.5G LAN
- ASRock Auto Driver Installer
CPU & Chipset
| Specification | Details |
|---|---|
| CPU Socket | LGA1700 |
| CPU Support | 14th, 13th & 12th Gen Intel® Core™ Processors |
| Intel® Technologies | Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), Adaptive Boost Technology (ABT) |
| Chipset | Intel® B760 |
Memory
| Specification | Details |
|---|---|
| Memory Type | Dual Channel DDR5 |
| Slots | 2 x DDR5 DIMM |
| Supported Memory | DDR5 non-ECC, un-buffered, up to 7200+(OC)* |
| Maximum Capacity | 128GB* |
| Profile Support | Intel® Extreme Memory Profile (XMP) 3.0 |
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible
- Supports HDCP 2.3
- Max resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed)
- Supports HDCP 2.3
- Max resolution up to 8K 60Hz / 5K 120Hz
Audio
- 7.1 CH HD Audio
- Realtek ALC897 Audio Codec
LAN & Networking
Wired LAN
| Specification | Details |
|---|---|
| Controller | Dragon RTL8125BG |
| Speed | 10/100/1000/2500 Mb/s (2.5 Gigabit LAN) |
Dragon 2.5G LAN Software:
- Smart auto adjust bandwidth control
- Visual, user-friendly UI
- Visual network usage statistics
- Optimized default settings for Game, Browser, and Streaming modes
- User customized priority control
Wireless
- 1 x M.2 Socket (Key E), supports type 2230 PCIe WiFi/BT module
Expansion Slots
CPU (PCIe Lanes)
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
M.2 Slots (Chipset)
- 1 x Hyper M.2 Socket (M2_1, Key M)
- Supports type 2260/2280
-
PCIe Gen4x4 (64 Gb/s) mode*
-
1 x Ultra M.2 Socket (M2_2, Key M)
- Supports type 2280
- PCIe Gen3x4 (32 Gb/s) modes*
SATA
- 4 x SATA3 6.0 Gb/s connectors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Connectivity
Chipset
- Rear:
- 1 x USB 3.2 Gen1 Type-C
- 3 x USB 3.2 Gen1 Type-A
-
2 x USB 2.0
-
Front (via headers):
- 2 x USB 3.2 Gen1 (via 1 x header)
- 4 x USB 2.0 (via 2 x headers)
Internal Connectors & Headers
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
Cooling & Power
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*
- 1 x 24-pin ATX Power Connector
- 1 x 8-pin 12V Power Connector
Front Panel & Audio
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (support 4 x USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (supports 2 x USB 3.2 Gen1 ports)

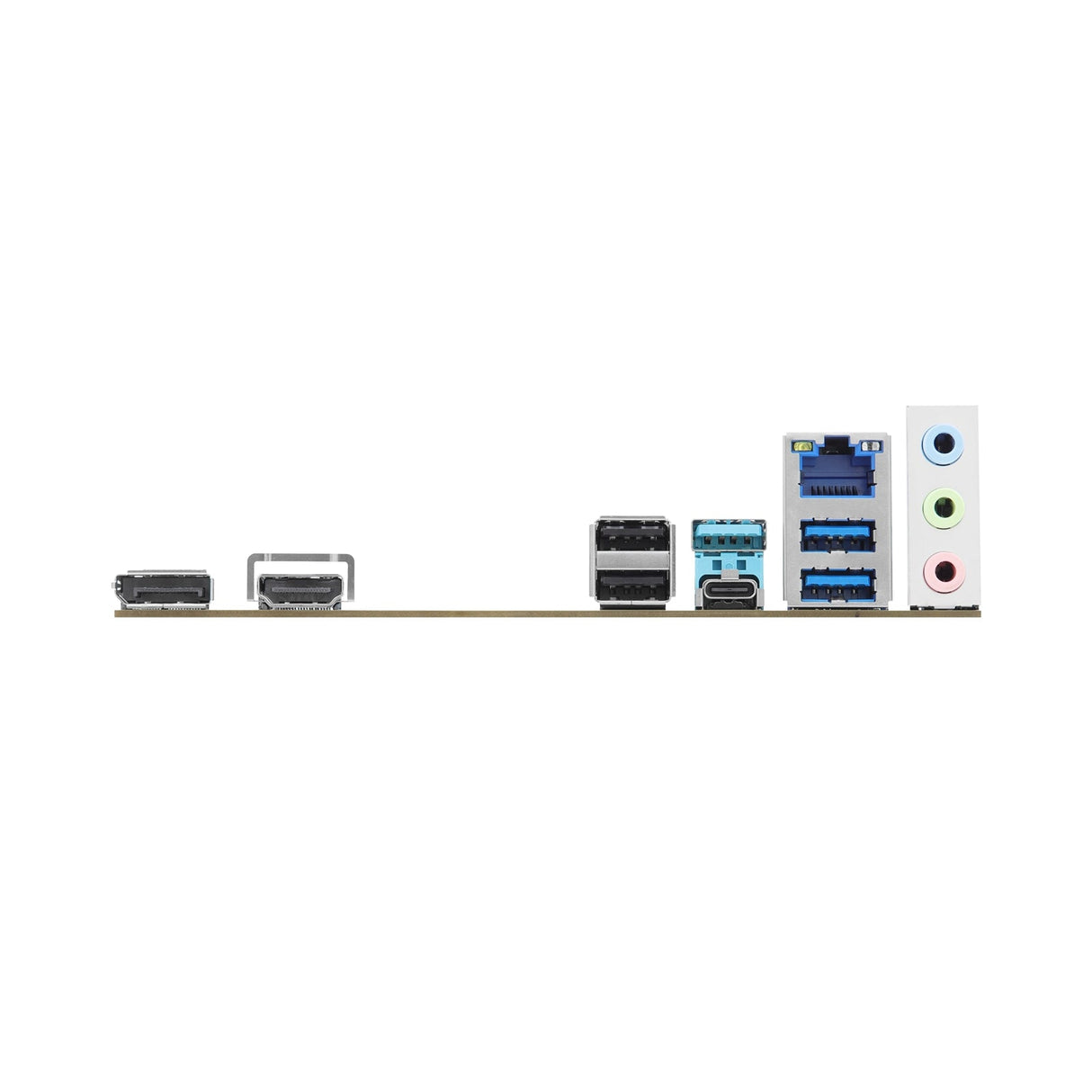

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line In / Front Speaker / Microphone
Software & UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI Features
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

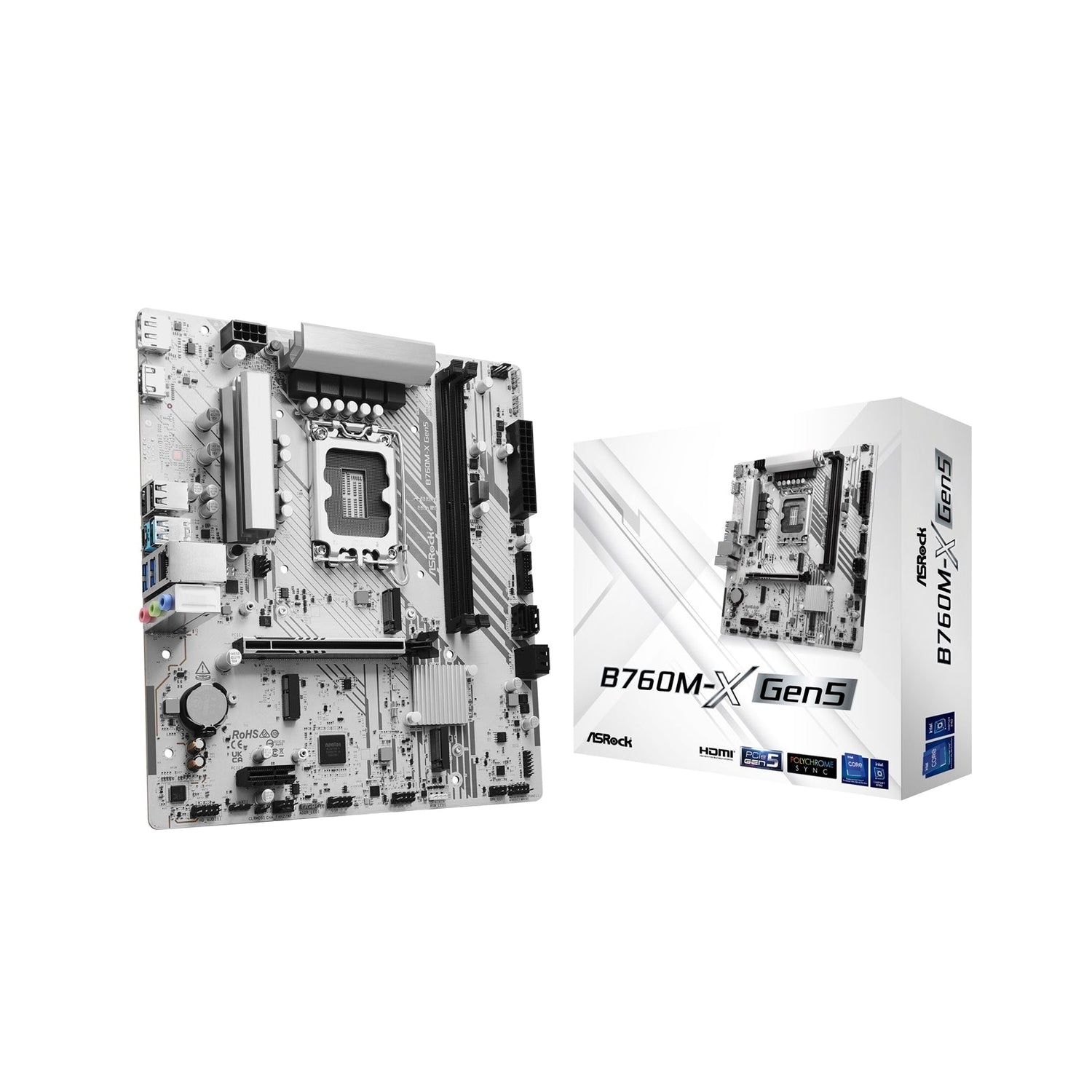

Accessories
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Form Factor
- Micro ATX
- Dimensions: 9.6 in x 8.7 in (24.4 cm x 22.1 cm)
Operating System Support
- Microsoft Windows® 10 64-bit
- Microsoft Windows® 11 64-bit
Certifications
- FCC
- CE
- ErP/EuP ready (ErP/EuP ready power supply required)
