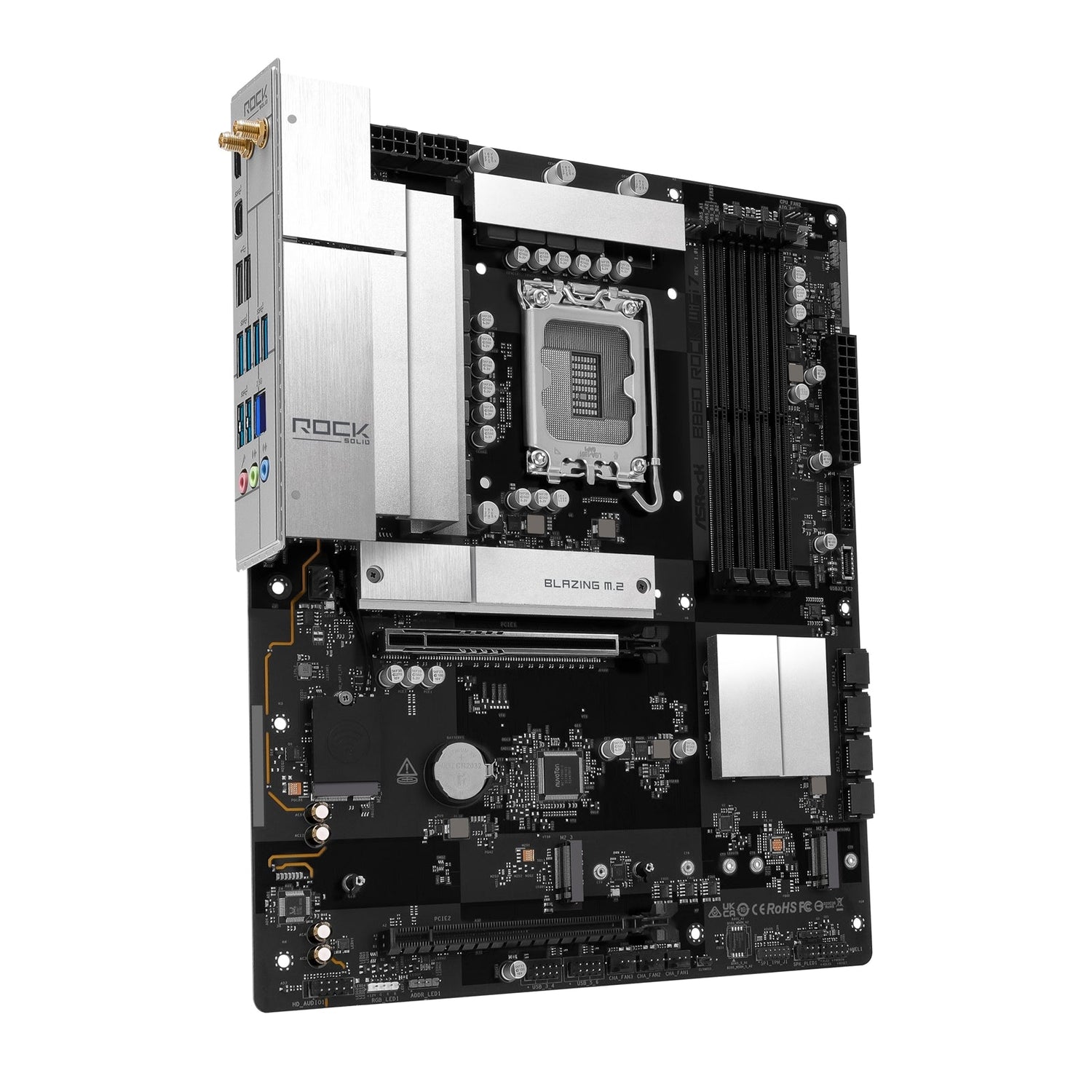

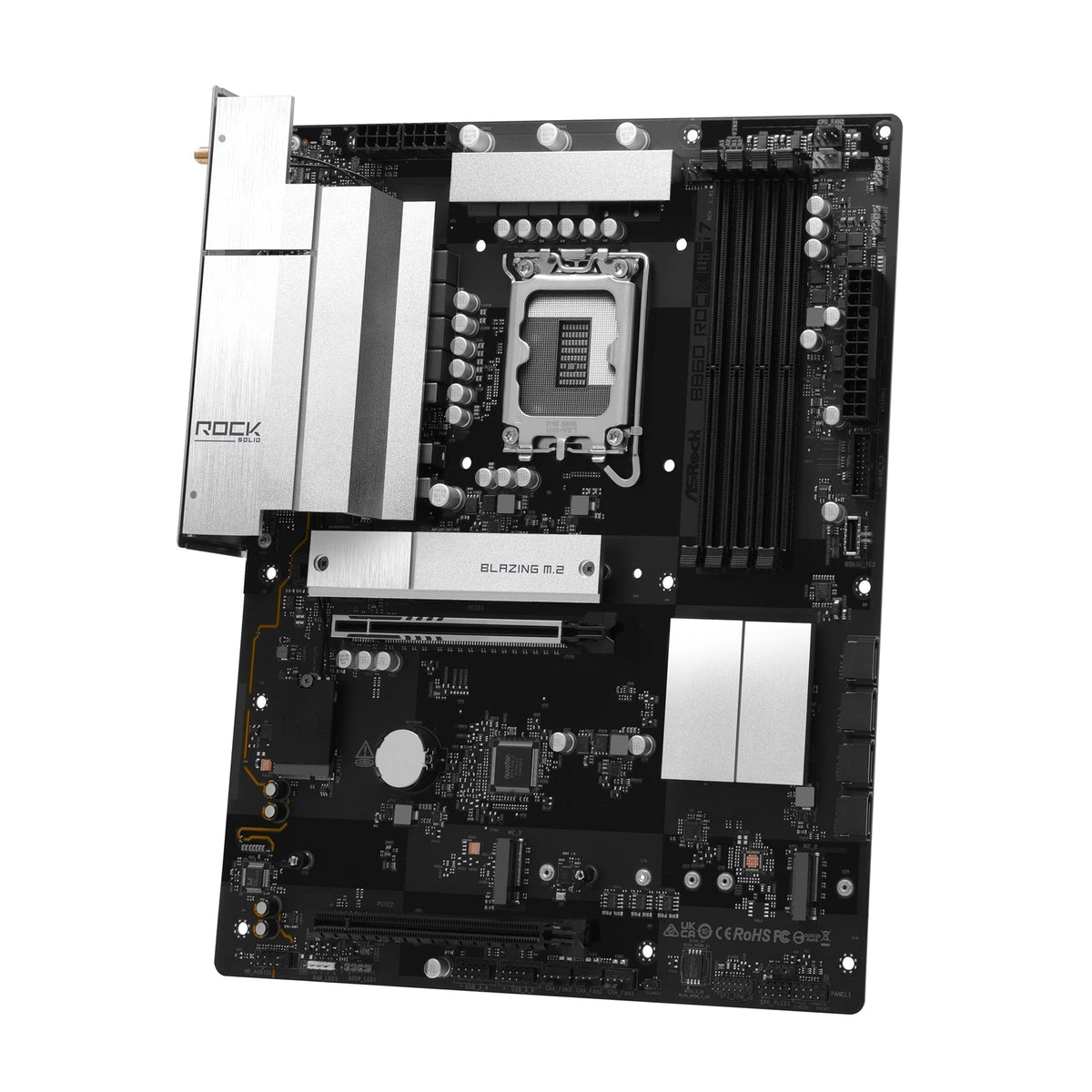

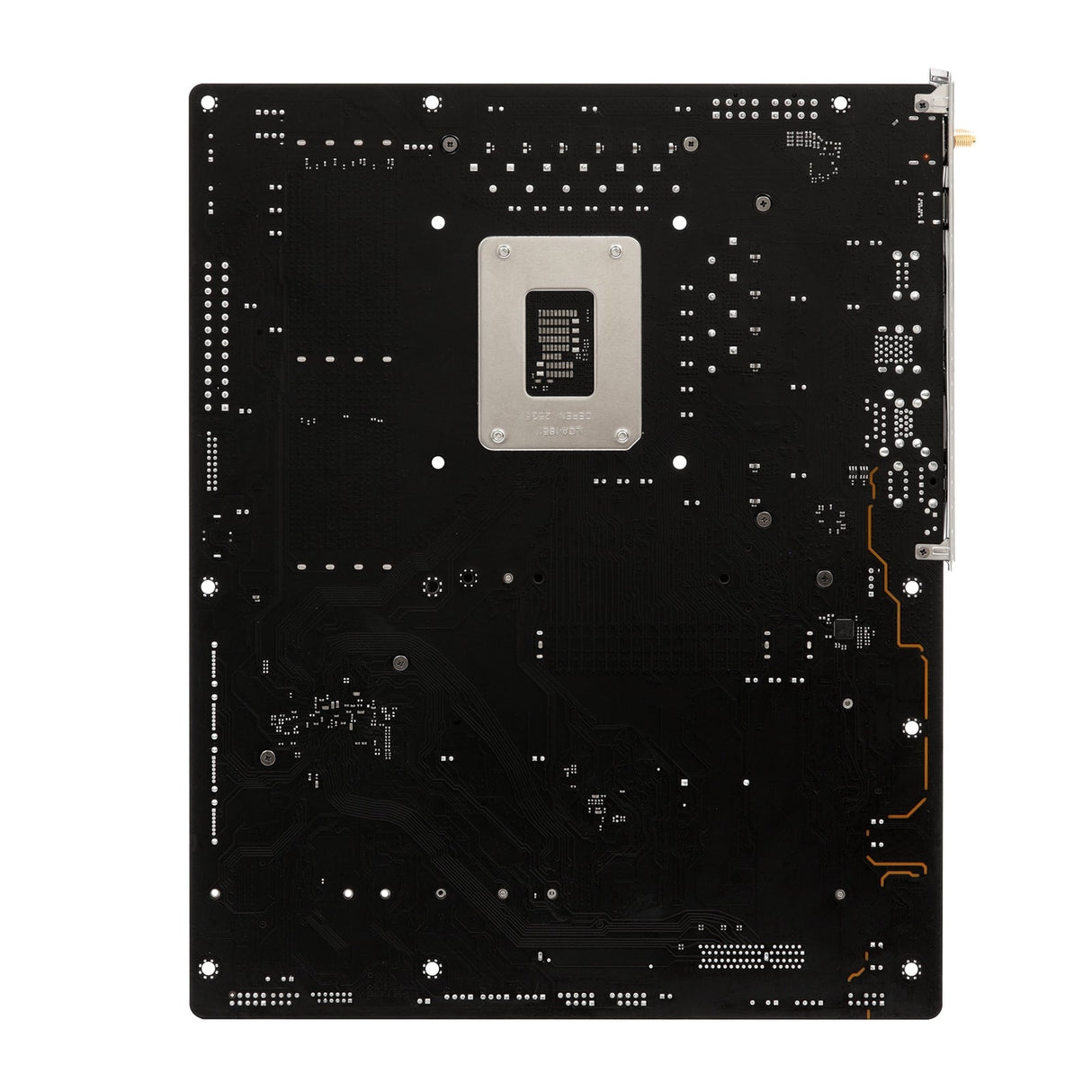

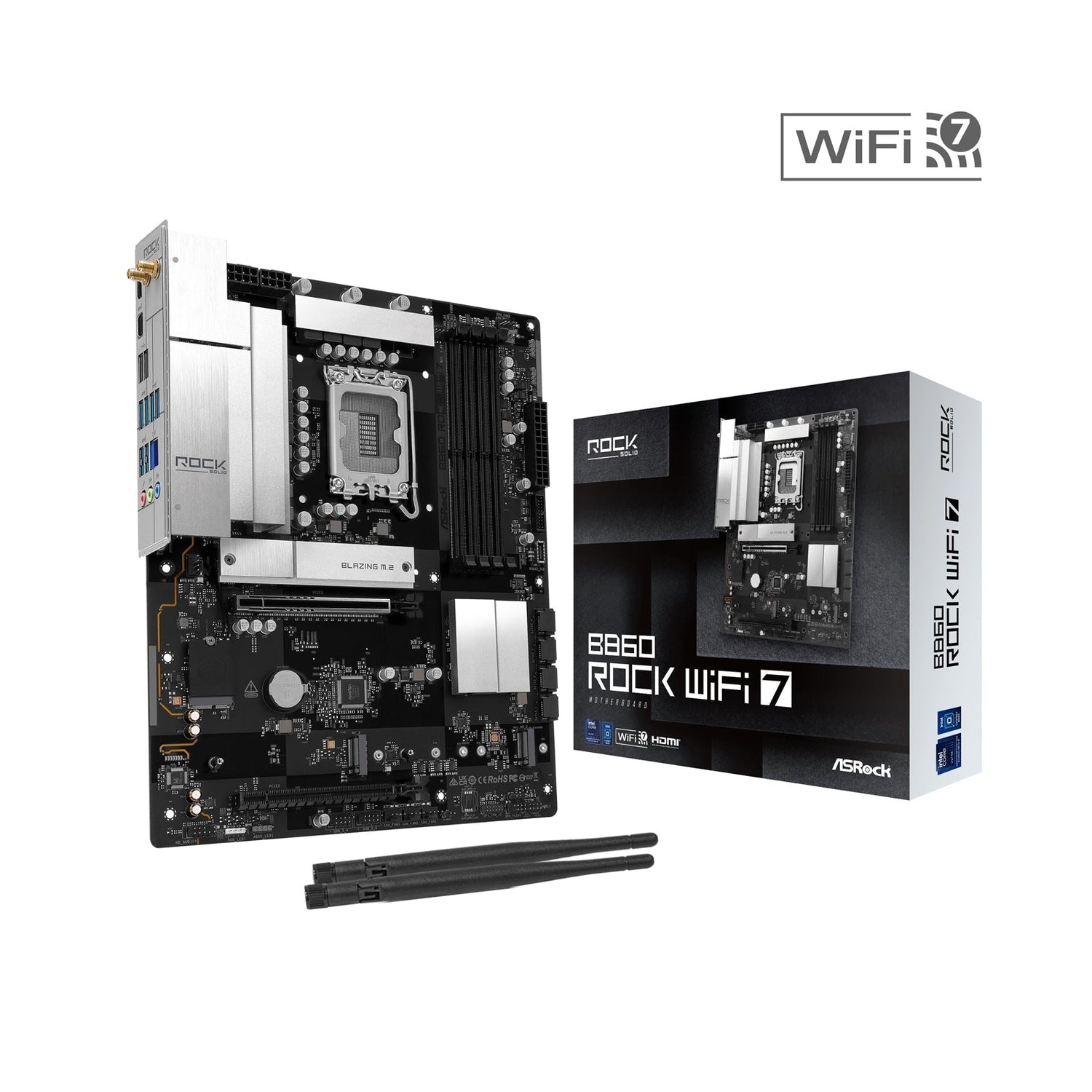

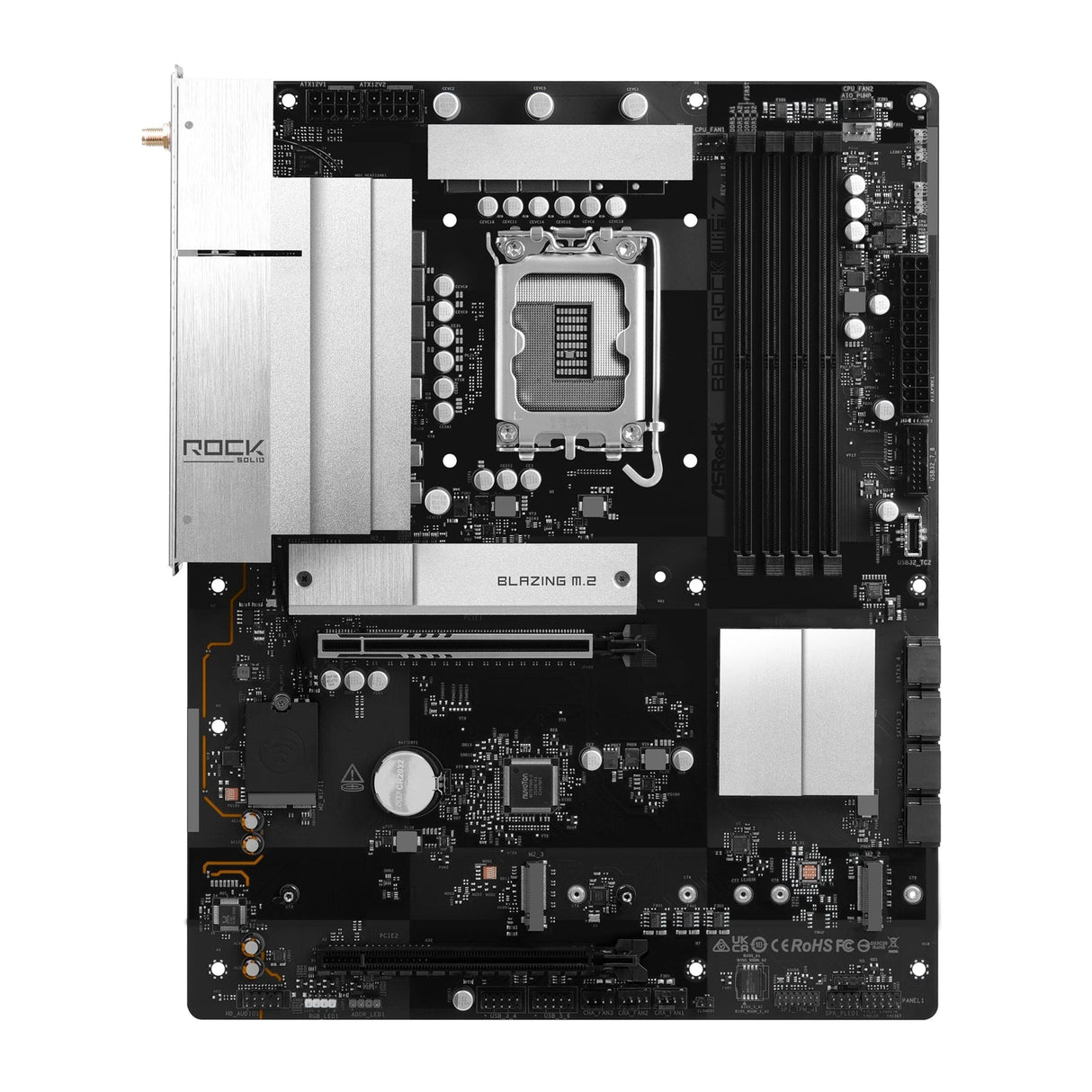

ASRock B860 Rock WiFi 7 Intel 1851 Socket Motherboard

£136.75
(inc VAT)
Free Delivery: Friday 11th - Monday 14th.
If You Order In The Next 1hrs 37mins

Delivery and Shipping

Order Processing

  • Orders are typically dispatched within 1-3 working days.

Delivery Options

  • Royal Mail 48: £1.50 on orders up to £20.
  • Royal Mail Tracked 48: Free on orders over £20.
  • DPD Next Day: Free on orders over £50 or £6.99.
  • International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

ASRock B860 Rock WiFi 7 Intel 1851 Socket Motherboard

ASRock B860 Rock WiFi 7 Intel 1851 Socket Motherboard

£136.75

ASRock B860 Rock WiFi 7 Motherboard

Key Features

Unique Features

  • Superb Productivity
  • PCIe Gen5 support (Graphics, M.2)
  • Dual Channel DDR5
  • Rock-Solid Durability
  • 8+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
  • Pre-installed I/O shield
  • Ultrafast Connectivity
  • 2.5G LAN
  • 802.11be Wi-Fi 7 module
  • EZ Update
  • ASRock Auto Driver Installer
  • EZ Troubleshooter

CPU & Chipset

CPU Support - Intel® Core™ Ultra Processors (Series 2) (LGA1851) - Intel® Hybrid Technology - Intel® Turbo Boost Max 3.0 Technology - Intel® Thermal Velocity Boost (TVB) - Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration

Chipset - Intel® B860

Memory

  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM slots
  • Supports DDR5 non-ECC, un-buffered memory up to 8666+ (OC)*
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max system memory capacity: 256GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

  • 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G compatible
  • Supports HDR
  • Supports HDCP 2.3
  • Max resolution up to 4K 120Hz

Audio

  • 7.1 CH HD Audio
  • Realtek ALC897 Audio Codec

Networking

LAN

  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG

Dragon 2.5G LAN Software - Smart auto adjust bandwidth control
- Visual user-friendly UI
- Visual network usage statistics
- Optimized default settings for Game, Browser, and Streaming modes
- User customized priority control

Wireless LAN & Bluetooth

  • 802.11be 2x2 Wi-Fi 7 module
  • Supports IEEE 802.11a/b/g/n/ac/ax/be
  • Supports 2.4GHz / 5GHz / 6GHz frequency bands*
  • Supports 160MHz channel bandwidth with 6GHz frequency band*
  • 2 antennas supporting 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.4
  • Supports MU-MIMO

Expansion Slots

CPU - 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode*

Chipset - 1 x PCIe 4.0 x16 slot (PCIE2), supports x4 mode*
- 1 x M.2 socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU - 1 x Blazing M.2 socket (M2_1, Key M)
- Supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset - 1 x Hyper M.2 socket (M2_2, Key M)
- Supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 socket (M2_3, Key M)
- Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s connectors

RAID

  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB Connectivity

CPU - 1 x USB 3.2 Gen1 (Rear, USB32_5)

Chipset - 2 x USB 3.2 Gen1 Type-C (1 rear, 1 front)
- 7 x USB 3.2 Gen1 (5 rear: USB32_1234 and USB32_6, 2 front)
- 6 x USB 2.0 (2 rear, 4 front)

Internal Connectors & Headers

  • 1 x SPI TPM header
  • 1 x Power LED and speaker header
  • 1 x RGB LED header*
  • 3 x Addressable LED headers**
  • 2 x CPU fan connectors (4-pin) with Smart Fan Speed Control***
  • 4 x Chassis fan connectors (4-pin) with Smart Fan Speed Control***
  • 1 x AIO pump fan connector (4-pin) with Smart Fan Speed Control***
  • 1 x 24-pin ATX power connector
  • 2 x 8-pin 12V power connectors (Hi-Density Power Connector)
  • 1 x Front panel audio connector
  • 2 x USB 2.0 headers (support 4 x USB 2.0 ports)
  • 1 x USB 3.2 Gen1 header (supports 2 x USB 3.2 Gen1 ports)
  • 1 x Front panel Type-C USB 3.2 Gen1 header

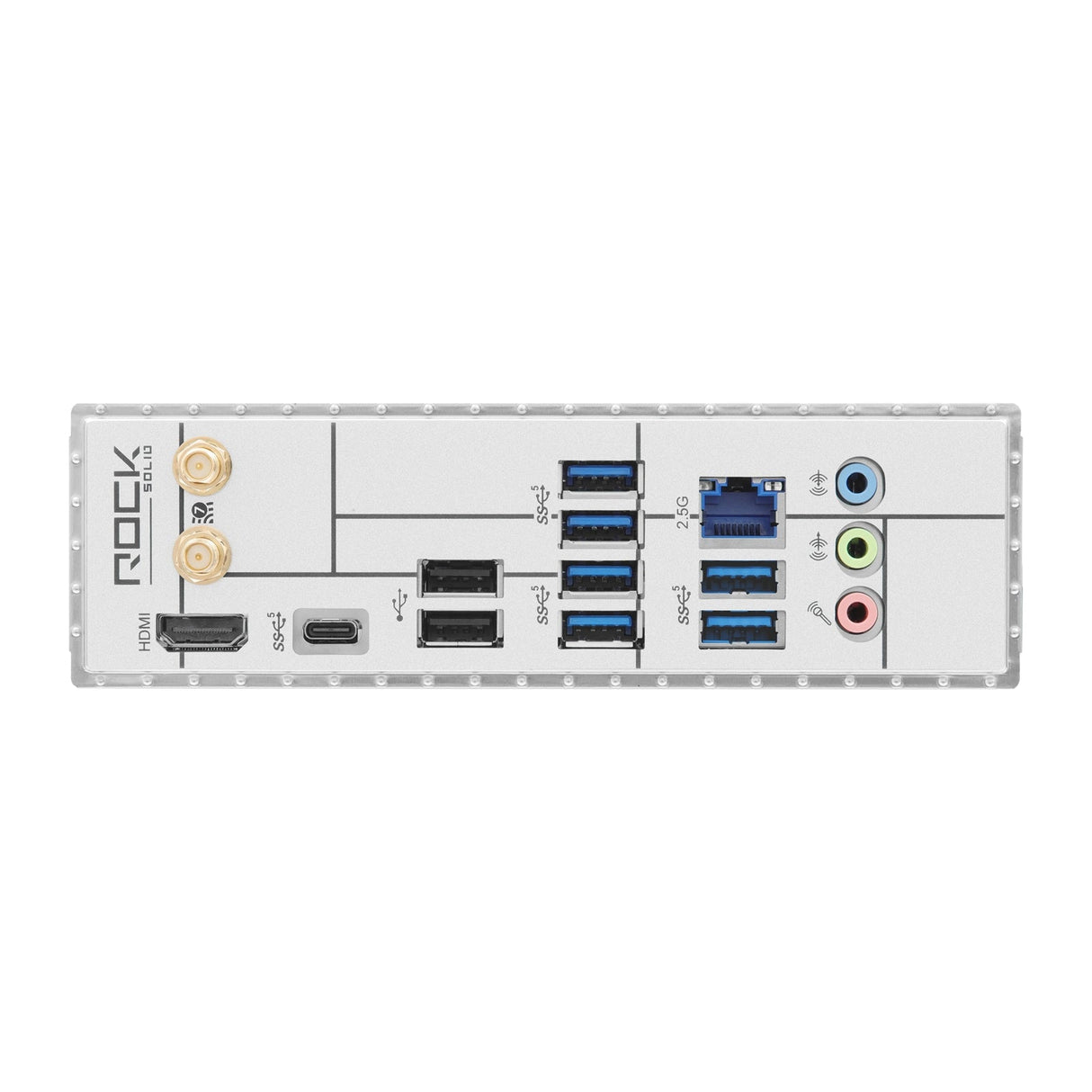

Rear Panel I/O

  • 2 x Antenna ports
  • 1 x HDMI port
  • 1 x USB 3.2 Gen1 Type-C port
  • 6 x USB 3.2 Gen1 ports
  • 2 x USB 2.0 ports
  • 1 x RJ-45 LAN port
  • HD audio jacks: Line In / Front Speaker / Microphone

Software & UEFI

Software - ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*

UEFI Features - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories

  • 2 x SATA data cables
  • 2 x ASRock WiFi 2.4/5/6 GHz antennas

Form Factor

  • ATX Form Factor
  • Dimensions: 12.0 in x 9.6 in (30.5 cm x 24.4 cm)

Operating System

  • Microsoft Windows® 11 64-bit

Certifications

  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply required)

Technical Specifications Summary

Category Specification
CPU Socket LGA1851
Chipset Intel® B860
Memory 4 x DDR5 DIMM, up to 256GB, up to 8666+ (OC)*, Dual Channel, XMP 3.0
Graphics Intel® Xe LPG, HDMI 2.1 up to 4K 120Hz, HDR, HDCP 2.3
Audio 7.1 CH HD Audio, Realtek ALC897
LAN 2.5G (Dragon RTL8125BG)
Wireless Wi-Fi 7 (802.11be 2x2), Bluetooth 5.4
Expansion 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4)
M.2 Slots 1 x PCIe Gen5x4, 2 x PCIe Gen4x4
SATA 4 x SATA3 6.0 Gb/s
RAID RAID 0 / 1 / 5 / 10 (SATA)
USB (Rear) 1 x USB-C 3.2 Gen1, 6 x USB 3.2 Gen1, 2 x USB 2.0
USB (Internal) 1 x USB-C 3.2 Gen1, 1 x USB 3.2 Gen1 header, 2 x USB 2.0 headers
Form Factor ATX (30.5 cm x 24.4 cm)
OS Support Windows® 11 64-bit
Certifications FCC, CE, ErP/EuP ready
