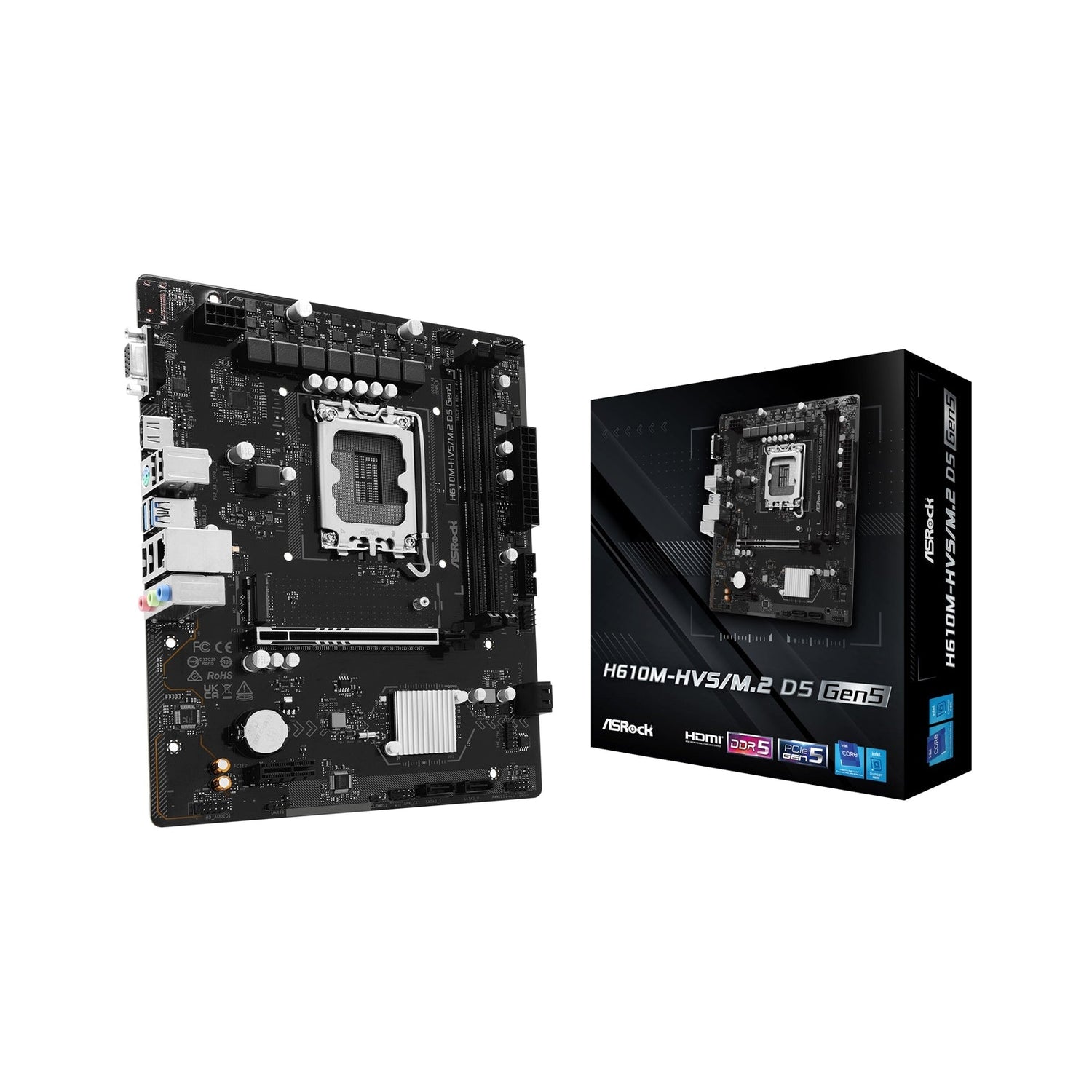

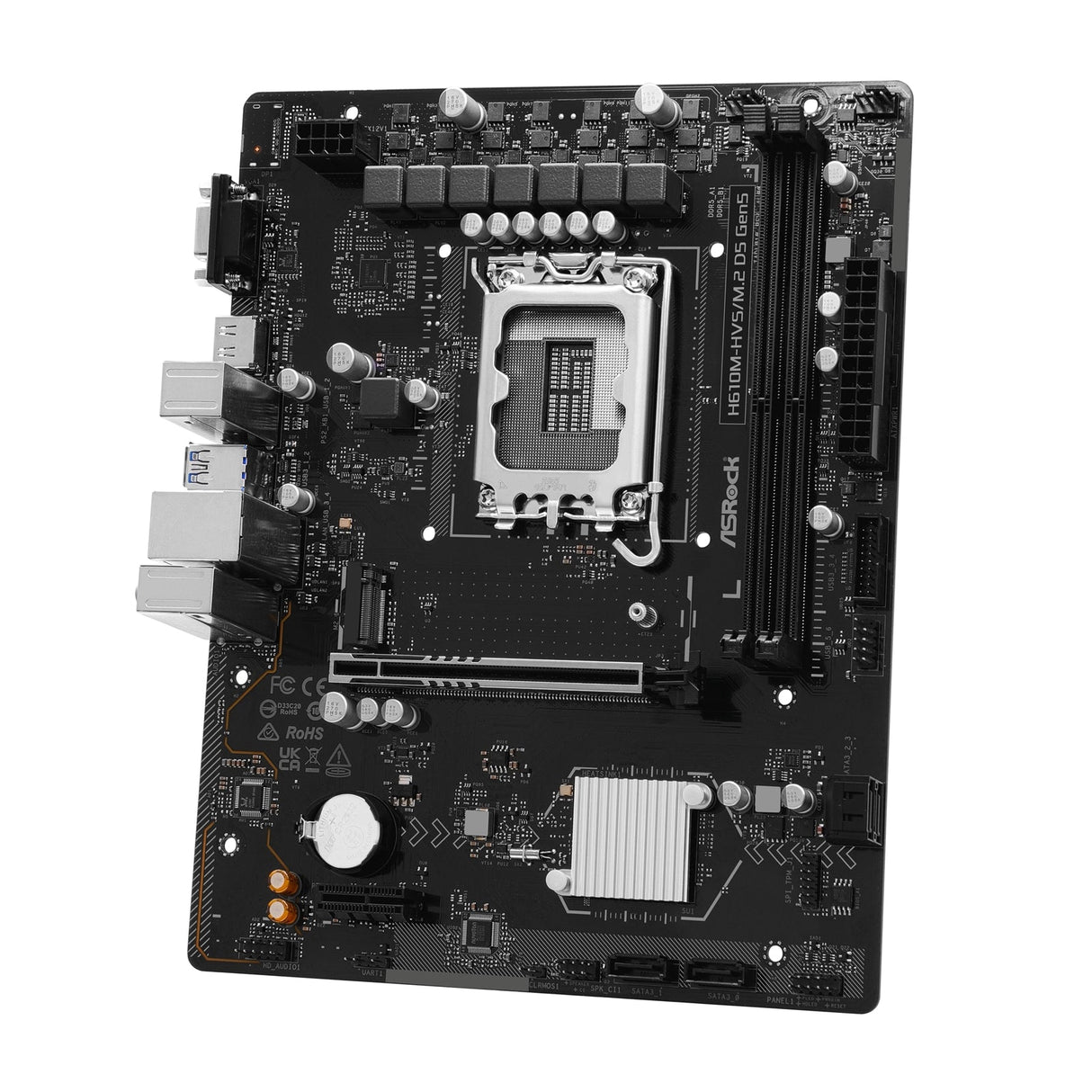

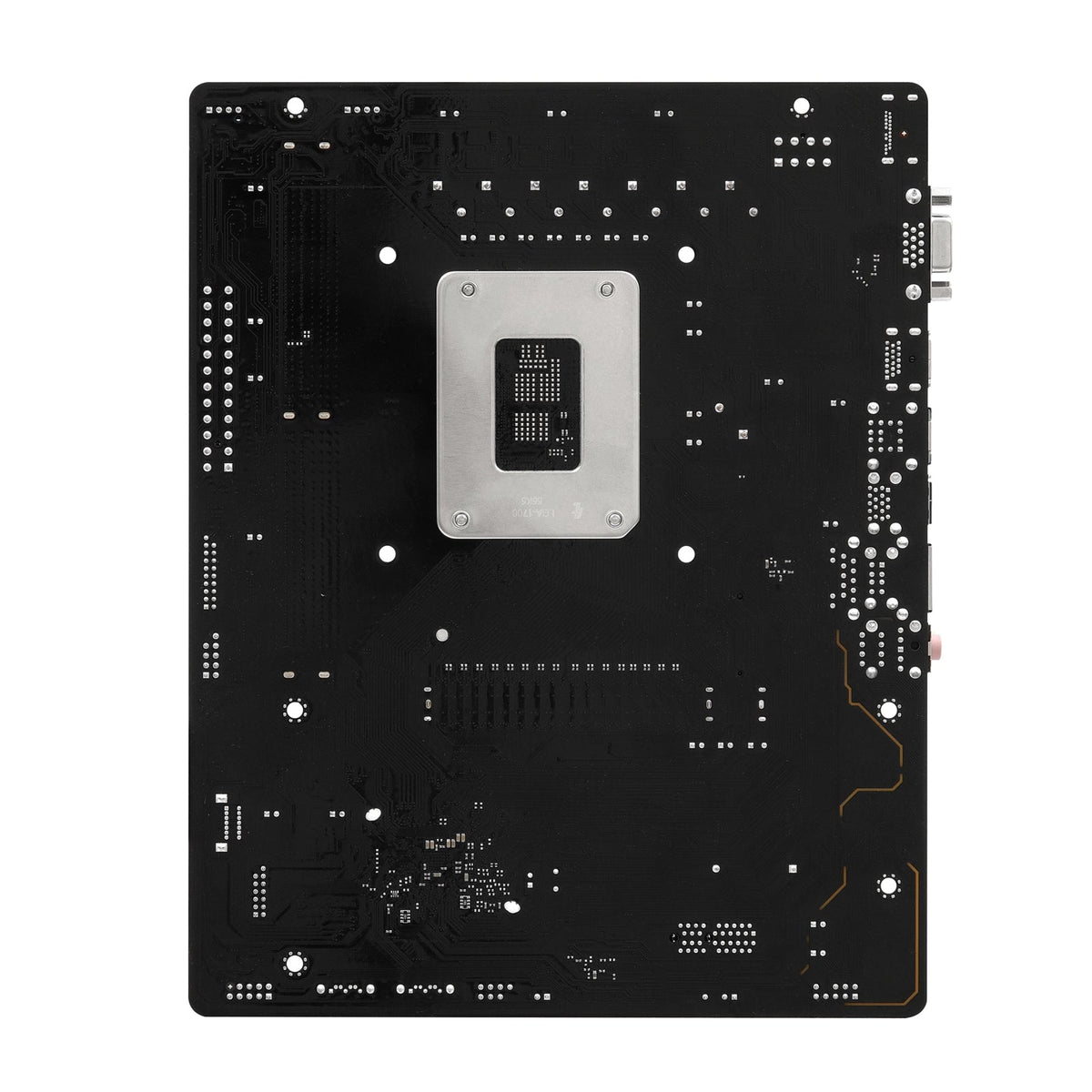

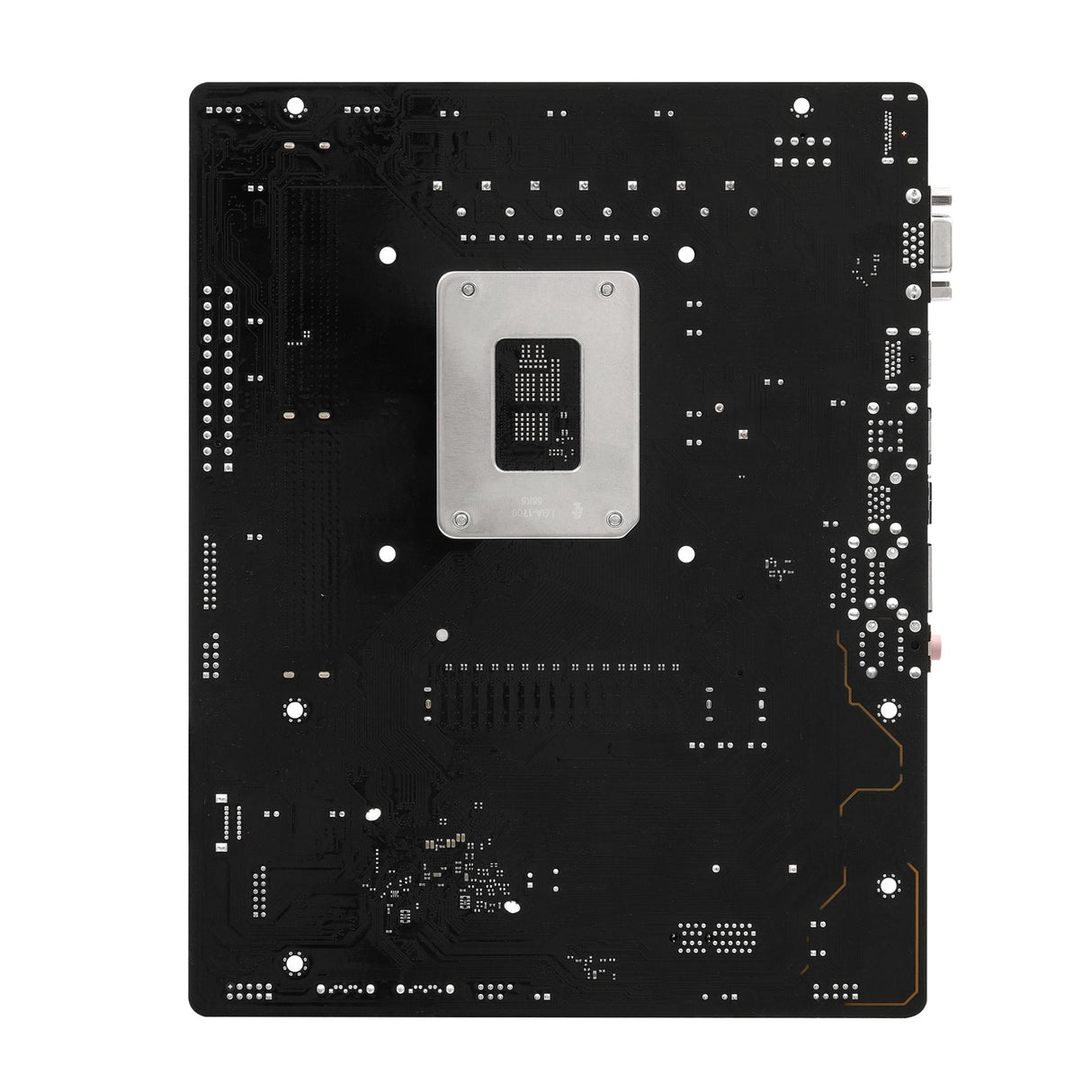

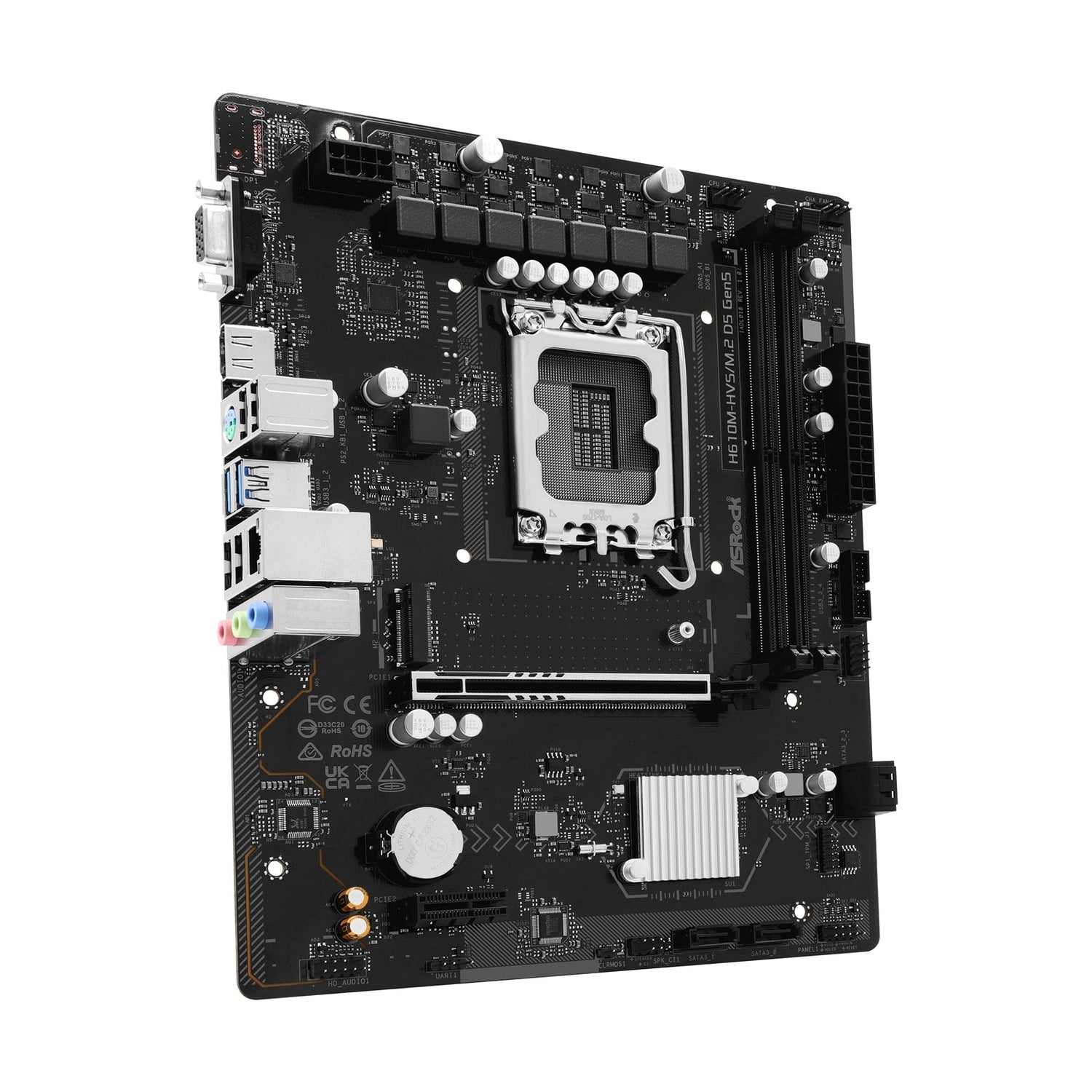

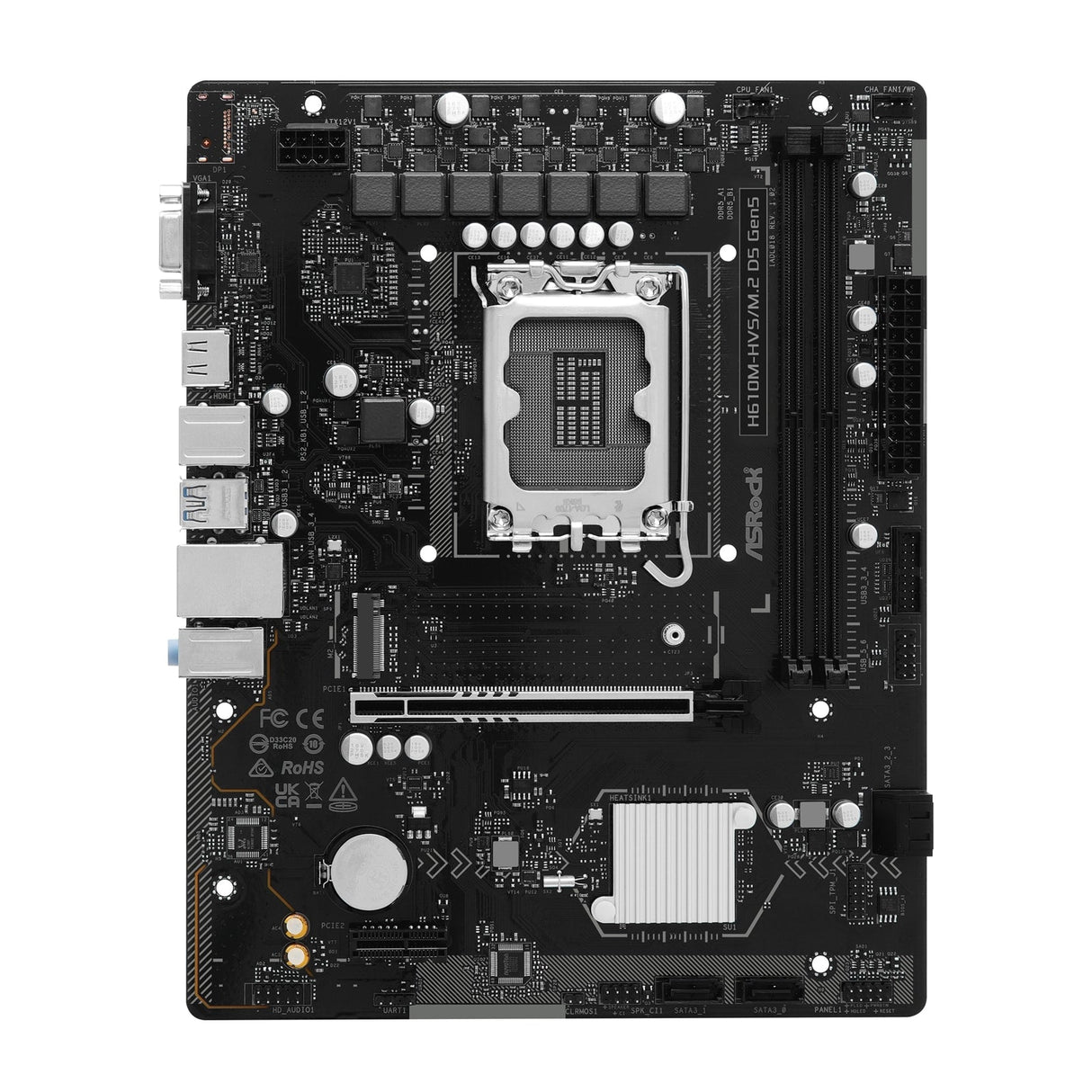

ASRock H610M-HVS/M.2 D5 GEN5 Intel 1700 Socket Motherboard
£70.60
ASRock H610M-HVS/M.2 D5 GEN5 Micro ATX Motherboard
The ASRock H610M-HVS/M.2 D5 GEN5 is a micro ATX motherboard designed for Intel® 14th, 13th, and 12th Gen Core™ processors, featuring PCIe Gen5 graphics support and dual channel DDR5 for superb productivity and reliable performance.
Key Features
Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5 Memory Support
Rock-Solid Durability
- 6+1+1 Power Phase Design
- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
- ASRock Auto Driver Installer
CPU & Chipset
| Specification | Detail |
|---|---|
| CPU Socket | LGA1700 |
| CPU Support | 14th, 13th & 12th Gen Intel® Core™ Processors |
| Technologies | Intel® Hybrid Technology, Intel® Turbo Boost Max 3.0 Technology |
| Chipset | Intel® H610 |
Memory
| Specification | Detail |
|---|---|
| Memory Type | Dual Channel DDR5 Memory Technology |
| Slots | 2 x DDR5 DIMM Slots |
| Support (14th & 13th Gen) | DDR5 non-ECC, un-buffered memory up to 5600* |
| Support (12th Gen) | DDR5 non-ECC, un-buffered memory up to 4800* |
| Max Capacity | Up to 128GB* |
| Additional Support | Intel® Extreme Memory Profile (XMP) 3.0 |
*As specified by supported CPU and memory modules.
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible
- Supports HDCP 2.3
- Max resolution: up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed)
- Supports HDCP 2.3
- Max resolution: up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub
- Max resolution: up to Full HD (1920x1080) 60Hz
Audio
- 7.1 CH HD Audio
- Realtek ALC897 Audio Codec
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Expansion Slots
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)
*Actual support depends on CPU and system configuration.
Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M)
- Supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
RAID: N/A
USB Connectivity
Chipset:
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
Internal Connectors
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24-pin ATX Power Connector
- 1 x 8-pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports)

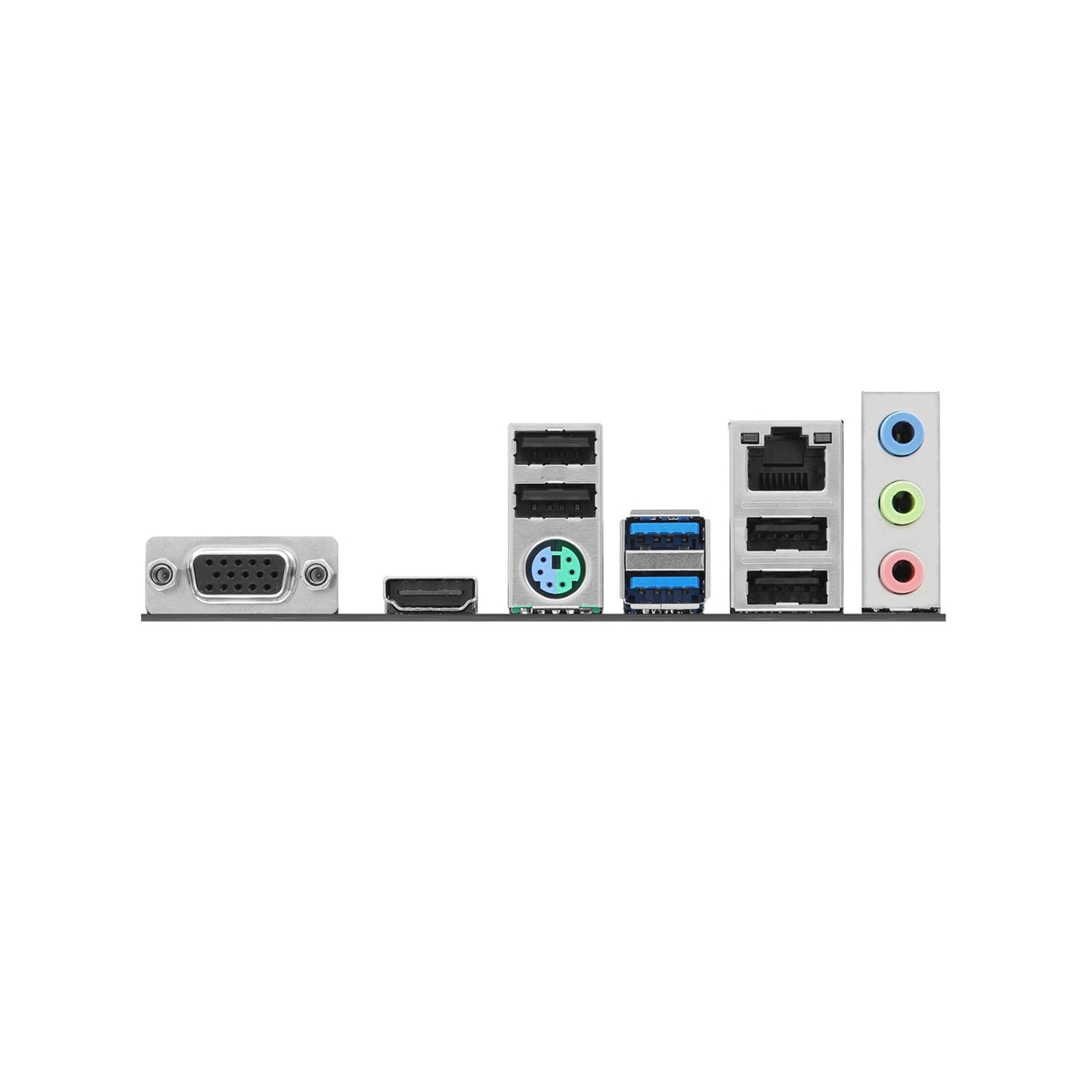

Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line In / Front Speaker / Microphone
Software & UEFI
Software: - ASRock Motherboard Utility (A-Tuning)*
UEFI Features:
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Form Factor & Design
- Micro ATX Form Factor: 9.6 in x 7.6 in (24.4 cm x 19.3 cm)
- Solid Capacitor Design
Operating System Support
- Microsoft Windows® 10 64-bit
- Microsoft Windows® 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply required)
