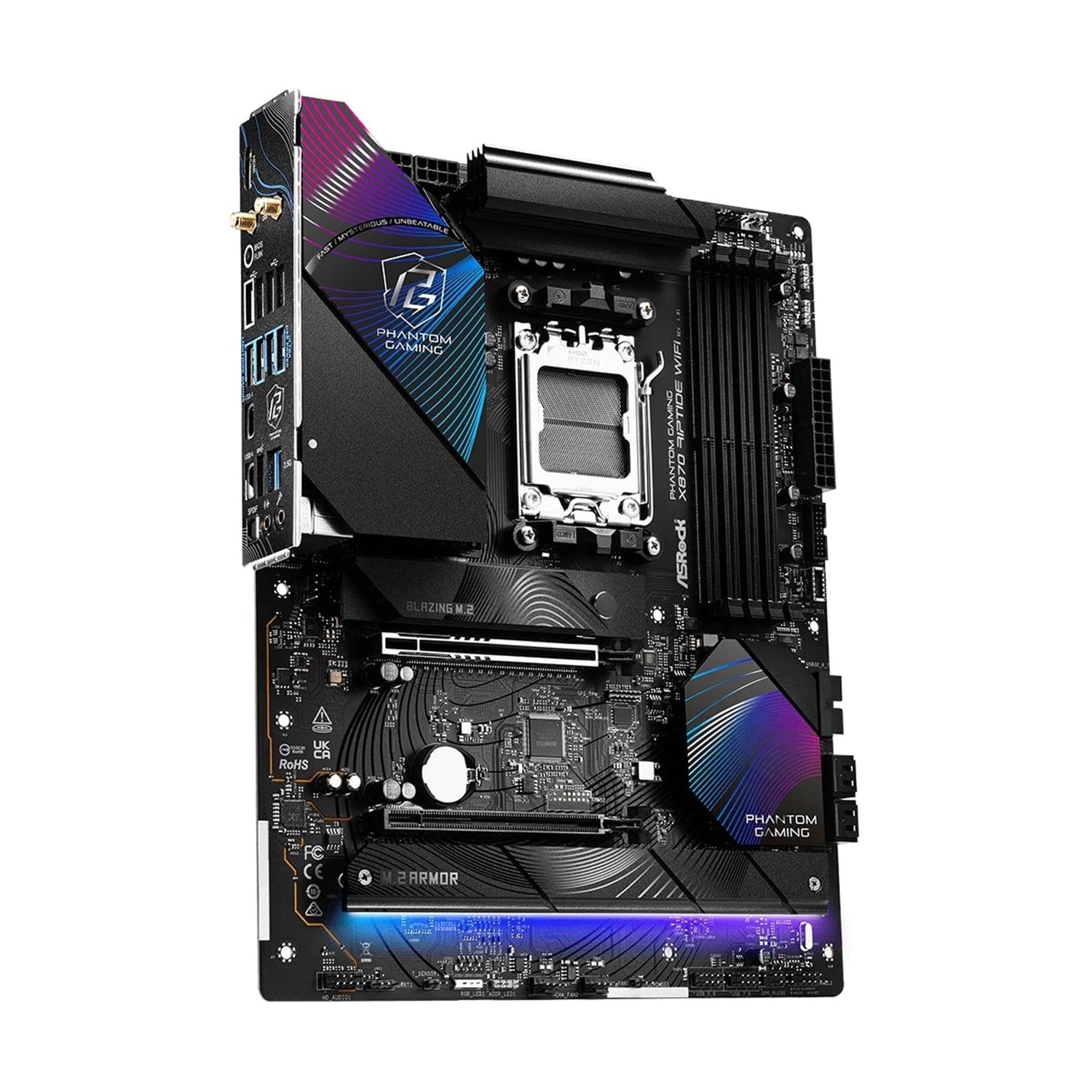

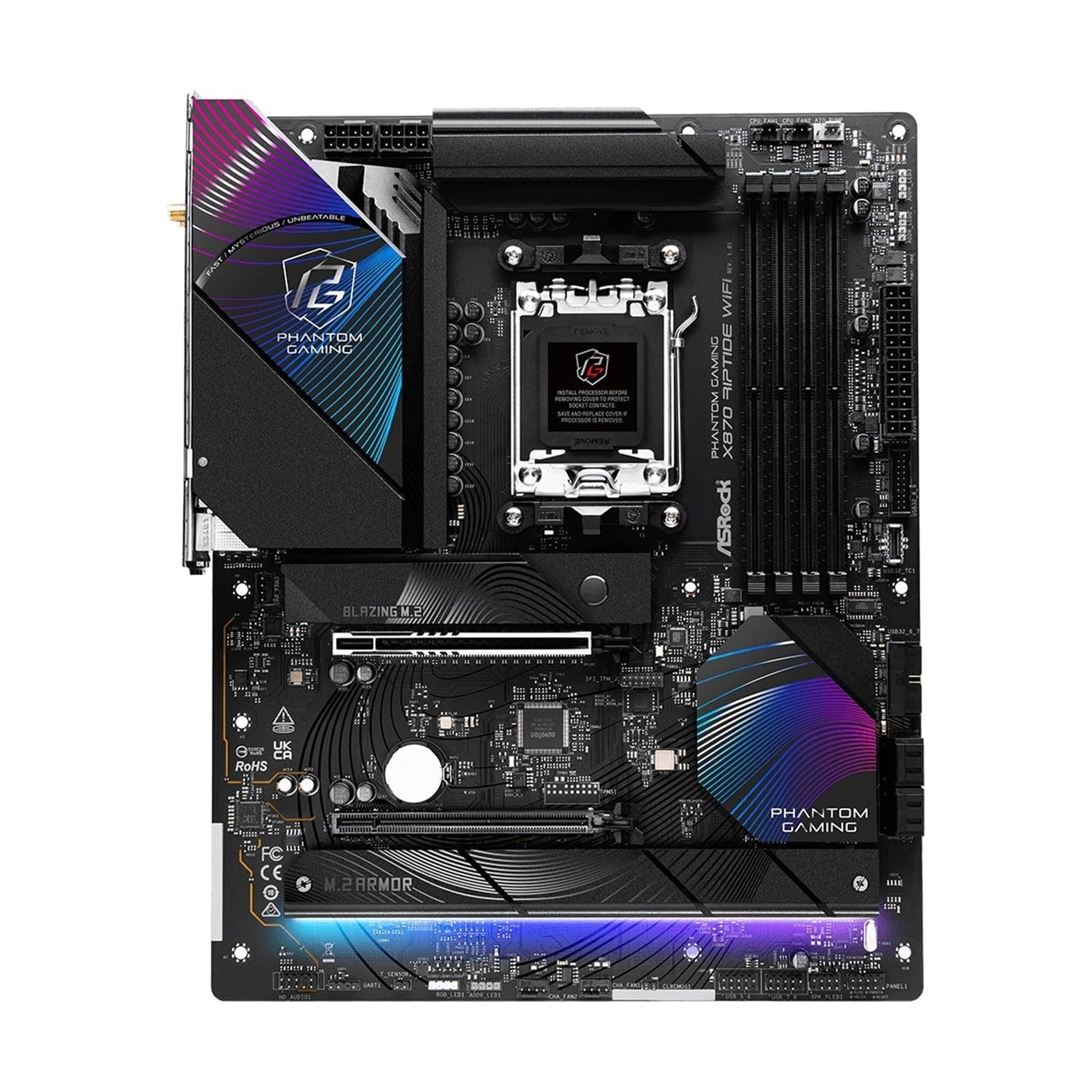

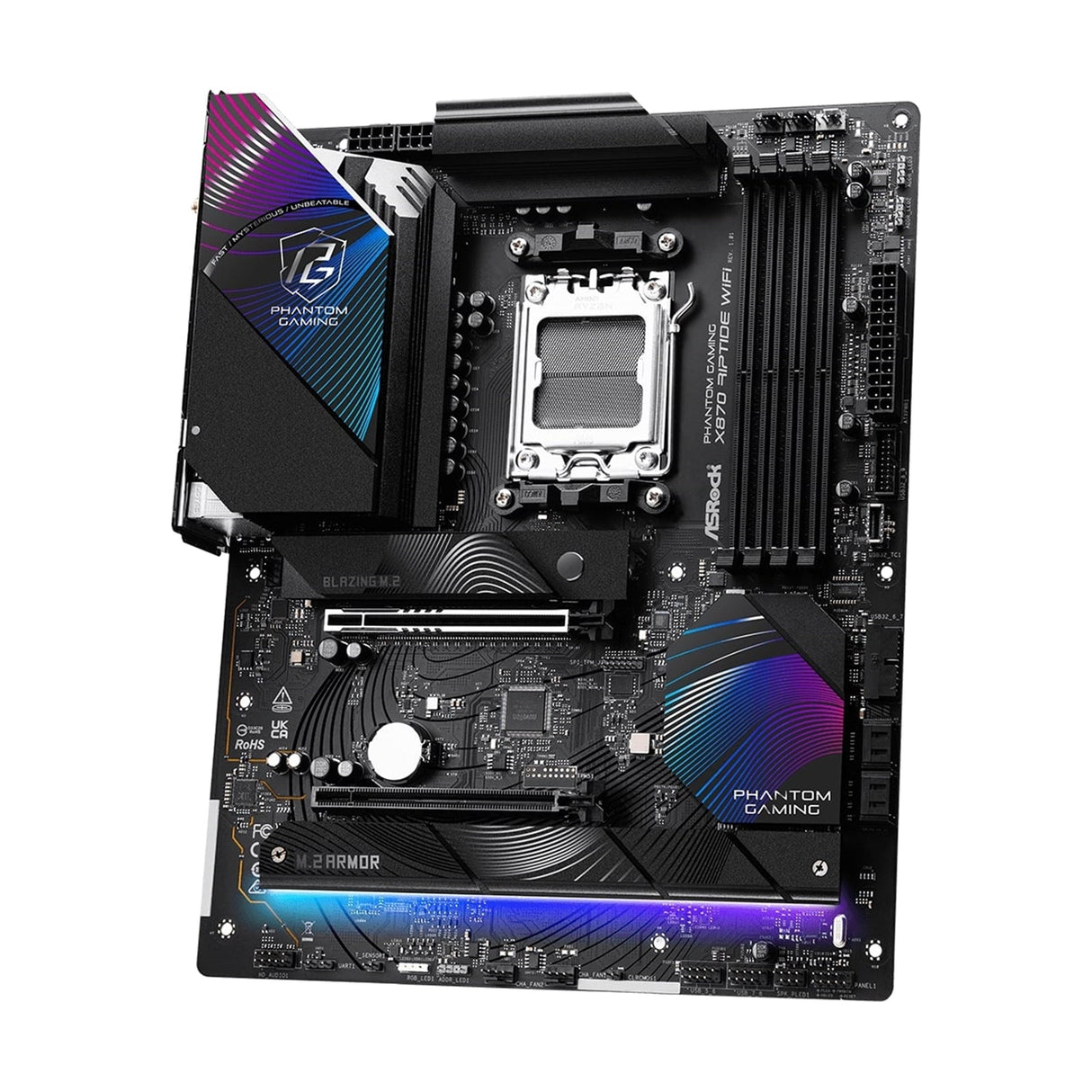

ASRock X870 RIPTIDE WIFI AMD AM5 Socket Motherboard

Phantom Gaming X870 Riptide WiFi Motherboard

Built for gamers, designed for stability, and ready for next‑gen performance, the Phantom Gaming X870 Riptide WiFi delivers a powerful, immersive gaming foundation. Inspired by the ocean’s riptide—calm on the surface with immense strength beneath—it combines robust hardware design with advanced connectivity and tuning features.

Key Highlights

• AMD Socket AM5 – Supports Ryzen 9000, 8000 and 7000 Series processors
• AMD X870 Chipset – Optimized for modern gaming and productivity
• PCIe Gen5 Support – For graphics and M.2 storage
• Dual Channel DDR5 – High-speed memory with XMP & EXPO support
• Wi-Fi 7 (802.11be) & Killer 2.5G LAN – High-bandwidth, low-latency networking
• USB4 Type-C (40 Gb/s) – Ultra-fast, versatile connectivity
• 14+2+1 Power Phase Design & Dr.MOS – Stable power and enhanced overclocking
• 8-Layer PCB & Aluminum Heatsinks – Improved thermals and efficiency

Rock-Solid Power & Durability

• 14+2+1 Power Phase Design
  Sturdy power delivery components provide smooth, reliable power to the CPU, supporting enhanced performance and overclocking with low temperatures.

• Dr.MOS Power Stages
  Integrated power stage solution optimized for synchronous buck applications. Compared to traditional discrete MOSFETs, it intelligently delivers higher current per phase for better thermal performance and efficiency.

• Exclusive 20K Black Capacitors (1000uF)

• Lifespan up to 20,000 hours

• Capacitance increased from 560uF to 1000uF

• Hi-Density Power Connectors
  Hi-Density CPU 8-pin and ATX 24-pin connectors withstand higher current than traditional connectors, promoting system stability and lowering fire risk under heavy overclocking.

• 8-Layer PCB
  Provides stable signal routing and efficient power delivery, lowering temperatures and improving energy efficiency—ideal for memory overclocking and supporting the latest DDR5 modules.

High-Performance Memory

• DDR5 XMP & EXPO Support
  Built with high-quality materials and a “stable and reliable” design concept, this motherboard supports Intel XMP and AMD EXPO profiles. Enthusiasts can easily boost DDR5 memory performance by enabling pre-tested profiles (XMP/EXPO-capable modules required).

Next-Generation Storage & Expansion

• PCIe Gen5 Blazing M.2
• Supports PCIe 5.0 standard
• Up to 128 GB/s transfer speed

• Ready for future ultra-fast SSDs

• Aluminum Heatsink Design
  Optimized heatsinks support efficient heat dissipation during intensive gaming or productivity workloads, helping maintain stability and long-term durability.

Advanced Networking for Gamers

• Killer Ethernet E3100 (2.5G LAN)
• 10/100/1000/2500 Mb/s
• Designed for competitive gamers and performance users

• Enhanced detection and prioritization for gaming and multimedia traffic

• Wi-Fi 7 (802.11be) Wireless

• Higher data throughput and lower latency
• Multi-link Operation (MLO) for simultaneous use of multiple bands/channels

• Improved speed, throughput, and reduced latency for smoother VR/AR and high-bandwidth applications

• New Wi-Fi Antenna Design
  Tailored for high-bandwidth, low-latency usage with a stable wireless connection.

• Bluetooth 5.4 & MU-MIMO Support

Ultra-Fast USB & Front Panel Connectivity

• USB4 Type-C Ports (40 Gb/s)
  USB4 delivers high speed and versatility via advanced USB Type-C connections for work and home, enabling up to 40 Gb/s data transfer.

• Lightning Gaming Ports
  Two USB 3.2 Gen1 Type-A ports sourced from different controllers for reduced jitter and latency when using high-speed mice and keyboards.

• Ultra USB Power

• Provides 5V from the +12V rail, reducing voltage drop under heavy load

• Helps prevent noise from other devices or RGB LEDs and enhances audio experience

• Front Panel USB 3.2 Gen2x2 Type-C Header

• Up to 20 Gb/s
• Reversible USB Type-C connector

Audio for Immersive Gaming

• 7.1 CH HD Audio (Realtek ALC4082)
• Content Protection
• Individual PCB layers for left/right channels
• Direct Drive Technology on front headphone port (supports up to 600 Ohm headsets)
• Nahimic Audio software support

VR-Ready Wireless Experience

• Enhanced VR Experience
  Wi-Fi 7’s higher throughput, lower latency, and Multi-link Operation provide smoother, real-time interaction for immersive VR/AR usage.

Detailed Specifications

Unique Features

• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• USB4 Type-C Ports (40 Gb/s)
• 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
• Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
• ASRock Lightning Gaming Ports
• EZ Update
• BIOS Flashback Button
• ASRock Auto Driver Installer
• EZ Troubleshooter

Core Hardware

Memory

Graphics Output

Audio

LAN & Wireless

Expansion Slots

Storage

RAID Support
- RAID 0, RAID 1, RAID 10 for M.2 NVMe storage devices

USB Configuration

CPU-Driven Ports (Rear):
- 2 x USB4 Type-C
- 1 x USB 3.2 Gen2 Type-A (USB32_3)
- 1 x USB 3.2 Gen1 Type-A (USB32_1)

Chipset-Driven Ports:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear, USB32_4)
- 6 x USB 3.2 Gen1 Type-A (2 Rear: USB32_2 & USB32_5, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

Internal Connectors & Headers

• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin, Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin, Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin, Smart Fan Speed Control)
• 1 x 24-pin ATX Power Connector (Hi-Density)
• 2 x 8-pin 12V CPU Power Connectors (Hi-Density)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (supports 4 x USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (supports 4 x USB 3.2 Gen1 ports)
• 1 x Front Panel USB 3.2 Gen2x2 Type-C Header (20 Gb/s)

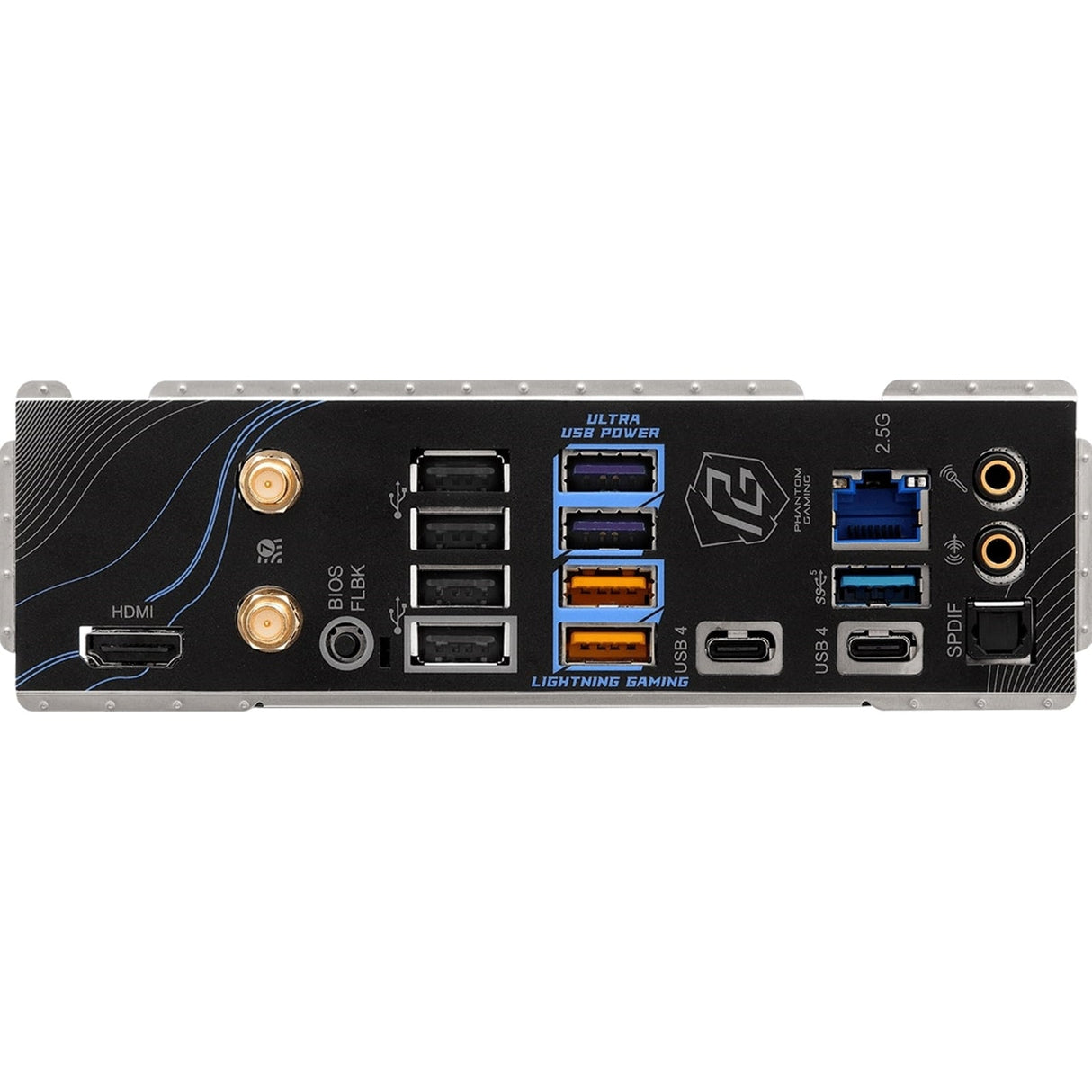

Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)
• 3 x USB 3.2 Gen1 Type-A Ports (USB32_1,2; USB32_1 & USB32_2 are Lightning Gaming Ports)
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s, USB32_3 & USB32_4; both support Ultra USB Power)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Software & UEFI

• Software
• ASRock Motherboard Utility (Phantom Gaming Tuning)
• Killer Control Center

• ASRock Polychrome SYNC

• UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

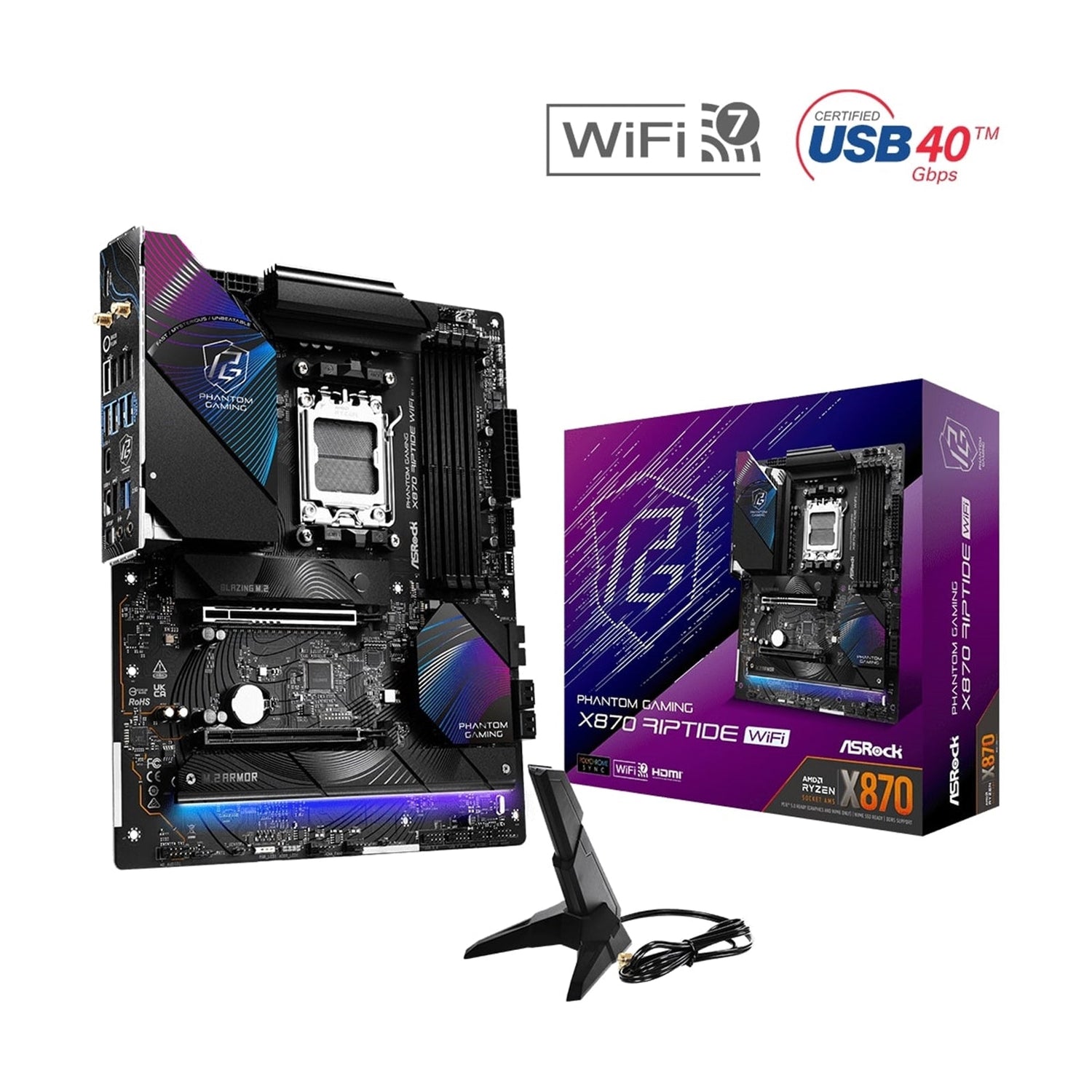

Included Accessories

• 2 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 1 x ARGB Splitter Cable
• 1 x Thermistor Cable

With gaming-focused design, robust power delivery, PCIe Gen5 readiness, Wi-Fi 7, Killer 2.5G LAN, and USB4 connectivity, the Phantom Gaming X870 Riptide WiFi is crafted to deliver a fast, stable, and future-ready platform for modern AMD gaming builds.
