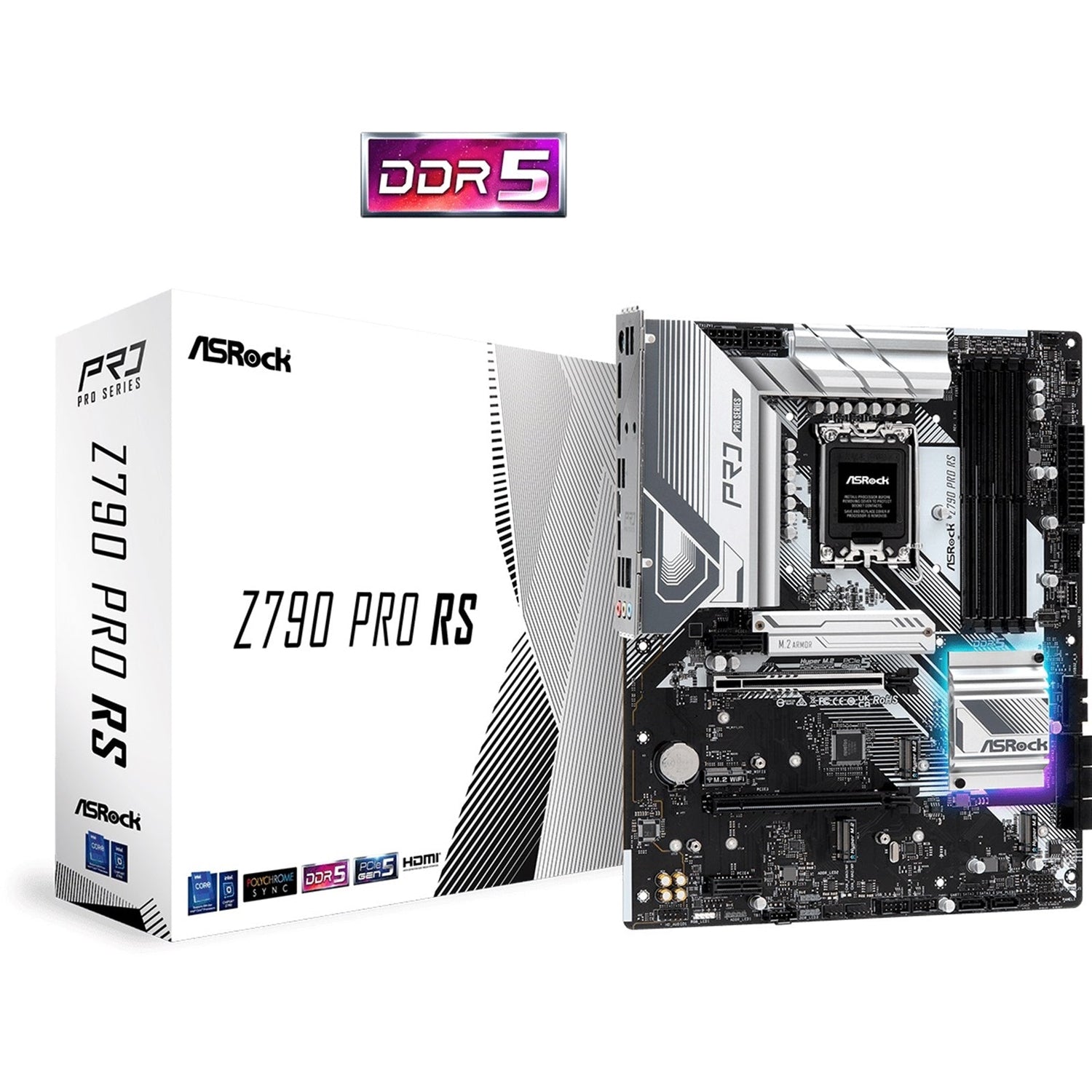

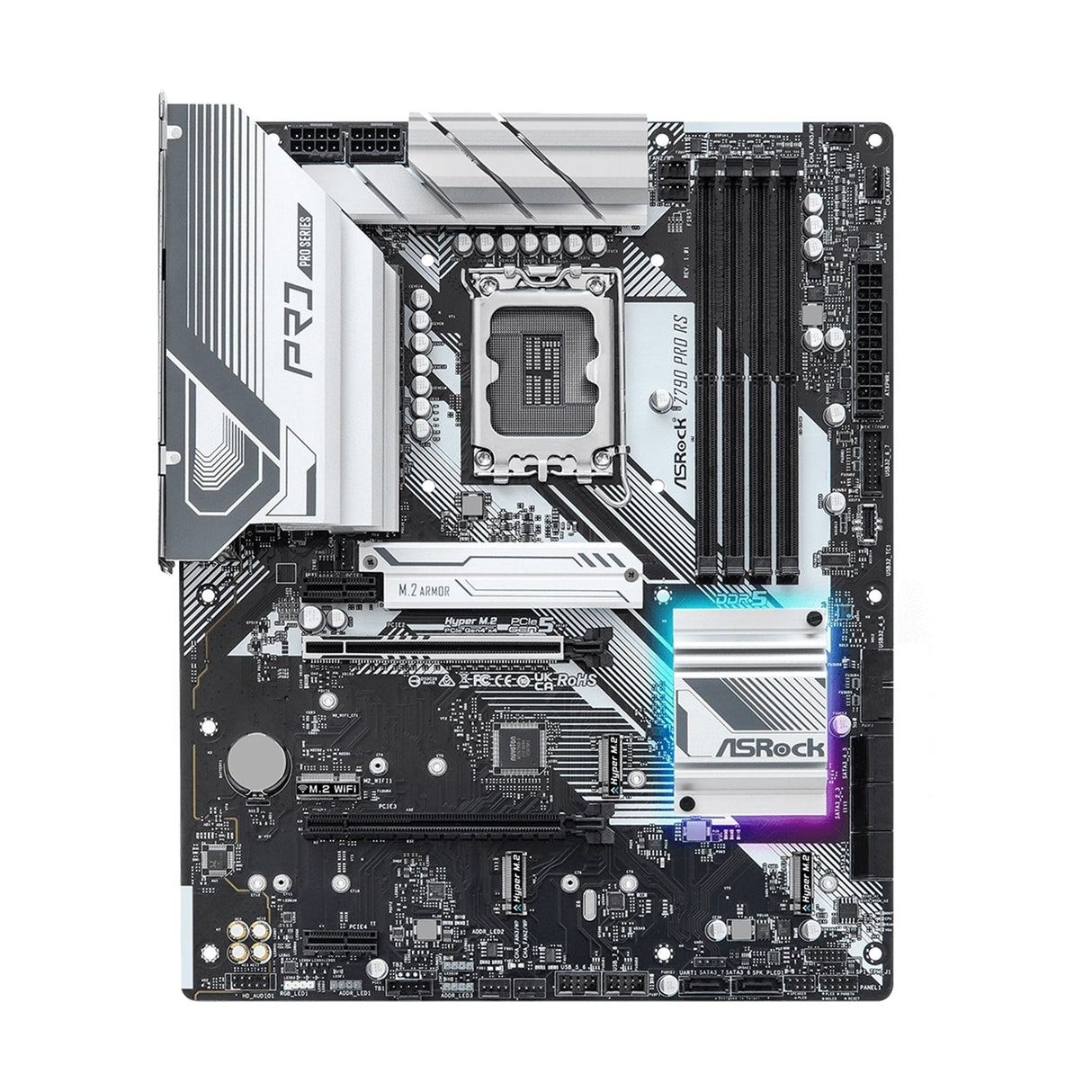

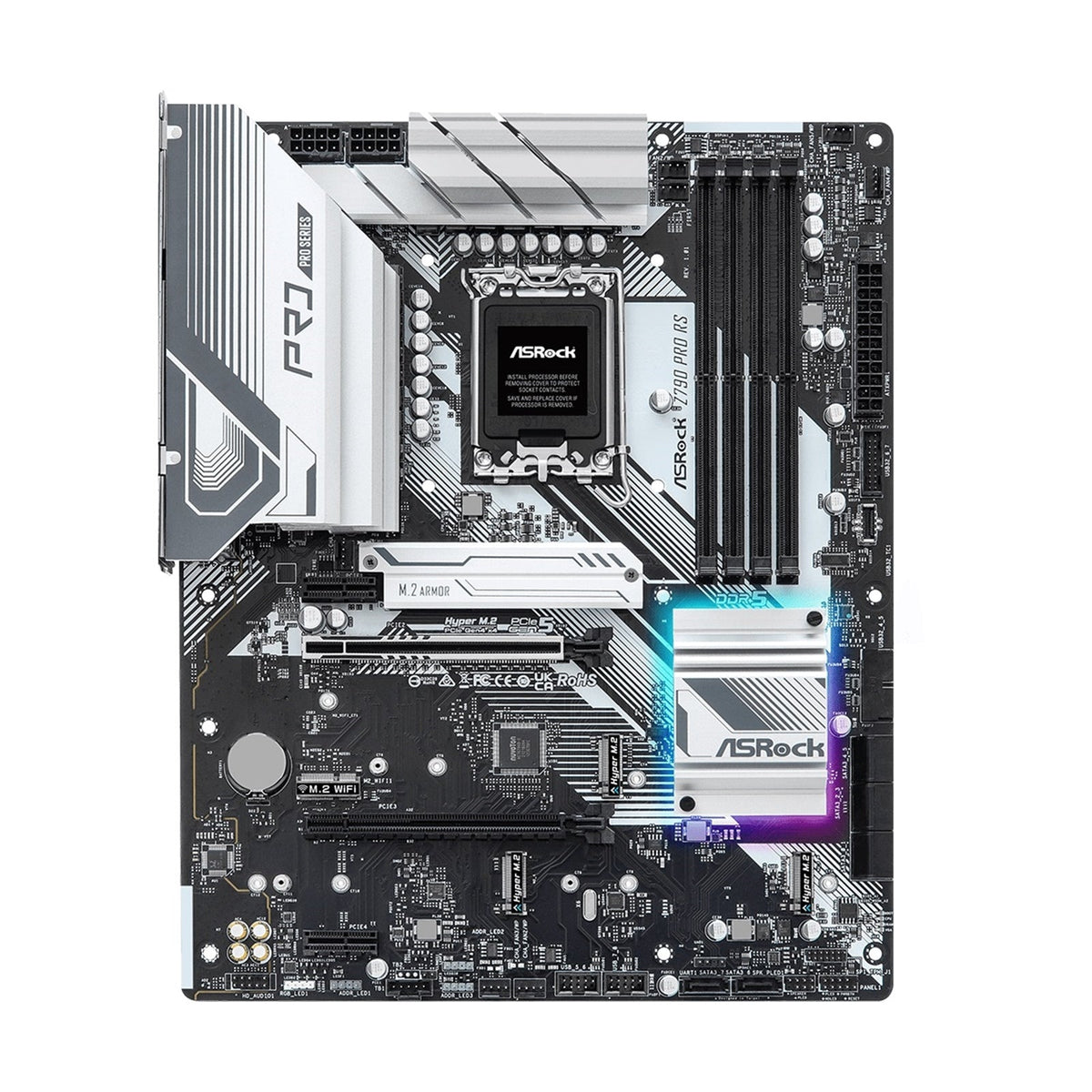

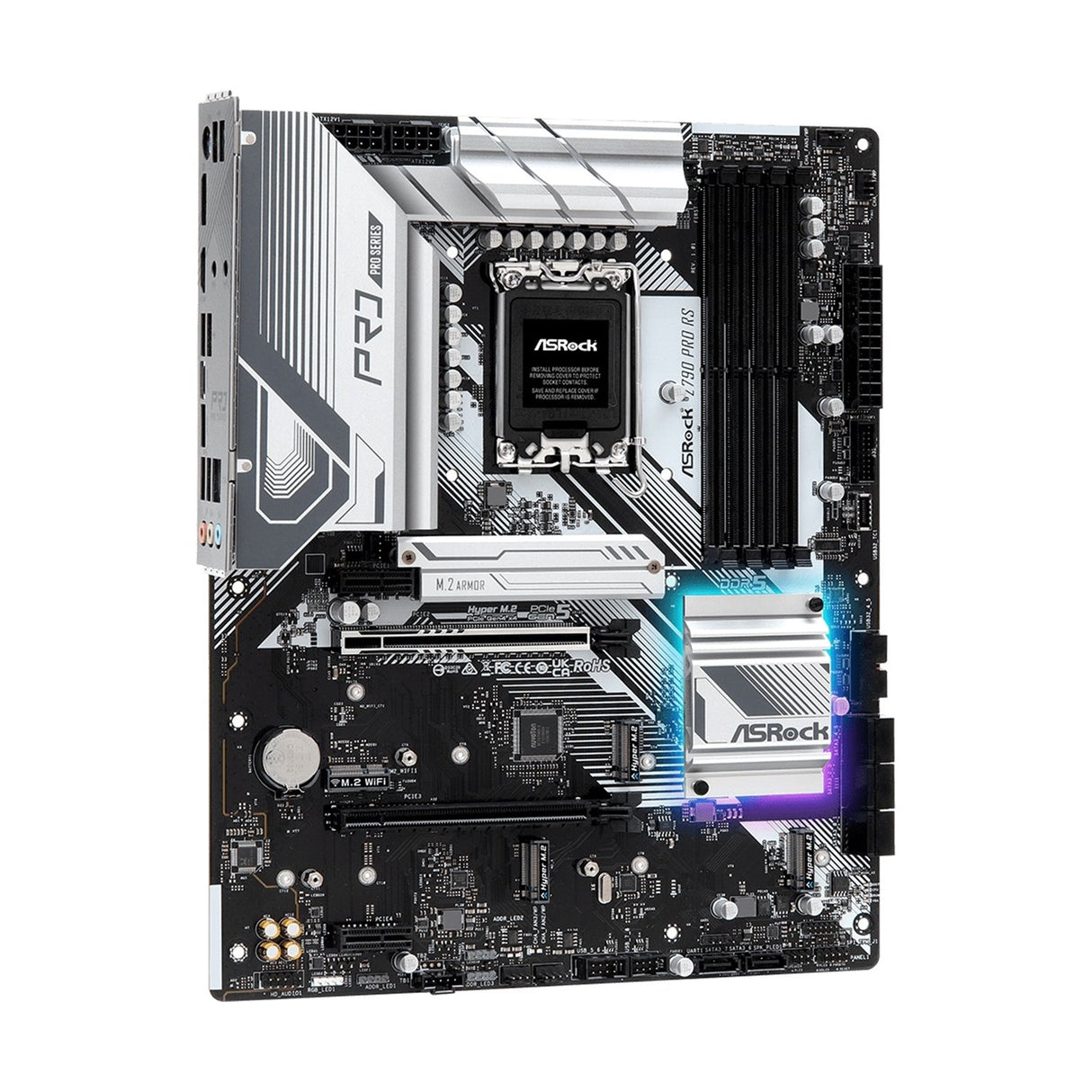

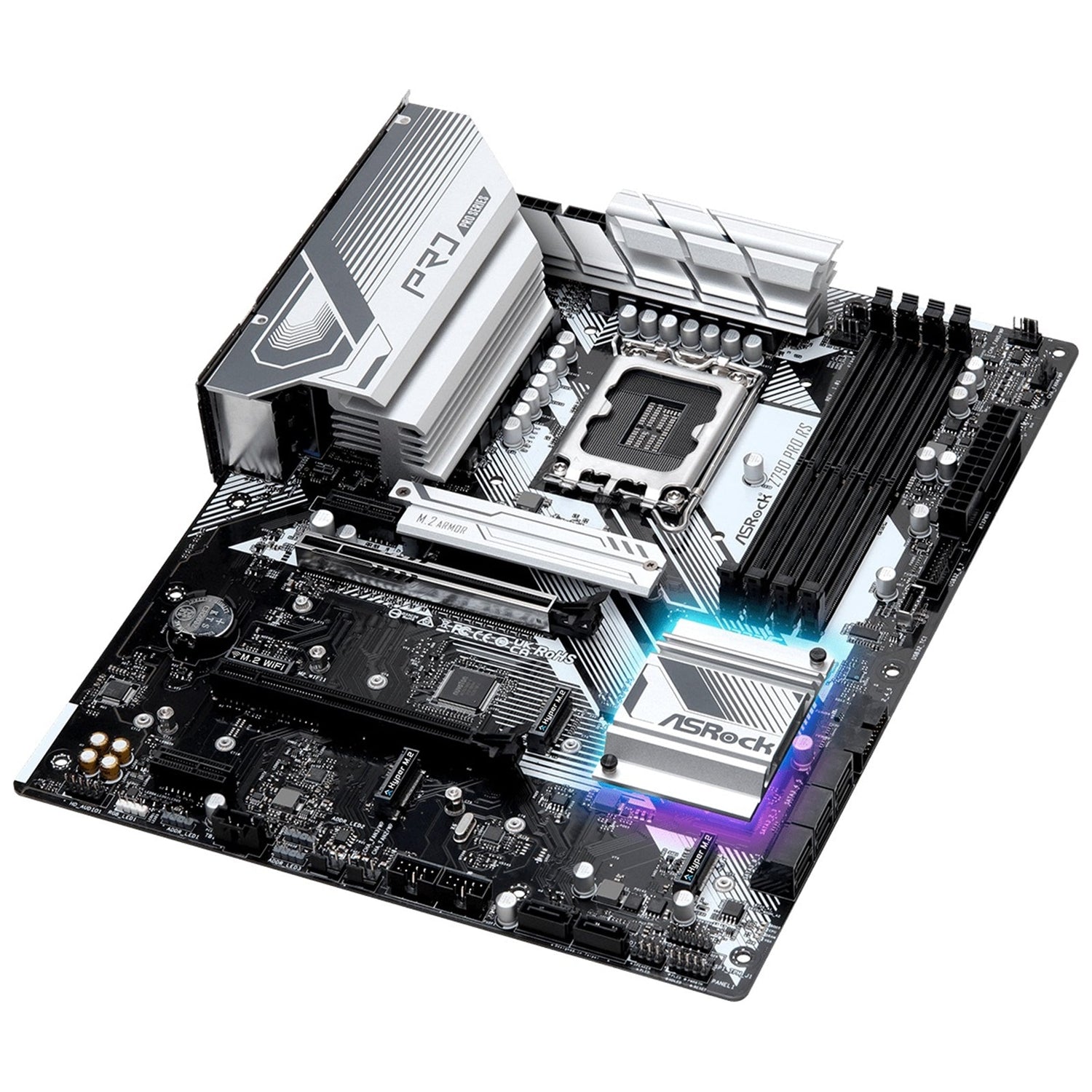

ASRock Z790 Pro RS Intel 1700 Socket Motherboard

£177.61

ASRock Z790 RS (Race Sport) Edition Motherboard – Overview

Modern and futuristic, the ASRock Z790 RS (Race Sport) Edition is the evolution of the popular PRO series motherboard. Designed for mainstream DIY builders, it delivers an attractive specification set, a well-balanced feature lineup, and a reliable computing experience without the need for a costly upgrade.

The Race Sport Edition is your all‑rounder motherboard for everyday tasks and light-load gaming – combining style, speed, and practicality in a single platform.

Key Features

Unique Features & Productivity

Superb productivity for mainstream DIY users
PCIe Gen5 support for graphics
Dual Channel DDR5 memory support
Rock-solid durability with:
14+1+1 Power Phase, 50A Dr.MOS for VCore+GT
Enlarged Heatsink Armor
Flexible integrated I/O shield
Ultrafast connectivity with 2.5G LAN
EZ Update with ASRock Auto Driver Installer
EZ Troubleshooter & ASRock Post Status Checker

Core Specifications

CPU

Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)

Chipset

Intel Z790

Memory

Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM slots
Supports DDR5 non-ECC, un-buffered memory up to 6800+ (OC)
Maximum system memory capacity: 128GB
Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Graphics

Intel Xe Graphics Architecture (Gen 12)
1 x eDP 1.4
Max resolution: Full HD 60Hz
1 x HDMI 2.1 TMDS compatible
Supports HDCP 2.3
Max resolution: 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed)
Supports HDCP 2.3
Max resolution: 8K 60Hz / 5K 120Hz

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

Networking

2.5 Gigabit LAN (10/100/1000/2500 Mb/s)
Dragon RTL8125BG controller
Dragon 2.5G LAN Software:
Smart Auto Adjust Bandwidth Control
Visual, user-friendly UI
Visual network usage statistics
Optimized default settings for Game, Browser, and Streaming modes
User-customized priority control

Expansion Slots

CPU: - 1 x PCIe 5.0 x16 slot (PCIE2), supports x16 mode

Chipset: - 1 x PCIe 4.0 x16 slot (PCIE3), supports x4 mode
- 2 x PCIe 3.0 x1 slots (PCIE1 and PCIE4)
- 1 x M.2 Socket (Key E), supports: - Type 2230 WiFi/BT PCIe WiFi module
- Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU: - 1 x Hyper M.2 Socket (M2_1, Key M)
- Supports type 2260/2280
- PCIe Gen4x4 (64 Gb/s) mode

Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M)
- Supports type 2260/2280
- PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M)
- Supports type 2260/2280
- PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_4, Key M)
- Supports type 2260/2280
- PCIe Gen4x4 (64 Gb/s) mode
- 8 x SATA3 6.0 Gb/s connectors

RAID Support

For SATA storage devices:
RAID 0, RAID 1, RAID 5, RAID 10
For M.2 NVMe storage devices:
RAID 0, RAID 1, RAID 5

USB Connectivity

1 x USB 3.2 Gen2x2 Type-C (front)
1 x USB 3.2 Gen2 Type-C (rear)
1 x USB 3.2 Gen2 Type-A (rear)
6 x USB 3.2 Gen1 (2 rear, 4 front)
8 x USB 2.0 (4 rear, 4 front)

Internal Connectors & Headers

1 x eDP signal connector
1 x SPI TPM header
1 x Power LED and speaker header
1 x RGB LED header
3 x Addressable LED headers
1 x CPU fan connector (4-pin)
1 x CPU/Water Pump fan connector (4-pin, Smart Fan Speed Control)
5 x Chassis/Water Pump fan connectors (4-pin, Smart Fan Speed Control)
1 x 24-pin ATX power connector
2 x 8-pin 12V power connectors (Hi-Density Power Connector)
1 x Front panel audio connector
1 x Thunderbolt AIC connector (5-pin)
Supports ASRock Thunderbolt 4 AIC Card
2 x USB 2.0 headers (support 4 x USB 2.0 ports)
2 x USB 3.2 Gen1 headers (support 4 x USB 3.2 Gen1 ports)
1 x Front panel Type-C USB 3.2 Gen2x2 header (20 Gb/s)

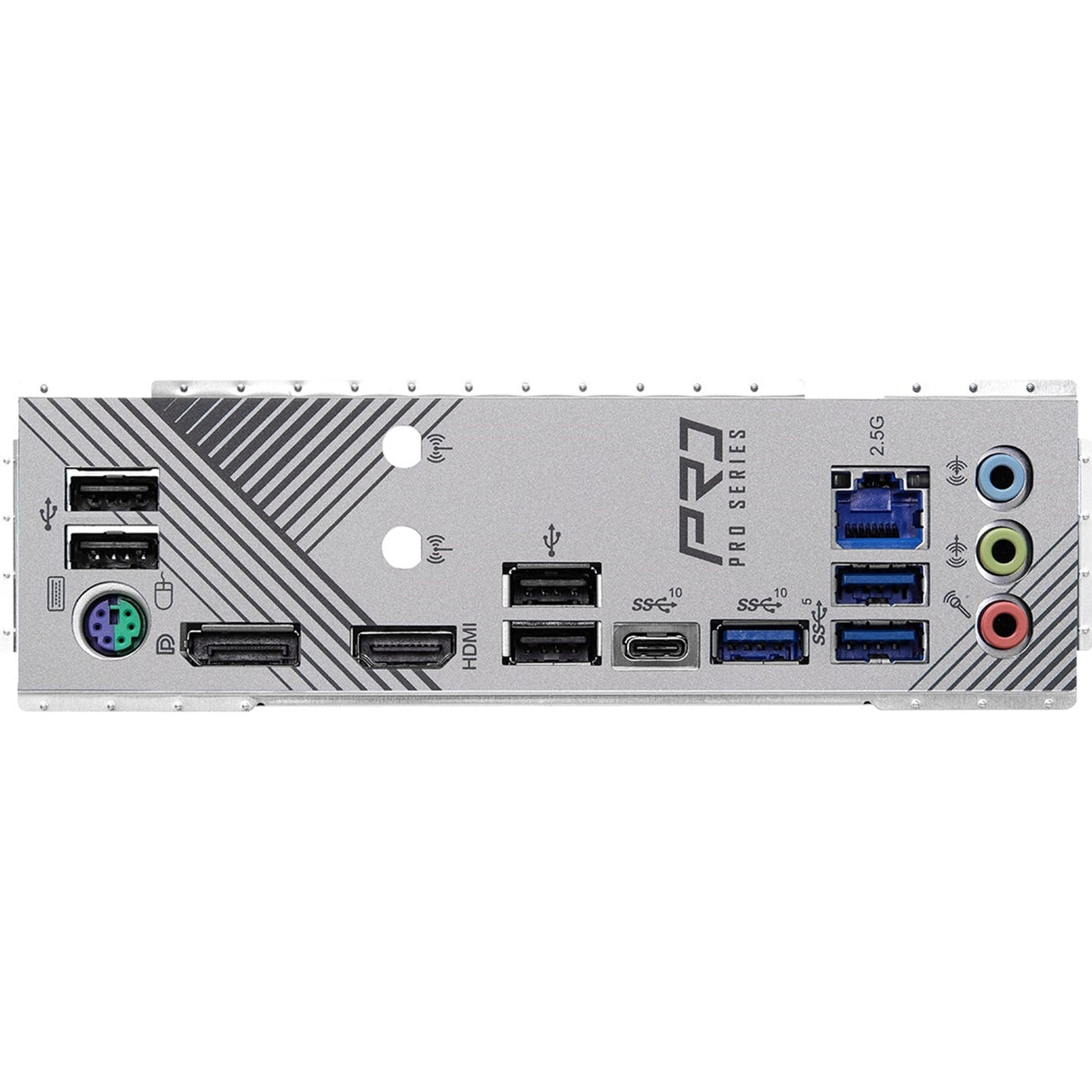

Rear Panel I/O

2 x Antenna mounting points
1 x PS/2 mouse/keyboard port
1 x HDMI port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C port (10 Gb/s)
2 x USB 3.2 Gen1 ports
4 x USB 2.0 ports
1 x RJ-45 LAN port
HD Audio jacks: Line in / Front Speaker / Microphone

Software & UEFI

Software - ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC

UEFI - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
