ASRock Z790M-ITX WiFi Intel 1700 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 2x M.2 Sockets, 2.5GbE + 1GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

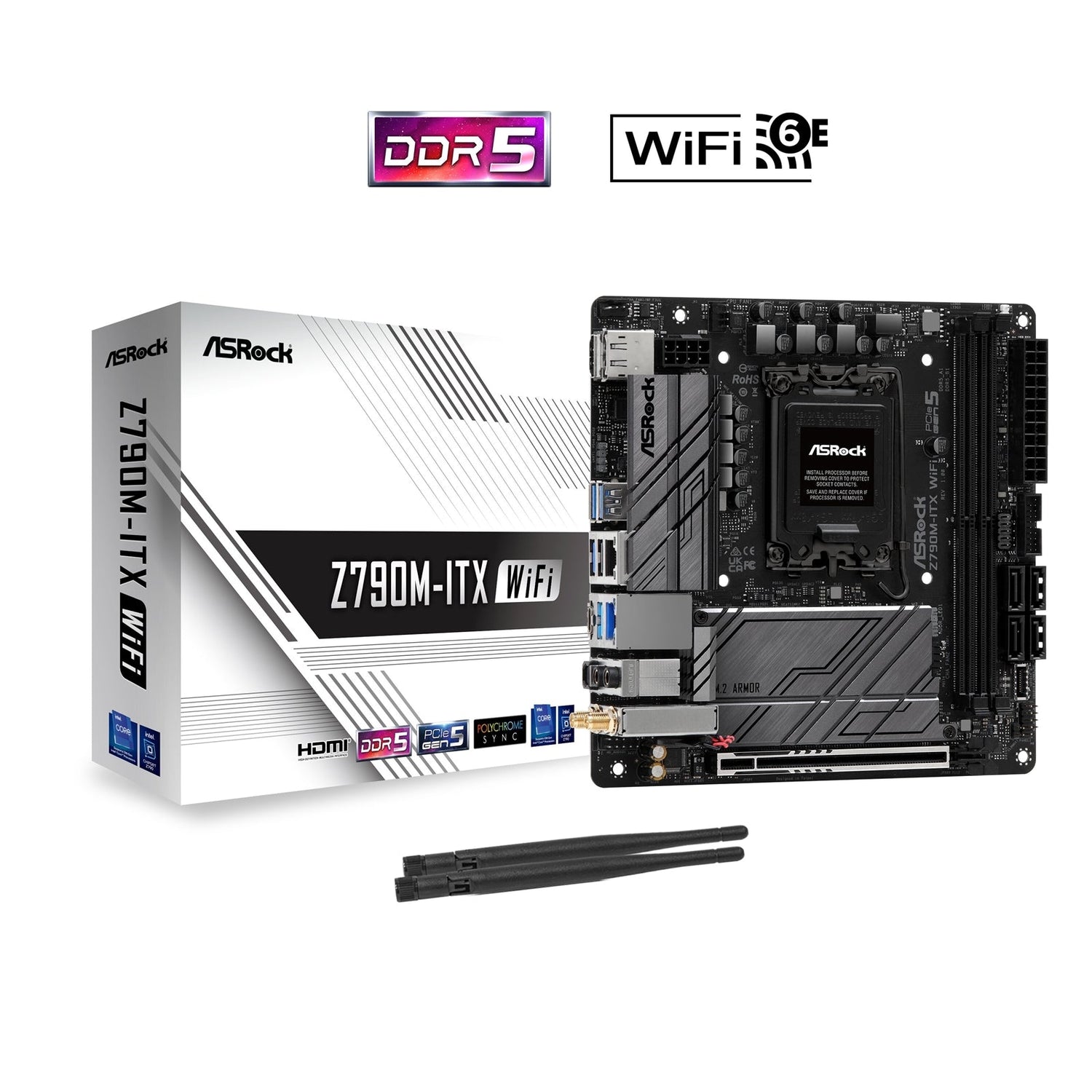

ASRock Z790M-ITX WiFi Motherboard

The ASRock Z790M-ITX WiFi is a Mini-ITX motherboard designed for compact systems that demand high performance, robust power delivery, and fast connectivity.

Key Features

Superb Productivity

• Supports PCIe Gen5 for graphics
• Dual Channel DDR5 memory support

Rock-Solid Durability

• 7+1+1 power phase design with 50A Dr.MOS for VCore+GT
• Nichicon 12K Black Caps (100% Japan-made high quality conductive polymer capacitors)

Ultrafast Connectivity

• 2.5G LAN
• 802.11ax Wi-Fi 6E module

EZ Update

• ASRock Auto Driver Installer

CPU

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

Chipset

• Intel® Z790

Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM slots
• Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
• Max. system memory capacity: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Networking

LAN

• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
• 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

Wireless LAN

• 802.11ax Wi-Fi 6E module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band support*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3 + High speed class II
• Supports MU-MIMO

Expansion Slots

CPU

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset

• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s connectors

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*

USB Connectivity

• 1 x USB 3.2 Gen2x2 Type-C (Rear)
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 4 x USB 3.2 Gen2 Type-A (Rear)
• 2 x USB 3.2 Gen1 (Front)
• 3 x USB 2.0 (1 Rear, 2 Front)

Internal Connectors

• 1 x eDP signal connector
• 1 x RGB LED header*
• 1 x Addressable LED header**
• 1 x CPU/Water Pump fan connector (4-pin) (Smart Fan Speed Control)***
• 2 x Chassis fan connectors (4-pin)****
• 1 x 24-pin ATX power connector
• 1 x 8-pin 12V power connector (Hi-Density Power Connector)
• 1 x Front panel audio connector
• 1 x USB 2.0 header (supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
• 1 x Front panel Type-C USB 3.2 Gen2x2 header (20 Gb/s)

Rear Panel I/O

• 2 x Antenna ports
• 1 x HDMI port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF out port
• 4 x USB 3.2 Gen2 Type-A ports (10 Gb/s)
• 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
• 1 x USB 2.0 port
• 2 x RJ-45 LAN ports
• 1 x Line out jack (Gold audio jack)
• 1 x Microphone input jack (Gold audio jack)

Software & UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Polychrome SYNC

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer

Accessories

• 1 x User manual
• 1 x I/O shield
• 2 x SATA data cables
• 2 x ASRock WiFi 2.4/5/6 GHz antennas
• 2 x Screws for M.2 sockets

Form Factor

• Mini-ITX Form Factor: 6.7 in x 6.7 in (17.0 cm x 17.0 cm)
• 8 Layer PCB

Operating System Support

• Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
