D1 Mini 0.66" OLED Display Module
£5.29

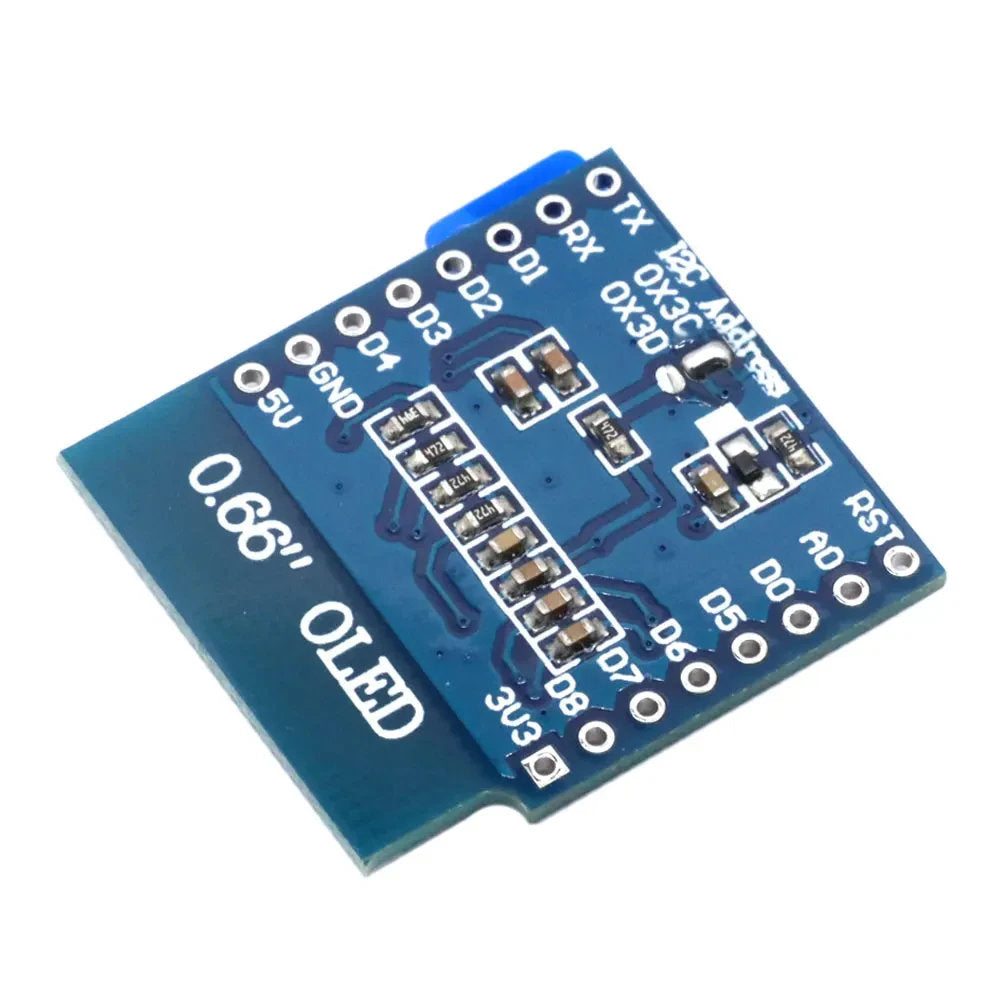

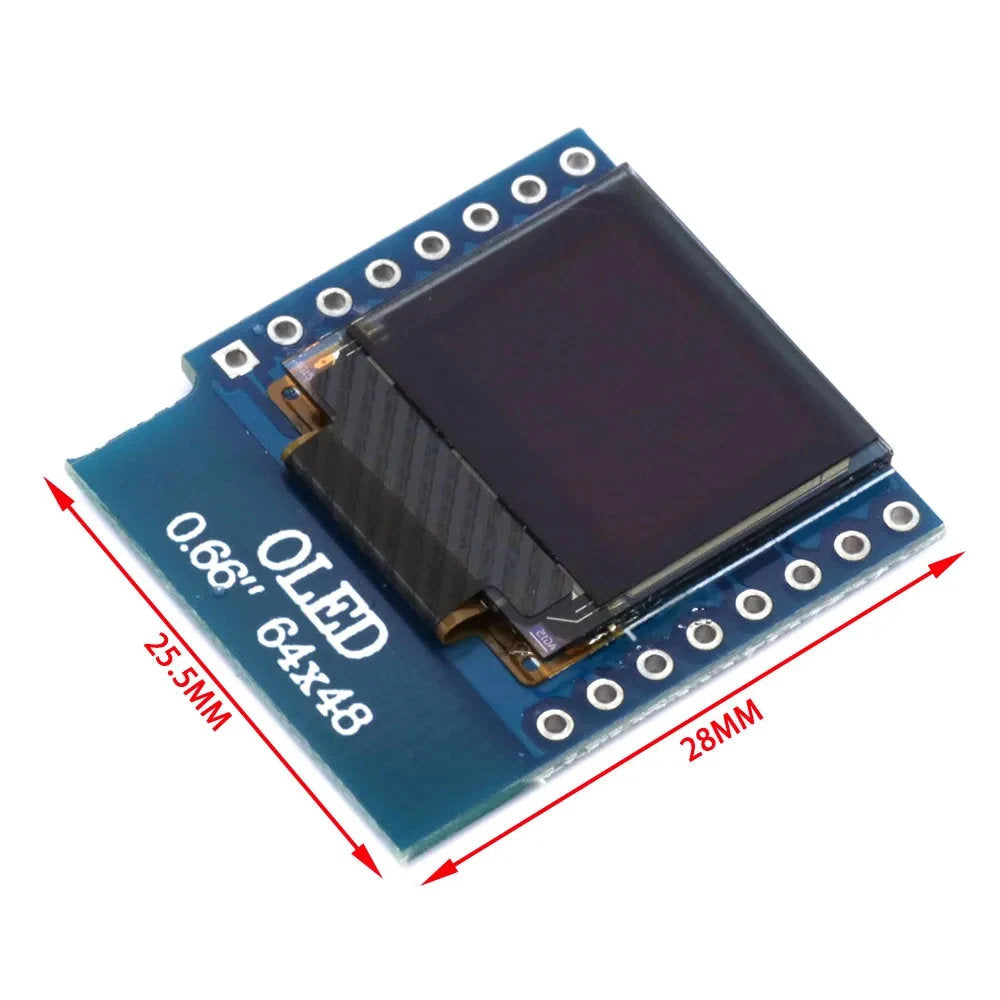

OLED Display Shield for Wemos D1 Mini — 0.66" 64×48 IIC I2C (SSD1306)
Add a bright, crisp visual interface to your Wemos D1 Mini projects with this compact OLED Shield. Whether you're displaying real-time sensor data, status readouts, or custom UI elements, this small but sharp screen delivers clear output in a form factor built specifically for the D1 Mini.
Key Features
- Compact 0.66" OLED display with a 64×48 pixel resolution for sharp, legible output
- I2C (IIC) interface for simple, low-pin wiring
- Dual I2C address support — configure as 0x3C or 0x3D to suit your setup
- SSD1306 driver IC — widely supported across Arduino and compatible platforms
- 3.3V operating voltage with 3.3V-only I/O compliance
⚠️ Important: All I/O pins are designed for 3.3V only. Do not connect to 5V logic without appropriate level shifting.
Example Use Case
Pair this OLED Shield with a DHT22 Shield to display live temperature and humidity readings locally on-screen — even while data is simultaneously transmitted to the cloud.
Specifications
| Parameter | Details |
|---|---|
| Screen Size | 0.66 inches |
| Resolution | 64 × 48 pixels |
| Operating Voltage | 3.3V |
| Interface | IIC (I2C) |
| I2C Address | 0x3C or 0x3D |
| Driver IC | SSD1306 |
| I/O Compliance | 3.3V only |

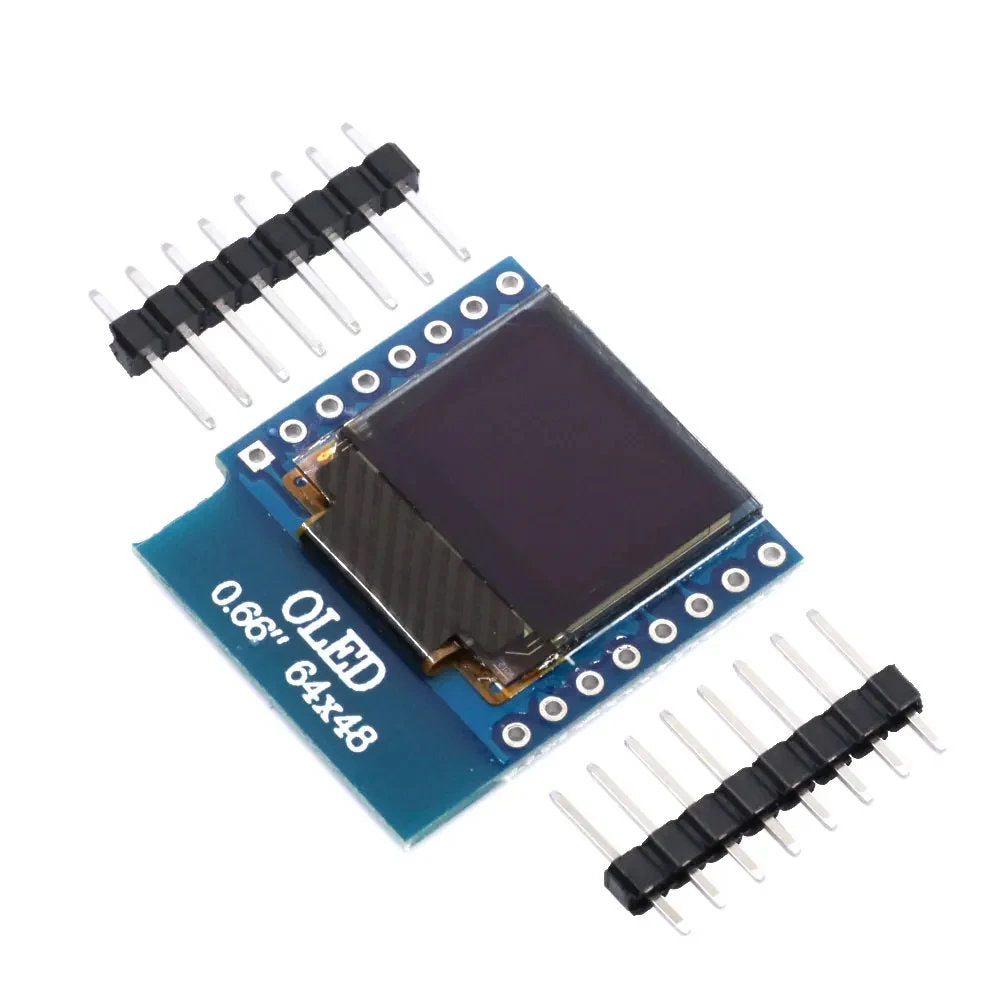

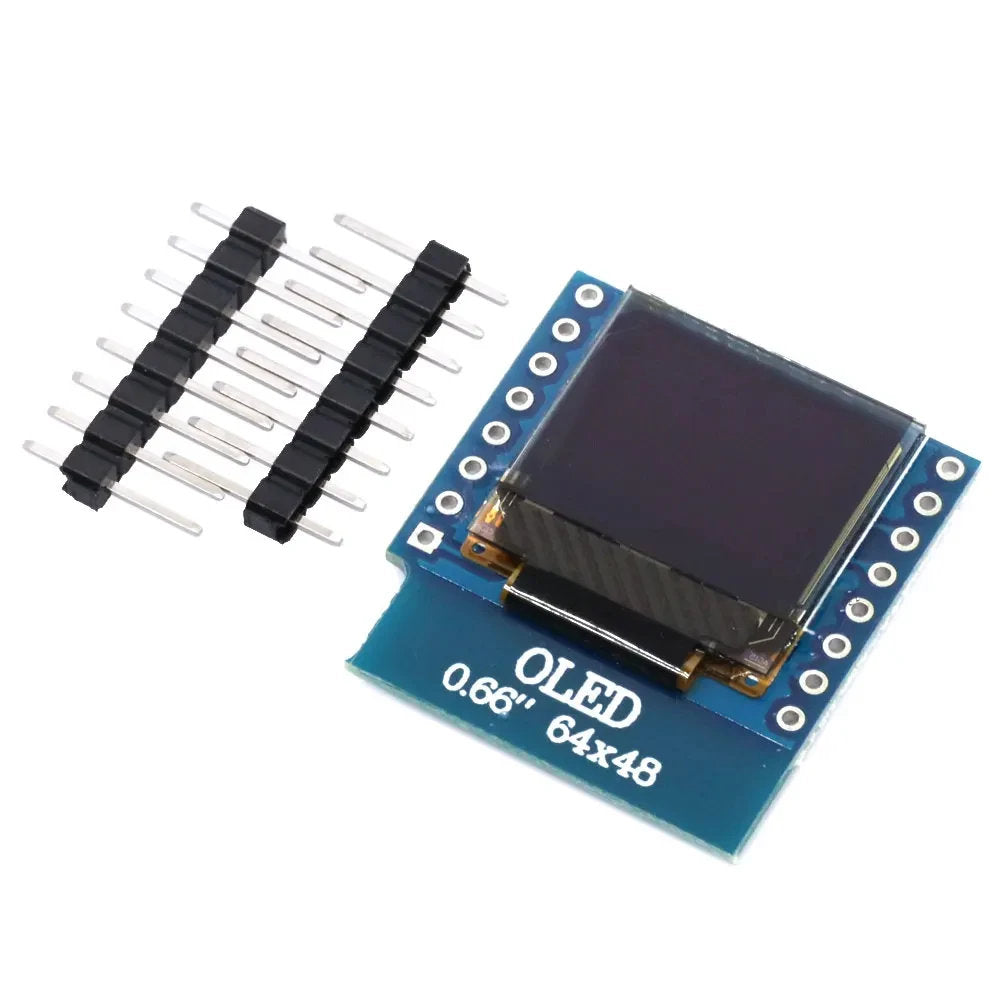

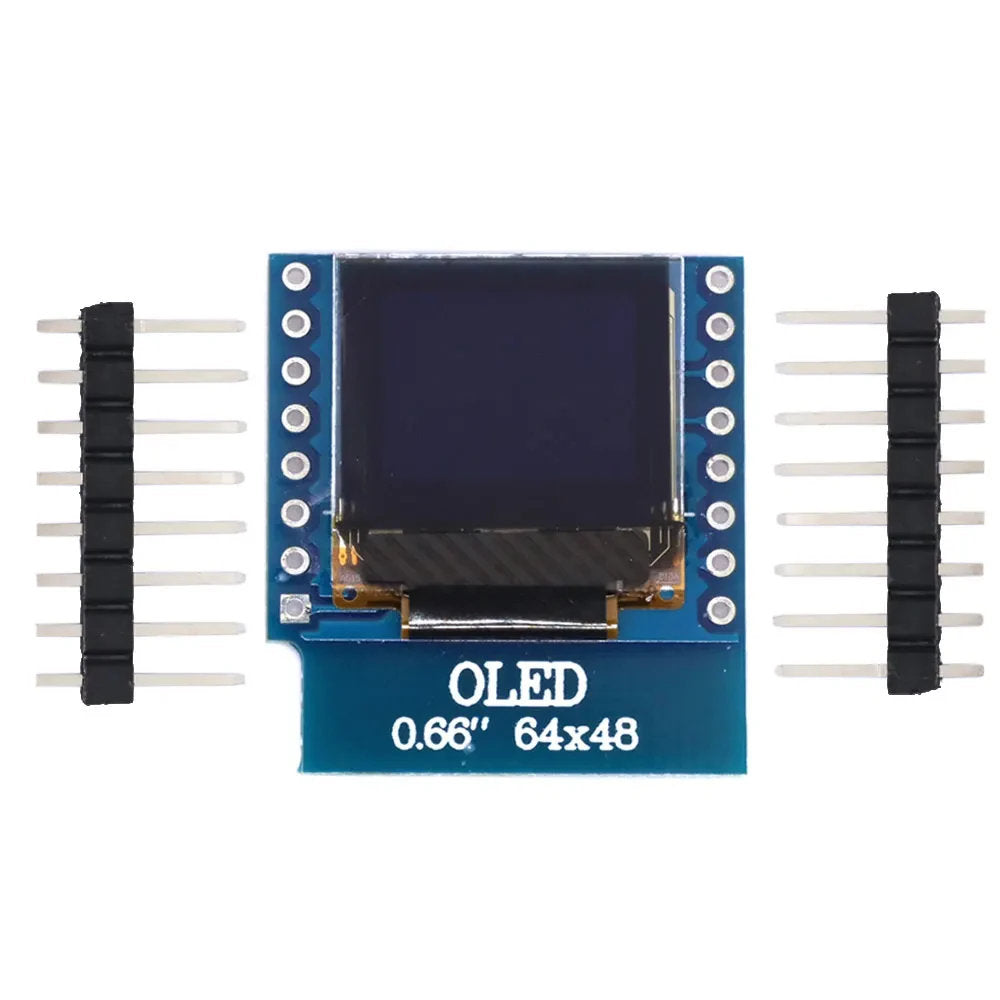

What's in the Box
- OLED Shield for Wemos D1 Mini × 1
- Standard pin headers × 2
