Data Logging Shield for Arduino
£5.99

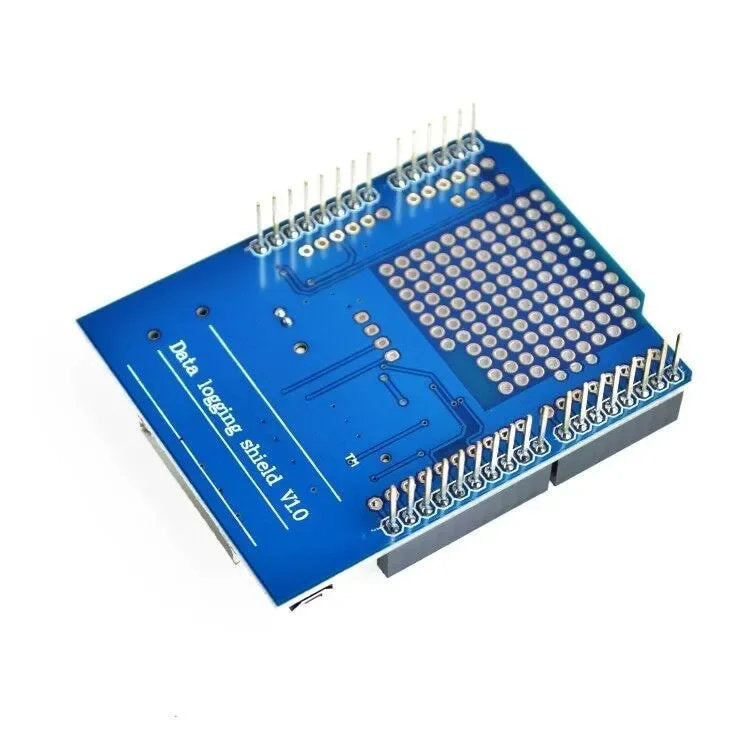

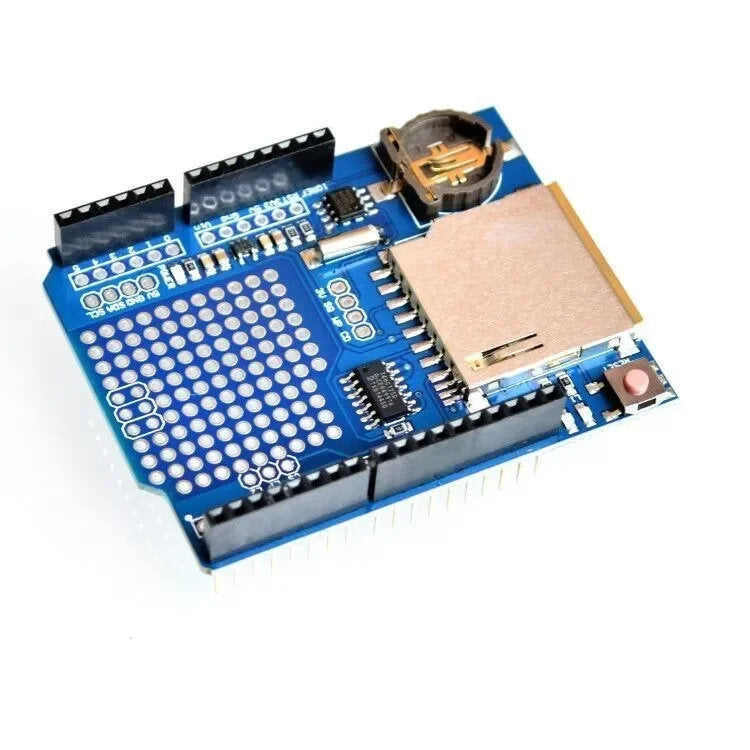

Data Logger Shield for Arduino UNO – SD Card & RTC Logging Module
Expand your Arduino UNO's capabilities with this dedicated Data Logger Shield, designed to reliably store data and protect data transmission. Built with a four-channel buffer featuring three-state output control, the module manages data writing and output with precision — enabling normal read/write operations when the chip enable terminal is set to 0, and entering a high-impedance blocking state when set to 1.
Key Features
- Onboard RTC Support – Equipped with a real-time clock IC and a dedicated onboard battery holder for the RTC, enabling accurate timekeeping. Note: Battery is not included.
- SD Card Slot – Onboard SDS slot for easy SD card insertion, enabling reliable data storage and retrieval.
- Physical Reset Button – Conveniently located on the board for quick module resets.
- Power Status Indicator – Onboard power indicator light lets users instantly monitor the module's current power supply status.
- Dual User-Defined LED Lights (L1, L2) – Two reserved, undefined LED indicators that can be customized to suit your specific project requirements.
- Secondary Development Ready – Multiple reserved plug-in pads provide flexibility for hardware expansion and custom development.
Product Specifications
| Parameter | Details |
|---|---|
| Working Voltage | DC 5V |
| Product Size | 69 × 54 mm |
| Compatible Board | Arduino UNO |
| RTC IC | DS1307 |
| Battery | Not included |
Package Contents
- DS1307 Data Logging Expansion Board × 1
- SD Card Slot (onboard)
