Gigabyte A620M DS3H Ultra Durable AMD AM5 Socket Motherboard

£82.57

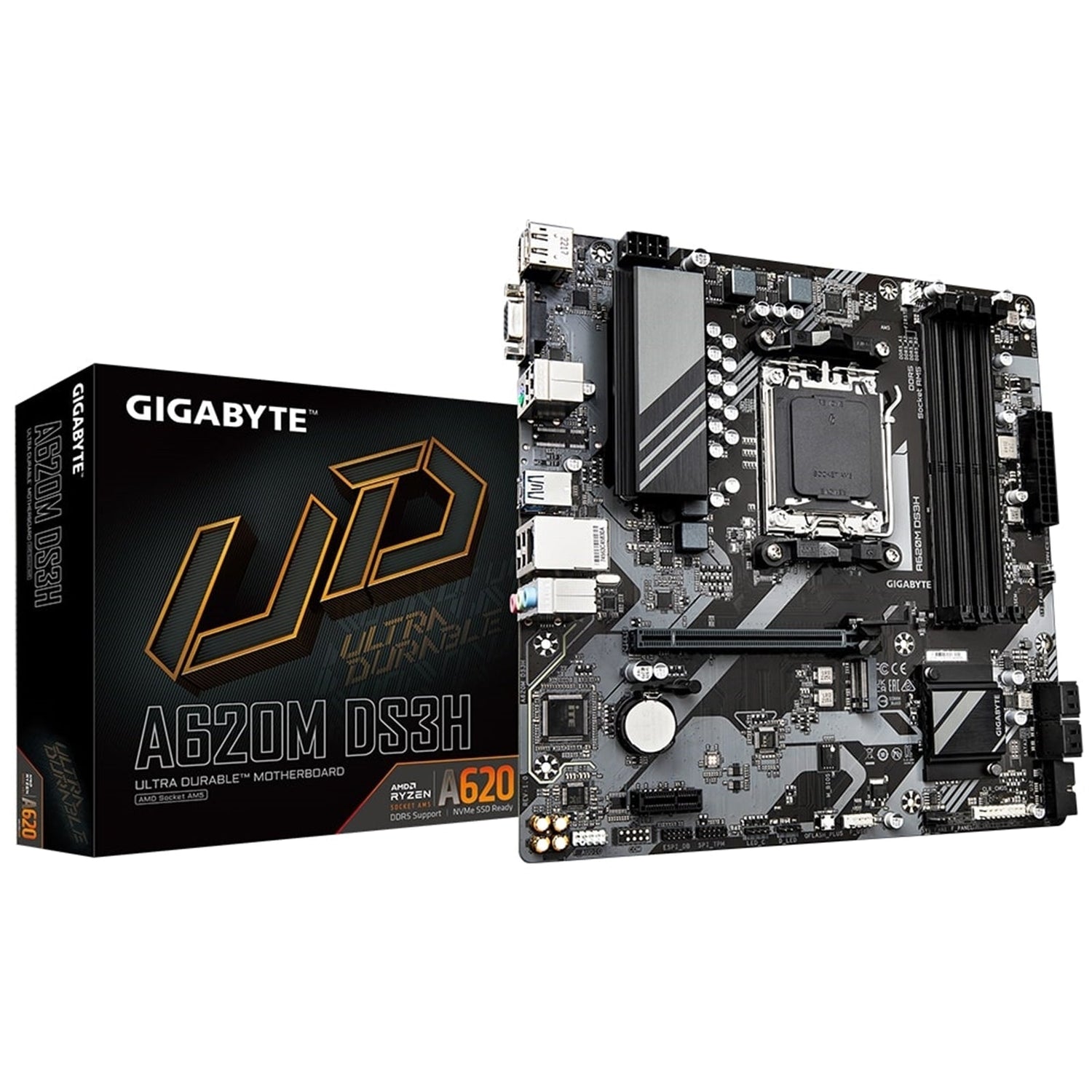

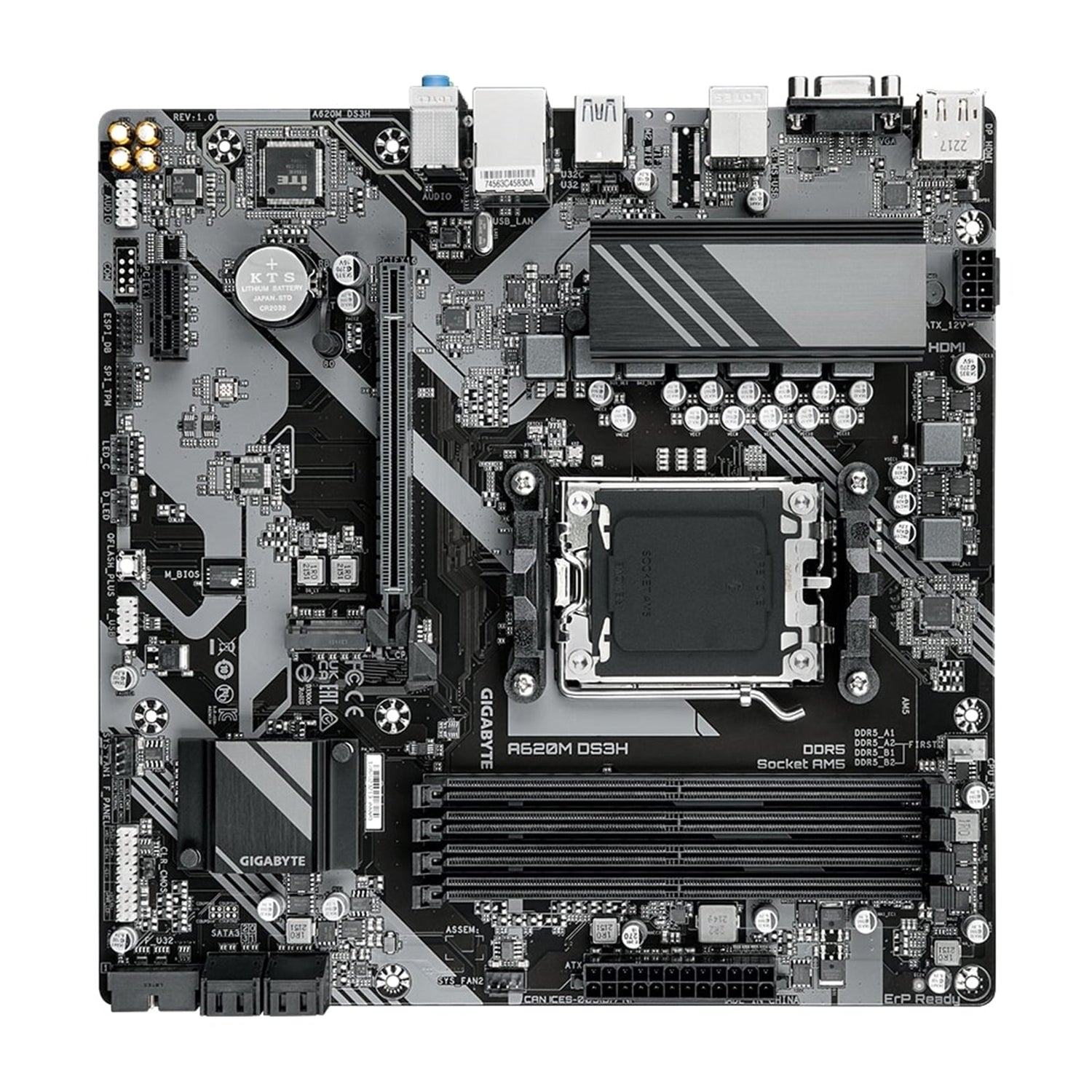

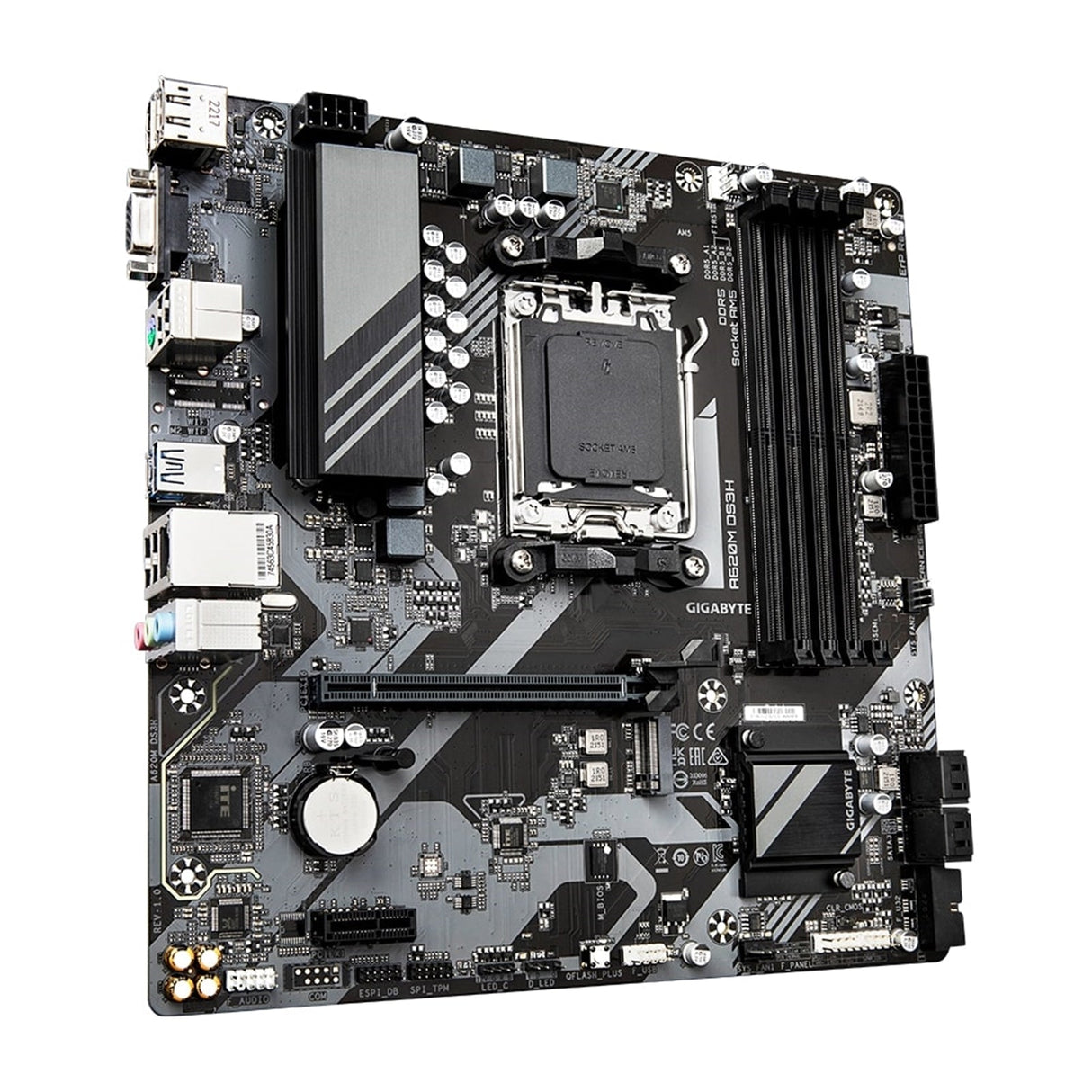

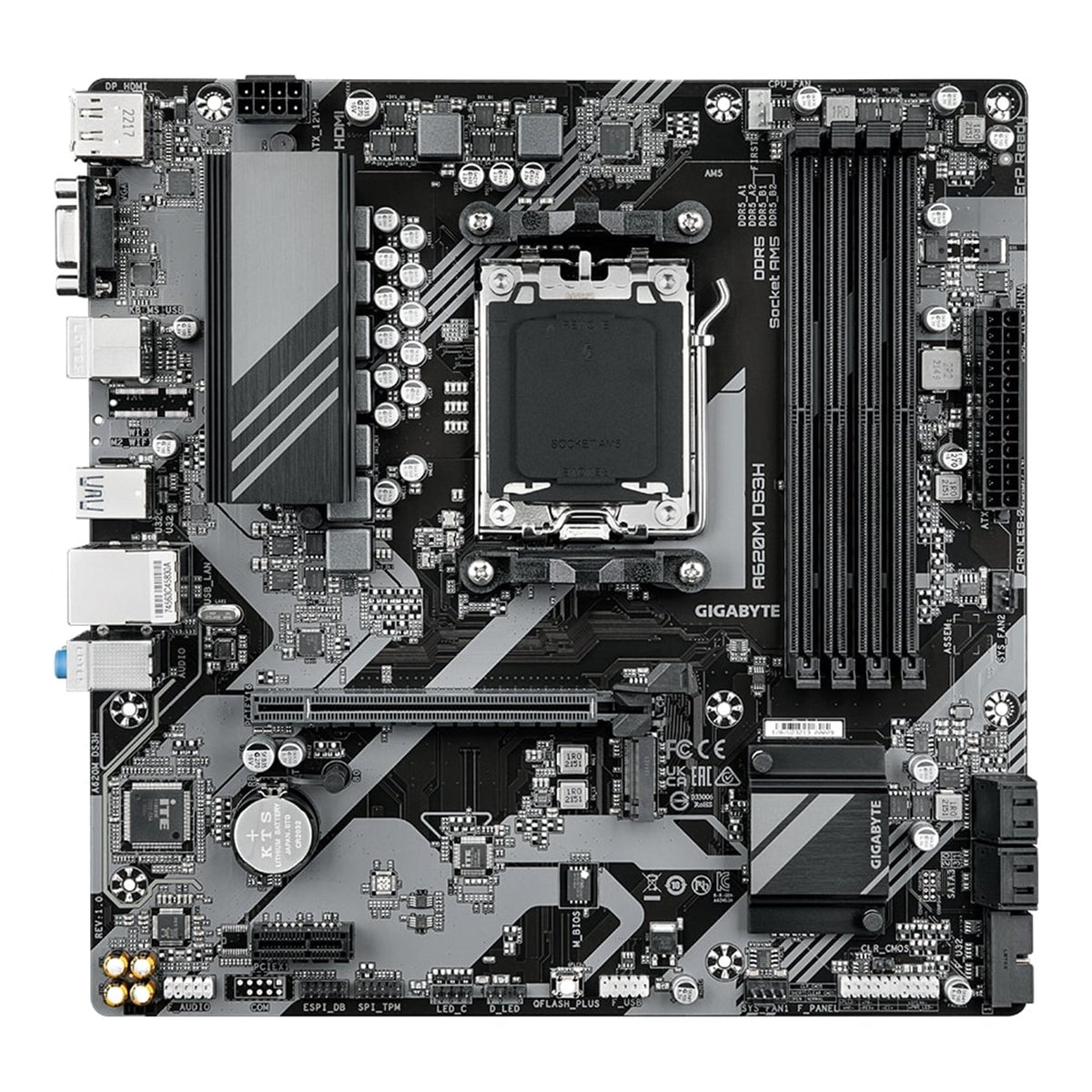

GIGABYTE A620M DS3H (rev. 1.0) Micro ATX Motherboard

The GIGABYTE A620M DS3H (rev. 1.0) is a Micro ATX AMD Socket AM5 motherboard designed for AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors. It combines a digital VRM design, DDR5 memory support, PCIe 4.0 storage and graphics, and comprehensive cooling control to deliver stable, durable performance.

Key Features

AMD Socket AM5
Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Power Design & Performance
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
DDR5 Memory Support
Dual Channel DDR5
4 x SMD DIMM slots
Support for AMD EXPO & Intel XMP memory modules
DDR5 EXPO & XMP overclocking up to 7600 and beyond
Storage & Expansion
SuperSpeed storage with PCIe 4.0 x4 M.2 connector
PCIe x16 slot with EZ-Latch quick-release design
PCIe 4.0 hardware design with low impedance PCB
Networking & Connectivity
Realtek GbE LAN with bandwidth management
DisplayPort, HDMI, and D-Sub video outputs
Multiple USB 3.2 Gen 1 and USB 2.0/1.1 ports, including rear USB Type-C®
Cooling & Control – Smart Fan 6
Multiple temperature sensors
Hybrid fan headers with FAN STOP
PWM/DC fan and water pump support
Advanced fan curve control with Slope/Stair dual modes
Fan curve profiles saved in BIOS
BIOS & Easy DIY
Q-Flash Plus: update BIOS without CPU, memory, or graphics card
EZ-Latch for easy graphics card removal
Innovative and intuitive hardware, software, and BIOS interface
Audio
High-end audio capacitors
Audio noise guard design for cleaner sound
Ultra Durable Design
GIGABYTE Ultra Durable components for reliable, long-term performance

Smart Fan 6 Cooling Features

Smart Fan 6 ensures the system maintains performance while staying cool and quiet:

High Current Support
Each fan header supports PWM and DC fans and water cooling pumps
Up to 24W (12V x 2A) with over-current protection
Precision Control
Multiple temperature/fan speed control points for fine-tuned fan curves
Dual Curve Mode
Slope (linear) and Stair (non-linear) fan curve modes for different scenarios
Fan Stop
Fans can stop completely below a user-defined temperature

Smart Fan 6 BIOS UI

Increased control points from 5 to 7 with a larger fan speed graph
Quick switching between Slope and Stair graph modes
Manual fan speed input for advanced control
EZ Tuning with 4 configurable temperature/fan speed points
Fan curve profiles saved in BIOS ROM and retained after BIOS updates

Q-Flash Plus – BIOS Update Made Easy

Update the BIOS without installing CPU, memory, or graphics card:

Connect 24-pin and 8-pin power supply cables to the motherboard.
Download the motherboard BIOS file, rename it to gigabyte.bin, save to a USB flash drive, and plug it into the Q-Flash USB port.
Press the Q-Flash Plus button to start the automatic BIOS update.

Technical Specifications

CPU

Feature	Details
Socket	AMD Socket AM5
Support	AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

Chipset

Feature	Details
Chipset	AMD A620

Memory

Feature	Details
Type	DDR5
Supported Speeds	7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s
Slots	4 x DDR5 DIMM sockets
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel
Module Support	Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
Profiles	AMD EXPO and XMP support

Onboard Graphics

Output	Max Resolution
DisplayPort	3840x2160 @ 144 Hz
HDMI	4096x2160 @ 60 Hz
D-Sub	1920x1200 @ 60 Hz

Audio

Feature	Details
Codec	Realtek Audio CODEC
Channels	High Definition Audio, 2/4/5.1/7.1-channel
Design	High-end audio capacitors, audio noise guard

LAN

Feature	Details
Controller	Realtek GbE LAN chip
Speed	1 Gbps / 100 Mbps / 10 Mbps
Software	LAN bandwidth management application

Expansion Slots

Slot	Source	Details
1 x PCIe x16 (PCIEX16)	CPU	Ryzen 7000: PCIe 4.0 x16 mode
		Ryzen 8000 Series – Phoenix 1: PCIe 4.0 x8 mode
		Ryzen 8000 Series – Phoenix 2: PCIe 4.0 x4 mode
1 x PCIe x1 (PCIEX1)	Chipset	PCIe 3.0 x1

Storage

Connector	Source	Support
1 x M.2 (M2A_CPU)	CPU	Socket 3, M key, type 2580/2280 SSDs
		Ryzen 7000: PCIe 4.0 x4/x2 SSDs
		Ryzen 8000 Phoenix 1: PCIe 4.0 x4/x2 SSDs
		Ryzen 8000 Phoenix 2: PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s	Chipset	SATA storage devices

RAID Support

RAID 0, RAID 1, RAID 10 for NVMe SSD storage devices
RAID 0, RAID 1, RAID 10 for SATA storage devices

USB

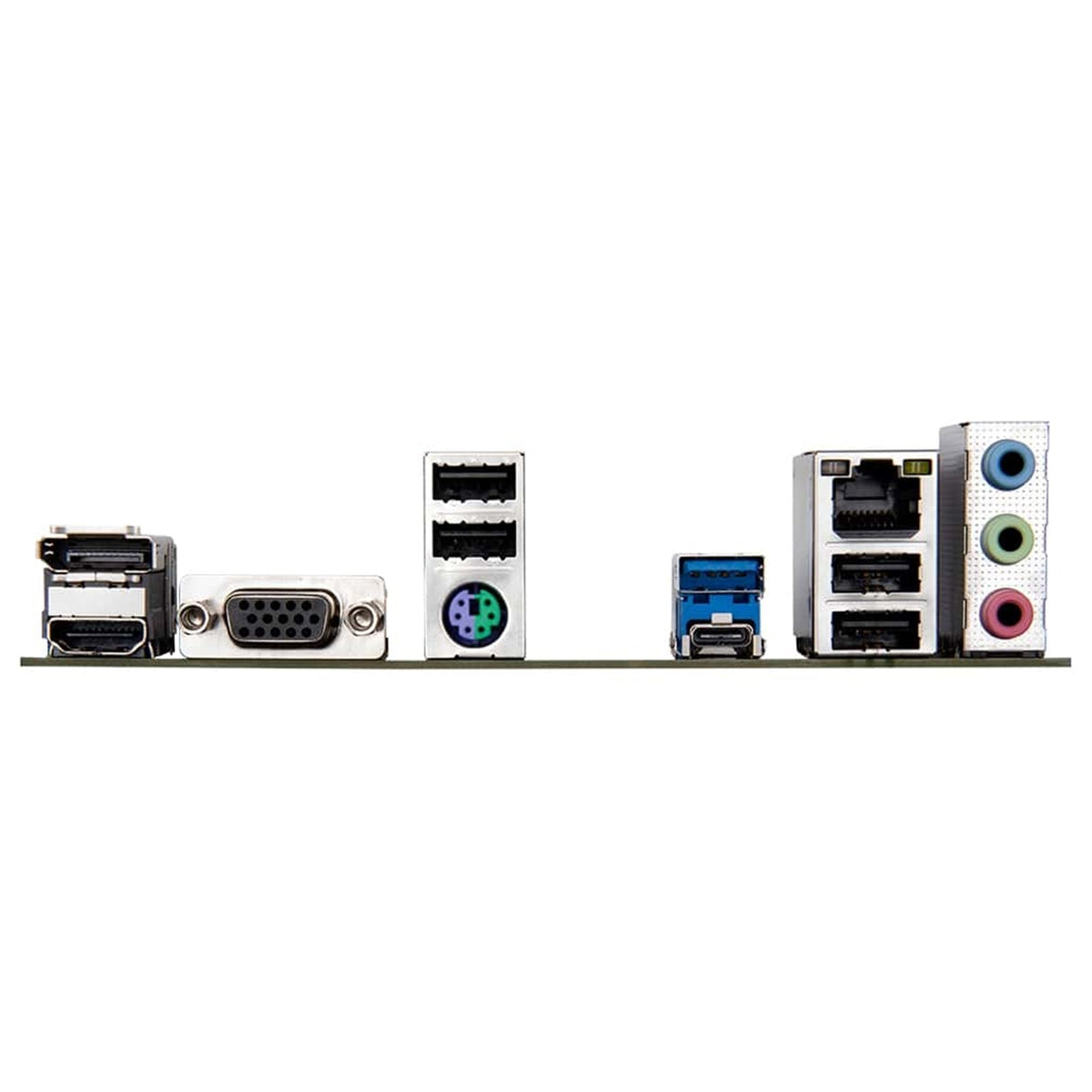

Location / Source	Ports	Specification
Rear (CPU)	1 x USB Type-C	USB 3.2 Gen 1
Rear (CPU)	1 x USB	USB 3.2 Gen 1
Rear (CPU)	1 x USB	USB 2.0/1.1
Rear (Chipset)	3 x USB	USB 2.0/1.1
Internal (Chipset)	1 x header	2 x USB 3.2 Gen 1 ports
Internal (Chipset)	1 x header	2 x USB 2.0/1.1 ports

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
