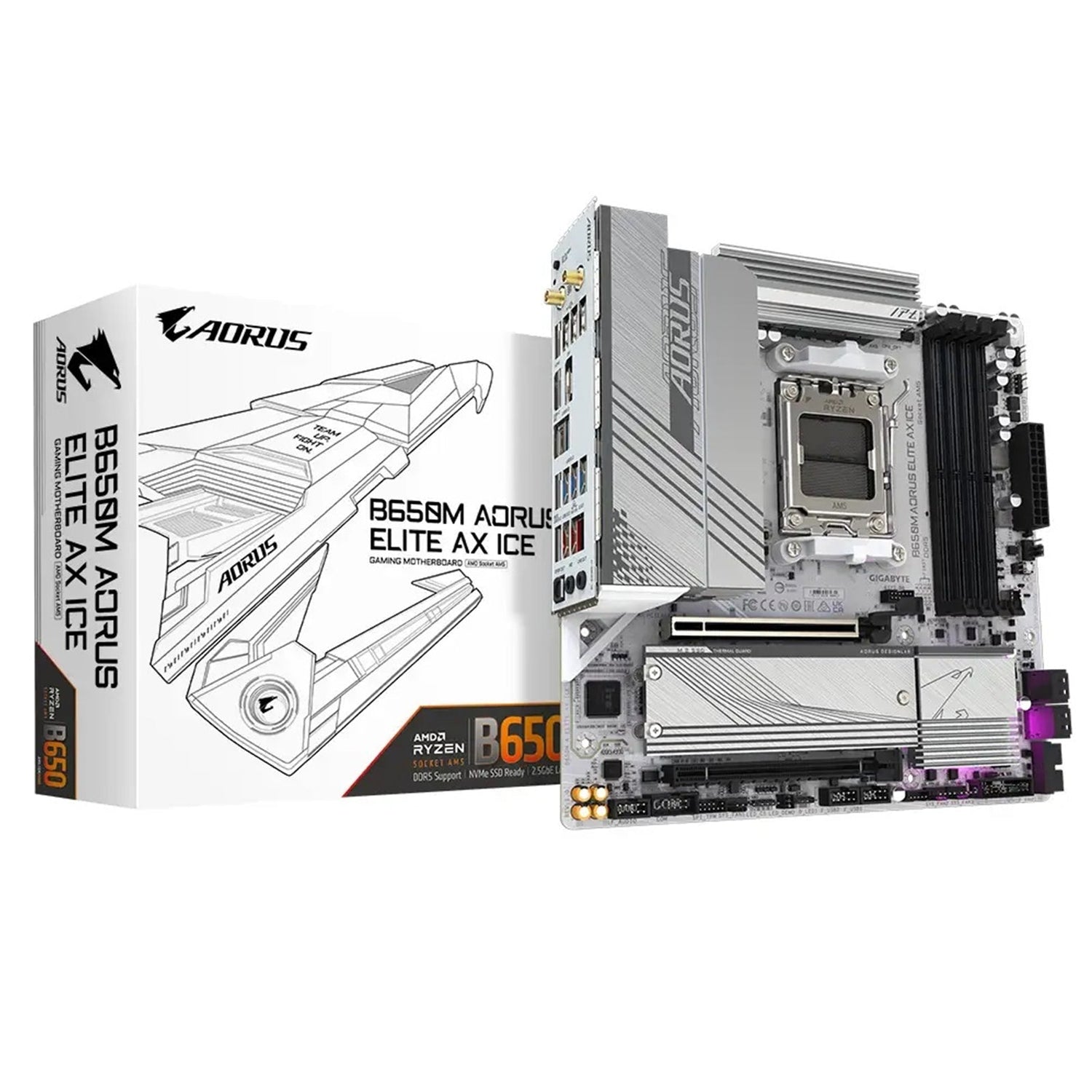

Gigabyte B650M AORUS ELITE AX ICE AMD AM5 Socket Motherboard

Name: Gigabyte B650M AORUS ELITE AX ICE AMD AM5 Socket Motherboard
Brand: GIGABYTE
Price: 167.76 GBP
Availability: InStock

£167.76

(inc VAT)

Free Delivery: Friday 11th - Monday 14th.
If You Order In The Next 3hrs 47mins

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Gigabyte B650M AORUS ELITE AX ICE AMD AM5 Socket Motherboard

£167.76

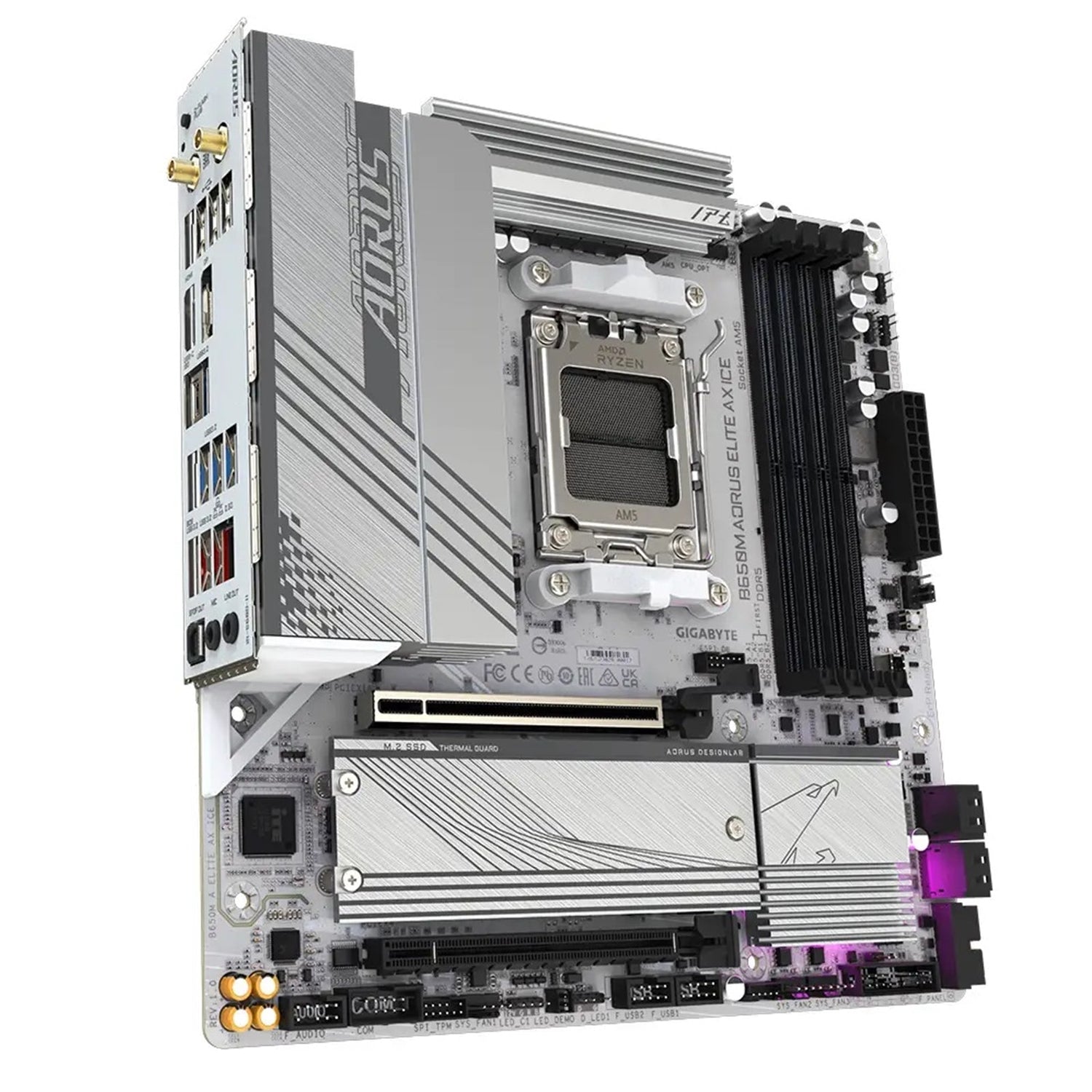

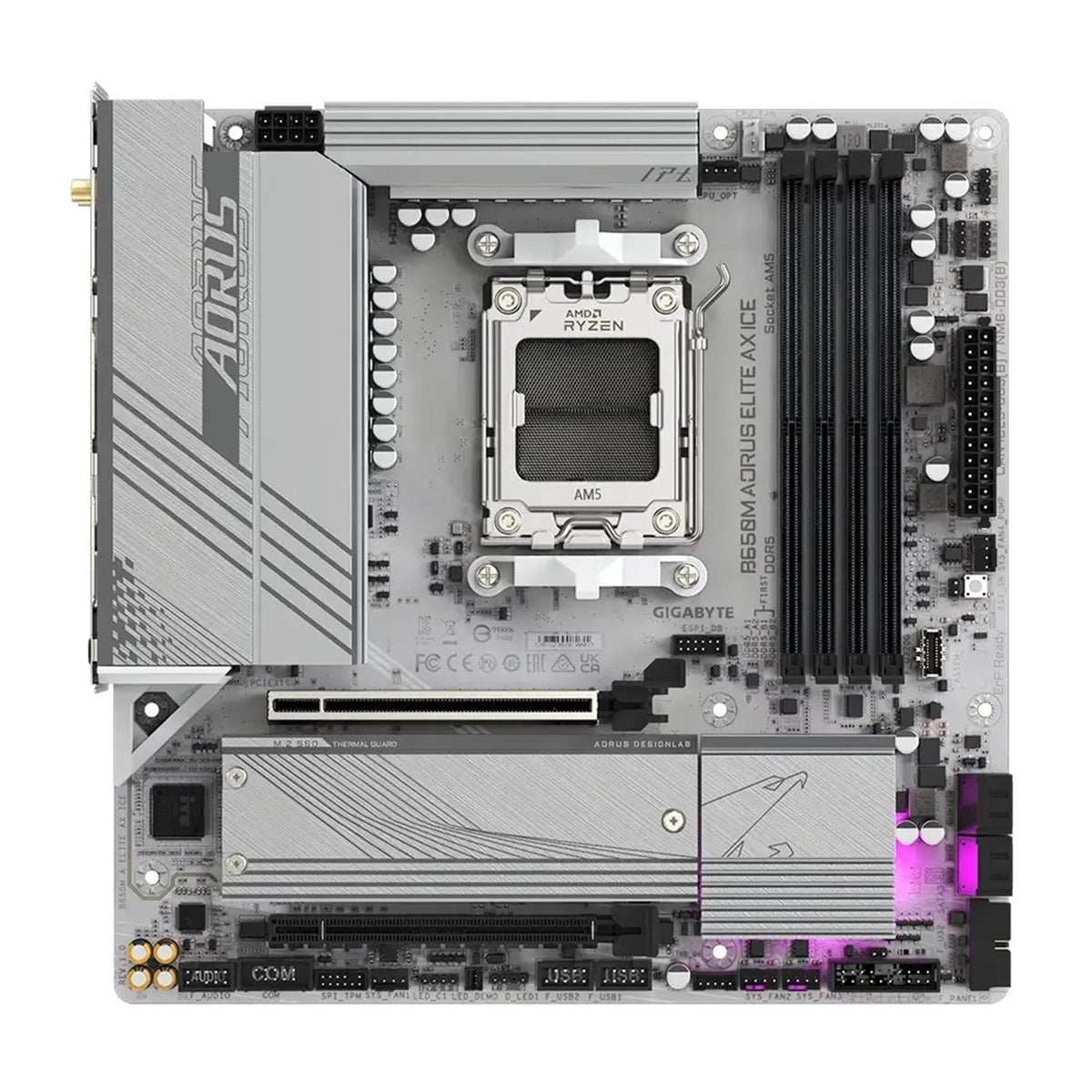

GIGABYTE AORUS B650 Micro ATX Gaming Motherboard – AMD Socket AM5

Designed for next-gen AMD Ryzen 7000 Series processors, this GIGABYTE AORUS B650 micro ATX motherboard delivers advanced power design, DDR5 performance, high-speed storage, and extensive connectivity for modern gaming and productivity builds.

Key Features

AMD AM5 Platform & Performance

AMD Socket AM5
Supports AMD Ryzen 7000 Series Processors
Robust VRM Design
Twin 12+2+2 phases digital VRM solution
All-digital power design optimized for stability under heavy workloads
Digital Twin VRM design ensures stable high-power delivery for advanced overclocking

High-Speed DDR5 Memory

Dual Channel DDR5
4 x DDR5 DIMM slots
Supports up to 192 GB (48 GB per DIMM)
Supported speeds: DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s
Supports non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules
AMD EXPO and Intel XMP memory module support
Memory Engineering
Feature-rich BIOS functions enable access to high DDR5 performance
Shielded memory routing within PCB inner layers to reduce interference
Daisy-chained routing optimizes signal quality, enabling higher memory frequencies

Superfast Storage & Expansion

M.2 Storage
1 x PCIe 5.0 x4 M.2 connector (type 25110/2280)
1 x PCIe 4.0 x4 M.2 connector (type 22110/2280)
RAID 0/1/10 support for NVMe SSDs
SATA Storage
4 x SATA 6Gb/s connectors
RAID 0/1/10 support for SATA storage devices
Expansion Slots
1 x PCIe 4.0 x16 slot (CPU, runs at x16)
1 x PCIe 4.0 x16 slot (Chipset, runs at x4)

Advanced Thermal Design

VRM & M.2 Cooling
Advanced thermal design for stable VRM power delivery
M.2 Thermal Guard to help maintain 25110 M.2 SSD performance
Smart Fan 6
Multiple temperature sensors
Hybrid fan headers with FAN STOP

EZ-Latch & Easy Assembly

Tool-Less Convenience
PCIe x16 slot with quick-release EZ-Latch
Screwless EZ-Latch design for M.2 connectors

High-Speed Networking & Wireless

2.5GbE LAN
Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Wi-Fi 6E & Bluetooth 5.3
Realtek Wi-Fi 6E RTL8852CE module
Supports 2.4/5/6 GHz frequency bands
Ultra-high gain antenna
Bluetooth 5.3

Extended Connectivity

Display Outputs
Integrated Graphics Processor with AMD Radeon Graphics support
1 x DisplayPort, max 3840x2160 @ 144 Hz
1 x HDMI, max 4096x2160 @ 60 Hz
USB Ports
Front USB-C 20Gb/s (USB 3.2 Gen 2x2 via internal header)
Rear USB-C 10Gb/s (USB 3.2 Gen 2 on back panel)
Multiple USB 3.2 Gen 2/Gen 1 and USB 2.0 ports on front and rear

High-Quality Audio

Realtek HD Audio
High Definition Audio
Supports 2/4/5.1/7.1-channel playback
Premium Components
Audiophile-grade capacitors for stable current delivery and studio-quality sound
High-quality sound experience with 7.1-channel playback, advanced microphone array, and versatile connectivity

BIOS & Ease of Use

Q-Flash Plus
Update BIOS without installing CPU, memory, or graphics card
Enhanced BIOS Experience
Licensed AMI UEFI BIOS with feature-rich options
AORUS BIOS optimization focused on next-gen performance and user-friendly tuning

Specifications

CPU & Chipset

Component	Details
CPU Socket	AMD Socket AM5
CPU Support	AMD Ryzen 7000 Series Processors
Chipset	AMD B650

Memory

Feature	Details
DIMM Slots	4 x DDR5 DIMM sockets
Maximum Capacity	Up to 192 GB (48 GB per DIMM)
Architecture	Dual channel
Supported Speeds	DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s
Module Support	Non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16
Profile Support	AMD EXPO, XMP

Onboard Graphics

Output	Max Resolution
DisplayPort	3840x2160 @ 144 Hz
HDMI	4096x2160 @ 60 Hz

Audio

Feature	Details
Codec	Realtek Audio CODEC
Audio Standard	High Definition Audio
Channels	2/4/5.1/7.1-channel support
Components	Audiophile grade capacitors

Networking

Feature	Details
LAN	Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Wireless	Realtek Wi-Fi 6E RTL8852CE
Wi-Fi Standards	Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz)
Bluetooth	Bluetooth 5.3

Expansion Slots

Source	Slot	Standard	Lanes
CPU	1 x PCI Express x16 (PCIEX16)	PCIe 4.0	x16
Chipset	1 x PCI Express x16 (PCIEX4)	PCIe 4.0	x4

Storage

Source	Connector	Type	Interface
CPU	1 x M.2 (M2A_CPU)	Socket 3, M key, type 25110/2280	PCIe 5.0 x4/x2
CPU	1 x M.2 (M2B_CPU)	Socket 3, M key, type 22110/2280	PCIe 4.0 x4/x2
Chipset	4 x SATA	SATA 6Gb/s	-

RAID Support

NVMe SSDs: RAID 0, 1, 10
SATA devices: RAID 0, 1, 10

USB Connectivity

Source	Ports	Details
CPU	1 x USB-C (rear)	USB 3.2 Gen 2
CPU	2 x USB 3.2 Gen 2 Type-A (rear, red)	-
CPU + USB 2.0 Hub	4 x USB 2.0/1.1 (rear)	-
Chipset	1 x USB-C (front)	USB 3.2 Gen 2x2 (via internal header)
Chipset	3 x USB 3.2 Gen 1	1 rear, 2 via internal header
Chipset	4 x USB 2.0/1.1	Via internal headers
Chipset + USB 3.2 Gen 1 Hub	4 x USB 3.2 Gen 1 (rear)	-

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header (USB 3.2 Gen 2x2)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (for specified GC-TPM2.0 SPI modules)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

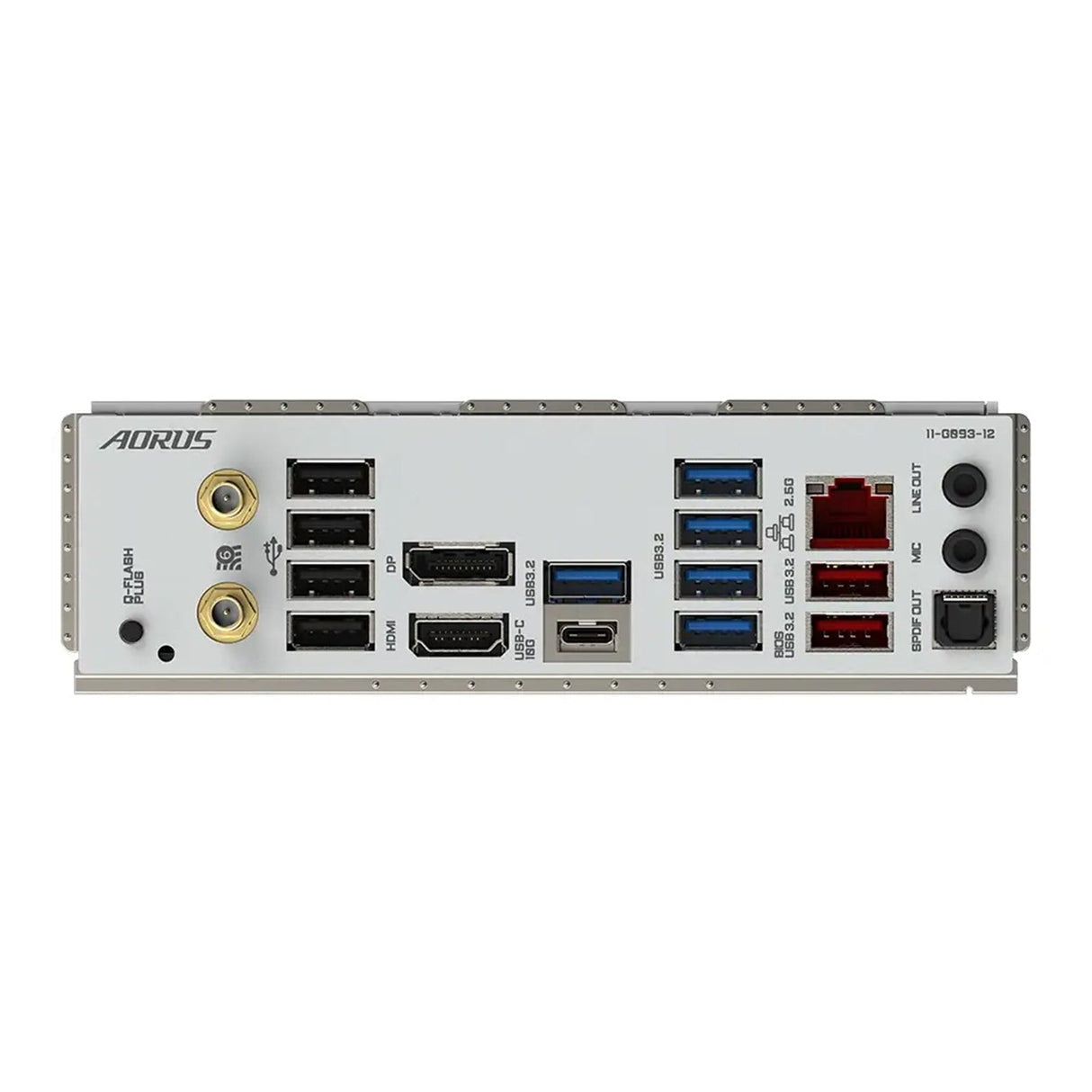

Back Panel Connectors

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C (USB 3.2 Gen 2)
2 x USB 3.2 Gen 2 Type-A (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 LAN port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller & Monitoring

Feature	Details
I/O Controller	iTE I/O Controller chip
Monitoring	Voltage, temperature, fan speed, water cooling flow rate detection
Alerts	Fan fail warning
Control	Fan speed control

BIOS

Feature	Details
Flash	1 x 256 Mbit flash
BIOS Type	AMI UEFI BIOS (licensed)
Standards	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features & Software

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash and Q-Flash Plus
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System Support

Windows 11 64-bit
Windows 10 64-bit

Form Factor

Micro ATX form factor
Dimensions: 24.4 cm x 24.4 cm

AORUS series motherboards combine advanced power delivery, DDR5 optimization, comprehensive cooling, and high-speed connectivity, reflecting a commitment to BIOS optimization and performance tuning made more accessible through community-driven design.
