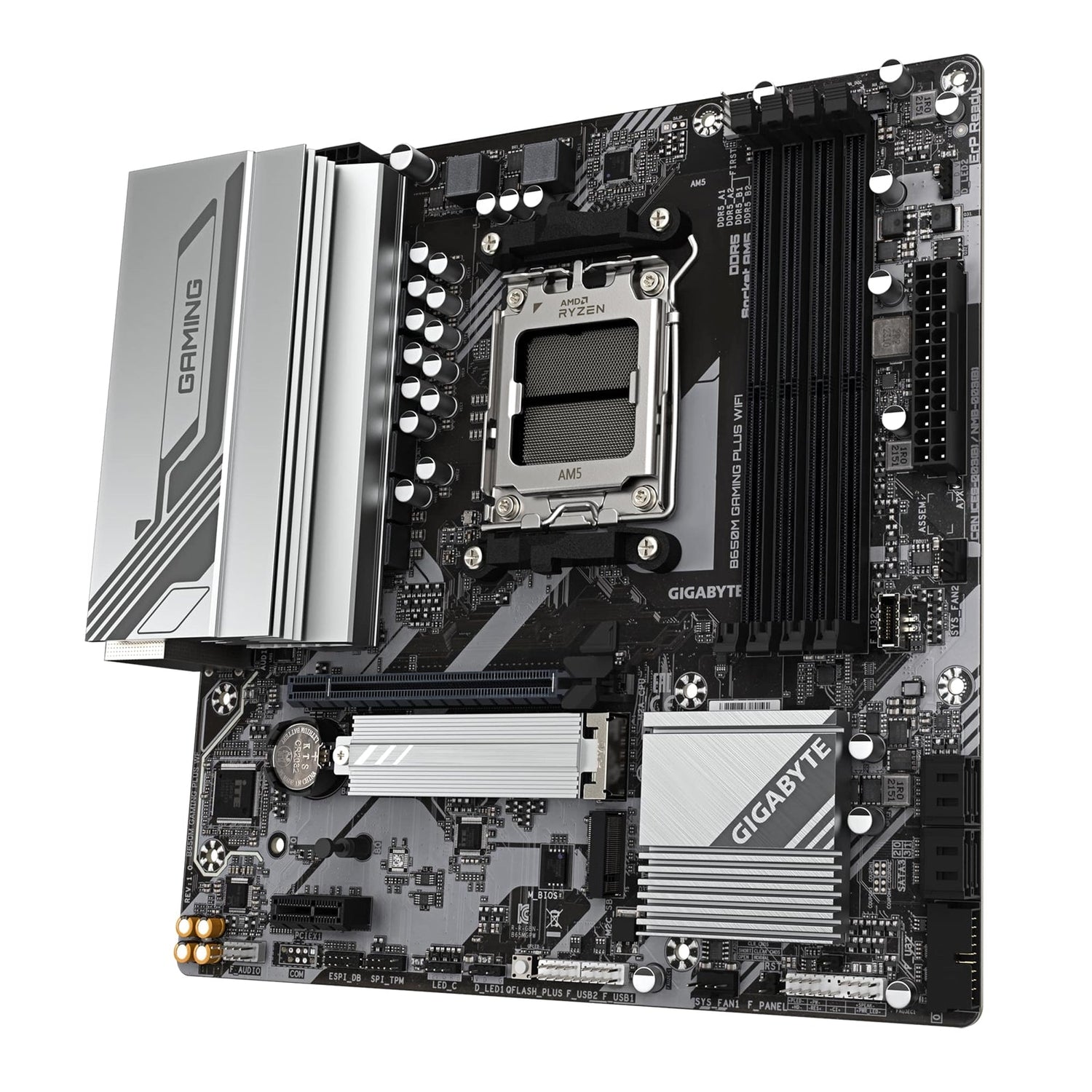

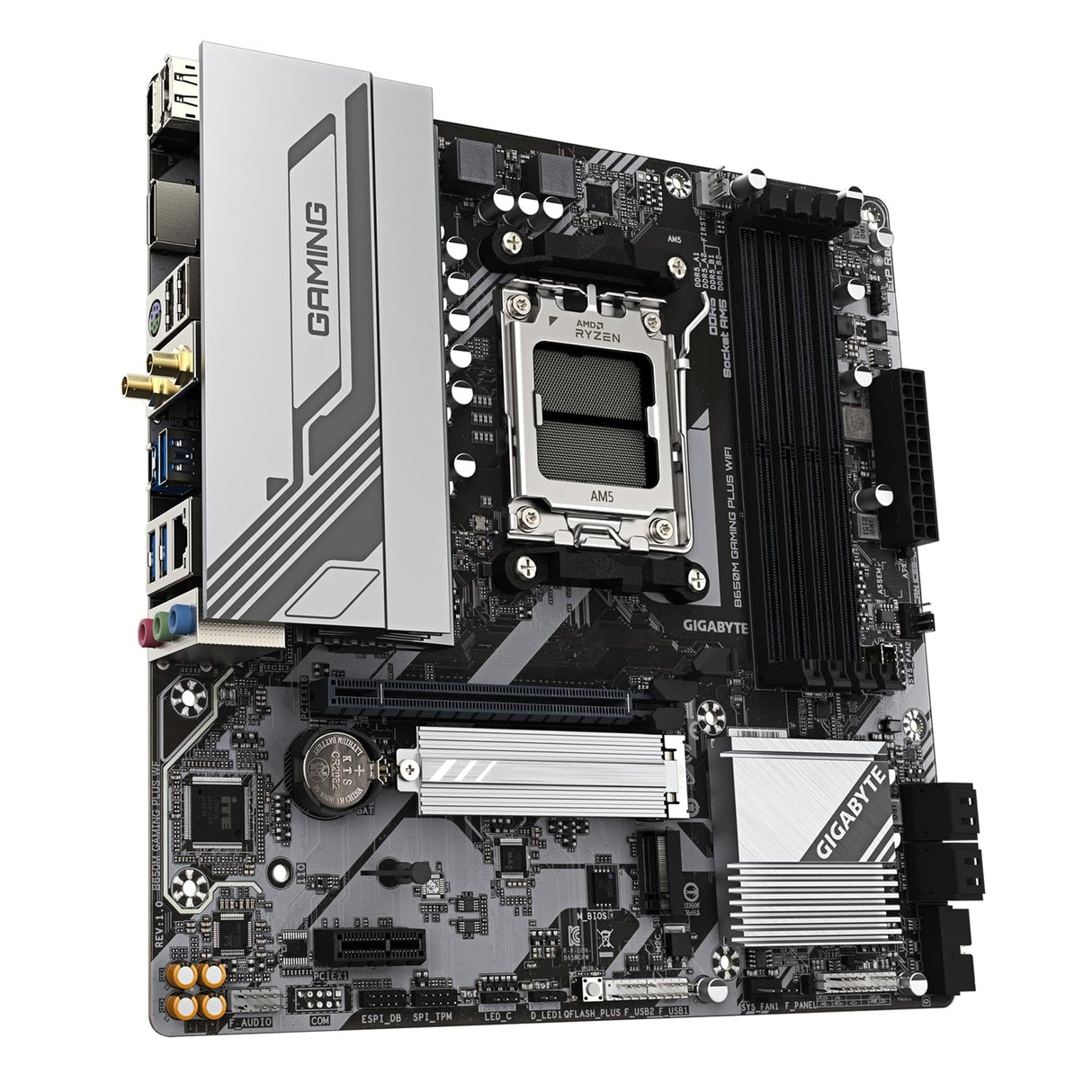

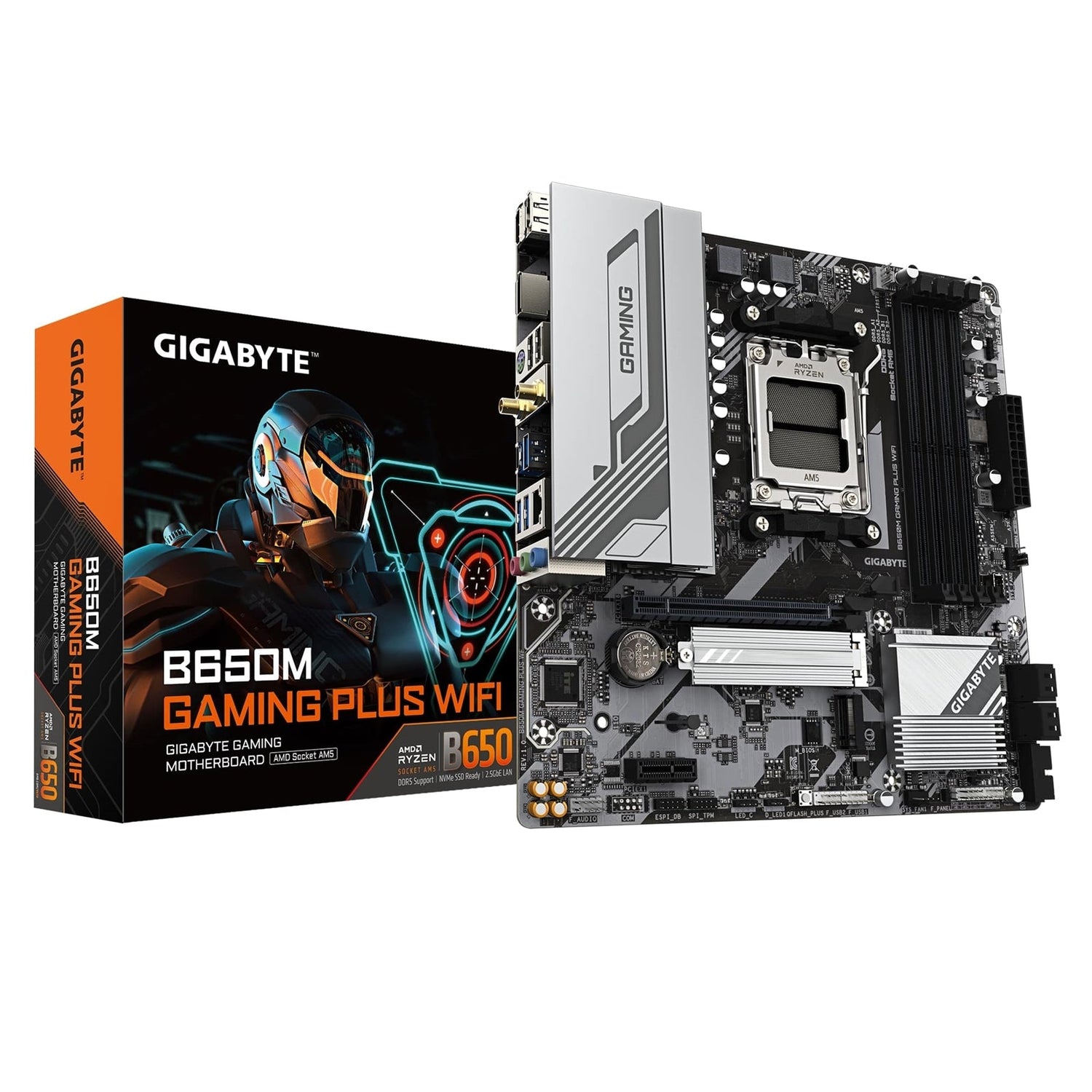

Gigabyte B650M GAMING PLUS WIFI (Rev.1.2) AMD AM5 Socket Motherboard

Name: Gigabyte B650M GAMING PLUS WIFI (Rev.1.2) AMD AM5 Socket Motherboard
Brand: GIGABYTE
Price: 134.82 GBP
Availability: InStock

£134.82

(inc VAT)

Free Delivery: Friday 11th - Monday 14th.
If You Order In The Next 1hrs 35mins

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

Gigabyte B650M GAMING PLUS WIFI (Rev.1.2) AMD AM5 Socket Motherboard

£134.82

B650M GAMING PLUS WIFI Motherboard

The B650M GAMING PLUS WIFI is a micro ATX motherboard designed for AMD Socket AM5, delivering advanced performance, fast connectivity, and efficient cooling control in a compact form factor.

Key Features

AMD Socket AM5 Support

Compatible with:
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors

Unparalleled Performance

5+2+2 phases digital VRM solution

High-Speed DDR5 Memory

Dual channel DDR5
4 x SMD DIMM slots
Supports AMD EXPO™ and Intel® XMP memory modules

SuperSpeed Storage

PCIe 4.0 x4 M.2 connector

EZ-Latch

PCIe x16 slot with quick release design

Fast Networking

Wi-Fi 802.11ax
2.5GbE LAN

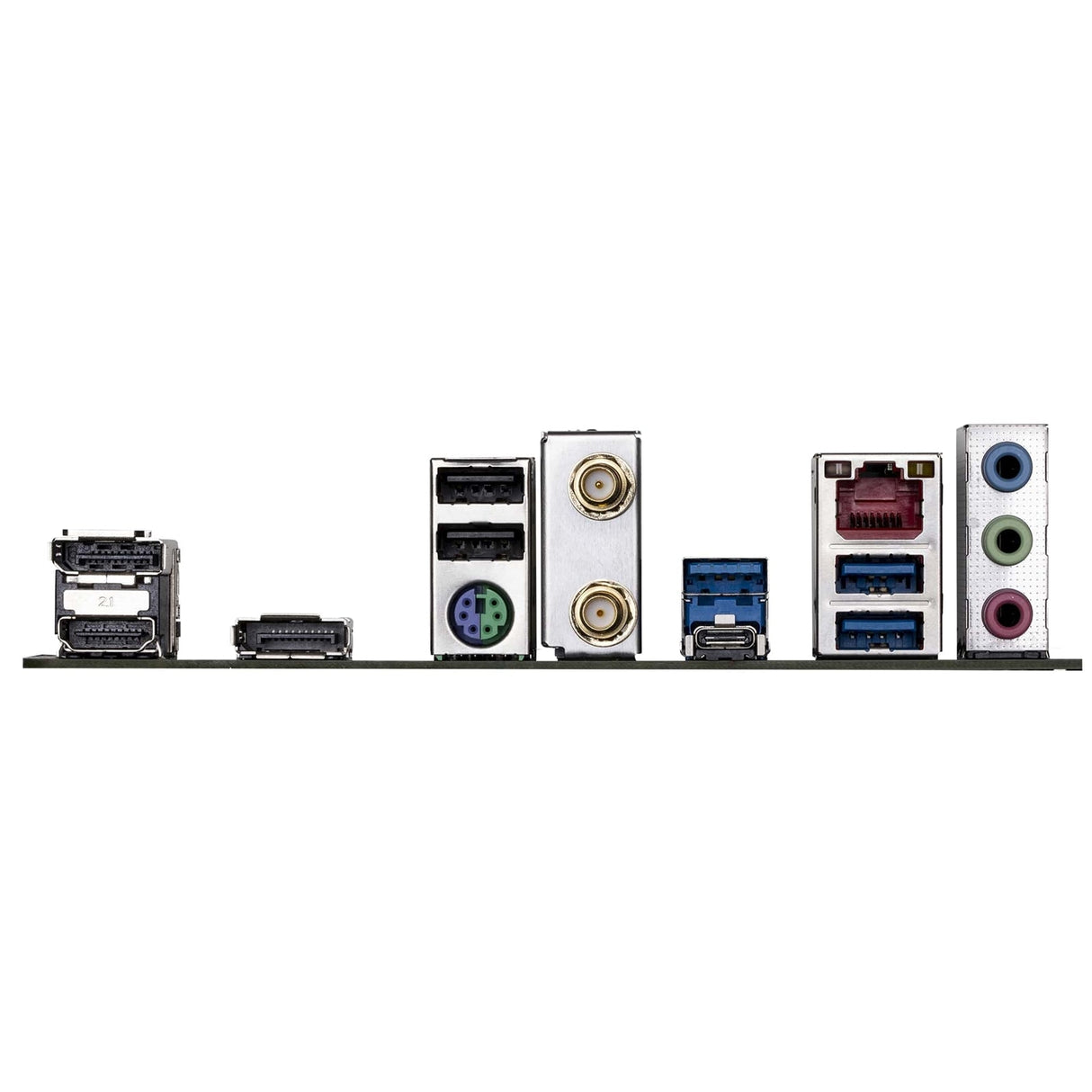

Extended Connectivity

2 x DisplayPort
1 x HDMI

Smart Fan 6

Multiple temperature sensors
Hybrid fan headers with FAN STOP

Q-Flash Plus

Update BIOS without installing CPU, memory, or graphics card

Specifications

CPU

Specification	Details
Socket	AMD Socket AM5
Supported CPUs	AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Note	For the latest CPU support list, refer to GIGABYTE’s website.

Chipset

Specification	Details
Chipset	AMD B650

Memory

Specification	Details
Supported Memory	DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s
DIMM Slots	4 x DDR5 DIMM sockets
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel memory architecture
Module Support	Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
Profile Support	AMD EXPO™ and XMP memory modules
Note	CPU and memory configuration may affect supported types, speeds, and module count. Refer to GIGABYTE’s Memory Support List for details.

BIOS

Specification	Details
Flash ROM	1 x 256 Mbit flash
BIOS Type	Licensed AMI UEFI BIOS
Compliance	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Graphics

Specification	Details
Integrated Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support
DisplayPort	2 x DisplayPort, max 3840x2160@144 Hz, DisplayPort 1.4
HDMI	1 x HDMI, max 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible
Multi-Display	Supports up to triple-display simultaneously
Note	Graphics specifications may vary depending on CPU support.

Audio

Specification	Details
Codec	Realtek® Audio CODEC
Audio	High Definition Audio
Channels	2 / 4 / 5.1 / 7.1-channel*

* Audio jack functionality can be changed using the audio software. Configure 7.1-channel audio in the audio software.

LAN

Specification	Details
Controller	Realtek® 2.5GbE LAN chip
Speeds	2.5 Gbps / 1 Gbps / 100 Mbps

Wireless LAN

PCB Revision	Specification
PCB rev. 1.0	Realtek® Wi-Fi 6E RTL8852CE: Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz bands, Bluetooth 5.3, 11ax 160MHz wireless
PCB rev. 1.1/1.2	Realtek® Wi-Fi 6 RTL8851BE: Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz bands, Bluetooth 5.3, 11ax 80MHz wireless

Expansion Slots

Slot	Source	Details
1 x PCIEX16	CPU	AMD Ryzen™ 7000 / 9000: PCIe 4.0 x16 mode; AMD Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8; AMD Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4*
1 x PCIEX1	Chipset	PCIe 3.0 x1

* The PCIEX16 slot can support only a graphics card or an NVMe SSD.

Storage

Connector	Source	Supported Devices
1 x M2A_CPU	CPU	Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSDs (Ryzen™ 7000 / 8000 / 9000 Series as specified)
1 x M2C_SB	Chipset	Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA	Chipset	4 x SATA 6Gb/s connectors

RAID

Storage Type	RAID Support
NVMe SSD	RAID 0, 1, 10
SATA	RAID 0, 1, 10

USB

From CPU:

1 x USB Type-C® port on back panel (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 port on back panel
1 x USB 2.0/1.1 port on back panel

From Chipset:

2 x USB 3.2 Gen 1 ports on back panel
1 x USB Type-C® port with USB 3.2 Gen 1 support (internal header)
2 x USB 3.2 Gen 1 ports (internal header)
5 x USB 2.0/1.1 ports
1 on back panel
4 via internal USB headers

Internal Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
