Gigabyte B760M D3HP Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

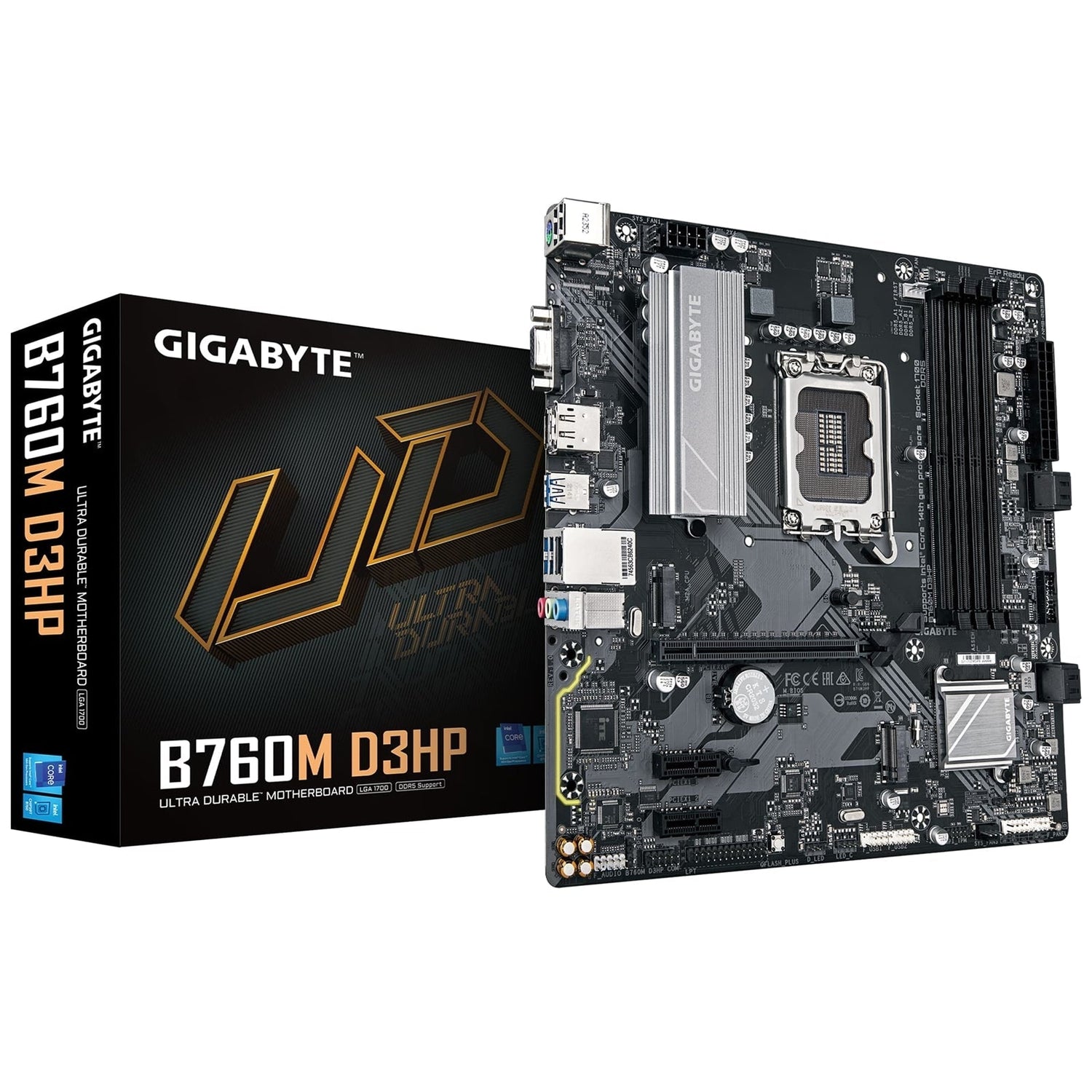

GIGABYTE B760M D3HP Motherboard

Key Features

• Supports Latest Intel CPUs

• Compatible with Intel Core 14th, 13th, and 12th Gen processors

• Unparalleled Performance

• Hybrid 4+1+1 phases digital VRM design

• Built with high-quality components for stable power delivery

• DDR5 Memory Support

• Dual channel DDR5
• 4 x DIMM slots with XMP memory module support

• DDR5 overclocking up to 7600 and beyond (platform tested and proven)

• Next Generation Storage

• 2 x PCIe 4.0 x4 M.2 connectors

• Fast Networking

• GbE LAN with bandwidth management software to improve latency and ping in crowded LAN environments

• Extended Connectivity

• Front USB Type-C (USB 3.2 Gen 1, 5 Gb/s)

• DisplayPort, HDMI, and D-Sub for flexible video output

• Enhanced Cooling – Smart Fan 6

• Multiple temperature sensors
• Hybrid fan headers with FAN STOP
• Supports PWM/DC fans and water cooling pumps
• High current support up to 24W (12V x 2A) with over-current protection
• Precision fan curve control with multiple control points
• Dual fan curve modes: Slope and Stair

• Customizable fan stop below user-defined temperatures

• Q-Flash Plus – CPU-Free BIOS Update

• Update BIOS without installing CPU, memory, or graphics card

• Durable Performance

• GIGABYTE Ultra Durable design, inside and out, for long-lasting, stable performance

• PCIe 4.0 Ready

• PCIe 4.0 x16 graphics slot and PCIe 4.0 M.2 slots for next-gen devices

• Hi-Fi Audio

• High-end audio capacitors for high-resolution, high-fidelity sound

• Audio noise guard to isolate sensitive analog audio circuitry

• Easy & User-Friendly Design

• Intuitive hardware, software, and BIOS for easy setup and personalization

• EZ-Latch for quick PCIe slot release when removing graphics cards

• Smart Fan 6 BIOS UI

• Enhanced fan curve UI with more control points and larger graph
• Slope/Stair dual graph modes
• Manual fan input for advanced tuning
• EZ Tuning to auto-generate fan curves from 4 simple points

• Fan curve profile saving in BIOS ROM (retained after BIOS updates)

• UC BIOS

• Redesigned UI/UX with intuitive and visually refined interface
• Quick Access with 9 customizable Easy Mode slots
• PerfDrive options to optimize performance based on cooling configuration

Q-Flash Plus – Easy BIOS Update Steps

1. Plug the 24-pin and 8-pin power supply cables into the motherboard.
2. Download the motherboard BIOS file, rename it to gigabyte.bin, save it to a FAT32-formatted USB flash drive, and insert it into the Q-Flash Plus USB port.
3. Press the Q-Flash Plus button to start automatic BIOS updating.

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)
• 1 x serial port header
• 1 x parallel port header
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x DisplayPort
• 1 x HDMI port
• 3 x USB 3.2 Gen 1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor
