Gigabyte B760M GAMING PLUS WIFI DDR4 Intel 1700 Socket Motherboard

£124.81

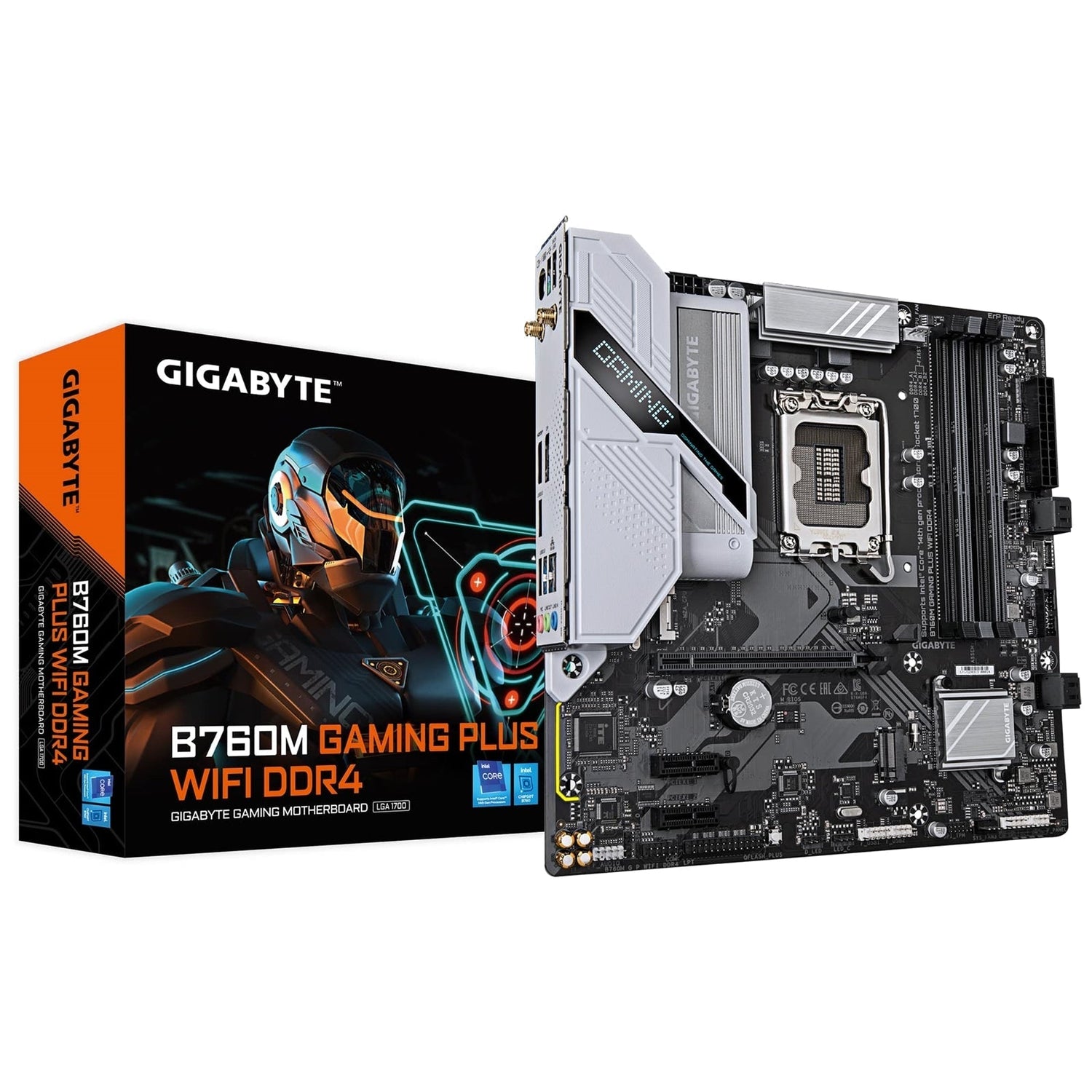

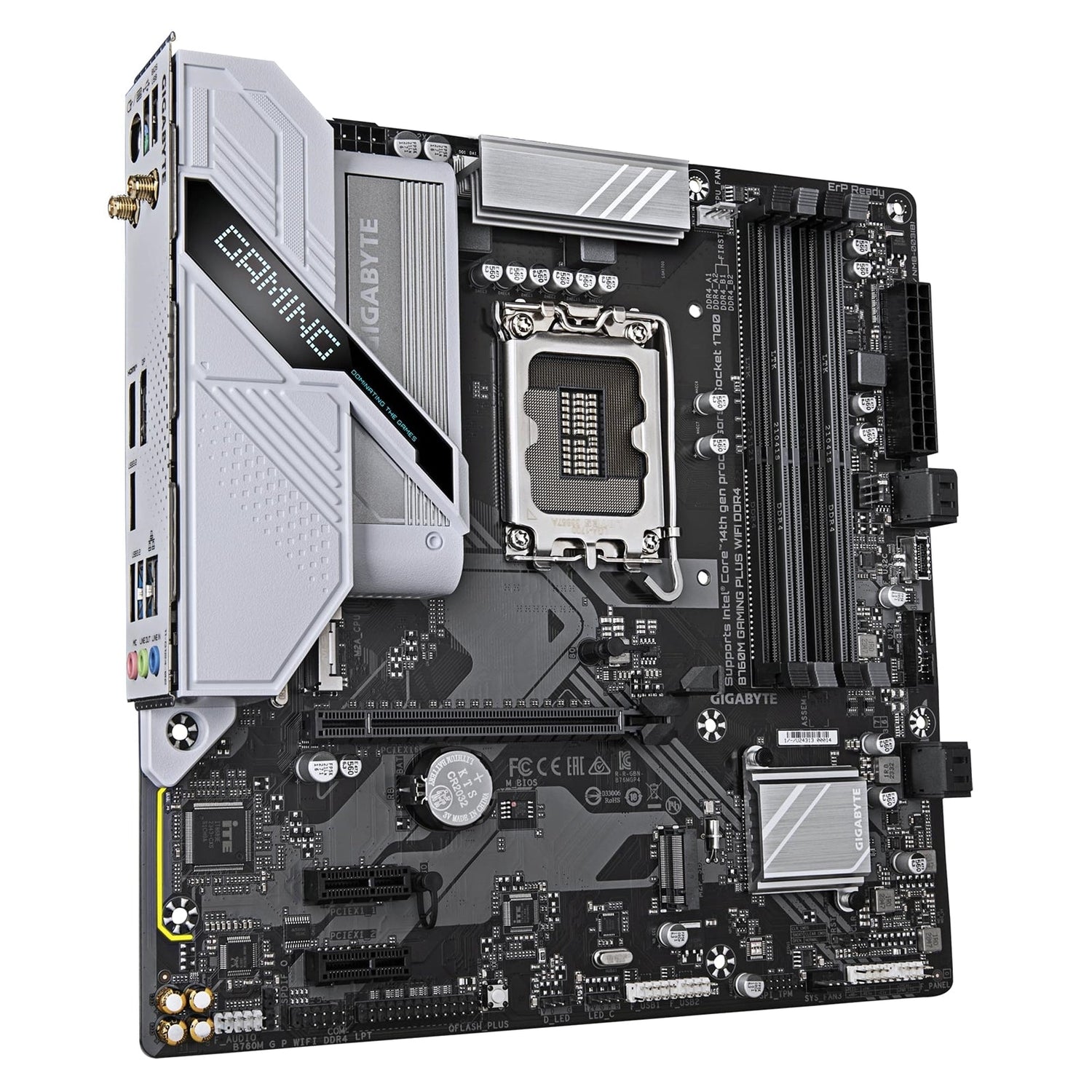

GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard

The GIGABYTE B760M GAMING PLUS WIFI DDR4 is a Micro ATX gaming motherboard designed for Intel 14th, 13th, and 12th Gen processors, delivering balanced performance, connectivity, and cooling control in a compact form factor.

Key Features

CPU Support
Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® processors (LGA1700)
Digital Hybrid 4+1+1 Phases VRM design
Memory Performance
Dual Channel DDR4 with 4 x DIMM slots (up to 128 GB)
Supports DDR4 XMP up to 5333 MHz (O.C.) and beyond
XMP-ready platform for easy memory overclocking
Next-Generation Storage
2 x PCIe 4.0 x4 M.2 connectors
4 x SATA 6Gb/s connectors
Supports RAID 0/1/5/10 for SATA storage devices
High-Speed Networking
Wi-Fi 6 (802.11ax) with 2.4/5 GHz support
Realtek GbE LAN (up to 1 Gbps)
Bluetooth 5.3
Extended Connectivity
Front USB Type-C (USB 3.2 Gen 1, 5Gb/s) via internal header
DisplayPort and HDMI for integrated graphics
Multiple USB 3.2 Gen 1 and USB 2.0 ports
Smart Fan 6 Cooling
Multiple temperature sensors
Hybrid fan headers with FAN STOP
Advanced fan curve control and BIOS fan tuning UI
Q-Flash Plus
Update BIOS without installing CPU, memory, or graphics card
Audio
High-end audio capacitors
Audio Noise Guard for cleaner sound
Durable Design
GIGABYTE Ultra Durable design
Enlarged MOSFET heatsink for improved thermal performance

Performance & Power Design

Digital VRM Design

The digital Hybrid 4+1+1 Phases VRM design uses high-quality components to deliver stable power for Intel 14th / 13th / 12th Gen processors.

DDR4 XMP Support

GIGABYTE provides a tested platform for DDR4 XMP profiles up to 5333 MHz and beyond.
To benefit from XMP: - Use XMP-capable DDR4 memory modules
- Enable XMP in the motherboard BIOS

Advanced Thermal Solution

Enlarged MOSFET heatsink surface for improved heat dissipation
Smart Fan 6 for optimized cooling and quiet operation

Smart Fan 6 Highlights

High Current Support: Each fan header supports PWM and DC fans and water cooling pumps up to 24W (12V x 2A) with over-current protection.
Precision Control: Multiple temperature and fan speed control points for accurate fan curves.
Dual Curve Mode: Slope and Stair modes for different usage scenarios.
Fan Stop: Fans can stop completely below user-defined temperatures.

Smart Fan 6 BIOS UI

Enhanced fan curve UI with more control points (from 5 to 7) and a larger speed graph
Slope/Stair dual graph mode
Manual input for advanced fan tuning
EZ Tuning with 4-point quick setup
Fan curve profiles stored in BIOS ROM (retained after BIOS updates)

Connectivity & Networking

Future-Ready Connectivity

High-speed PCIe 4.0 support for graphics and M.2 storage
Designed for fast data transfer and next-generation devices

Wi-Fi 6 (802.11ax)

Wireless performance up to 2.4 Gbps
Smoother video streaming and gaming
Fewer dropped connections
Bluetooth 5 with 4x range over BT 4.2 and faster transmission

GbE LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Bandwidth management software to help reduce latency and maintain low ping in busy LAN environments

PCIe & Expansion

PCIe 4.0 x16 slot from CPU for graphics
PCIe 4.0 M.2 slot support for high-speed SSDs
Additional PCIe 3.0 x1 slots from chipset

EZ-Latch

Easy PCIe slot latch release for quick graphics card removal

Hi-Fi Audio

Realtek Audio Codec with High Definition Audio
2/4/5.1/7.1-channel support
High-end audio capacitors for high resolution, high-fidelity sound
Audio Noise Guard design separating sensitive audio circuits from PCB noise

Easy-to-Use Features

Q-Flash Plus – BIOS Update Without CPU, RAM, or GPU

Connect 24-pin and 8-pin power cables to the motherboard.
Download the BIOS file, rename it to gigabyte.bin, save to a FAT32 USB flash drive, and insert into the Q-FLASH PLUS USB port.
Press the Q-FLASH PLUS button to start automatic BIOS update.

UC BIOS

Redesigned UI and UX for intuitive operation
Easy Mode with 9 customizable quick access slots

PerfDrive

Exclusive BIOS settings designed to optimize performance based on cooling configuration

Specifications

CPU

Feature	Description
Socket	LGA1700
Support	14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
L3 Cache	Varies with CPU

Chipset

Feature	Description
Chipset	Intel B760 Express Chipset

Memory

Feature	Description
Type	DDR4
Supported Speeds	5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s
Slots	4 x DDR4 DIMM sockets
Max Capacity	Up to 128 GB (32 GB per DIMM)
Architecture	Dual Channel
ECC Support	ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
Non-ECC Support	Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP	Support for Extreme Memory Profile (XMP)

Onboard Graphics

Feature	Description
Integrated GPU	Intel HD Graphics (CPU dependent)
HDMI	1 x HDMI, max 4096x2160 @ 60 Hz
DisplayPort	1 x DisplayPort, max 4096x2304 @ 60 Hz
Multi-Display	Supports up to triple-display simultaneously

Audio

Feature	Description
Codec	Realtek Audio Codec
Audio	High Definition Audio
Channels	2/4/5.1/7.1-channel
Digital Out	Support for S/PDIF Out
Components	High-end audio capacitors, Audio Noise Guard

LAN & Wireless

Feature	Description
LAN	Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
Wi-Fi	Realtek Wi-Fi 6 RTL8851BE, Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz
Bluetooth	Bluetooth 5.3
Wireless Standard	Support for 11ax 160 MHz

Expansion Slots

Source	Slots
CPU	1 x PCI Express x16 slot, PCIe 4.0, running at x16
Chipset	2 x PCI Express x1 slots, PCIe 3.0, running at x1

Storage

Source	Connectors
CPU	1 x M.2 Socket 3 (M key, type 2280, PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset	1 x M.2 Socket 3 (M key, type 2280, PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Chipset	4 x SATA 6Gb/s connectors
RAID	RAID 0, 1, 5, 10 support for SATA devices

USB

Source	Ports
Chipset	1 x USB Type-C with USB 3.2 Gen 1 support (internal header)
Chipset	5 x USB 3.2 Gen 1 ports (3 rear, 2 via internal header)
Chipset	2 x USB 2.0/1.1 ports (rear)
Chipset + USB 2.0 Hub	4 x USB 2.0/1.1 ports (internal headers)

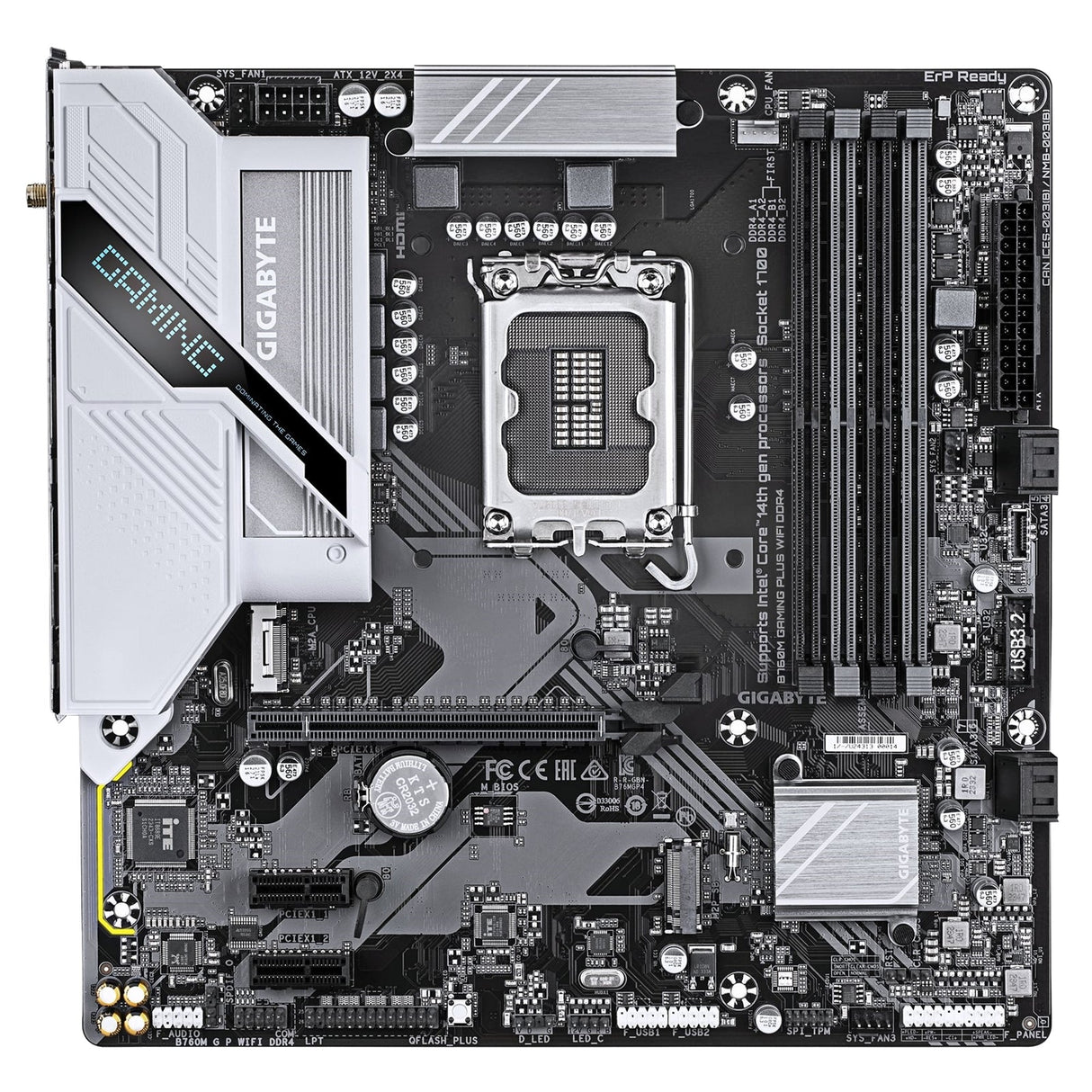

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

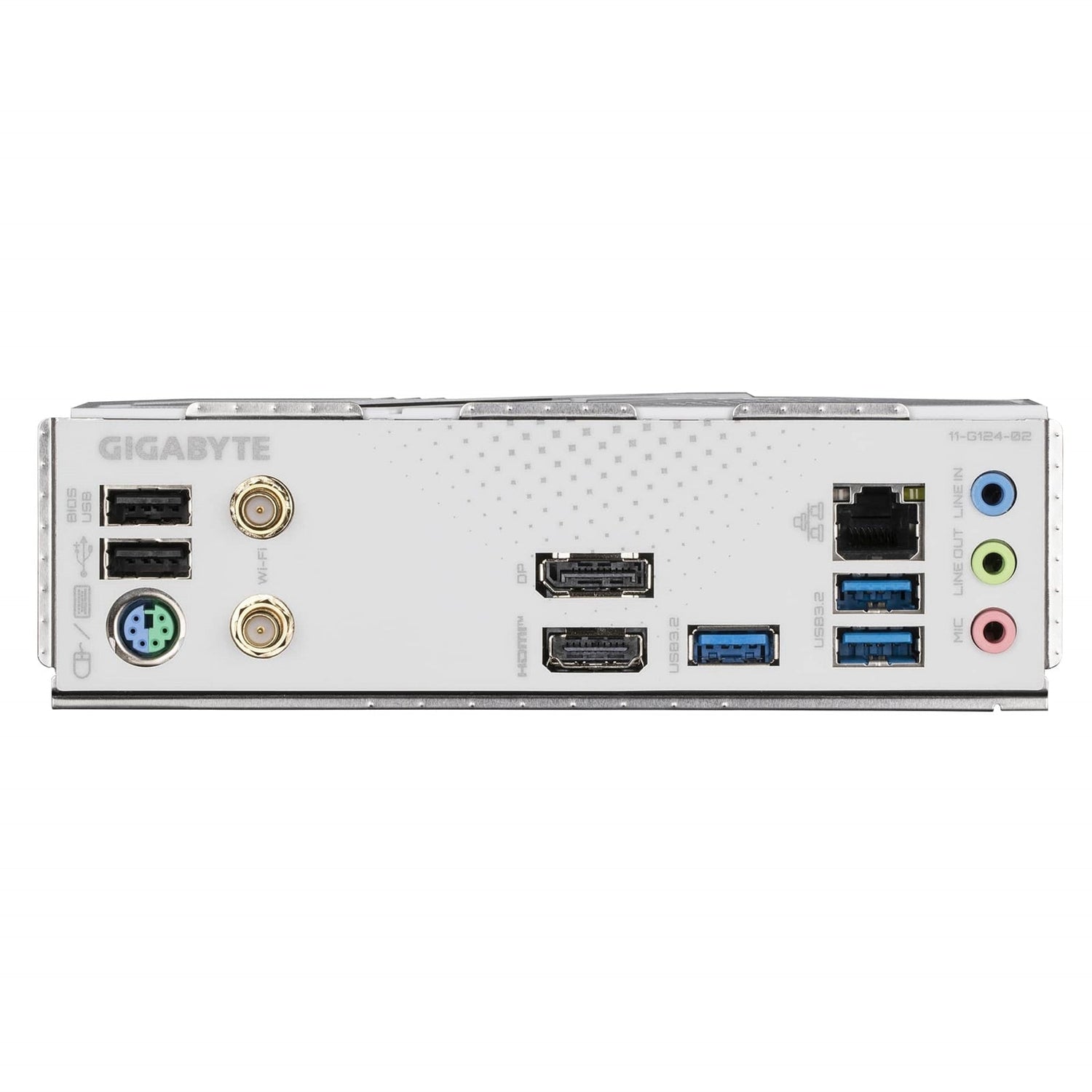

Back Panel Connectors

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 LAN port
3 x audio jacks

I/O Controller & Monitoring

Feature	Description
Controller	iTE I/O Controller Chip
Monitoring	Voltage, temperature, fan speed, water cooling flow rate detection
Alerts	Fan fail warning
Control	Fan speed control

BIOS

Feature	Description
ROM	1 x 128 Mbit flash
Type	AMI UEFI BIOS (licensed)
Standards	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System Support

Windows 11 64-bit
Windows 10 64-bit

Form Factor

Feature	Description
Form Factor	Micro ATX
Dimensions	24.4 cm x 24.4 cm

The GIGABYTE B760M GAMING PLUS WIFI DDR4 combines strong Intel platform support, PCIe 4.0 storage, Wi-Fi 6, and advanced cooling control in a compact, durable Micro ATX design tailored for gaming and performance-focused builds.
