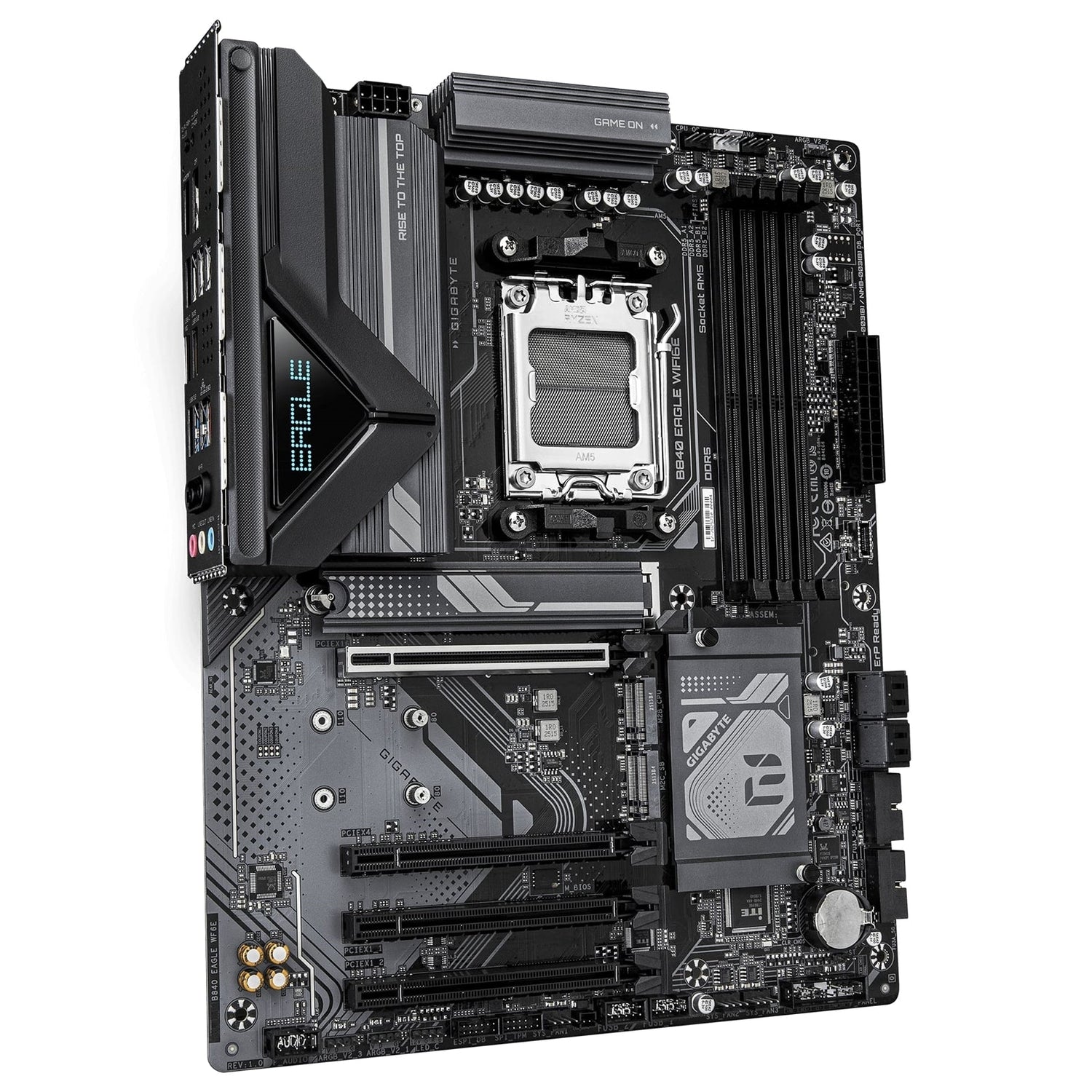

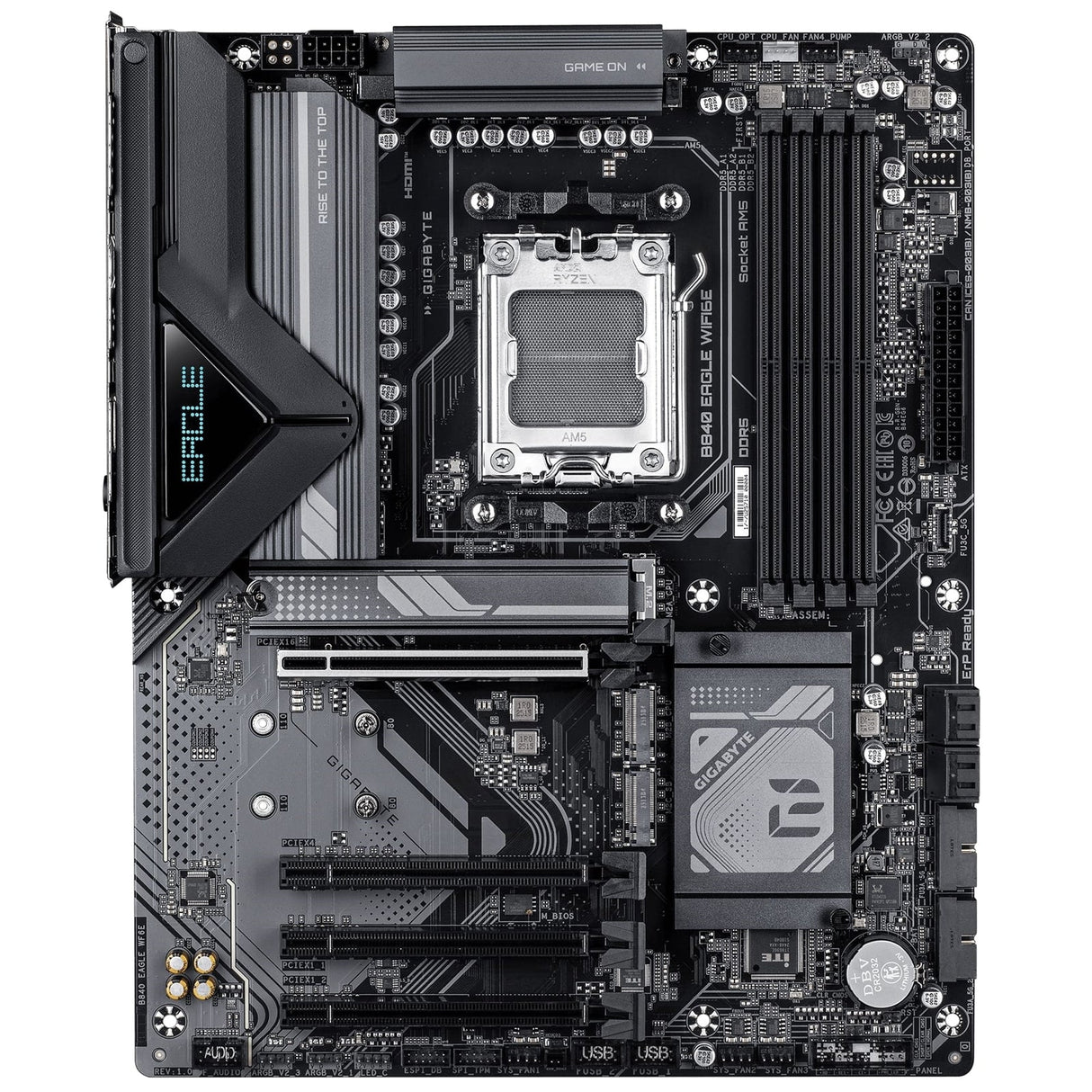

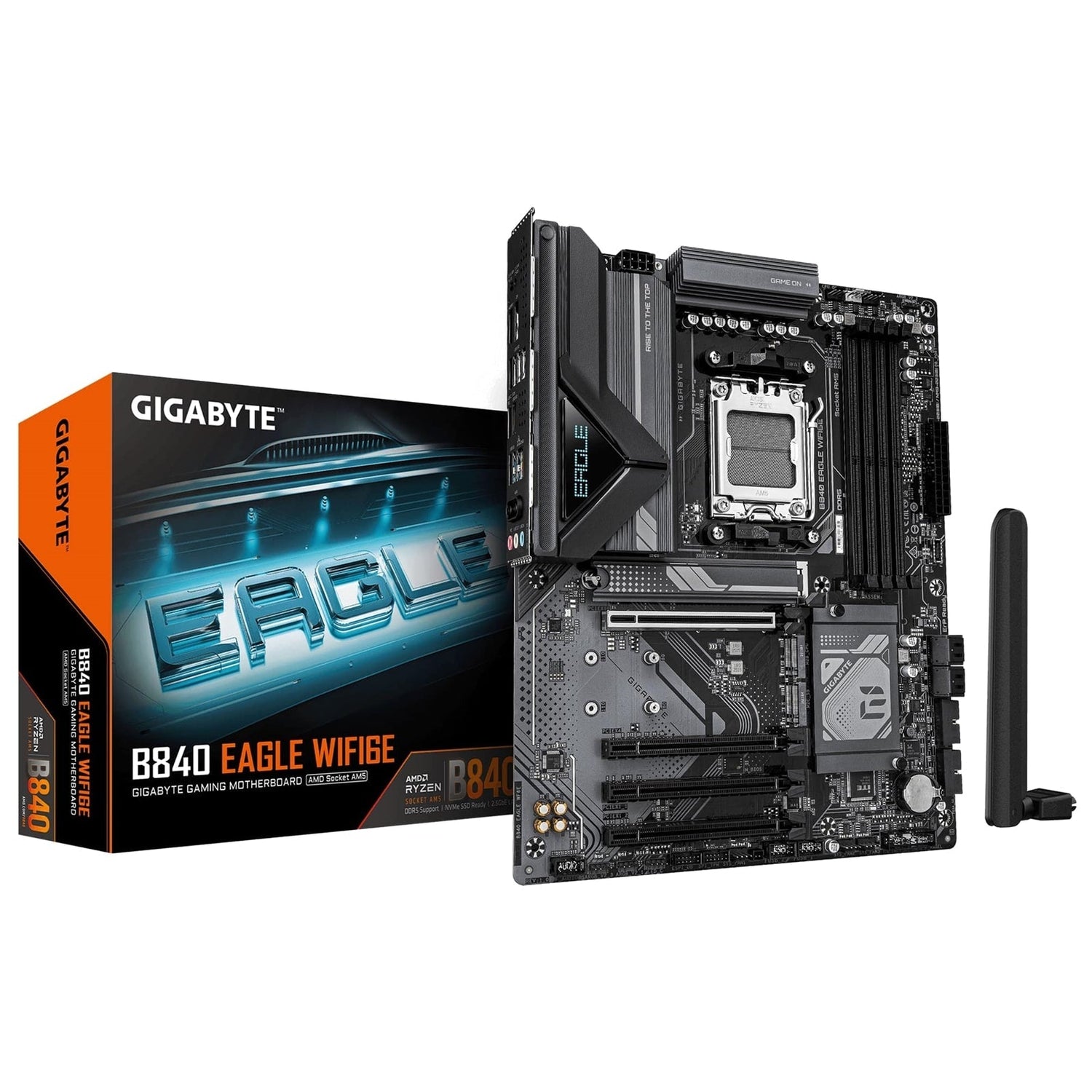

Gigabyte B840 EAGLE WIFI6E AMD AM5 Socket Motherboard

Name: Gigabyte B840 EAGLE WIFI6E AMD AM5 Socket Motherboard
Brand: GIGABYTE
Price: 150.02 GBP
Availability: OutOfStock

£150.02

(inc VAT)

Be the first to know when it's back in stock!

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

Gigabyte B840 EAGLE WIFI6E AMD AM5 Socket Motherboard

£150.02

B840 EAGLE WIFI 6E Gaming Motherboard

Key Features

X3D Turbo Mode
Unleash a new era of gaming performance.
AMD Socket AM5 Support
Compatible with AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital Twin 8+2+2 Phases VRM Solution
Designed for stable and reliable power delivery.
Dual Channel DDR5 Memory
4 × DIMM slots
AMD EXPO™ memory module support
D5 Bionic Corsa for infinite memory performance
WiFi EZ-Plug
Quick and easy design for Wi‑Fi antenna installation.
Tool-Less Installation Technologies
EZ-Latch Plus: PCIe and M.2 slots with quick release and screwless design
EZ-Latch Click: M.2 heatsinks with screwless design
Friendly UI
Multi-theme interface, AIO fan control, and Q-Flash Auto Scan available in BIOS and software.
Ultra-Fast Storage
3 × M.2 slots
Includes 2 × PCIe 4.0 x4 M.2 interfaces
Efficient Thermal Design
VRM Thermal Armor Advanced
M.2 Thermal Guard
High-Speed Networking
2.5GbE LAN
Wi-Fi 6E
Extended Display Connectivity
HDMI
DisplayPort

Specifications

CPU

Item	Details
Socket	AMD Socket AM5
Supported CPUs	AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors
Notes	For the latest CPU support list, refer to GIGABYTE's website.

Chipset

Item	Details
Chipset	AMD B840

Memory

Item	Details
Memory Type	DDR5
Supported Speeds (MT/s)	8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400
Slots	4 × DDR5 DIMM sockets
Maximum Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel memory architecture
Module Support	Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
Overclock Profiles	Support for AMD EXPO™ and XMP memory modules
Notes	CPU and memory configuration may affect supported types, speeds, and module count. See “Memory Support List” on GIGABYTE's website for details.

BIOS

Item	Details
Flash ROM	1 × 256 Mbit flash
BIOS Type	Licensed AMI UEFI BIOS
Compliance	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Graphics

Item	Details
Integrated Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support (depends on CPU)
HDMI	1 × HDMI port, max resolution 4096×2160@60 Hz; supports HDMI 2.1, HDCP 2.3, HDR; native HDMI 2.1 TMDS compatible ports
DisplayPort	1 × DisplayPort, max resolution 3840×2160@144 Hz; supports DisplayPort 1.4
Notes	Graphics specifications may vary depending on CPU support.

Audio

Item	Details
Audio Codec	Realtek® Audio CODEC
Audio Standard	High Definition Audio
Channels	2 / 4 / 5.1 / 7.1-channel
Notes	Audio jack functionality can be changed via audio software. Configure 7.1-channel audio in the audio software.

LAN

Item	Details
Controller	Realtek® 2.5GbE LAN chip
Speeds	2.5 Gbps / 1 Gbps / 100 Mbps

Wireless LAN & Bluetooth

Item	Details
Wireless Controller	Realtek® Wi-Fi 6E RTL8852CE
Wi-Fi Standards	Wi-Fi a / b / g / n / ac / ax
Bands	2.4 / 5 / 6 GHz carrier frequency bands
Bluetooth	Bluetooth 5.3
11ax Support	Supports 11ax 160 MHz wireless standard
Notes	Actual data rate may vary depending on environment and equipment.

Expansion Slots

CPU PCIe Lanes

Slot	Interface / Mode	CPU Support
1 × PCIEX16	PCI Express x16, integrated in CPU	AMD Ryzen™ 9000/7000: PCIe 4.0 x16; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4

The PCIEX16 slot can only support a graphics card or an NVMe SSD.
If only one graphics card is installed, it must be in the PCIEX16 slot.

Chipset PCIe Lanes

Slot	Interface / Mode	Notes
1 × PCIEX4	PCIe 3.0 x4	Shares bandwidth with PCIEX1_1 and PCIEX1_2; operates up to x2 when PCIEX1_1/PCIEX1_2 is populated.
2 × PCIEX1 (PCIEX1_1, PCIEX1_2)	PCIe 3.0 x1	Shares bandwidth with PCIEX4.

Storage

M.2 Slots

Connector	Source	Key / Socket	Supported Sizes	Interface / Support
M2A_CPU	CPU	Socket 3, M key	25110 / 22110 / 2580 / 2280	AMD Ryzen™ 9000 / 7000 / 8000 Phoenix 1 / 8000 Phoenix 2: PCIe 4.0 x4/x2 SSDs
M2B_CPU	CPU	Socket 3, M key	25110 / 22110 / 2580 / 2280	AMD Ryzen™ 9000 / 7000 / 8000 Phoenix 1: PCIe 4.0 x4/x2; 8000 Phoenix 2: PCIe 4.0 x2 SSDs
M2C_SB	Chipset	Socket 3, M key	25110 / 22110 / 2580 / 2280	PCIe 3.0 x4/x2 SSDs

SATA

Item	Details
SATA Ports	4 × SATA 6Gb/s connectors

RAID

Item	Details
Supported RAID Levels	RAID 0, RAID 1, RAID 5, RAID 10 for NVMe SSD storage devices
Notes	RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

USB

From CPU

Location	Type	Standard
Rear Panel	1 × USB Type‑C®	USB 3.2 Gen 2
Rear Panel	2 × USB Type‑A	USB 3.2 Gen 1

From CPU + USB 2.0 Hub

Location	Type	Standard
Rear Panel	4 × USB Type‑A	USB 2.0/1.1

From Chipset

Location	Type	Standard
Rear Panel	1 × USB Type‑A (red)	USB 3.2 Gen 2
Internal Header	1 × USB Type‑C® header	USB 3.2 Gen 1
Internal Headers	4 × USB ports via headers	USB 2.0/1.1

From Chipset + USB 3.2 Gen 1 Hub

Location	Type	Standard
Internal Headers	4 × USB ports via headers	USB 3.2 Gen 1

Internal Connectors

Connector	Quantity
24-pin ATX main power connector	1
8-pin ATX 12V power connector	1
CPU fan header	1
CPU fan / water cooling pump header	1
System fan headers	3
System fan / water cooling pump header	1
Addressable RGB Gen2 LED strip headers	3
RGB LED strip header	1
M.2 Socket 3 connectors	3
SATA 6Gb/s connectors	4
Front panel header	1
Front panel audio header	1
USB Type‑C® header (USB 3.2 Gen 1)	1
USB 3.2 Gen 1 headers	2
USB 2.0/1.1 headers	2
Trusted Platform Module header (GC‑TPM2.0 SPI V2 only)	1
Reset jumper	1
Clear CMOS jumper	1

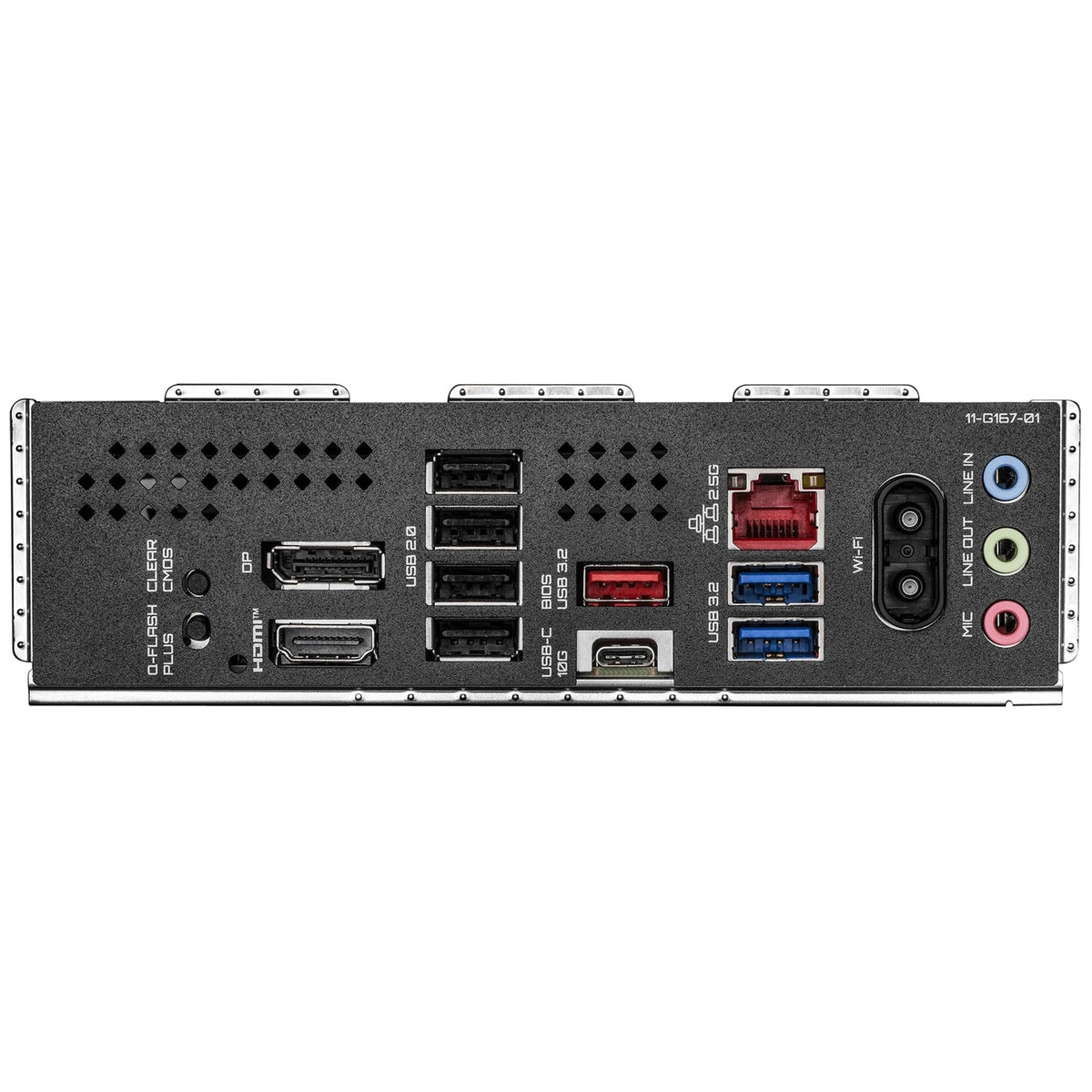

Rear Panel I/O

Item	Quantity / Type
Q-Flash Plus button	1
Clear CMOS button	1
DisplayPort*	1
HDMI port*	1
USB Type‑C® (USB 3.2 Gen 2)	1
USB 3.2 Gen 2 Type‑A (red)	1
USB 3.2 Gen 1 Type‑A	2
USB 2.0/1.1 Type‑A	4
RJ-45 LAN port	1
Antenna connectors (2T2R)	2
Audio jacks	3
