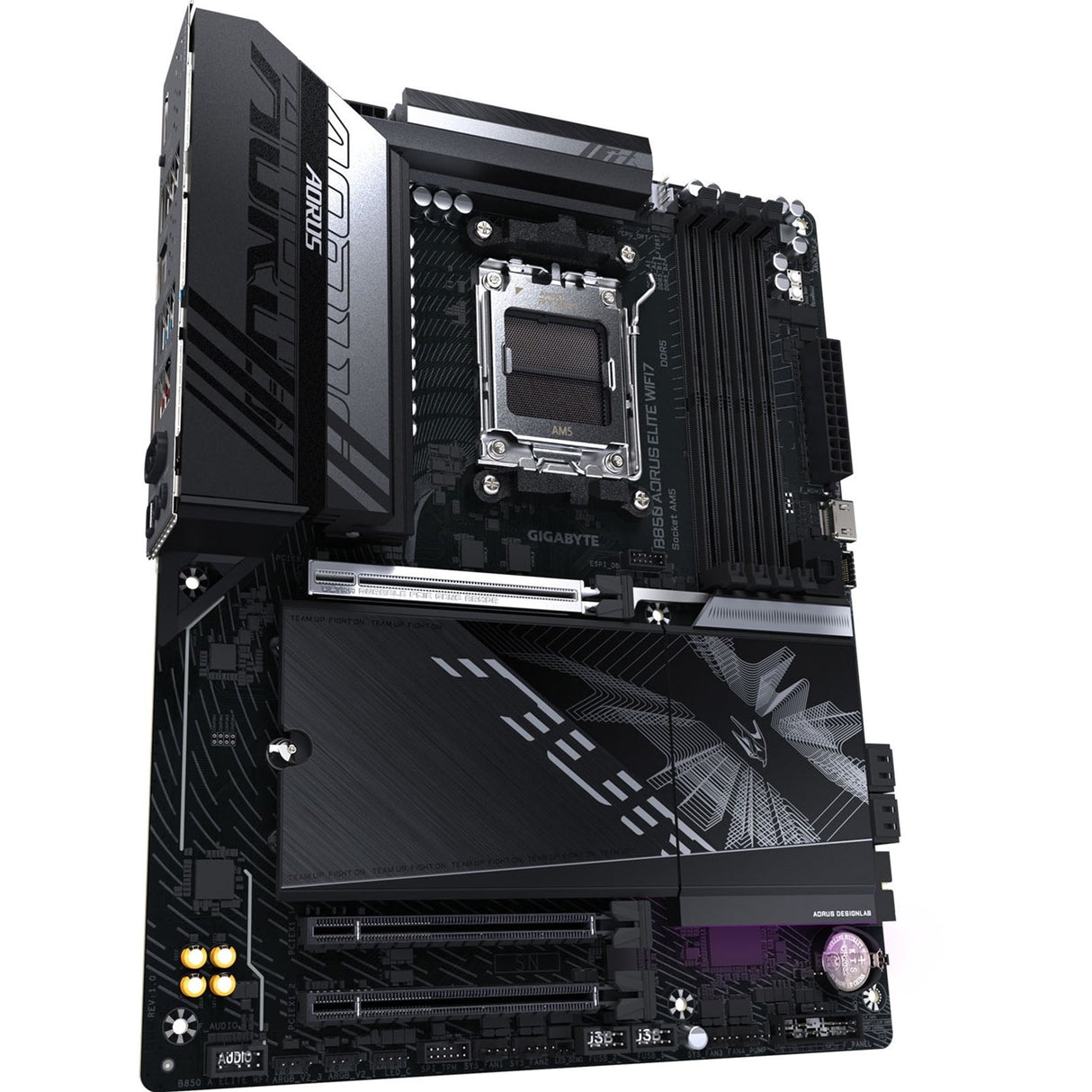

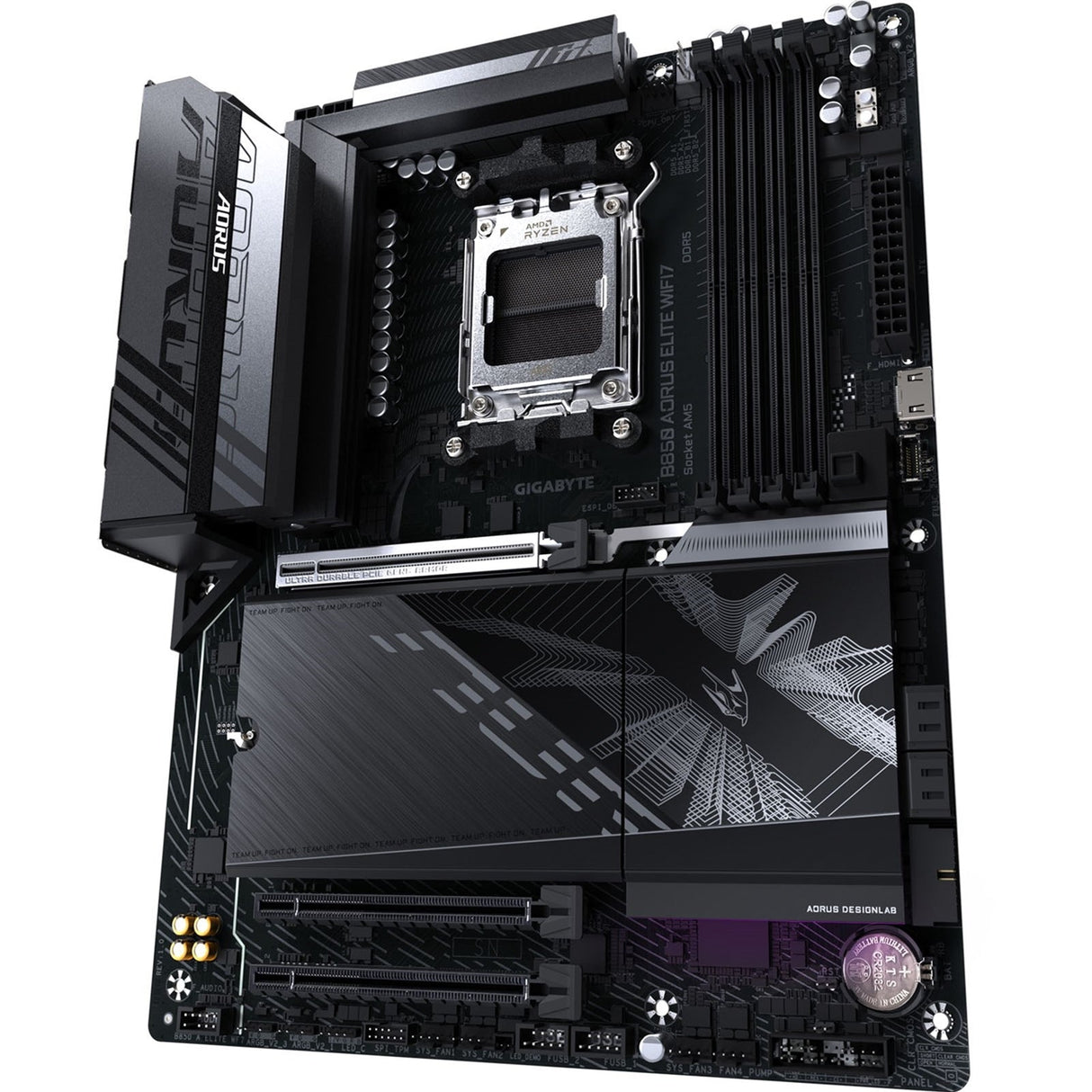

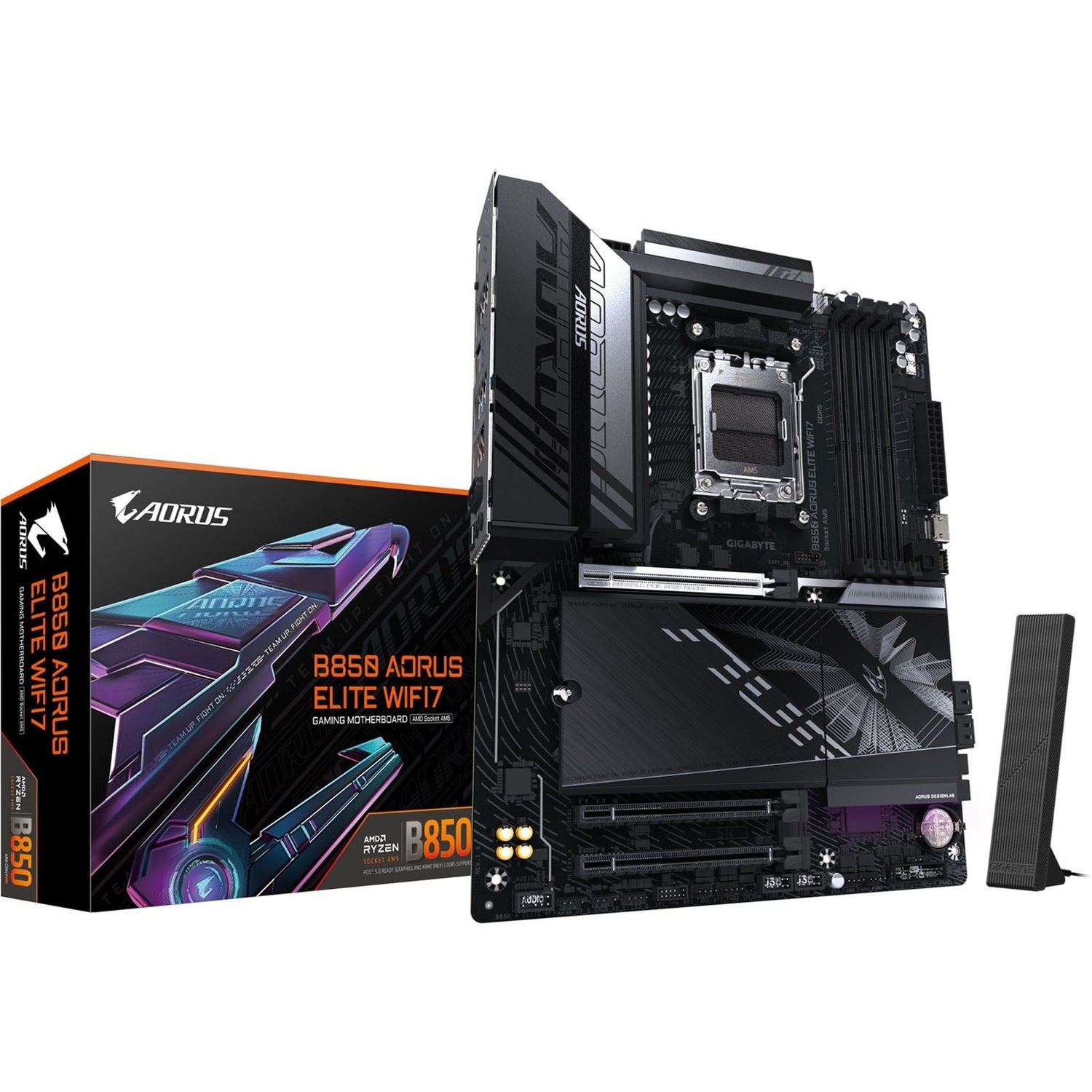

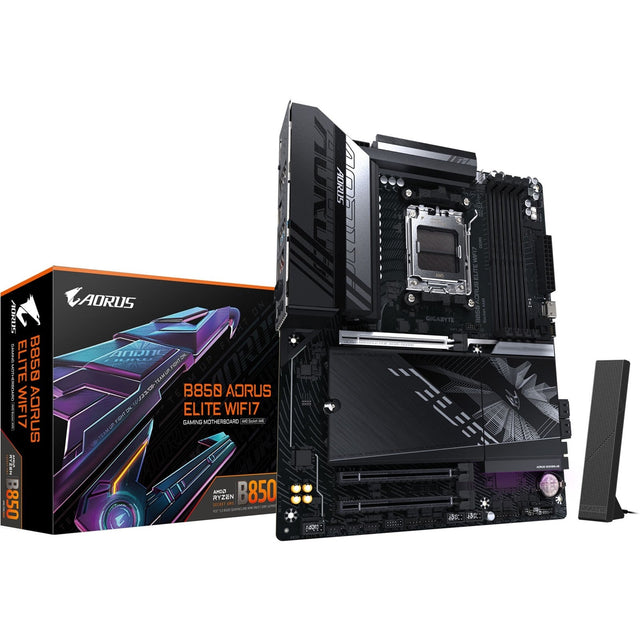

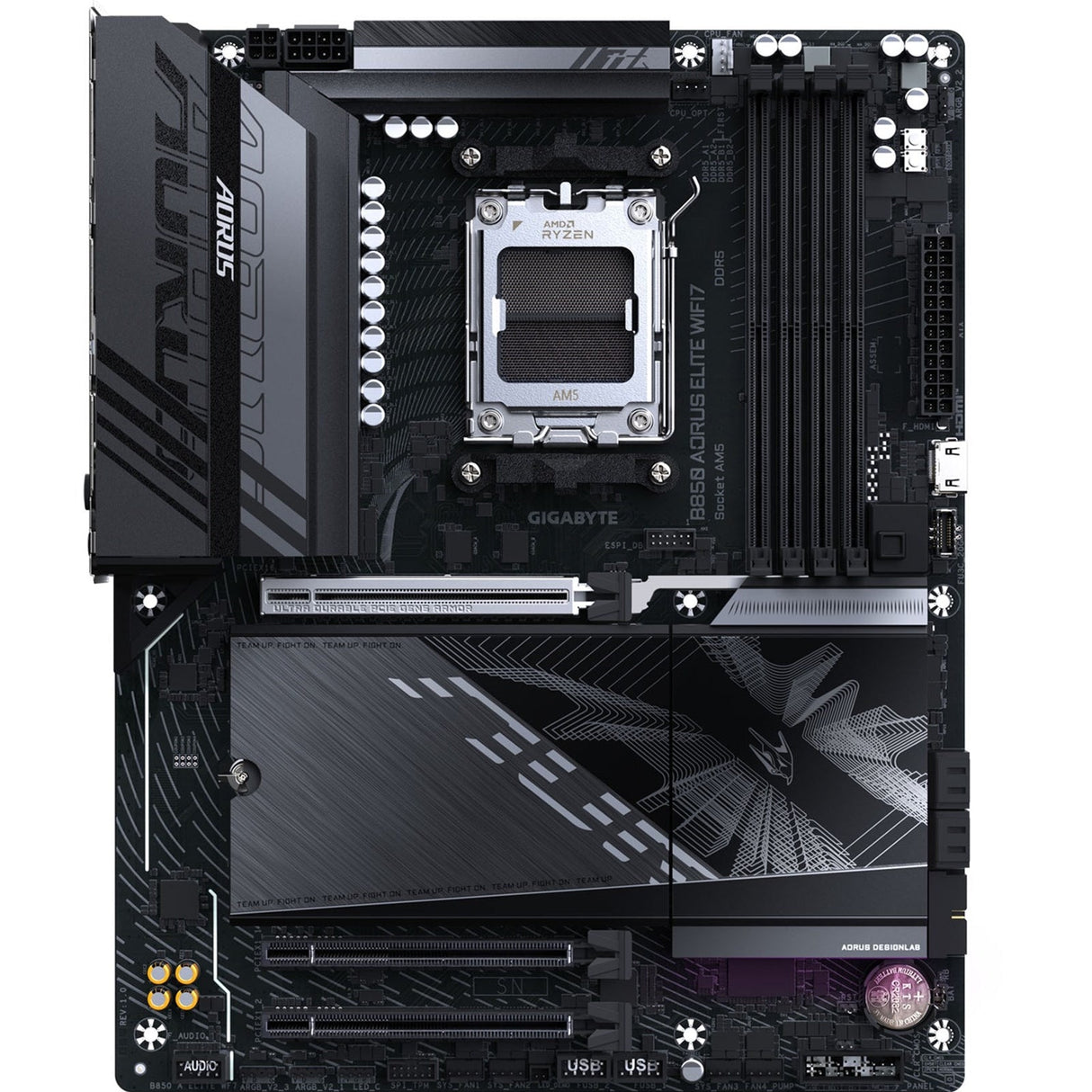

Gigabyte B850 AORUS ELITE WIFI7 AMD AM5 Socket Motherboard

Name: Gigabyte B850 AORUS ELITE WIFI7 AMD AM5 Socket Motherboard
Brand: GIGABYTE
Price: 225.25 GBP
Availability: InStock

£225.25

(inc VAT)

Free Delivery: Friday 11th - Monday 14th.
If You Order In The Next 3hrs 46mins

Delivery and Shipping

Order Processing

Delivery Options

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

£225.25

X3D Turbo Mode – Designed to unleash a new era of gaming performance
AMD Socket AM5 Support – Compatible with:
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
Advanced Power Design
Digital twin 14+2+2 phases VRM solution for stable power delivery
High-Speed DDR5 Memory
DDR5 OC support up to 8200 MT/s
Dual Channel DDR5 with 4 DIMM slots
Supports up to 256 GB total system memory
AMD EXPO™ and XMP memory module support
PCIe UD Slot
PCIe 5.0 x16 slot with 10x strength for graphics card support and enhanced heat dissipation
Ultra-Fast Storage
3 x M.2 slots, including PCIe 5.0 x4 support
RAID 0/1/5/10 support for NVMe SSDs (RAID 5 only with AMD Ryzen™ 9000 Series)
RAID 0/1/10 support for SATA storage devices
Efficient Thermal Design
VRM Thermal Armor Advanced
M.2 Thermal Guard Ext for storage cooling
Next-Gen Networking
Realtek® 2.5GbE LAN
Wi-Fi 7 with directional ultra-high gain antenna
Extended Connectivity
HDMI and DisplayPort video outputs
Multiple USB 3.2 Gen 2 and Gen 1 ports
USB Type-C® on rear panel and internal header
Builder-Friendly Design
WIFI EZ-Plug: quick and easy Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with quick release & screwless design
EZ-Latch Click: M.2 heatsinks with screwless design
Sensor Panel Link: onboard video port for in-chassis panel setup
User-Friendly Interface
Multi-theme BIOS
AIO fan control
Q-Flash auto scan in BIOS and software

Item	Details
Socket	AMD Socket AM5
Supported CPUs	AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (see GIGABYTE website for latest support list)

Item	Details
Chipset	AMD B850

Item	Details
Memory Type	DDR5
Supported Speeds (MT/s)	8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400
DIMM Slots	4 x DDR5 DIMM sockets
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel
Module Support	Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
Profile Support	AMD EXPO™ and XMP
Note	CPU and memory configuration may affect supported types, speeds, and module count (see GIGABYTE Memory Support List)

Item	Details
Integrated GPU	AMD Radeon™ Graphics (CPU dependent)
DisplayPort	1 x DP, max 3840x2160@144 Hz, DP 1.4, HDR support*
Front HDMI	1 x HDMI, max 1920x1080@30 Hz, HDMI 1.4*
Note	Graphics specifications may vary depending on CPU support. *Actual support may vary by CPU.

Item	Details
Codec	Realtek® Audio CODEC
Audio Channels	2/4/5.1/7.1-channel HD Audio
Customization	Audio jack functionality configurable via audio software (7.1 via software settings)
Digital Output	S/PDIF Out support

Item	Details
Chip	Realtek® 2.5GbE LAN
Speeds	2.5 Gbps / 1 Gbps / 100 Mbps

Item	Details
Module	Realtek® Wi-Fi 7 RTL8922AE
Wi-Fi Standards	802.11a/b/g/n/ac/ax/be (2.4 / 5 / 6 GHz bands)
Bluetooth	Bluetooth 5.4
11be Support	11be 160 MHz wireless standard
Notes	Actual data rate may vary by environment and equipment. Wi-Fi 7 features require Windows 11 SV3; no driver support for Windows 10. 6 GHz band availability depends on country regulations.

Item	Details
CPU PCIe Slot	1 x PCI Express x16 (PCIEX16)
CPU PCIe Modes	Ryzen™ 9000/7000: PCIe 5.0 x16; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4
Note	PCIEX16 supports either a graphics card or an NVMe SSD. If only one graphics card is used, install it in PCIEX16.
Chipset PCIe Slots	2 x PCIe x16 physical slots (PCIEX1_1, PCIEX1_2), PCIe 3.0, running at x1

Connector	Interface & Support
M2A_CPU	1 x M.2 (Socket 3, M key, 25110/22110/2580/2280) – Ryzen™ 9000/7000: PCIe 5.0 x4/x2; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2
M2B_CPU	1 x M.2 (Socket 3, M key, 25110/22110/2580/2280) – Ryzen™ 9000: PCIe 4.0 x4/x2; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x2
M2C_SB	1 x M.2 (Socket 3, M key, 25110/22110/2580/2280), PCIe 4.0 x4/x2 (Chipset)
SATA	4 x SATA 6Gb/s connectors
RAID (NVMe)	RAID 0, 1, 5, 10 for NVMe SSDs (RAID 5 only on Ryzen™ 9000 Series)
RAID (SATA)	RAID 0, 1, 10

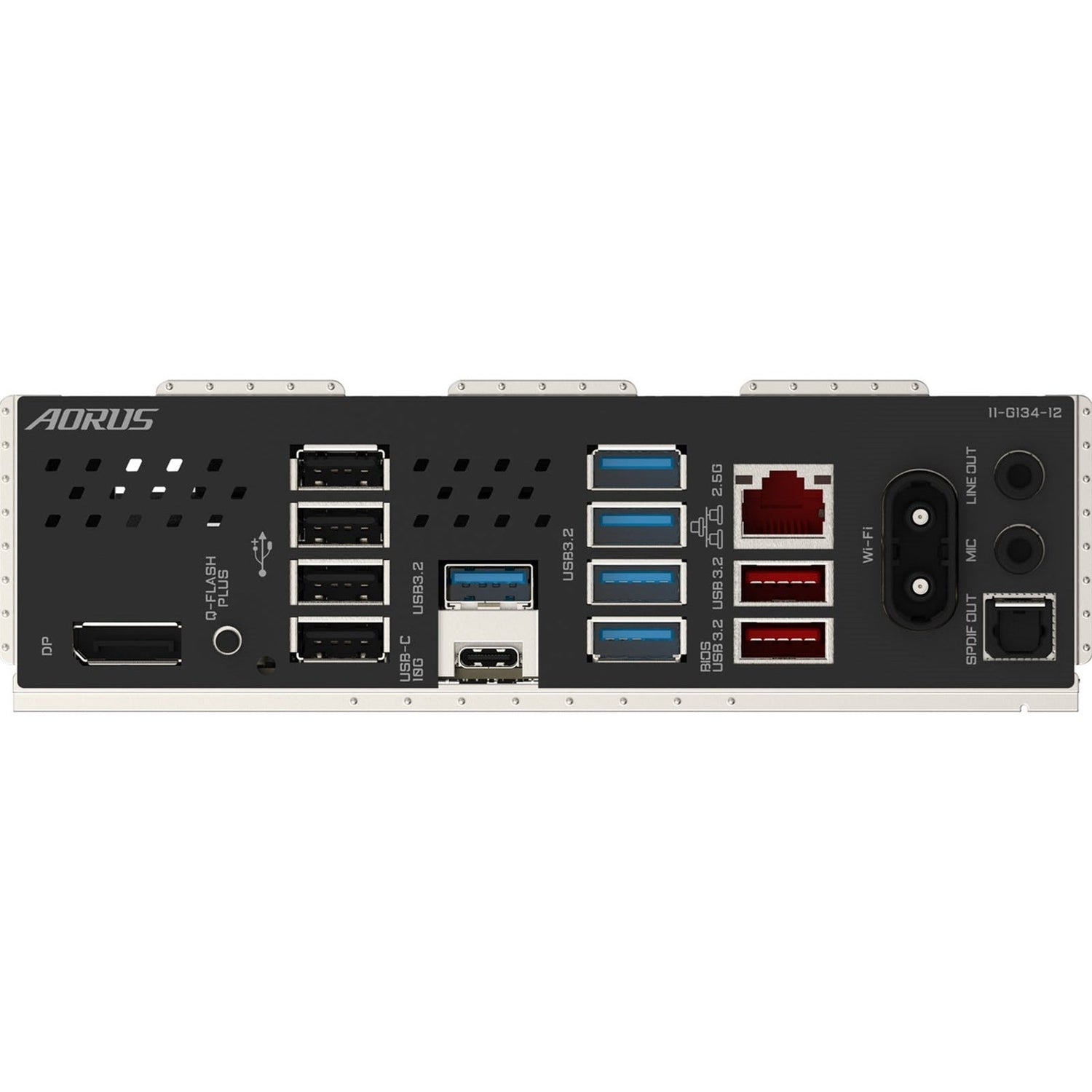

Source	Ports
CPU (Rear)	1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A (red)
CPU + USB 2.0 Hub (Rear)	4 x USB 2.0/1.1
Chipset (Internal)	1 x USB Type-C® header (USB 3.2 Gen 2x2), 3 x USB 3.2 Gen 1 (1 rear, 2 via header), 4 x USB 2.0/1.1 via headers
Chipset + USB 3.2 Gen 1 Hub (Rear)	4 x USB 3.2 Gen 1

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan / water cooling pump header
3 x system fan headers
1 x system fan / water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header (USB 3.2 Gen 2x2)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
1 x HDMI port*
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

*Actual support may vary by CPU.

*Actual support may vary by CPU.

Item	Details
Controller	iTE® I/O Controller Chip
Monitoring	Voltage, temperature, fan speed, water cooling flow rate
Warnings	Fan fail warning
Control	Fan speed control (support depends on installed fan/pump)
