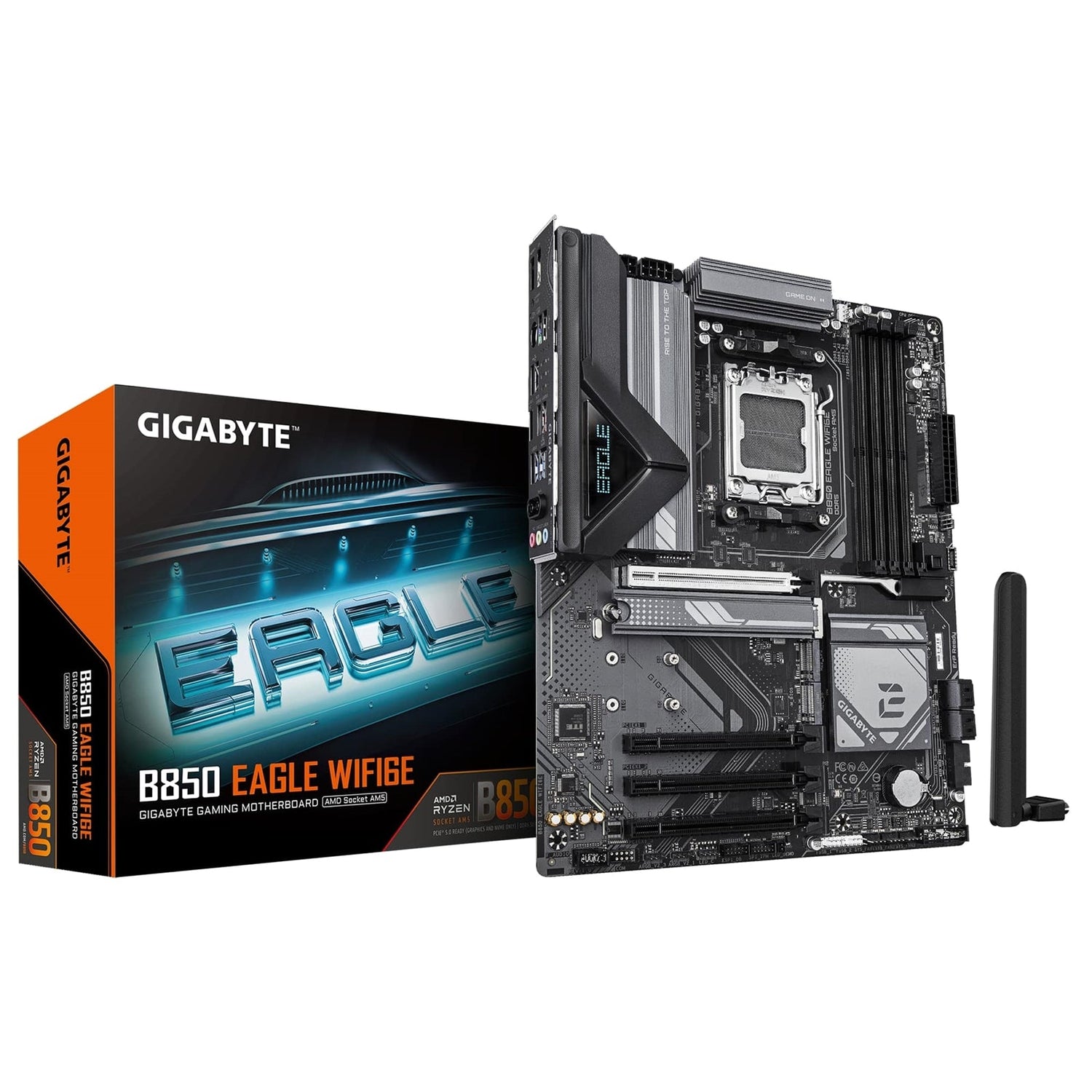

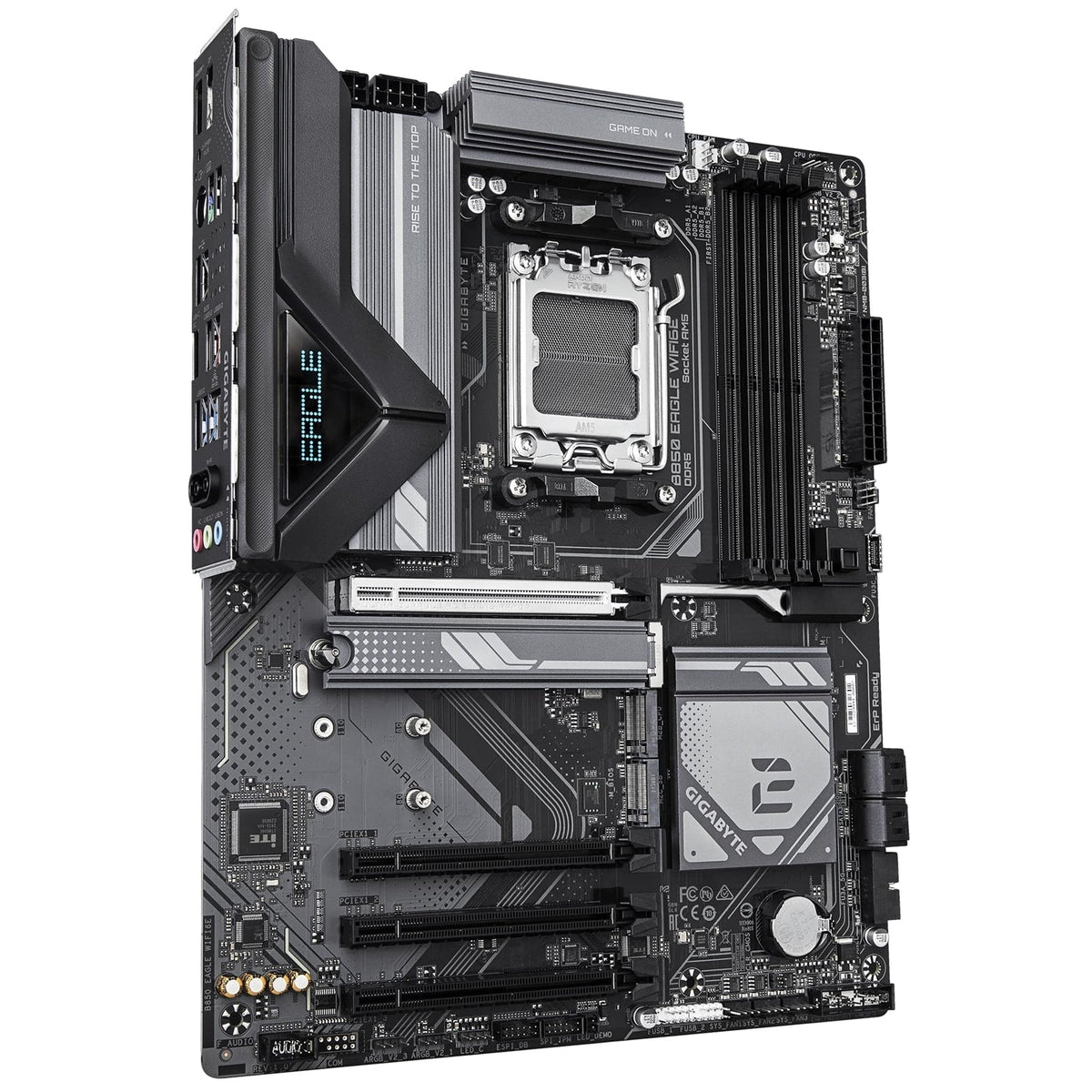

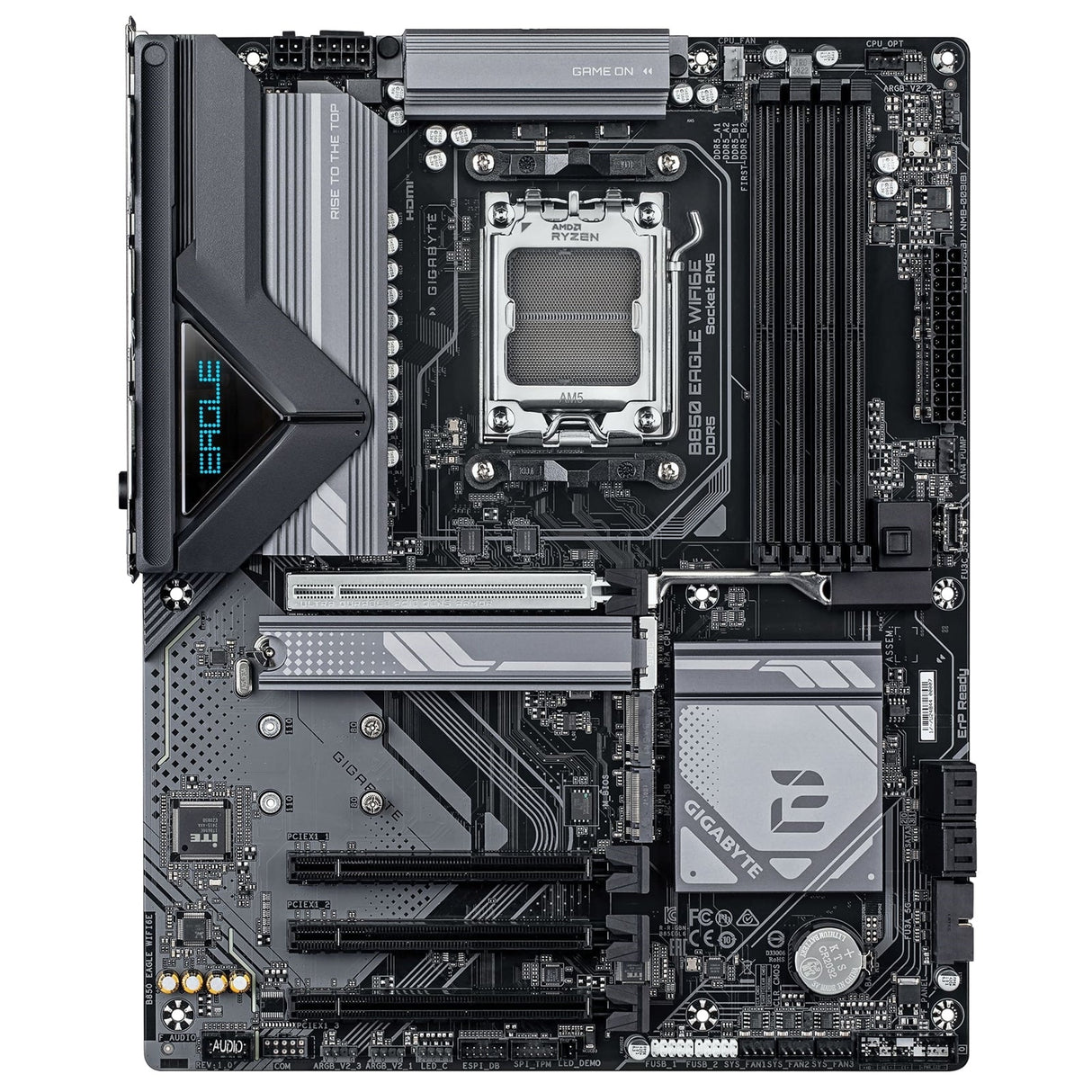

Gigabyte B850 EAGLE WIFI6E AMD AM5 Socket Motherboard

£187.91
(inc VAT)
Need to place a large order? Submit a Bulk Order Enquiry

We Accept:

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • USDC
  • Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trustpilot

Delivery and Shipping

Shipping & Processing

Order Processing

  • Same business-day for orders placed before 3 PM (GMT), except in rare cases when it may take 1 additional business day.
  • Larger or specialist items require up to 3 business days to process.

Delivery Options

  • Royal Mail 48
    • Free on orders over £20
    • £2.99 on orders under £20
    • Delivery in 2–3 business days
  • Tracked 24 (Next-Day) — £4.99
  • Standard (Large & Specialist Items)
    • Free on orders over £20
    • £6.99 on orders under £20
    • Delivery in 2–14 business days (typically around 7 days)
    • Processing may take up to 3 business days
  • International
    • We ship worldwide. Delivery options and estimated timeframes for your country are available at checkout.
    • Customs, duties, and import taxes are your responsibility.

You’ll receive tracking details as soon as your order ships [track your order here]. For full details, please see our [Shipping Policy].

🌳 — Trees Planted — and Growing
Your support helps restore forests and build a more sustainable future.
Gigabyte B850 EAGLE WIFI6E AMD AM5 Socket Motherboard

Gigabyte B850 EAGLE WIFI6E AMD AM5 Socket Motherboard

£187.91

GIGABYTE AMD B850 ATX Motherboard – Key Features & Specifications

Key Features

  • X3D Turbo Mode – Designed to unleash a new era of gaming performance
  • AMD Socket AM5 – Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Next-Gen Memory Performance
  • DDR5 OC support up to 8200 MT/s
  • Dual Channel DDR5 with 4 DIMM slots

  • AMD EXPO™ and XMP memory module support

  • Robust Power Design

  • Digital twin 8+2+2 phases VRM solution

  • Ultra-Fast Storage

  • 3 x M.2 slots, including PCIe 5.0 x4 support

  • Efficient Cooling & Easy Installation

  • VRM Thermal Armor Advanced & M.2 Thermal Guard
  • EZ-Latch Plus: PCIe and M.2 quick release, screwless design

  • EZ-Latch Click: Screwless M.2 heatsink design

  • Wi-Fi & Networking

  • WIFI EZ-Plug: Quick and easy Wi-Fi antenna installation

  • Fast Networking: GbE LAN & Wi-Fi 6E with directional ultra-high gain antenna

  • User-Friendly Experience

  • Friendly UI with Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and software

  • Extended Connectivity

  • HDMI & DisplayPort outputs
  • PCIe UD Slot: PCIe 5.0 x16 slot with 10X strength for graphics card and enhanced heat dissipation effect

Technical Specifications

CPU

Item Details
Socket AMD Socket AM5
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Note For the latest CPU support list, please refer to GIGABYTE's website.

Chipset

Item Details
Chipset AMD B850

Memory

Item Details
Memory Type DDR5
Supported Speeds (MT/s) 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400
DIMM Slots 4 x DDR5 DIMM sockets
Max Capacity Up to 256 GB (64 GB per DIMM)
Architecture Dual channel
Supported Modules Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
Overclock Profiles AMD EXPO™ and XMP support
Note CPU and memory configuration may affect supported memory types, speed, and module count. Refer to GIGABYTE's Memory Support List for details.

Onboard Graphics

Item Details
Integrated GPU AMD Radeon™ Graphics (CPU dependent)
DisplayPort 1 x DisplayPort, max 3840x2160 @ 144 Hz, DP 1.4, HDR support
HDMI 1 x HDMI, max 4096x2160 @ 60 Hz, HDMI 2.1, HDCP 2.3, HDR support
Note Supports native HDMI 2.1 TMDS compatible ports. Graphics specifications may vary depending on CPU.

Audio

Item Details
Codec Realtek® Audio CODEC
Audio High Definition Audio
Channels 2/4/5.1/7.1-channel
Note Jack functions configurable via audio software. Configure 7.1-channel audio in the audio software.

LAN

Item Details
Controller Realtek® GbE LAN chip
Speed 1 Gbps / 100 Mbps / 10 Mbps

Wireless Communication

PCB Rev. Module Details
1.0 Intel® Wi-Fi 6E AX210 Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160 MHz support
1.1 Realtek® Wi-Fi 6E RTL8852CE Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160 MHz support

Actual data rate may vary depending on environment and equipment.

Expansion Slots

CPU:

  • 1 x PCI Express x16 slot (PCIEX16)
  • AMD Ryzen™ 9000 / 7000: PCIe 5.0 x16 mode
  • AMD Ryzen™ 8000 Series – Phoenix 1: PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series – Phoenix 2: PCIe 4.0 x4 mode
  • The PCIEX16 slot supports either a graphics card or an NVMe SSD. If only one graphics card is used, install it in PCIEX16.

Chipset:

  • 3 x PCI Express x16 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), PCIe 3.0, running at x1

Storage Interface

M.2 Slots:

  • M2A_CPU (CPU integrated, Socket 3, M key, 22110/2280)
  • Ryzen™ 9000 / 7000: PCIe 5.0 x4/x2 SSDs
  • Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 SSDs

  • Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2 SSDs

  • M2B_CPU (CPU integrated, Socket 3, M key, 22110/2280)

  • Ryzen™ 9000: PCIe 4.0 x4/x2 SSDs
  • Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 SSDs

  • Ryzen™ 8000 Phoenix 2: PCIe 4.0 x2 SSDs

  • M2C_SB (Chipset integrated, Socket 3, M key, 22110/2280)

  • PCIe 4.0 x2 SSDs

SATA:

  • 4 x SATA 6Gb/s connectors

RAID Support:

  • NVMe SSDs: RAID 0, 1, 5*, 10
  • RAID 5 only on AMD Ryzen™ 9000 Series Processors
  • SATA devices: RAID 0, 1, 10

USB

CPU:

  • Rear I/O: 1 x USB Type-C® (USB 3.2 Gen 1)
  • Rear I/O: 2 x USB 3.2 Gen 2 Type-A (red)

Chipset:

  • Internal: 1 x USB Type-C® header (USB 3.2 Gen 1)
  • Rear I/O: 2 x USB 3.2 Gen 1 ports
  • Internal: 2 x USB 3.2 Gen 1 ports via header
  • Rear I/O: 4 x USB 2.0/1.1 ports

Chipset + USB 2.0 Hub:

  • Internal: 4 x USB 2.0/1.1 ports via headers

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header (USB 3.2 Gen 1)
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

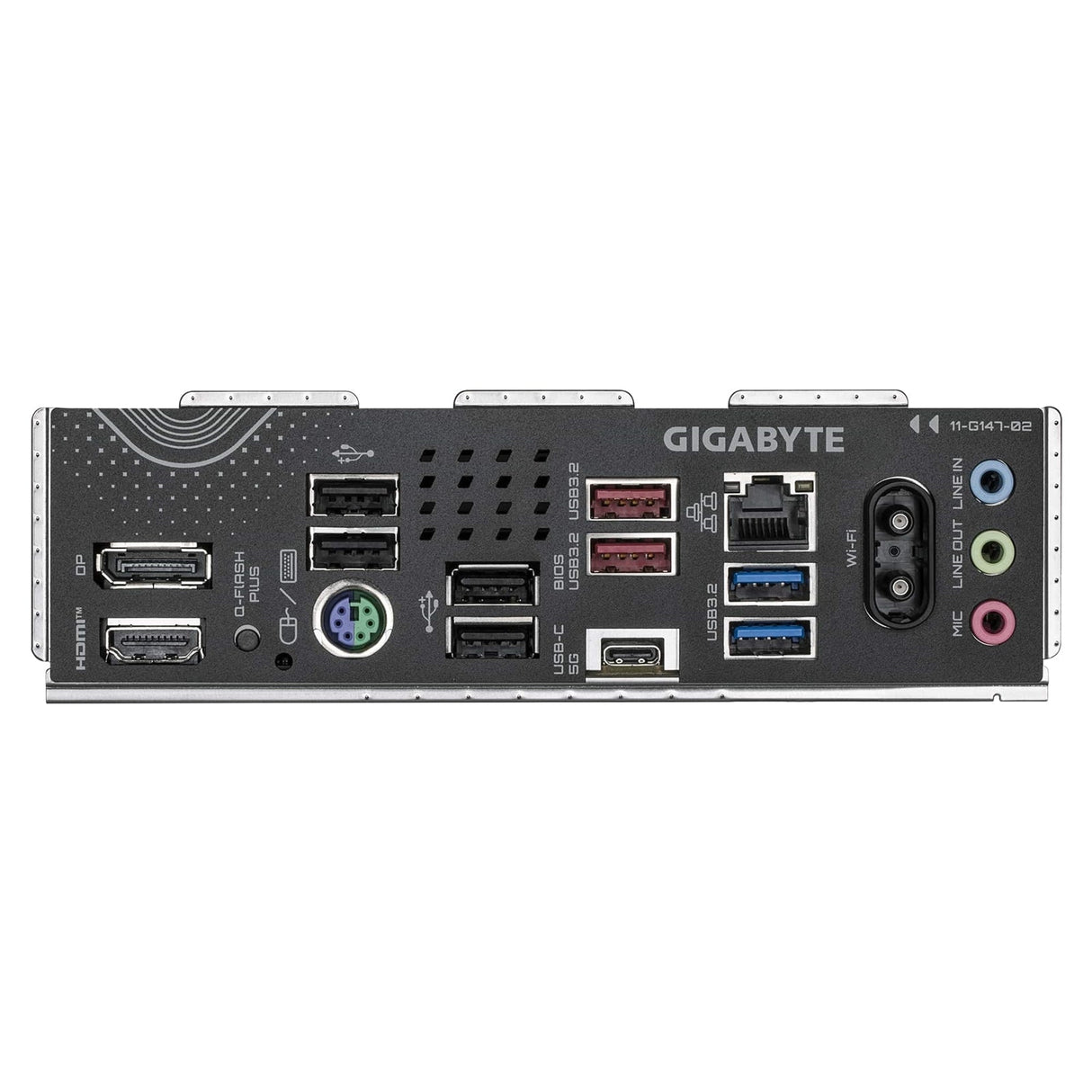

Back Panel Connectors

  • 1 x DisplayPort*
  • 1 x HDMI port*
  • 1 x Q-Flash Plus button
  • 4 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C® port (USB 3.2 Gen 1)
  • 1 x RJ-45 LAN port
  • 2 x USB 3.2 Gen 1 ports
  • 2 x antenna connectors (2T2R)
  • 3 x audio jacks

*Actual display support may vary by CPU.

I/O Controller

  • iTE® I/O Controller Chip

Hardware Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control*

*Support for fan/pump speed control depends on the installed fan/pump.

BIOS

  • 1 x 256 Mbit flash
  • AMI UEFI BIOS (licensed)
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • Support for GIGABYTE Control Center (GCC)*
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup

*Available applications and functions in GCC may vary by motherboard model and specifications.

Bundled Software

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software

Operating System Support

  • Windows 11 64-bit
  • Windows 10 64-bit

Form Factor

  • ATX Form Factor
  • Dimensions: 30.5 cm x 24.4 cm
