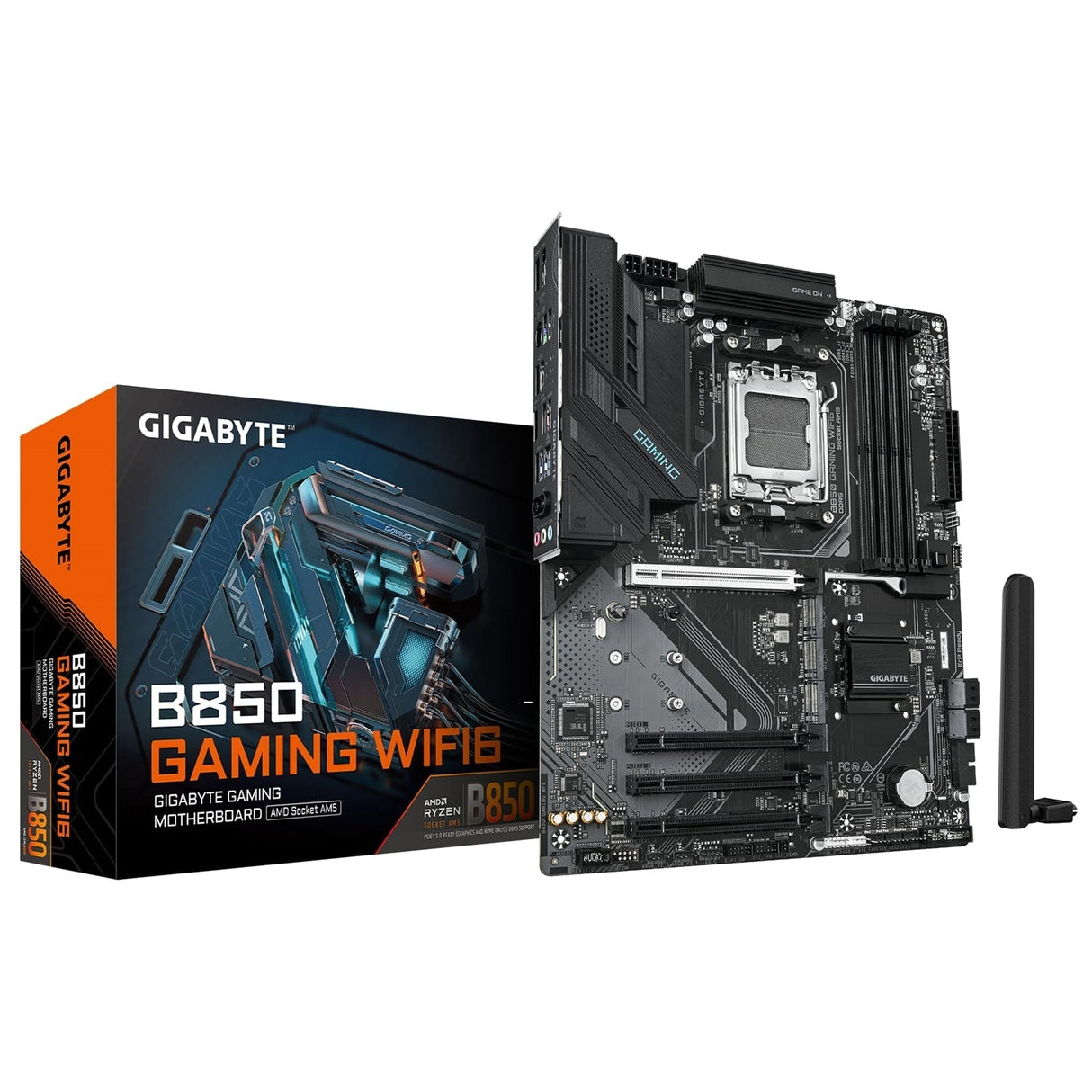

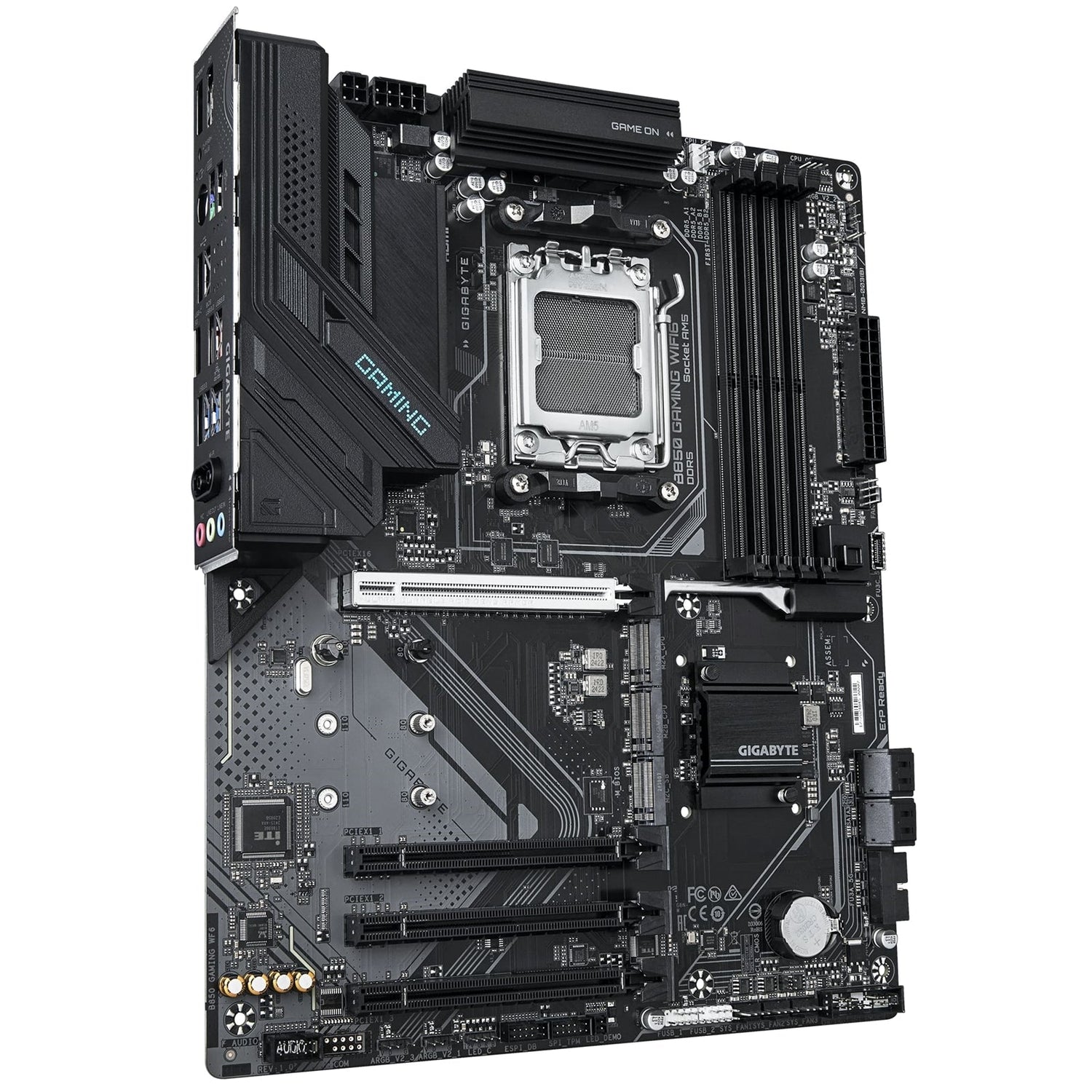

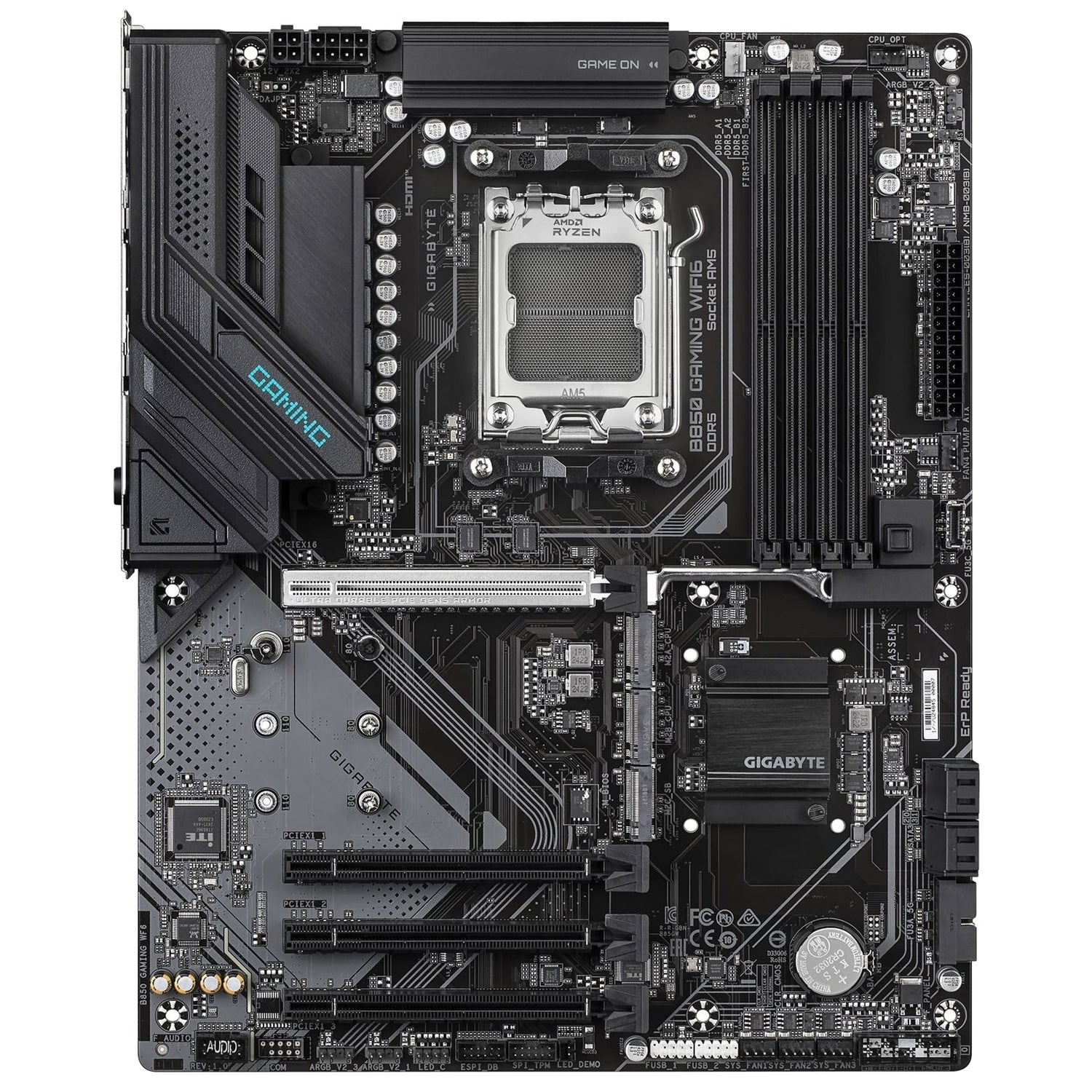

Gigabyte B850 GAMING WIFI6 AMD AM5 Socket Motherboard

Name: Gigabyte B850 GAMING WIFI6 AMD AM5 Socket Motherboard
Brand: GIGABYTE
Price: 167.53 GBP
Availability: OutOfStock

£167.53

(inc VAT)

Be the first to know when it's back in stock!

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

Gigabyte B850 GAMING WIFI6 AMD AM5 Socket Motherboard

£167.53

GIGABYTE AMD B850 ATX Motherboard

Key Features

X3D Turbo Mode – Unleash a new era of gaming performance
AMD Socket AM5 Support – Compatible with AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
DDR5 Overclocking – Support for DDR5 OC memory up to 8200 MT/s
Digital 6+2+2 Phases VRM Solution
Dual Channel DDR5 – 4 DIMM slots with AMD EXPO™ memory module support
WIFI EZ-Plug – Quick and easy Wi‑Fi antenna installation
PCIe EZ-Latch Plus – PCIe slots with quick release design
Friendly UI – Multi-theme interface, AIO fan control, and Q-Flash auto scan in BIOS and software
Ultra-Fast Storage – 3 x M.2 slots, including one PCIe 5.0 x4 slot
Efficient Thermal Design – VRM Thermal Armor Advanced
Fast Networking – GbE LAN & Wi‑Fi 6 (802.11ax)
Extended Connectivity – HDMI and DisplayPort video outputs

Specifications

CPU

Feature	Details
Socket	AMD Socket AM5
Supported CPUs	AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Note	For the latest CPU support list, please refer to GIGABYTE’s website.

Chipset

Feature	Details
Chipset	AMD B850

Memory

Feature	Details
Memory Type	DDR5
Supported Speeds	8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
DIMM Slots	4 x DDR5 DIMM sockets
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel
Supported Modules	Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
Memory OC Profiles	Support for AMD EXPO™ and XMP memory modules
Note	CPU and memory configuration may affect supported memory types, speed, and module count. Refer to the “Memory Support List” on GIGABYTE’s website.

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support (graphics support may vary by CPU).

Output	Max Resolution	Standard / Features
DisplayPort	3840x2160 @ 144 Hz	DisplayPort 1.4, HDR
HDMI	4096x2160 @ 60 Hz	HDMI 2.1, HDCP 2.3, HDR, native HDMI 2.1 TMDS compatible ports

Audio

Feature	Details
Codec	Realtek® Audio CODEC
Audio	High Definition Audio, 2/4/5.1/7.1-channel*

* Audio jack functionality can be changed via audio software. To configure 7.1-channel audio, use the audio software settings.

LAN

Feature	Details
Controller	Realtek® GbE LAN chip
Speed	1 Gbps / 100 Mbps / 10 Mbps

Wireless Communication

Feature	Details
Module	Realtek® Wi‑Fi 6 RTL8851BE
Wi‑Fi Standards	a, b, g, n, ac, ax
Bands	2.4 / 5 GHz
Bluetooth	Bluetooth 5.3
Wireless Standard	Support for 11ax 80 MHz
Note	Actual data rate may vary depending on environment and equipment.

Expansion Slots

Slot	Interface / Source	Mode / Notes
1 x PCIEX16	PCI Express x16, integrated in CPU	Ryzen™ 9000/7000: PCIe 5.0 x16 mode; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 mode; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 mode. Supports only a graphics card or an NVMe SSD. If only one graphics card is installed, use PCIEX16.
3 x PCIEX1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)	PCI Express x16 physical slots, via chipset	PCIe 3.0, running at x1

Storage Interface

Connector	Source	Form Factor	Interface / Mode
1 x M.2 (M2A_CPU)	CPU	Socket 3, M key, 22110/2280	Ryzen™ 9000/7000: PCIe 5.0 x4/x2; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2
1 x M.2 (M2B_CPU)	CPU	Socket 3, M key, 22110/2280	Ryzen™ 9000/7000: PCIe 4.0 x4/x2; Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2; Ryzen™ 8000 Phoenix 2: PCIe 4.0 x2
1 x M.2 (M2C_SB)	Chipset	Socket 3, M key, 22110/2280	PCIe 4.0 x2
4 x SATA 6Gb/s	Chipset	—	SATA 6Gb/s

RAID Support

NVMe SSDs: RAID 0, RAID 1, RAID 5*, RAID 10
SATA devices: RAID 0, RAID 1, RAID 10

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

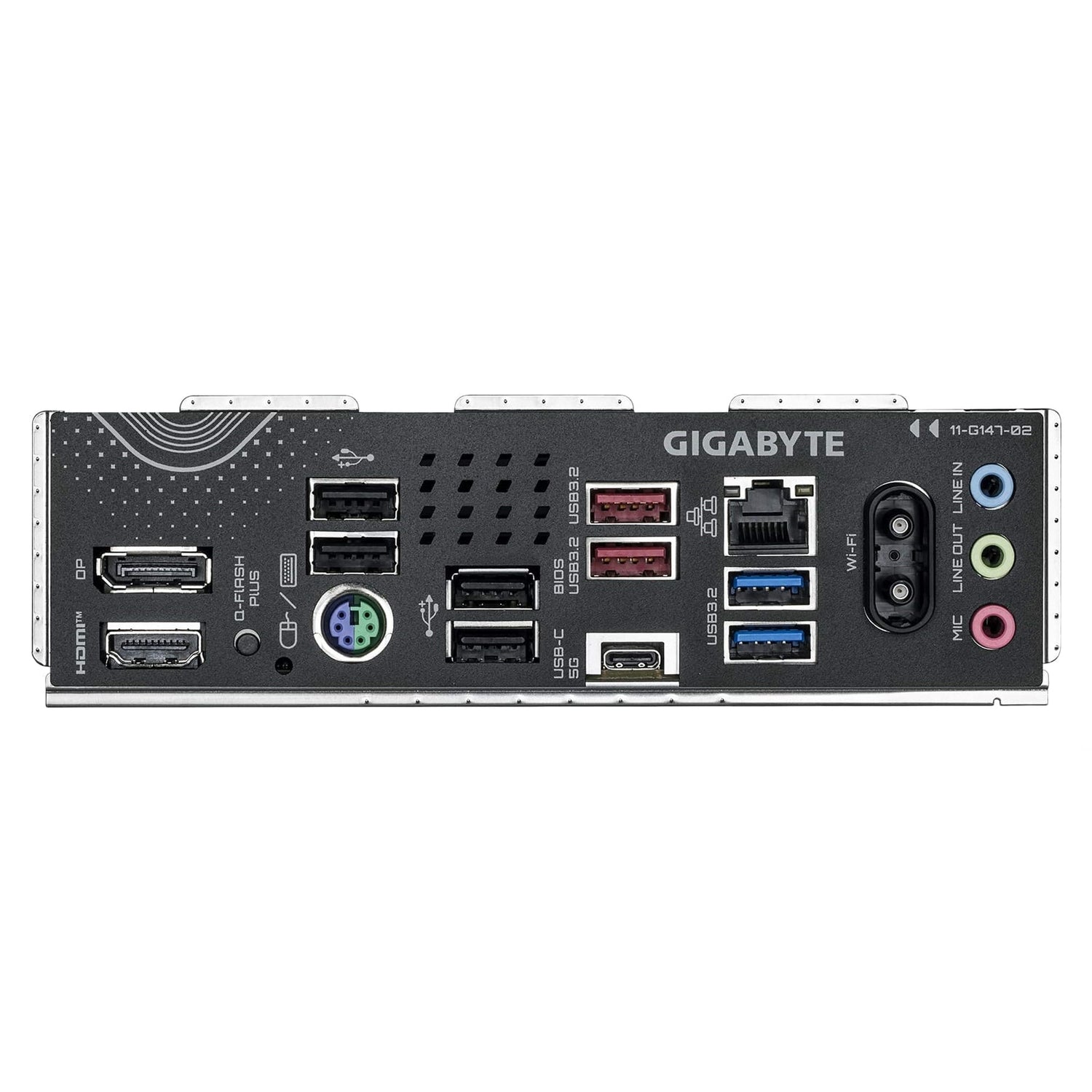

USB

CPU

1 x USB Type-C® port on back panel (USB 3.2 Gen 1)
2 x USB 3.2 Gen 2 Type-A ports (red) on back panel

Chipset

1 x USB Type-C® port with USB 3.2 Gen 1 support (via internal header)
4 x USB 3.2 Gen 1 ports (2 on back panel, 2 via internal header)
4 x USB 2.0/1.1 ports on back panel

Chipset + USB 2.0 Hub

4 x USB 2.0/1.1 ports via internal headers

Internal I/O Connectors

1 x 24‑pin ATX main power connector
1 x 8‑pin ATX 12V power connector
1 x 4‑pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan / water cooling pump header
3 x system fan headers
1 x system fan / water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (for GC‑TPM2.0 SPI / GC‑TPM2.0 SPI 2.0 / GC‑TPM2.0 SPI V2 modules only)
1 x reset jumper
1 x Clear CMOS jumper
