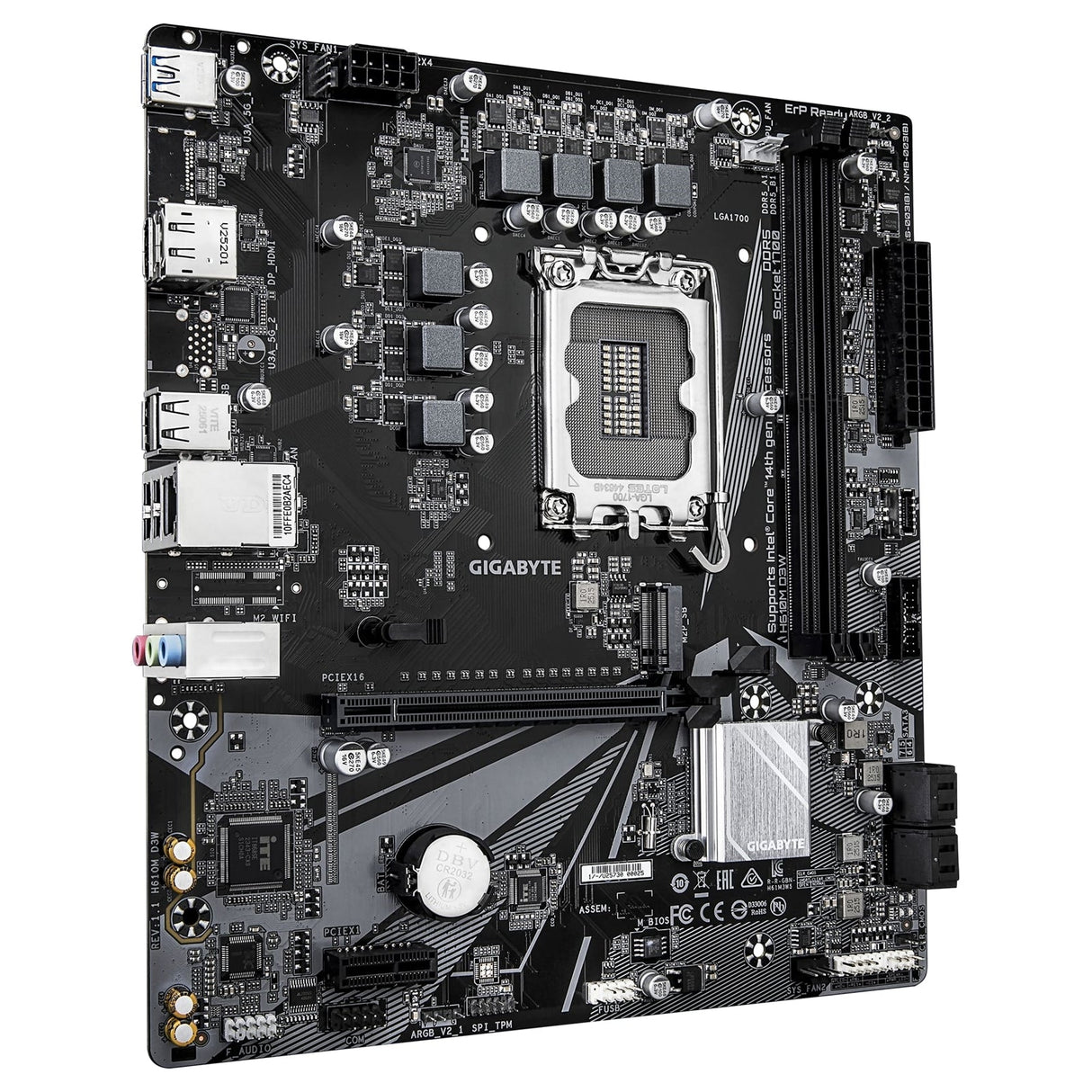

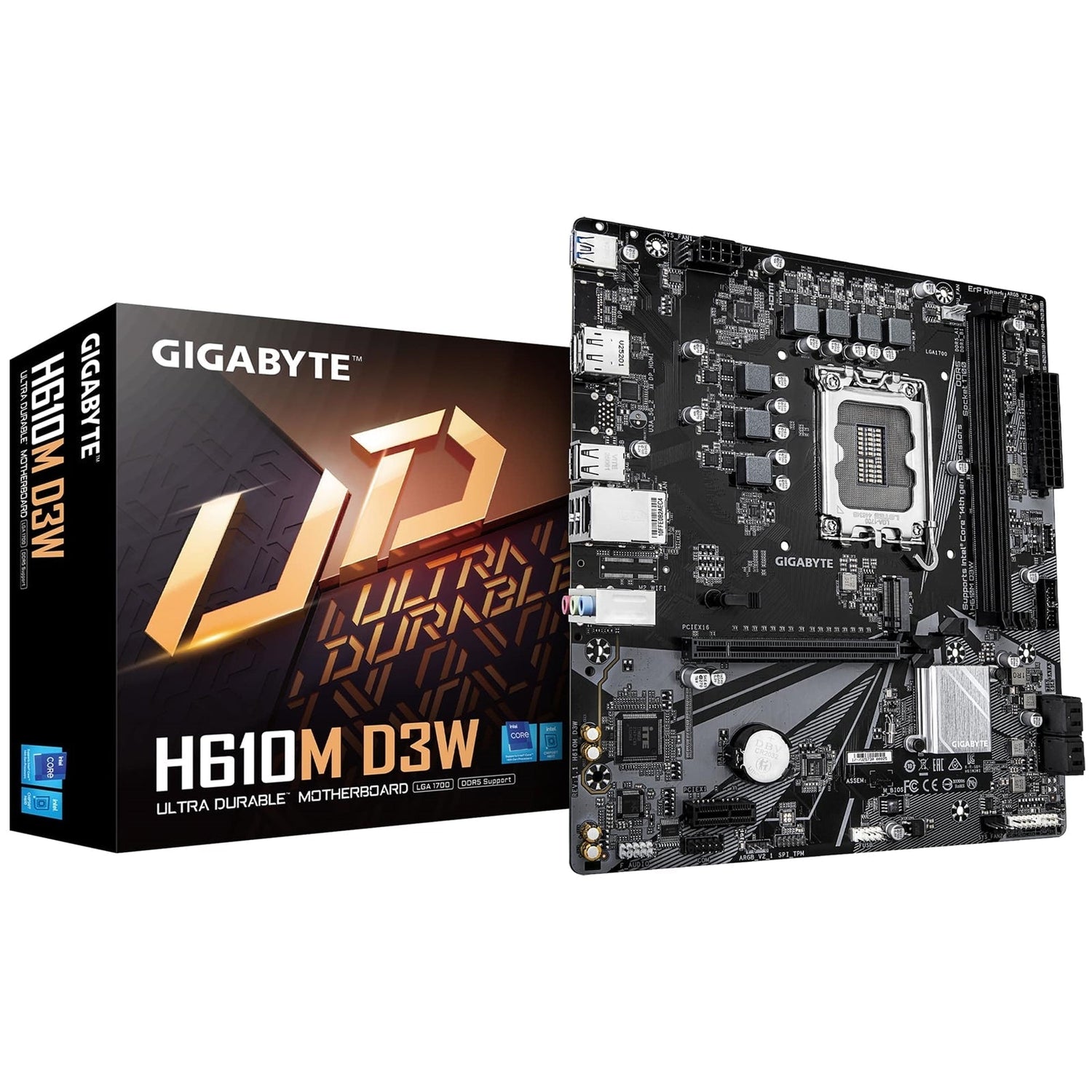

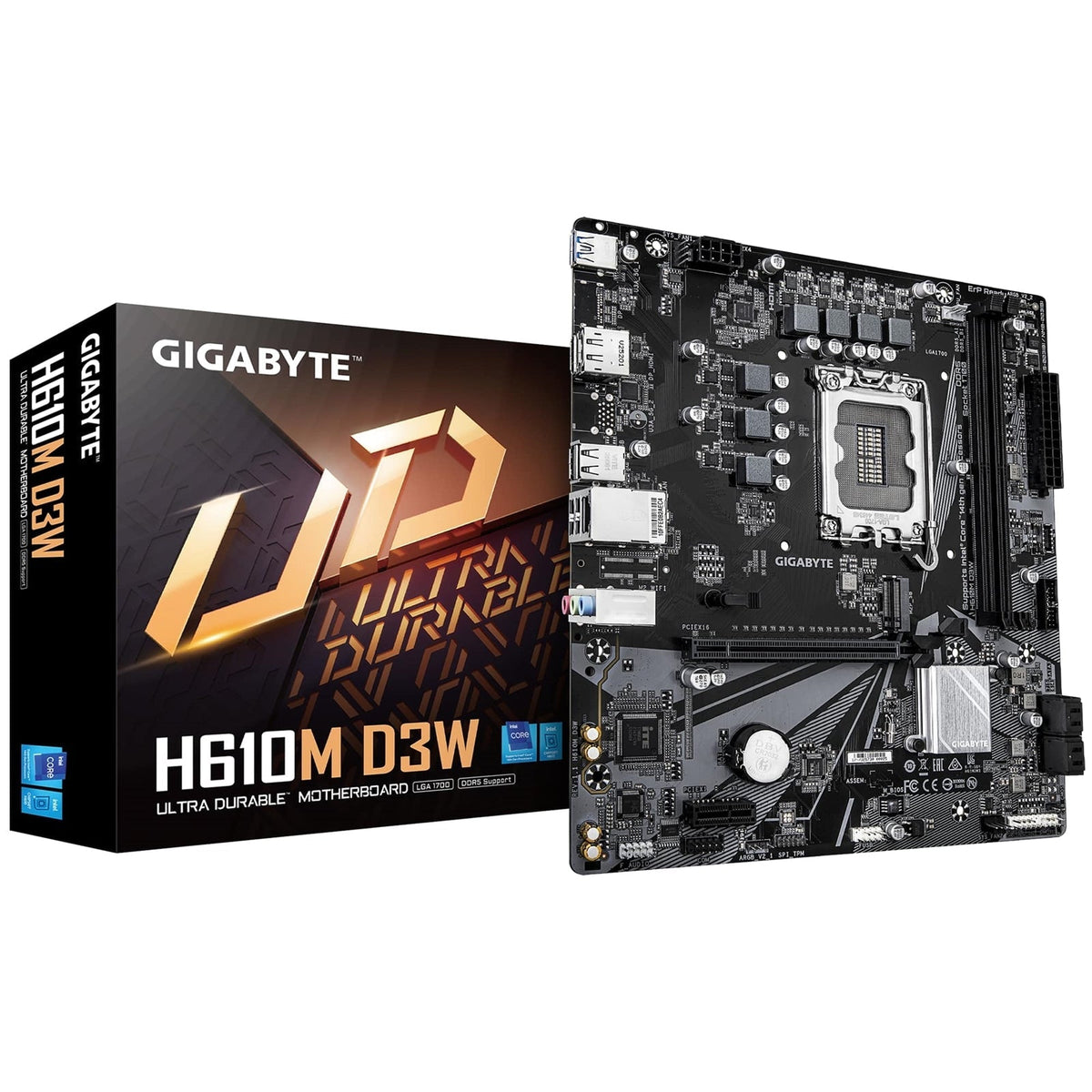

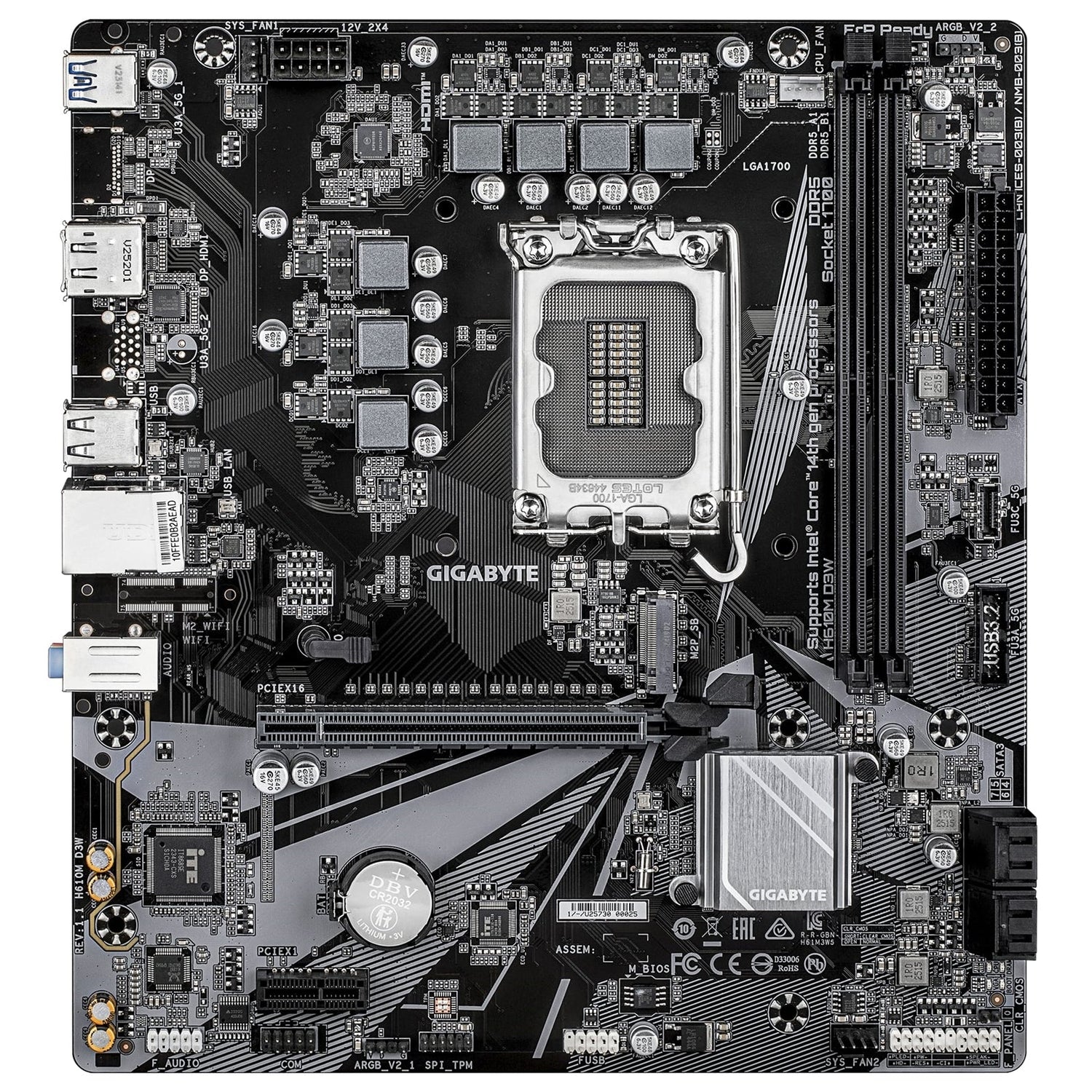

GIGABYTE H610M D3W (Rev. 1.1) Motherboard

The GIGABYTE H610M D3W (Rev. 1.1) is a Micro ATX motherboard designed for Intel® 14th, 13th, and 12th Generation processors, offering reliable performance, DDR5 memory support, and essential connectivity for modern PC builds.

Key Features

• CPU Support
• Supports Intel® Core™ 14th, 13th, and 12th Generation processors
• Supports Intel® Pentium® Gold and Celeron® processors

• LGA1700 socket

• Next-Gen Memory Performance

• Dual Channel DDR5, 2 DIMMs
• Non-ECC Unbuffered DDR5 memory support
• Up to 128 GB system memory (64 GB per DIMM)
• Support for ECC Un-buffered DIMM (operates in non-ECC mode)

• Support for Extreme Memory Profile (XMP) memory modules

• Power Design

• 5+1+1 Hybrid Digital VRM Design

• Storage & Expansion

• NVMe PCIe 3.0 x4 M.2 connector (Socket 3, M key, type 2280)
• 4 x SATA 6Gb/s connectors
• 1 x PCIe 4.0 x16 slot (from CPU)

• 1 x PCIe 3.0 x1 slot (from chipset)

• Display Connectivity

• DisplayPort output
• HDMI output

• Supports multiple displays

• Networking & Audio

• Realtek® GbE LAN
• High Quality Audio Capacitors
• Audio Noise Guard

• Realtek® Audio Codec, supporting up to 7.1-channel audio

• Cooling & Control

• Smart Fan 6 with multiple temperature sensors
• Hybrid fan headers with FAN STOP

• GIGABYTE CONTROL CENTER (GCC) for simple, easy control

• Durability

• Anti-Sulfur Resistors Design

• Form Factor

• Micro ATX, 24.4cm x 22.0cm

Specifications

CPU

(For the latest CPU support list, please refer to GIGABYTE’s website.)

Chipset

Memory

Supported Memory Speeds:

• 14th & 13th Gen Intel® Core™ i9/i7:
• DDR5 5600 / 5200 / 4800 / 4400 MT/s
• 13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, Celeron®:
• DDR5 4800 / 4400 MT/s

(CPU and memory configuration may affect supported memory types, speeds, and number of modules. Please see the “Memory Support List” on GIGABYTE’s website for details.)

BIOS

Graphics

Integrated Graphics Processor (Intel® HD Graphics support, depending on CPU):

(Graphics specifications may vary depending on CPU support.)

Audio

* Functionality of an audio jack can be changed via audio software. To configure 7.1-channel audio, use the audio software settings.

LAN

Expansion Slots

Storage

RAID: N/A

USB

From Chipset:

• 1 x USB Type-C® port with USB 3.2 Gen 1 support (via internal header)
• 3 x USB 3.2 Gen 1 ports
• 1 x rear panel
• 2 x via internal header
• 2 x USB 2.0/1.1 ports via internal header

From Chipset + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on rear panel

Internal Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header (USB 3.2 Gen 1 support)
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

Rear Panel I/O

• 1 x DisplayPort*
• 1 x HDMI port*
• 1 x USB 3.2 Gen 1 port
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

* Refer to “Graphics” section for version and resolution support.

Form Factor

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit
