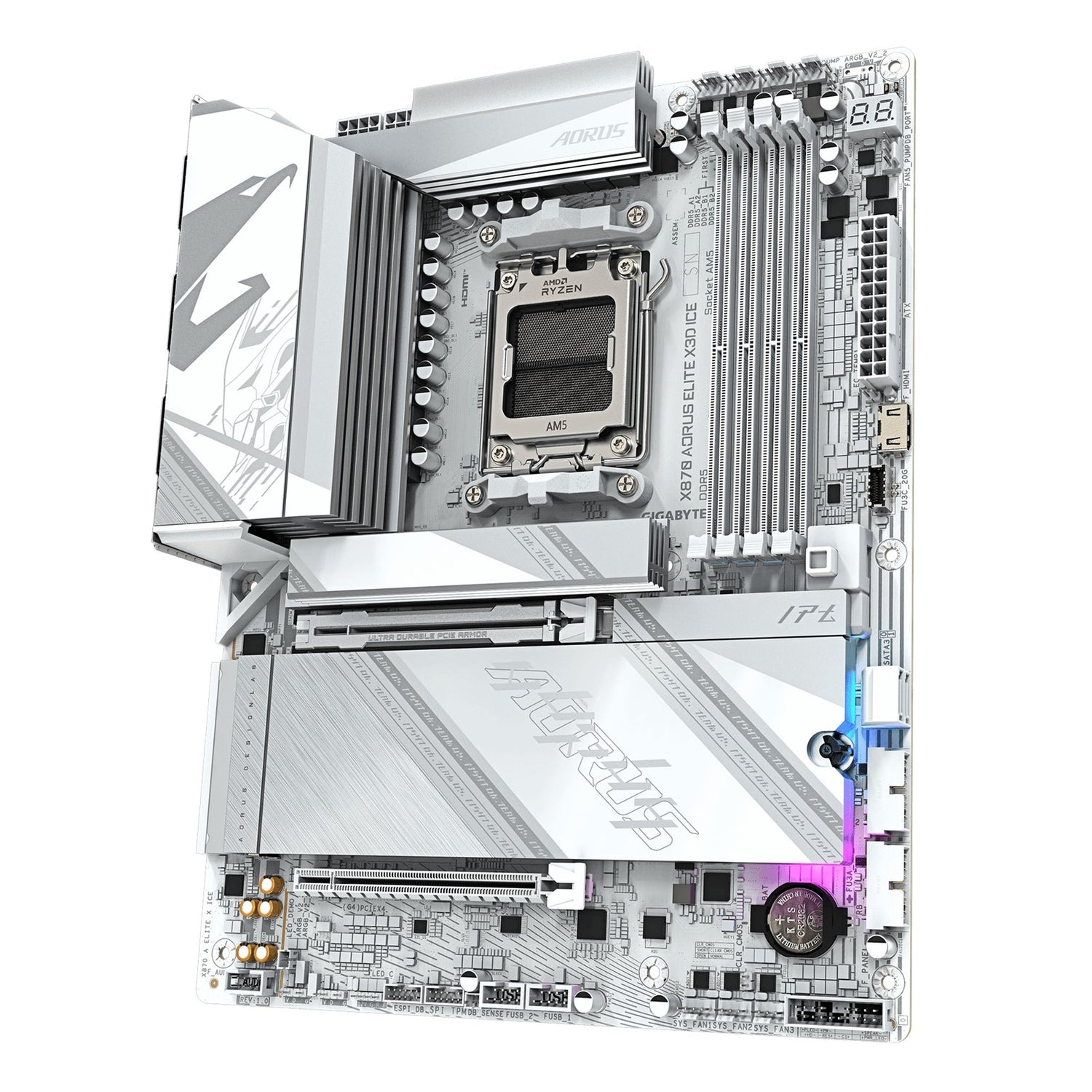

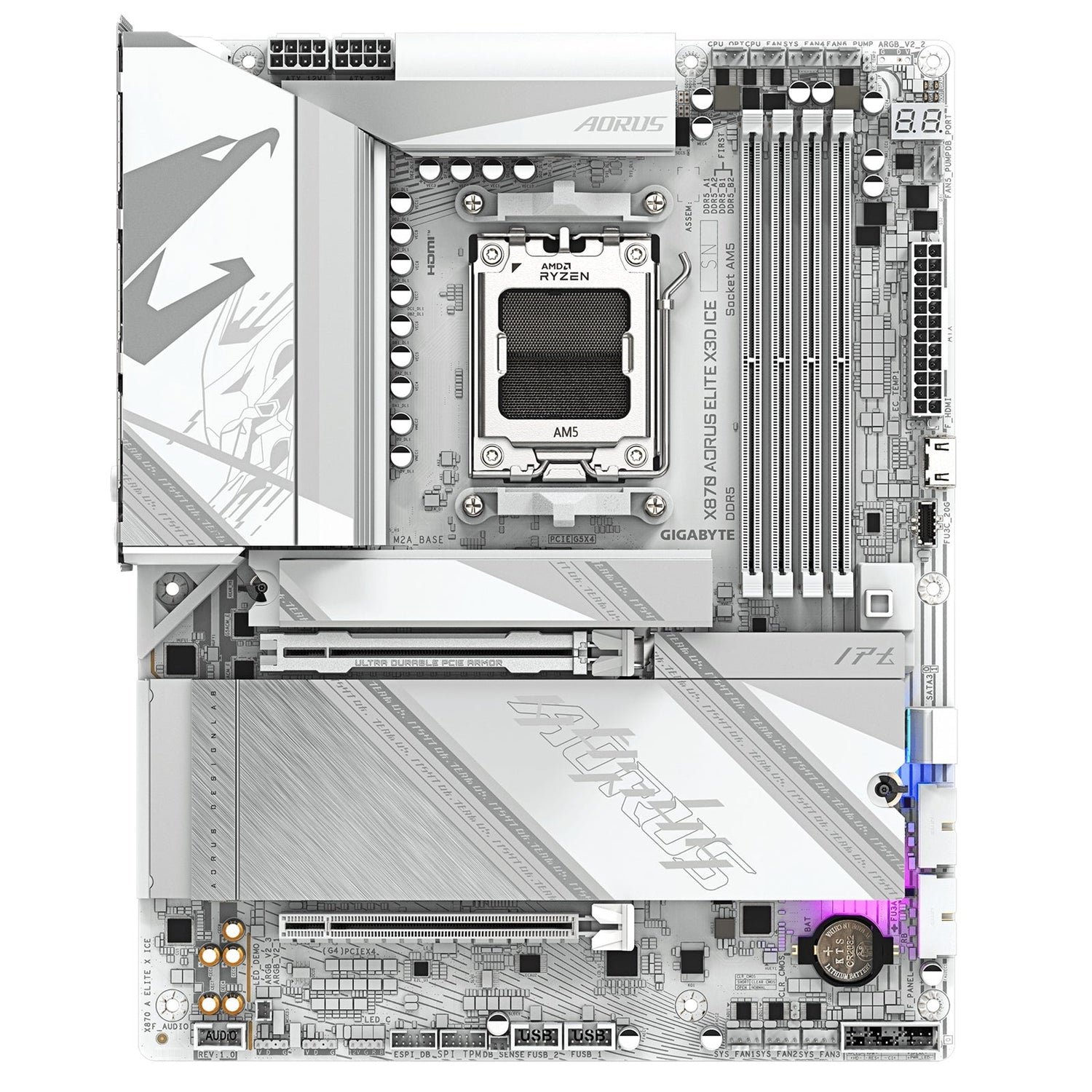

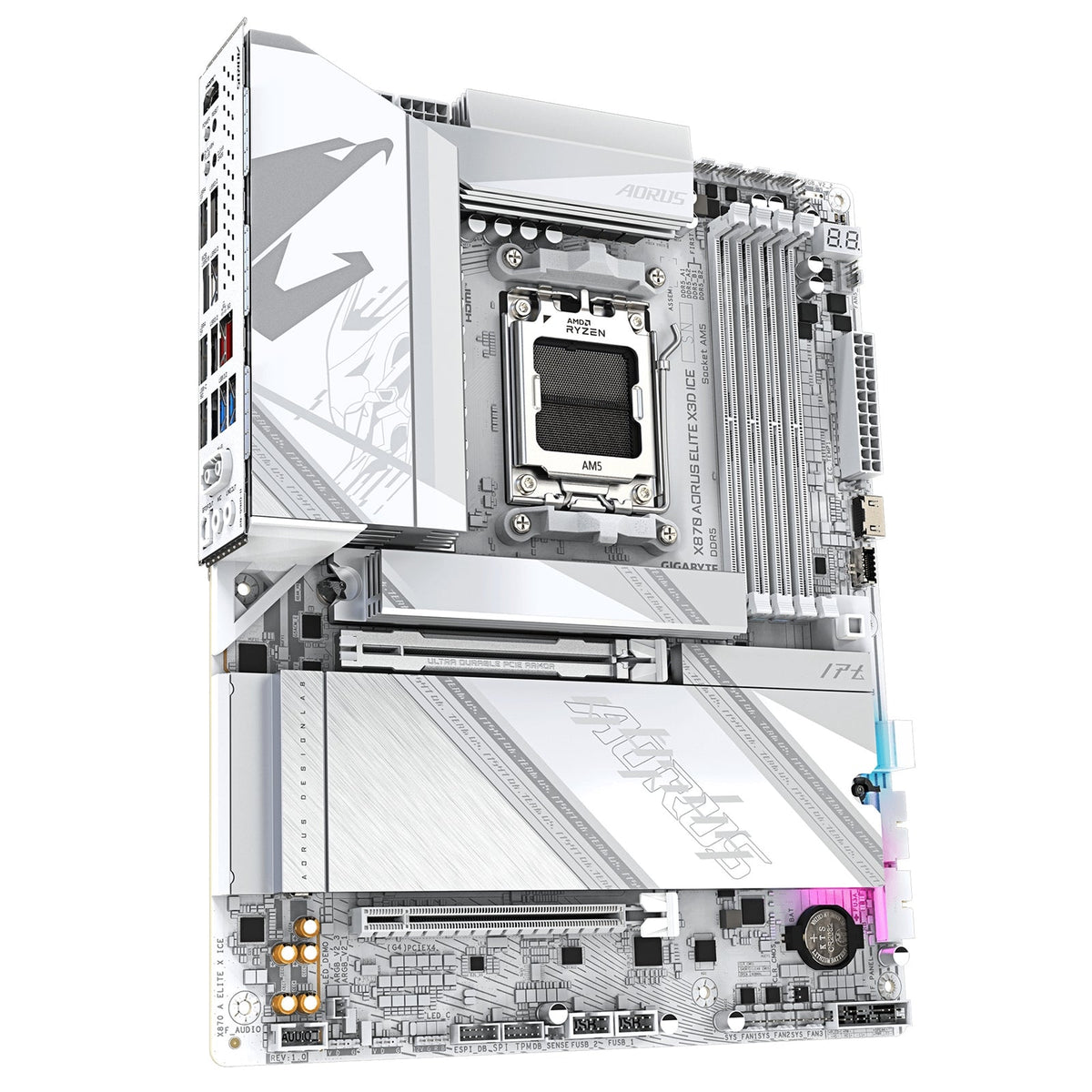

Gigabyte X870 AORUS ELITE X3D ICE AMD AM5 Socket Motherboard

£281.96

GIGABYTE X870 AORUS ELITE X3D ICE

AMD Socket AM5 ATX Gaming Motherboard

The GIGABYTE X870 AORUS ELITE X3D ICE is engineered for next-generation AMD Ryzen™ 9000, 8000, and 7000 Series processors, delivering advanced performance, ultra-fast storage, and extensive connectivity for high-end gaming and content creation builds.

Key Features

Extreme X3D & Memory Performance

X3D Turbo Mode 2.0: A.I.-powered tuning designed to unleash incredible X3D performance.
DDR5 Overclocking: Supports DDR5 OC memory up to 8800 MT/s.
Dual Channel DDR5:
4 × DIMM slots
Supports AMD EXPO™ and XMP memory modules

Robust Power & Thermal Design

Digital Twin 16+2+2 Phases VRM Solution for stable power delivery.
Efficient Thermal Design:
VRM Thermal Armor Advanced
M.2 Thermal Guard L
M.2 Thermal Guard Ext

High-Speed Storage & Expansion

Ultra-Fast Storage:
4 × M.2 slots, including PCIe 5.0 x4 support
PCIe UD Slot X:
PCIe 5.0 x16 slot with reinforced 10X strength for graphics cards

Smart Installation & User Experience

M.2 EZ-Flex: High-efficiency M.2 SSD heat dissipation with flexible patented baseplate.
M.2 EZ-Latch Click & Plus: Quick-release, screwless design on M.2 slots and heatsinks.
WIFI EZ-Plug: Quick and easy Wi-Fi antenna installation.
Friendly UI:
Multi-theme BIOS
AIO fan control
Q-Flash auto scan in BIOS and software

Advanced Networking & Connectivity

Fast Networking:
Realtek® 5GbE LAN
Wi-Fi 7 with directional ultra-high gain antenna
Extended Connectivity:
HDMI
Dual USB4 Type-C with DP-Alt

Specifications

CPU

Item	Description
Socket	AMD Socket AM5
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (See GIGABYTE website for latest support list)

Chipset

Item	Description
Chipset	AMD X870

Memory

Item	Description
Type	DDR5
Supported Speeds	8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s
Slots	4 × DDR5 DIMM sockets
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel
Module Support	Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16
Profile Support	AMD EXPO™ and Extreme Memory Profile (XMP)

Onboard Graphics

Item	Description
Integrated GPU	Integrated Graphics Processor with AMD Radeon™ Graphics support
USB4 Video	2 × USB4® Type-C® ports with DisplayPort video output, max 3840×2160 @ 240 Hz
Rear HDMI	1 × HDMI port, max 4096×2160 @ 60 Hz
Front HDMI	1 × front HDMI port, max 1920×1080 @ 30 Hz

Audio

Item	Description
Codec	Realtek ALC1220
Channels	2 / 4 / 5.1 / 7.1-channel High Definition Audio
DSD Support	Back panel line out jack supports DSD audio
Jack Configuration	Configurable via audio software for up to 7.1-channel output
Digital Output	S/PDIF Out supported

LAN

Item	Description
Controller	Realtek® 5GbE LAN chip
Speeds	5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

Item	Description
Wi-Fi	Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be), 2.4 / 5 / 6 GHz
Bluetooth	Bluetooth 5.4
Wireless Standard	11be 320 MHz support

Expansion Slots

Slot	Interface & Support
PCIEX16 (CPU)	AMD Ryzen™ 9000/7000: PCIe 5.0 x16 mode
	AMD Ryzen™ 8000 Series–Phoenix 1: PCIe 4.0 x8 mode
	AMD Ryzen™ 8000 Series–Phoenix 2: PCIe 4.0 x4 mode
PCIEX4 (Chipset)	1 × PCI Express x16 slot, PCIe 4.0, running at x4

Storage

Connector	Details
M2A_CPU	1 × M.2, Socket 3, M key, type 25110/22110/2580/2280; Ryzen™ 9000/7000: PCIe 5.0 x4/x2; Ryzen™ 8000 Phoenix 1/2: PCIe 4.0 x4/x2
M2B_CPU	1 × M.2, Socket 3, M key, type 22110/2280; Ryzen™ 9000: PCIe 5.0 x4/x2
M2C_SB / M2D_SB	2 × M.2, Socket 3, M key, type 22110/2280; PCIe 4.0 x4/x2 (Chipset)
SATA	2 × SATA 6 Gb/s connectors
RAID (NVMe)	RAID 0, 1, 5, 10 for NVMe SSDs
RAID (SATA)	RAID 0, 1 for SATA devices

USB

Source	Ports
CPU + ASMedia USB4®	2 × USB4® Type-C® ports on back panel
CPU	1 × USB Type-C® (USB 3.2 Gen 2) on back panel
	1 × USB 2.0/1.1 port on back panel
Chipset	1 × USB Type-C® header (USB 3.2 Gen 2x2) via internal header
	2 × USB 3.2 Gen 2 Type-A (red) on back panel
	4 × USB 2.0/1.1 ports on back panel
Chipset + 2 × USB 3.2 Gen 1 Hubs	8 × USB 3.2 Gen 1 ports (4 rear, 4 via internal headers)

Internal I/O Connectors

1 × 24-pin ATX main power connector
2 × 8-pin ATX 12V power connectors
1 × CPU fan header
1 × CPU fan/water cooling pump header
4 × system fan headers
2 × system fan/water cooling pump headers
3 × addressable RGB Gen2 LED strip headers
1 × RGB LED strip header
4 × M.2 Socket 3 connectors
2 × SATA 6 Gb/s connectors
1 × front panel header
1 × front panel audio header
1 × USB Type-C® header (USB 3.2 Gen 2x2)
2 × USB 3.2 Gen 1 headers
2 × USB 2.0/1.1 headers
1 × Trusted Platform Module header (GC-TPM2.0 SPI V2 only)
1 × HDMI port (Note)
1 × reset jumper
1 × Clear CMOS jumper
2 × temperature sensor headers
1 × noise detection header

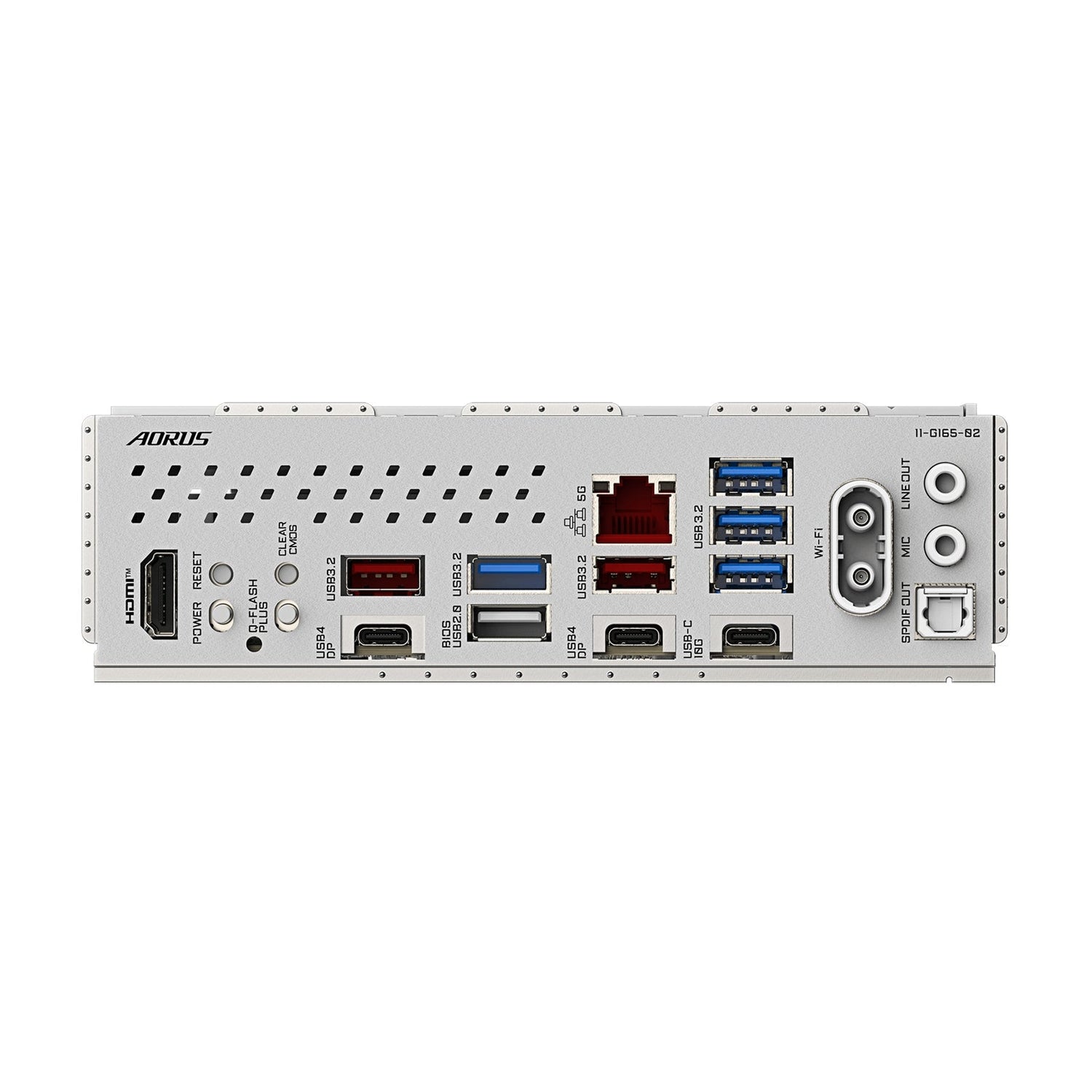

Back Panel Connectors

1 × HDMI port (Note)
1 × power button
1 × reset button
1 × Q-Flash Plus button
1 × Clear CMOS button
2 × USB4® Type-C® ports (DisplayPort support, Note)
1 × USB Type-C® port (USB 3.2 Gen 2)
2 × USB 3.2 Gen 2 Type-A (red)
4 × USB 3.2 Gen 1 ports
1 × USB 2.0/1.1 port
1 × RJ-45 (5GbE LAN) port
2 × antenna connectors (2T2R)
1 × optical S/PDIF Out connector
2 × audio jacks

I/O Controller & Monitoring

Item	Description
Controller	iTE I/O Controller chip
Monitoring	Voltage, temperature, fan speed, water cooling flow rate detection
Alerts	Fan fail warning
Control	Fan speed control (dependent on installed fan/pump)

BIOS

Item	Description
ROM	1 × 512 Mbit flash
Type	AMI UEFI BIOS (licensed)
Standards	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
Available applications and functions depend on motherboard model and specifications
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
