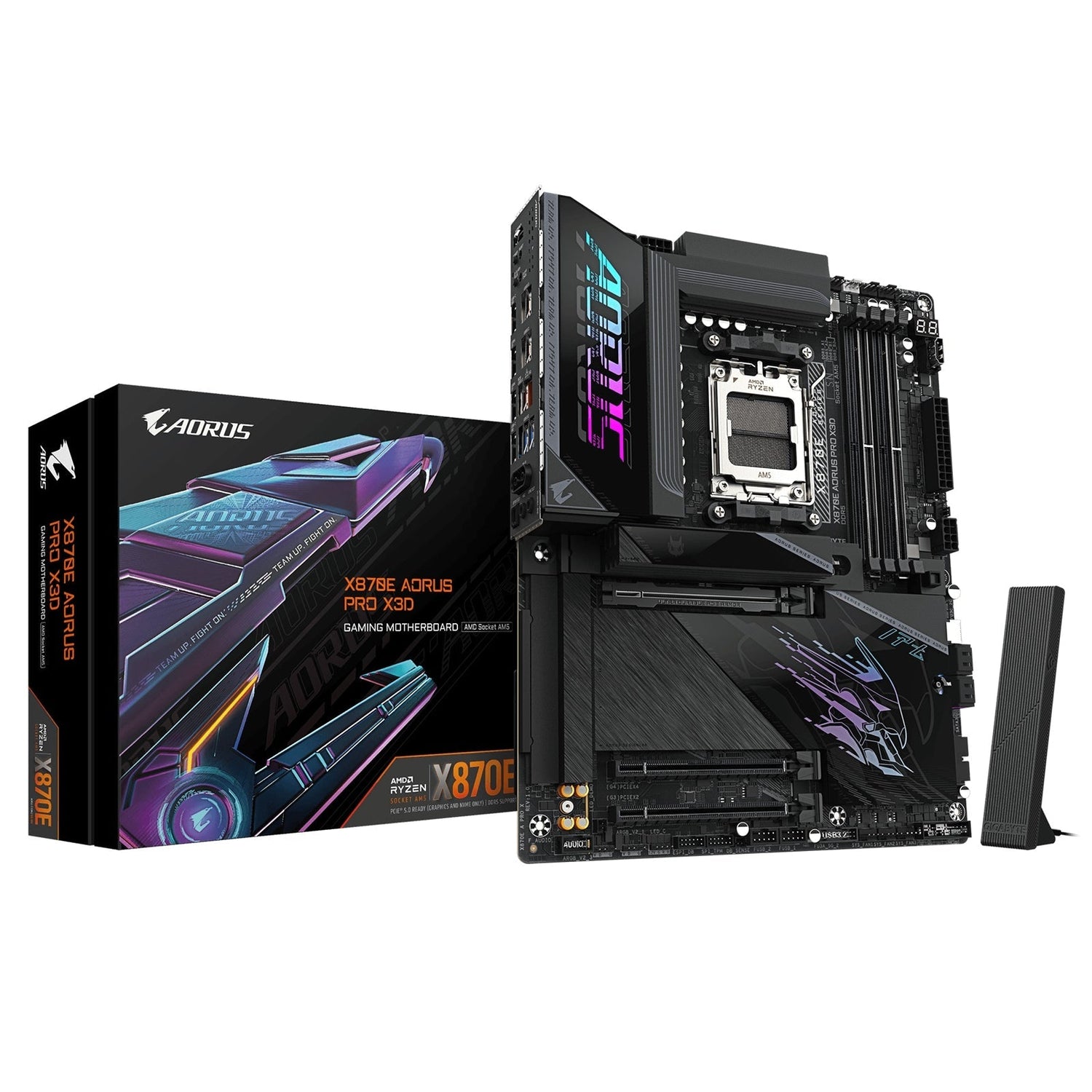

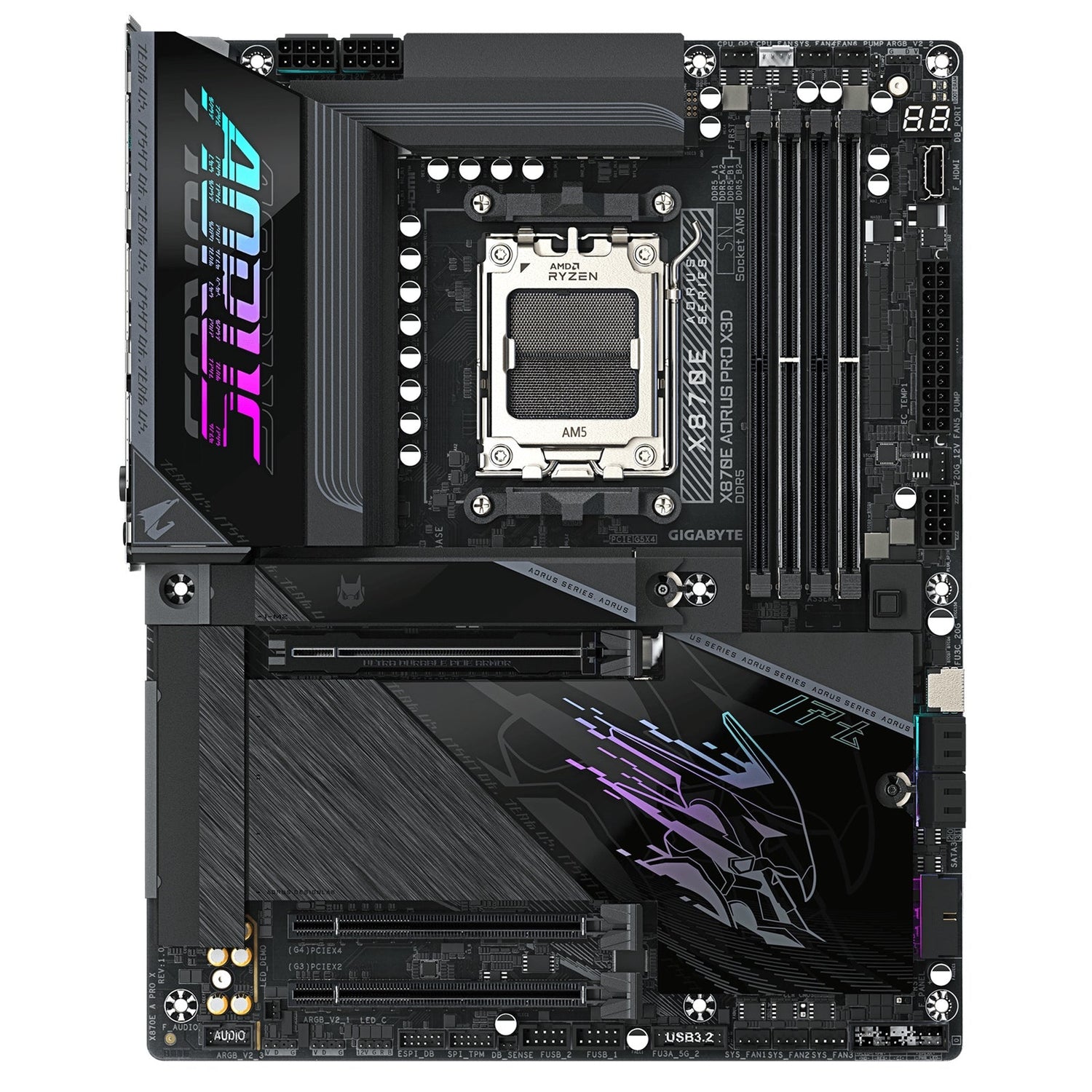

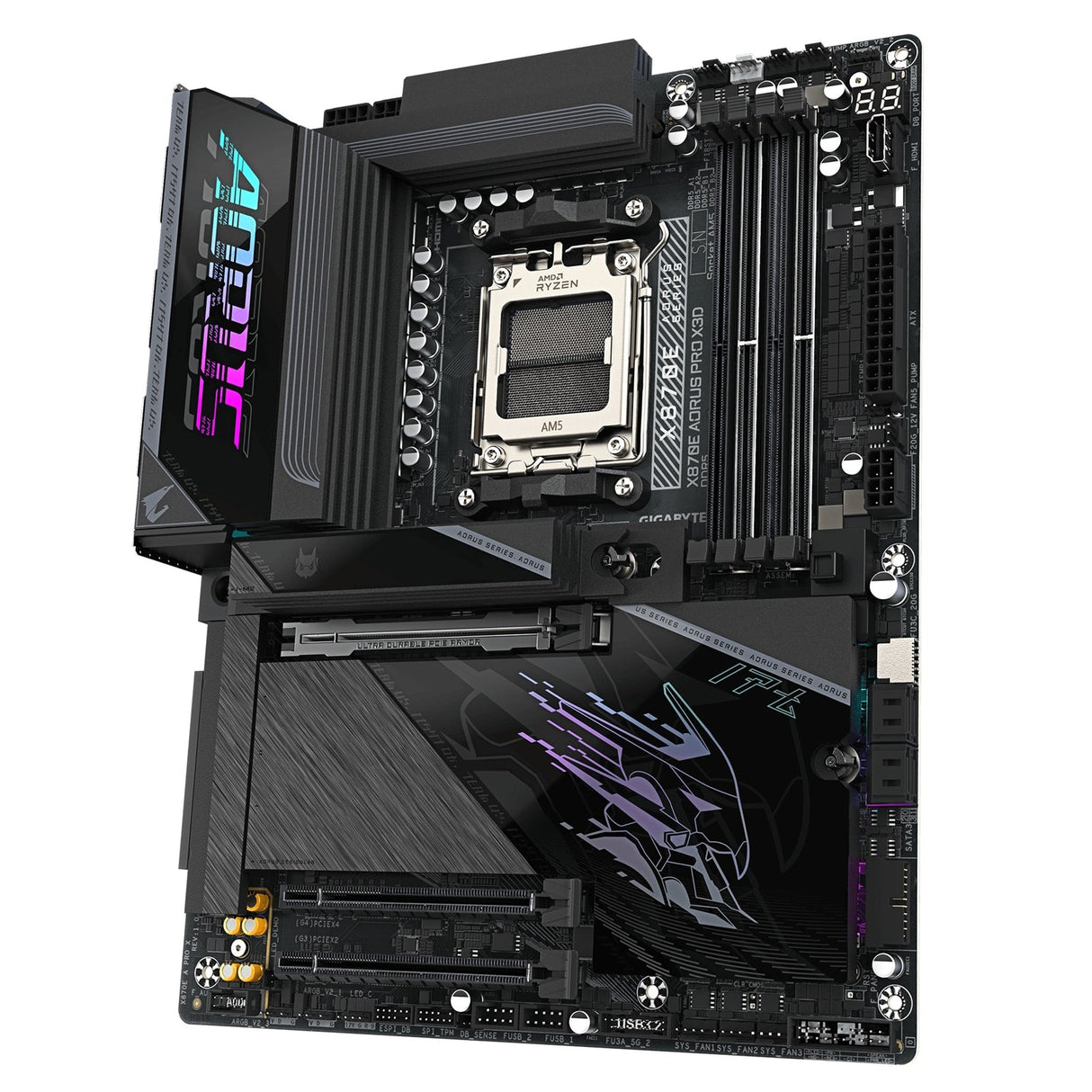

Gigabyte X870E AORUS PRO X3D AMD AM5 Socket Motherboard

Name: Gigabyte X870E AORUS PRO X3D AMD AM5 Socket Motherboard
Brand: GIGABYTE
Price: 370.88 GBP
Availability: InStock

£370.88

(inc VAT)

Free Delivery: Friday 11th - Monday 14th.
If You Order In The Next 1hrs 35mins

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

Gigabyte X870E AORUS PRO X3D AMD AM5 Socket Motherboard

£370.88

X870E AORUS PRO X3D Motherboard

Key Features

X3D Turbo Mode 2.0
AIDDR5 OC up to 9000 MT/s
Designed for incredible X3D performance
DriverBIOS Convenience
Wi-Fi driver pre-install
Power-On & easy network launch
AMD Socket AM5 Support
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
Robust Power Design
Digital twin 18+2+2 phases VRM solution
High-Speed DDR5 Memory
Dual Channel DDR5
4 x DIMM with AMD EXPO™ support
M.2 Design & Cooling
M.2 EZ-Flex: high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
M.2 EZ-Latch Click & Plus: quick-release, screwless design for M.2 slots and heatsinks
User-Friendly Wi-Fi & BIOS
WIFI EZ-Plug: quick, easy antenna installation
Friendly UI: multi-theme, AIO fan control, and Q-Flash auto scan in BIOS and software
Ultra-Fast Storage
4 x M.2 slots, including PCIe 5.0 x4
Enhanced Thermal & Stability

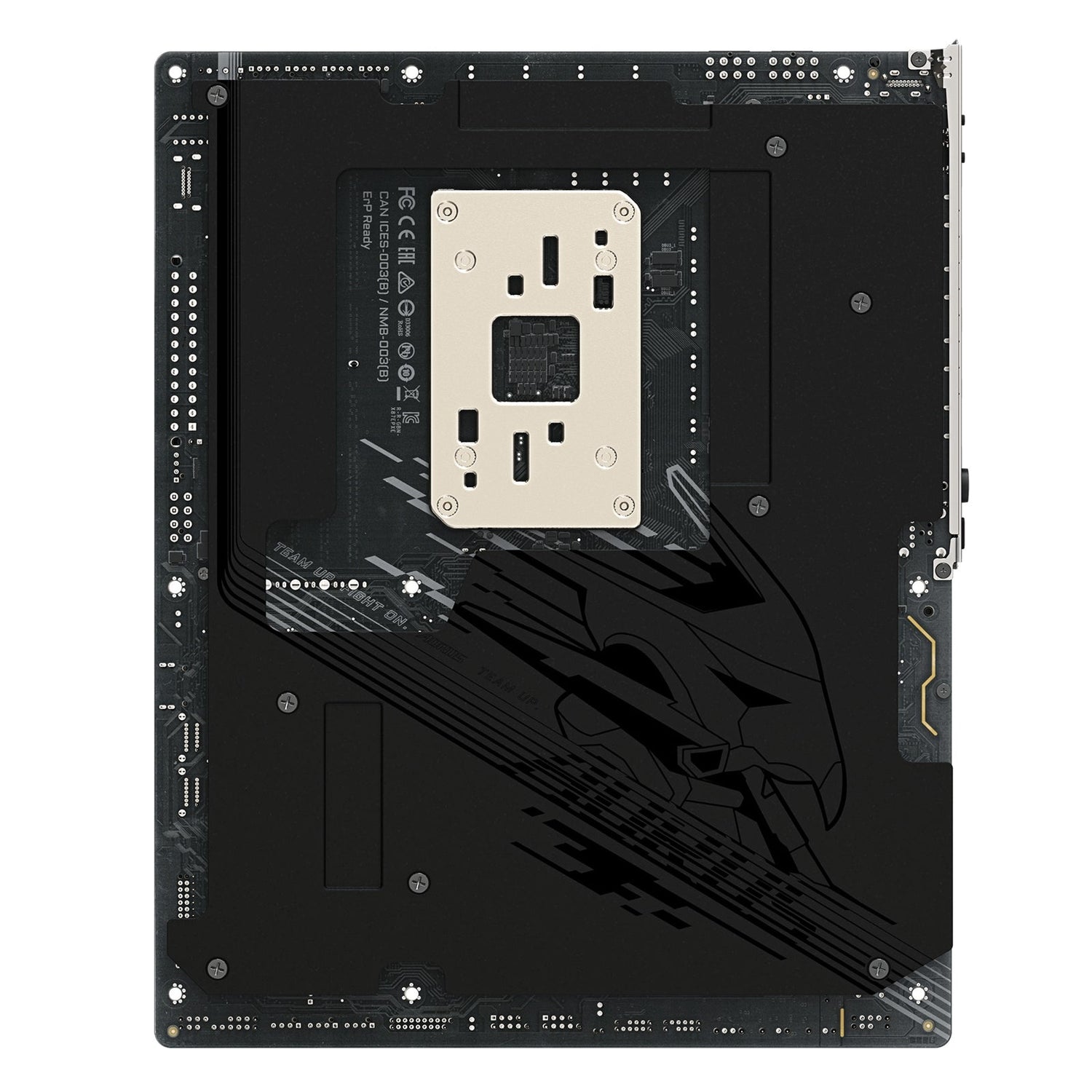

PCB thermal plate with 14% thermal improvement and reinforced stability
Efficient thermal design with VRM Thermal Armor Advanced, M.2 Thermal Guard L & M.2 Thermal Guard Ext
High-Speed Networking
5GbE LAN

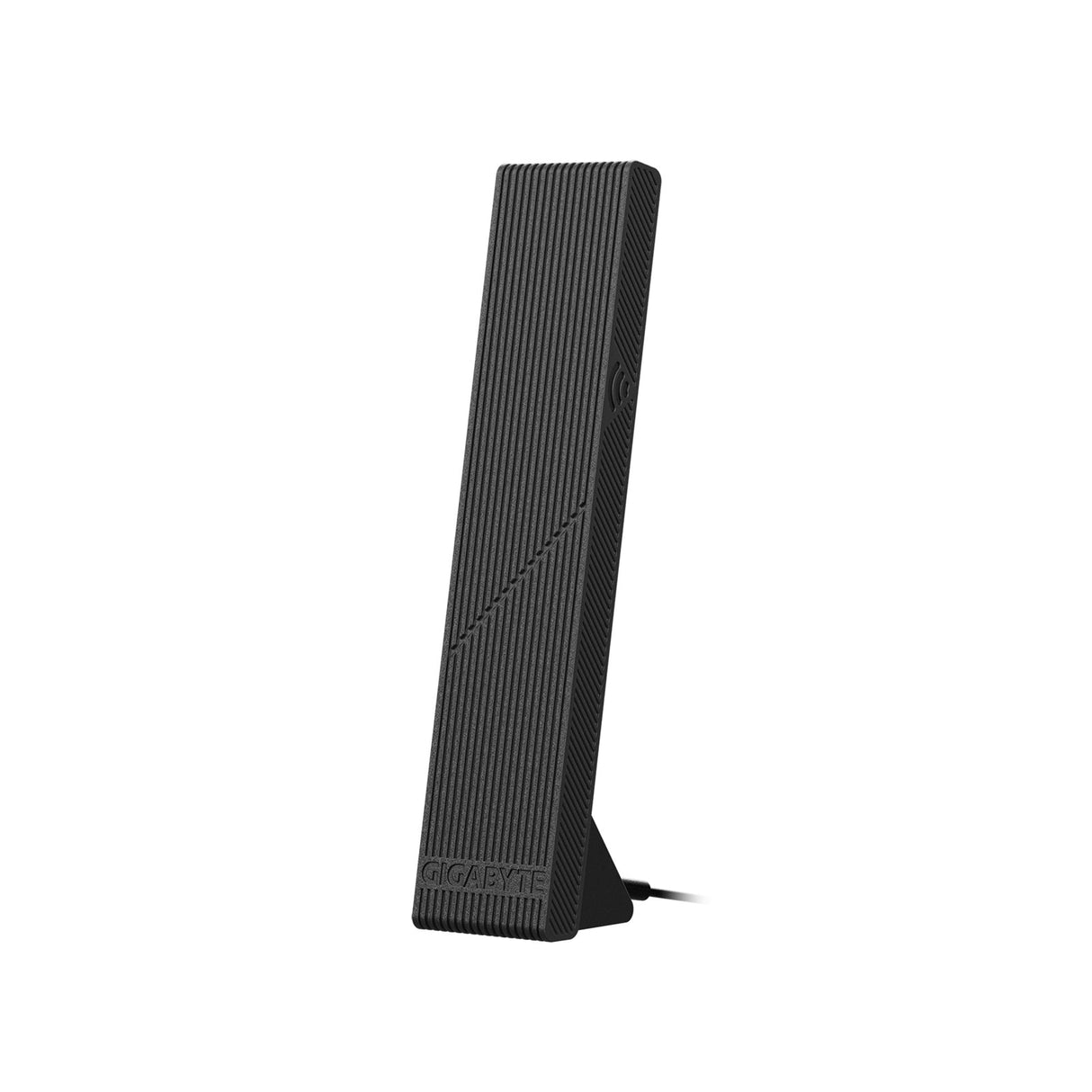

Wi-Fi 7 with directional ultra-high gain antenna

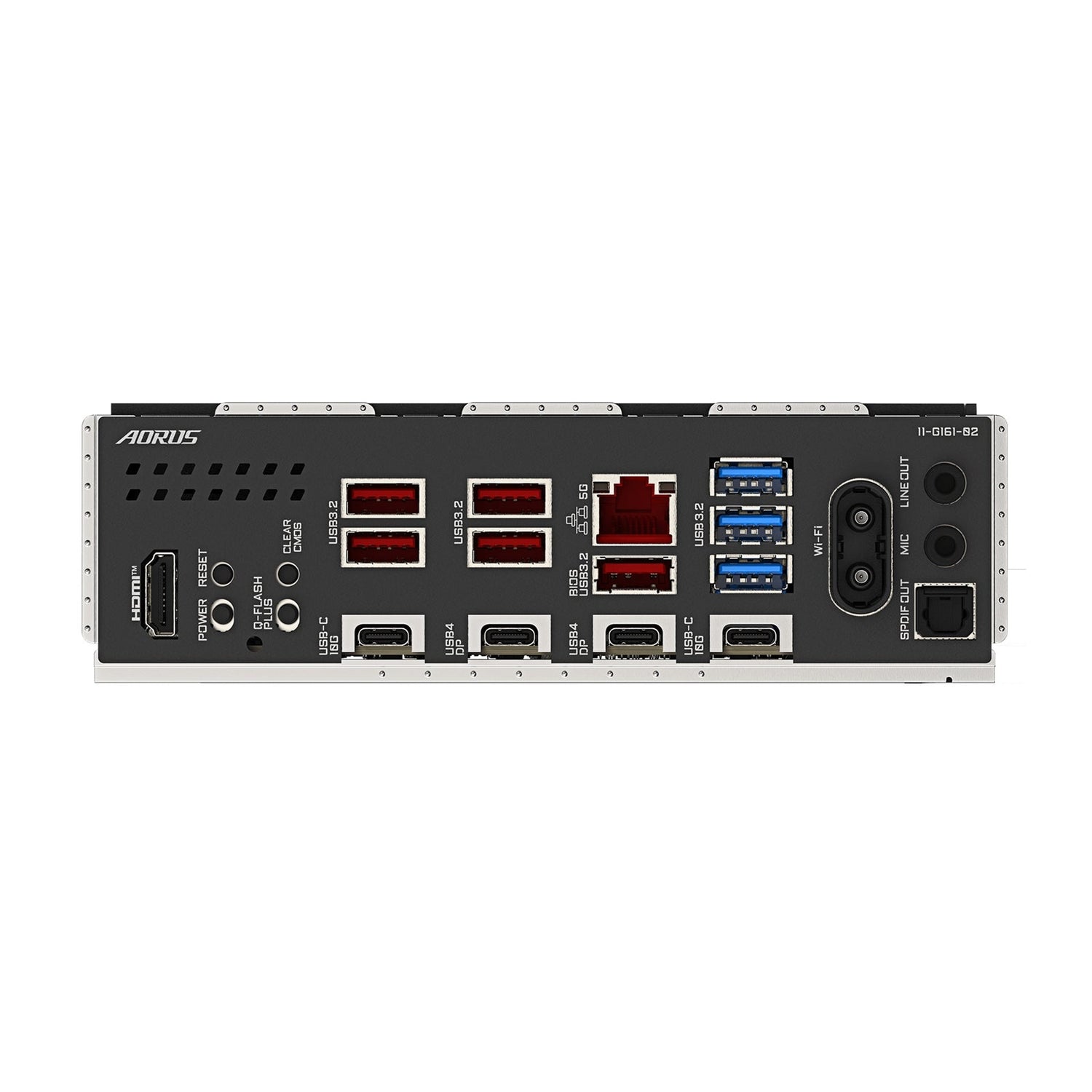

Extended Connectivity
HDMI
Dual USB4 Type-C with DP-Alt
Front QC-USB 65W
Reinforced Graphics Slot
PCIe UD Slot X: PCIe 5.0 x16 with 10x strength for graphics card

Specifications

CPU

Item	Details
Socket	AMD Socket AM5
Supported CPUs	AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

Chipset

Item	Details
Chipset	AMD X870E

Memory

Item	Details
Memory Type	DDR5
Supported Speeds	9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s
Slots	4 x DDR5 DIMM sockets
Maximum Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel
Module Support	Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Profile Support	AMD EXPO™ and XMP memory modules

Onboard Graphics

Item	Details
Integrated GPU	Integrated Graphics Processor with AMD Radeon™ Graphics support
USB4 Display	2 x USB4® Type-C® ports (ASMedia USB4® Controller), supporting USB4 and DisplayPort, max 3840x2160@240 Hz
Rear HDMI	1 x HDMI port, max 4096x2160@60 Hz
Front HDMI	1 x front HDMI port, max 1920x1080@30 Hz

Audio

Item	Details
Codec	Realtek® ALC1220
Audio Type	High Definition Audio
Channels	2/4/5.1/7.1-channel
Digital Output	S/PDIF Out support

LAN

Item	Details
Controller	Realtek® 5GbE LAN chip
Speeds	5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

Item	Details
Controller	Qualcomm® Wi-Fi 7 QCNCM865
Standards	802.11a/b/g/n/ac/ax/be
Bands	2.4 / 5 / 6 GHz
Bluetooth	Bluetooth 5.4
Wireless Standard	11be 320 MHz support

Expansion Slots

Slot	Interface / Source	Mode Support
1 x PCIEX16	CPU	AMD Ryzen™ 9000/7000: PCIe 5.0 x16 mode
		AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode
		AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode
1 x PCIEX4	Chipset	PCIe 4.0 x4
1 x PCIEX2	Chipset	PCIe 3.0 x2

Storage

Connector	Source	Type / Key	Supported Sizes	Interface Support
1 x M2A_CPU	CPU	Socket 3, M key	25110/22110/2580/2280	Ryzen™ 9000/7000: PCIe 5.0 x4/x2 SSDs; Ryzen™ 8000 Phoenix 1/2: PCIe 4.0 x4/x2 SSDs
1 x M2B_CPU	CPU	Socket 3, M key	22110/2280	Ryzen™ 9000: PCIe 5.0 x4/x2 SSDs
2 x M2C_SB, M2D_SB	Chipset	Socket 3, M key	22110/2280	PCIe 4.0 x4/x2 SSDs
4 x SATA	Chipset	SATA 6Gb/s	—	SATA devices

RAID Support
- NVMe SSDs: RAID 0, 1, 5, 10
- SATA devices: RAID 0, 1, 10

USB

CPU + ASMedia USB4® Controller
- 2 x USB4® Type-C® ports on the back panel

CPU
- 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2)

Chipset + USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports (via internal headers)

Chipset
- 1 x USB Type-C® internal header with USB 3.2 Gen 2x2 support (up to 65W PD 3.0/QC 4+ fast charging)
- 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2)
- 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports (via internal headers)
