LM386
£3.69

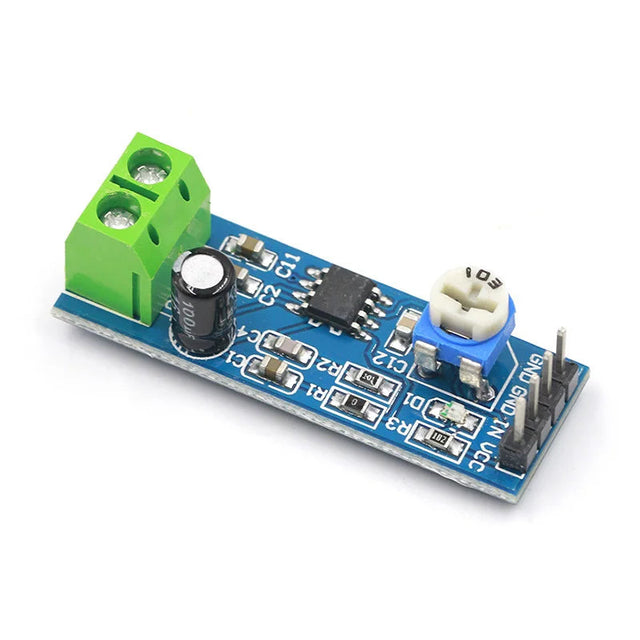

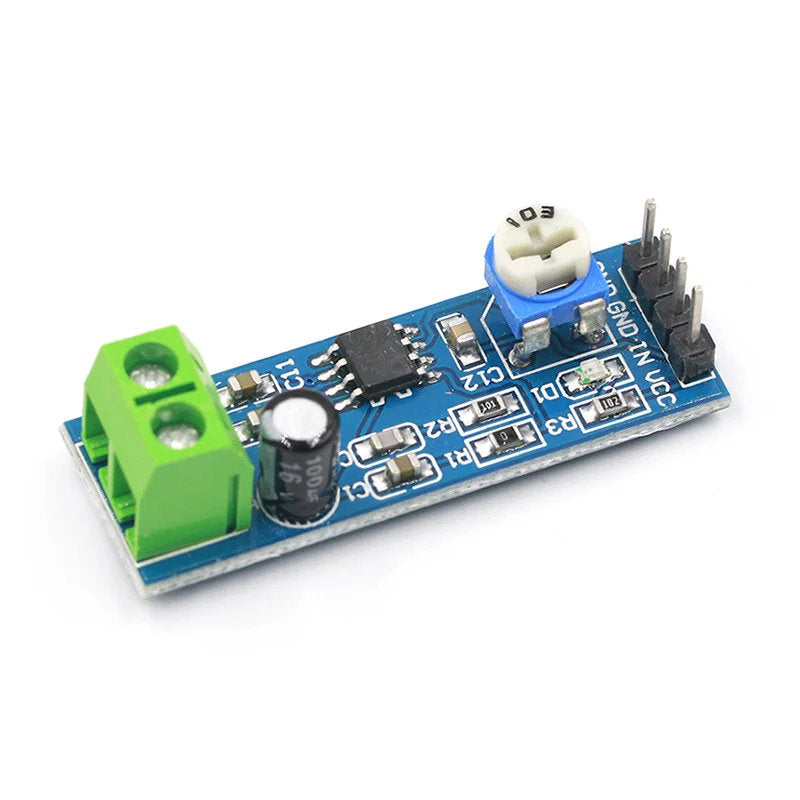

LM386 Audio Amplifier Module with Volume Control
The LM386 is a compact audio amplifier module designed for simple and efficient audio amplification. It features on-board terminal blocks for direct speaker connection and an integrated potentiometer for easy volume adjustment, making it well suited for low-voltage audio projects.
Key Features
-
Static 2 mA low power consumption
-
Input voltage: 4 to 12 V DC
-
Gain: 200×
-
Low distortion
-
On-board volume potentiometer (turn clockwise to increase volume)
-
Power indicator LED
-
On-board terminal block for speaker connection
Pinout
-
GND: Ground
-
VCC: Voltage supply
-
IN: Audio signal input
-
Terminal Block: Speaker connection
Specifications
| Parameter | Description |
|---|---|
| Amplifier IC | LM386 |
| Input Voltage | 4–12 V DC |
| Gain | 200× |
| Power Consumption | 2 mA (static) |
| Volume Control | On-board potentiometer |
| Indicators | Power LED |
| Output Connection | Speaker terminal block |
This LM386 audio amplifier module offers a straightforward solution for amplifying audio signals with minimal power usage and simple connectivity.
