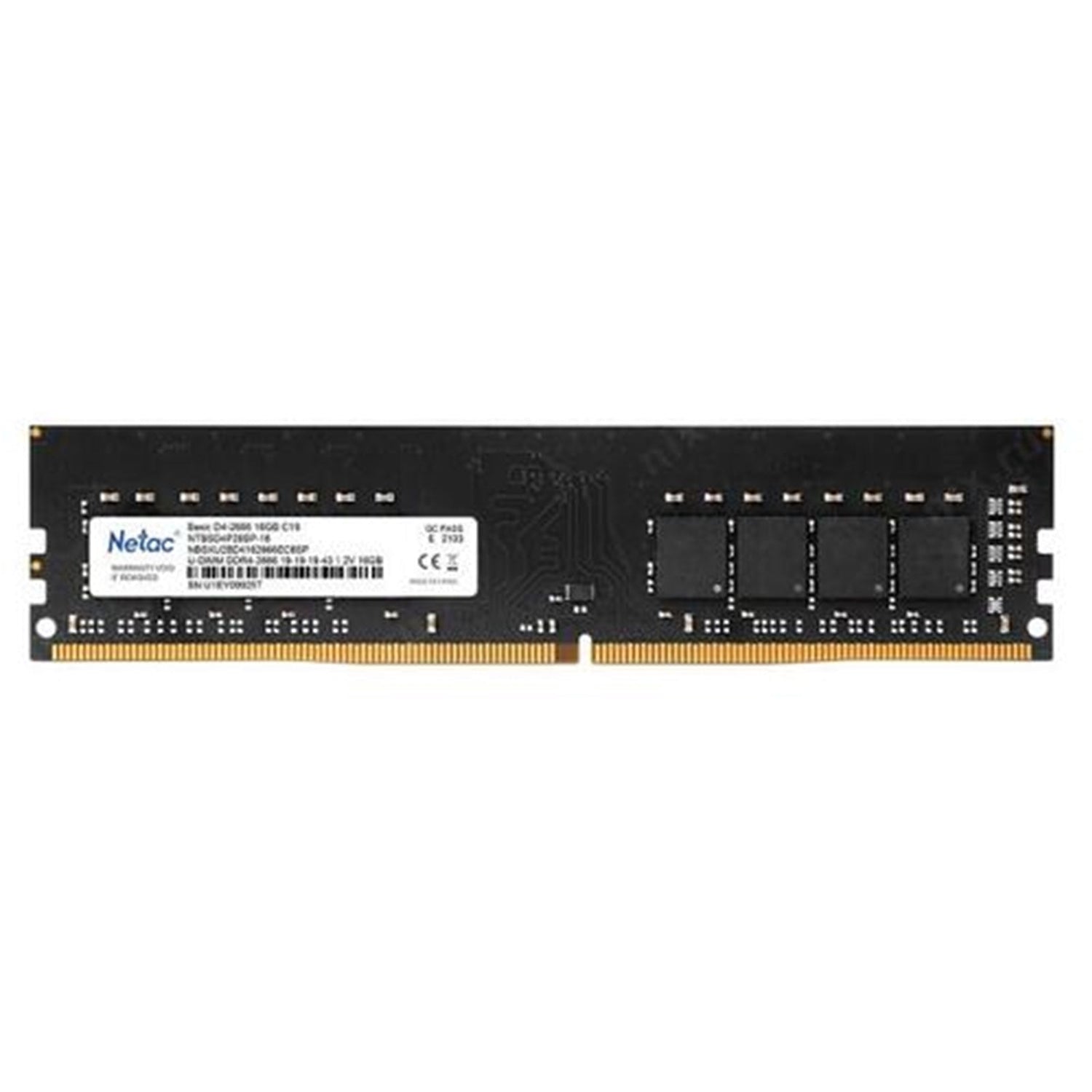

Netac Basic NTBSD4P26SP-16 16GB (1x 16GB) DIMM System Memory, 2666MHz, DDR4, CL19

Netac 16GB DDR4 2666 MHz Unbuffered SDR4 DIMM – Black

Netac Unbuffered DDR4 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low-power, high-speed memory modules designed for use as main memory in systems such as PCs. Each 288‑pin DIMM features gold contact fingers for reliable connectivity and performance.

Key Features

• Unbuffered DDR4 SDRAM DIMM
• Low power, high-speed operation
• 288‑pin module with gold edge contacts
• Intended for use as main memory in PCs
• RoHS compliant and halogen-free

Advanced DDR4 Technologies

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• On-board I²C serial presence-detect (SPD) EEPROM
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Databus write cyclic redundancy check (CRC)
• Temperature controlled refresh (TCR)
• Command/Address (CA) parity
• Per DRAM addressability support
• 8‑bit pre-fetch
• Fly-by topology
• Command/Address latency (CAL)
• Terminated control, command, and address bus
• PCB height: 1.23" (31.25 mm)
• Colour: Black
• No backlight
