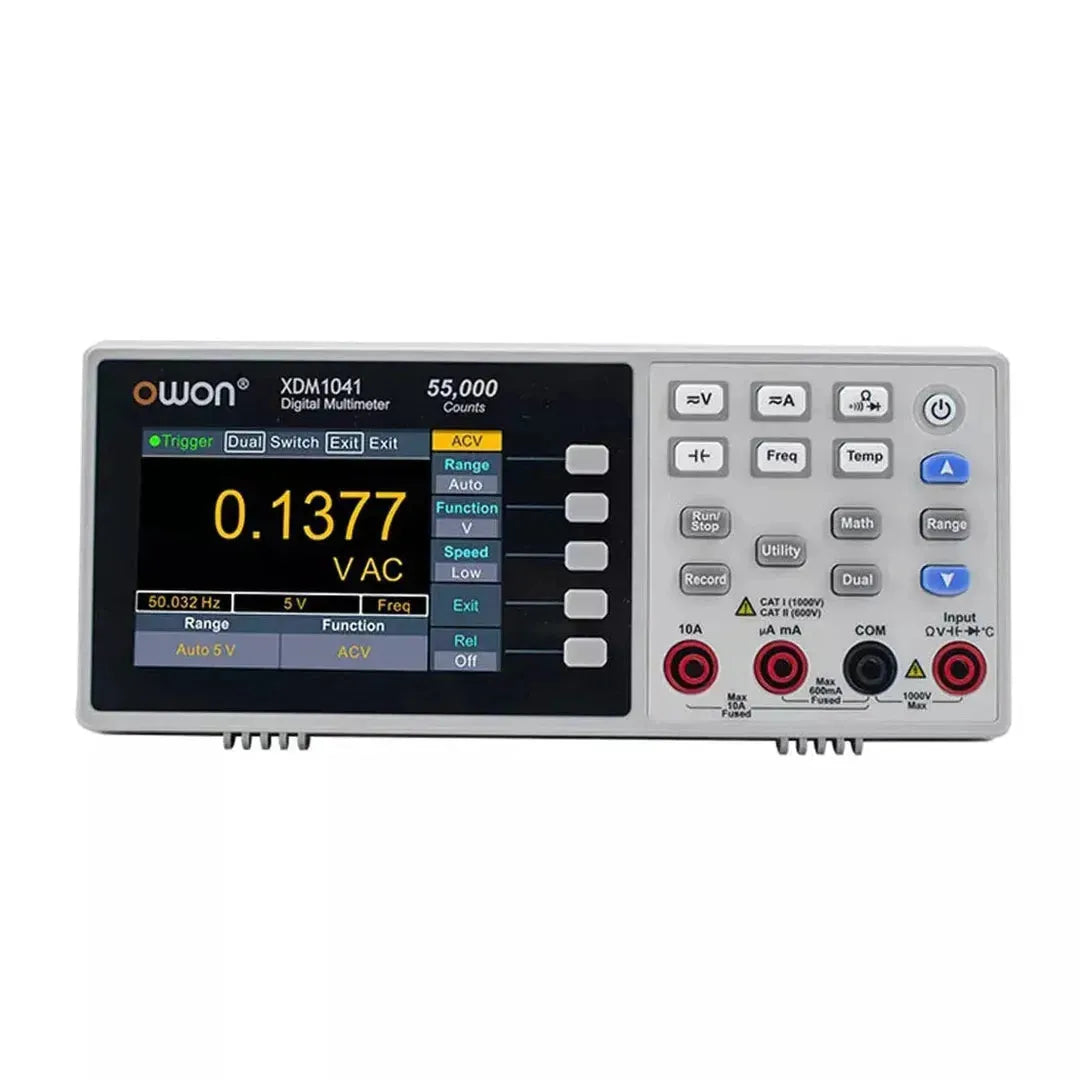

XDM1041 Digital Multimeter

Description:

XDM1041 Digital Multimeter

Specifications:

 1. High-Precision Display: 55,000 counts with DC voltage accuracy up to 0.05%.

2. Versatile Measurement Functions: Capable of measuring DC/AC voltage, DC/AC current, resistance, capacitance, continuity, diode testing, temperature, AC+frequency (AC+Hz), maximum, minimum, and average values (MAX/MIN/AVG), and relative values.

3. Fast Measurement Rate: Up to 65 measurements per second.

4. True RMS AC Measurement: AC true effective value measurement with a bandwidth of 20Hz-1kHz.

5. Data Recording: Features manual and automatic recording functions, with internal data storage that can be displayed in a table format.

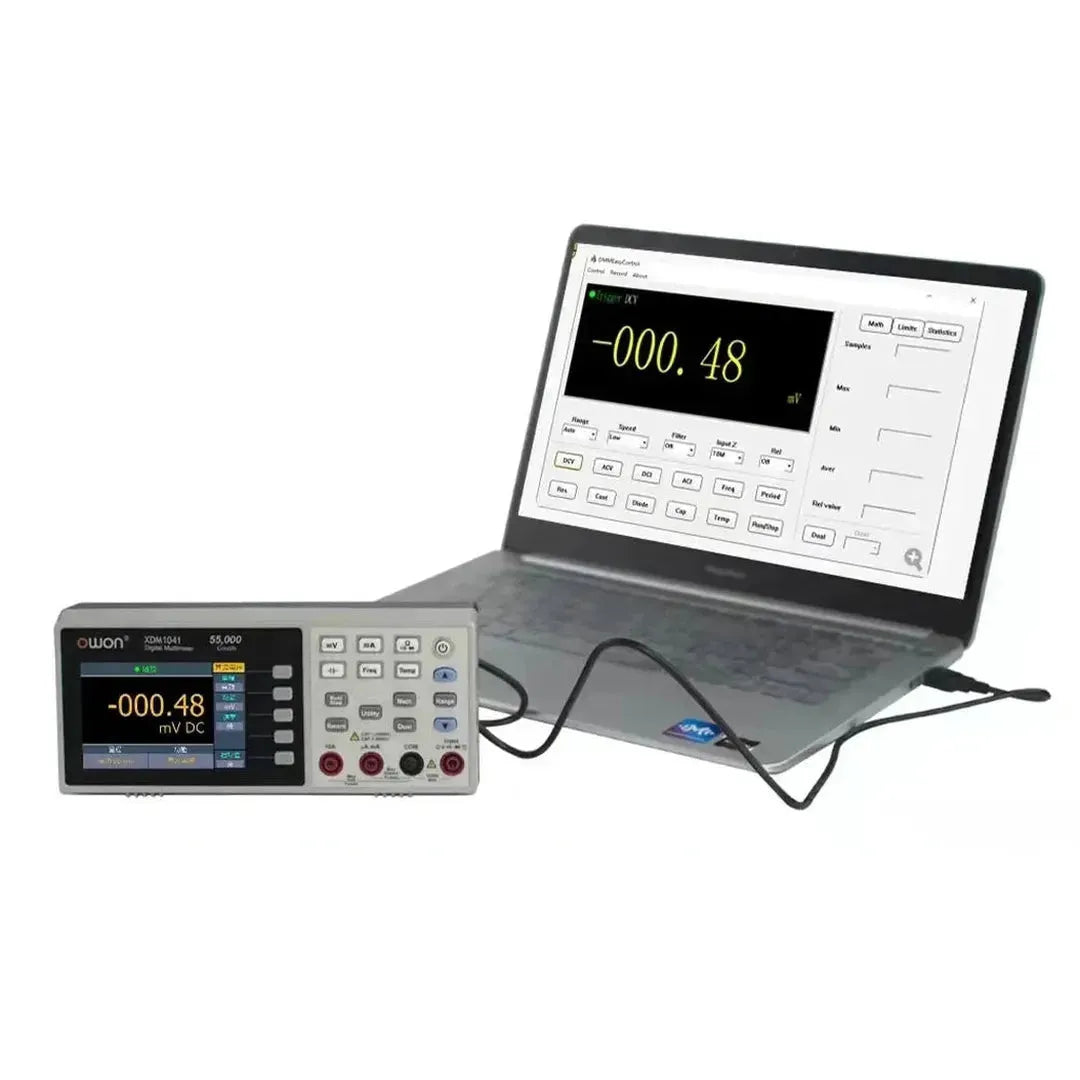

6. Remote Control Support: Supports standard SCPI commands, enabling communication with a computer via USB or RS232 interface for remote control.

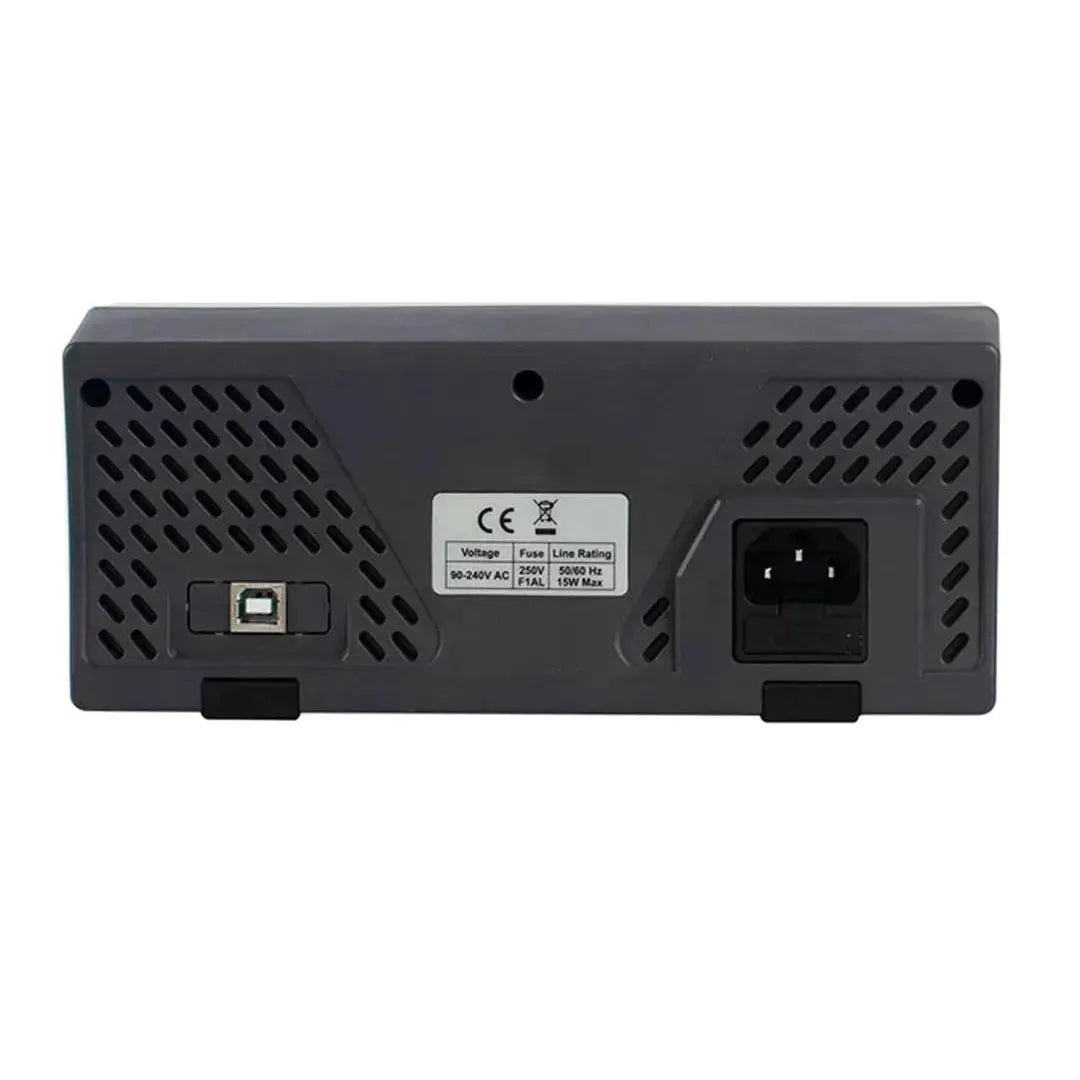

7. Power Supply: Operates on AC power, eliminating the need for battery replacement and ensuring long, maintenance-free operation.
