TL431AIZT Adjustable Shunt Voltage Reference TO-92 | 2.5–36V ±1%

£2.99

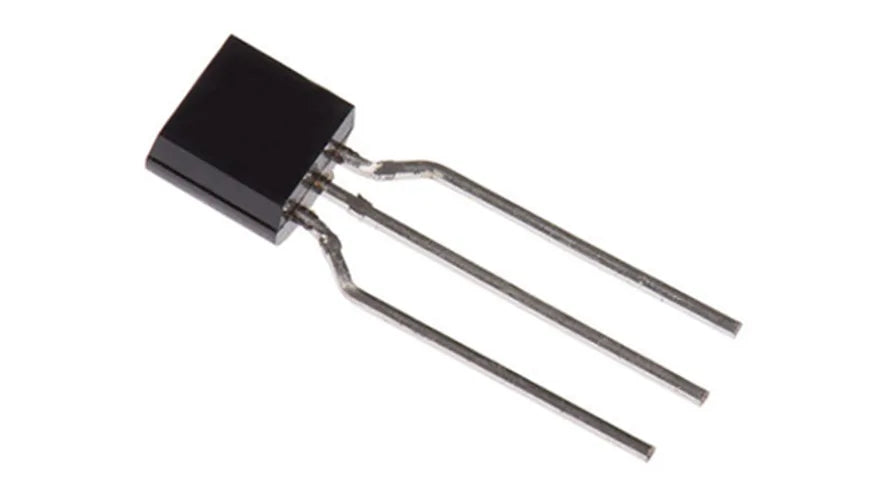

TL431AIZT Adjustable Shunt Voltage Reference (TO-92)

The TL431AIZT from STMicroelectronics is a precision adjustable shunt voltage reference designed for reliable voltage regulation and monitoring applications. Offering a wide adjustable output range and tight initial accuracy, it provides stable and predictable performance across a broad operating temperature range.

Key Features & Benefits

Adjustable reference voltage from 2.5 V to 36 V for flexible circuit design
High initial accuracy (±1.0%) for precise voltage control
Shunt topology suitable for regulation, feedback, and protection circuits
Wide operating temperature range from -40 °C to +105 °C
Compact TO-92 through-hole package for easy PCB mounting

Technical Specifications

Parameter	Specification
Brand	STMicroelectronics
Reference Type	Adjustable
Nominal Voltage	2.5 – 36 V
Minimum Output Voltage	2.5 V
Maximum Output Voltage	36 V
Initial Accuracy	±1.0 %
Topology	Shunt
Maximum Output Current	100 mA
Maximum Input Voltage	37 V
Package Type	TO-92
Mounting Type	Through Hole
Pin Count	3
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+105 °C
Dimensions (L × W × H)	4.7 × 3.7 × 4.4 mm
Length	4.7 mm
Width	3.7 mm
Height	4.4 mm
