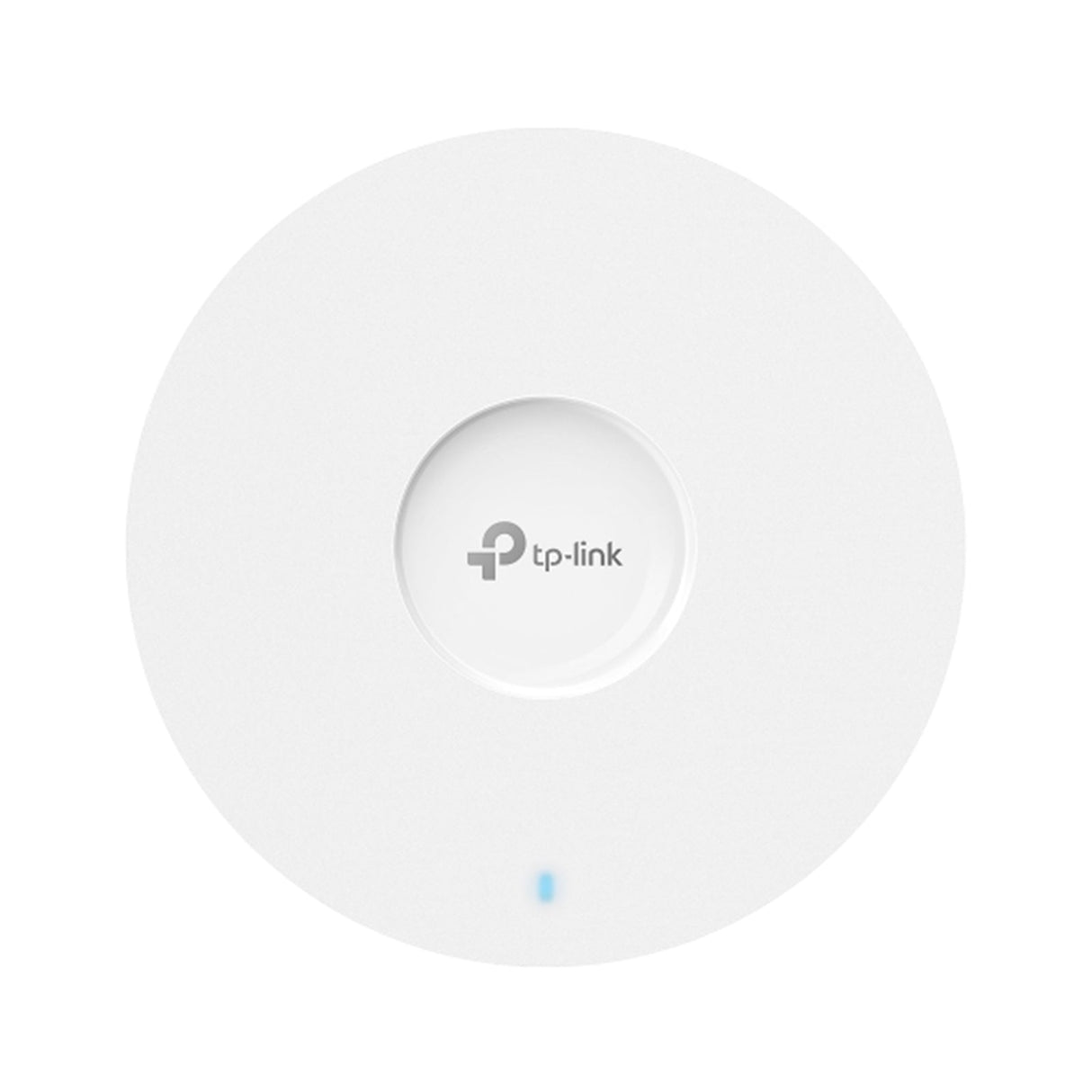

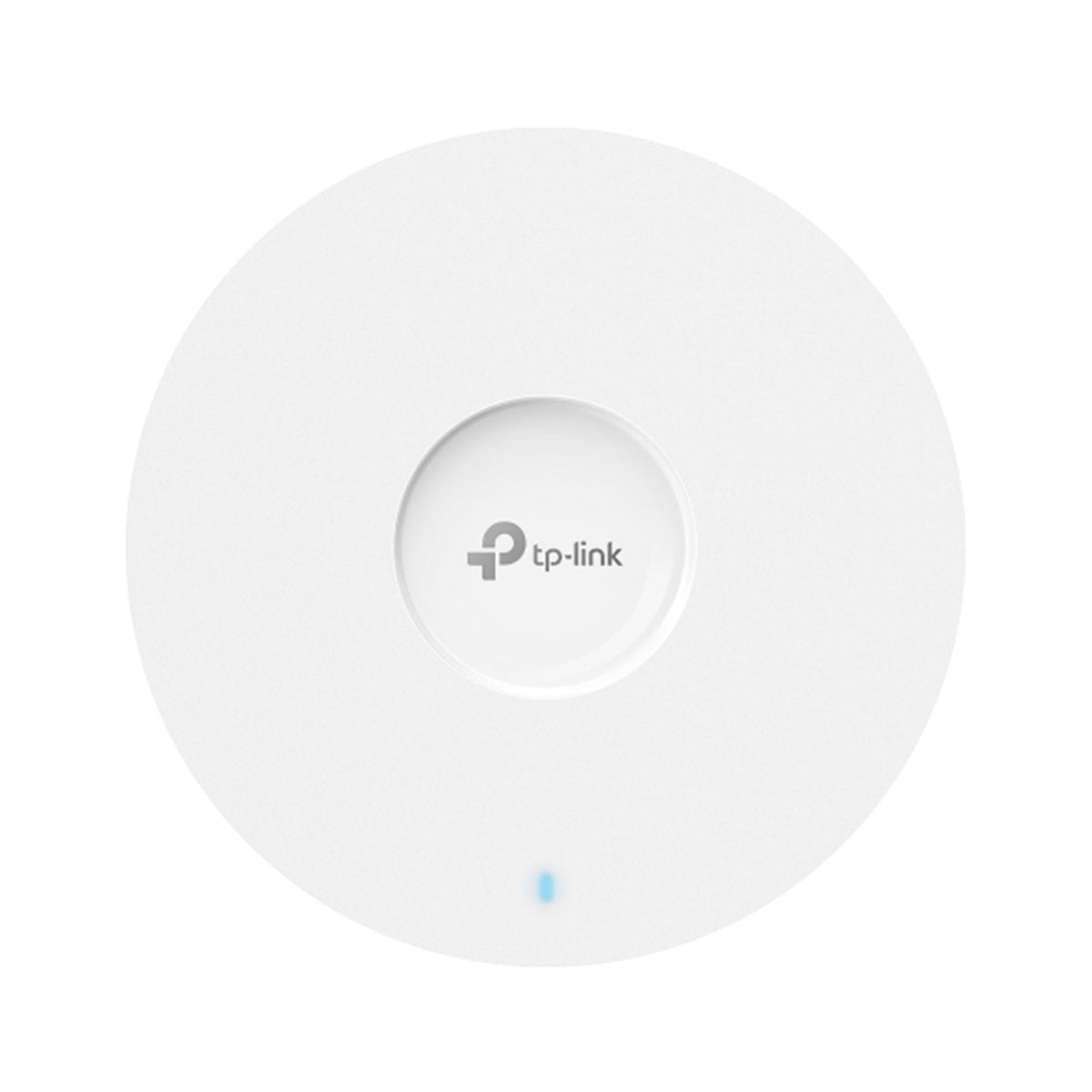

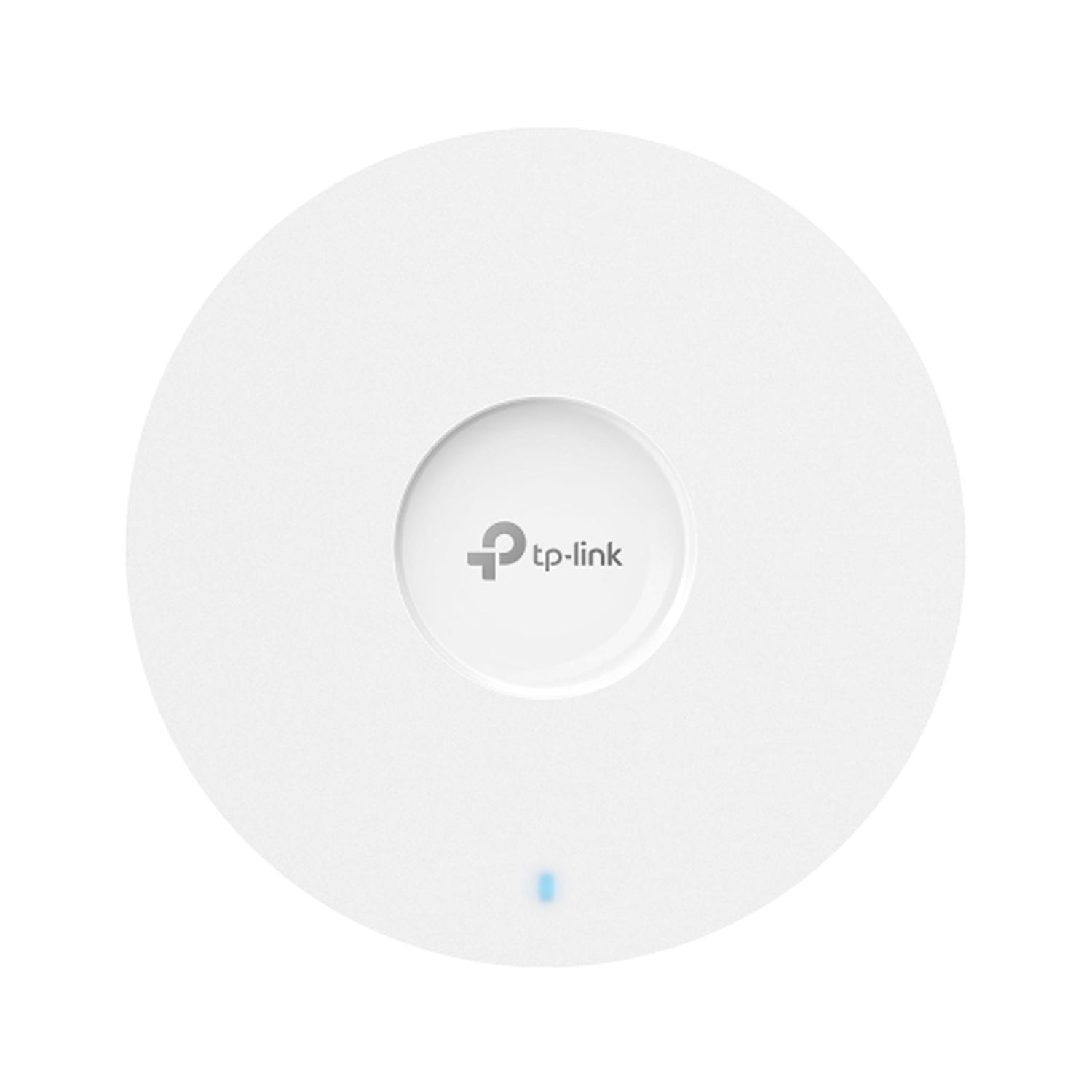

TP-Link Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Ultra Range Access Point

AX6000 Ceiling Mount WiFi 6 Access Point

High-performance AX6000 ceiling mount access point designed for powerful WiFi 6 coverage, advanced networking features, and streamlined centralized management.

Key Features

• Ultra-Fast AX6000 WiFi 6 Speeds
• Up to 5952 Mbps combined
• 2.4 GHz: up to 1148 Mbps

• 5 GHz: up to 4804 Mbps

• Wide Wireless Coverage

• 4×4 MIMO dual-band internal antennas

• High transmission power for ultra-range coverage

• WiFi 6 Technologies

• Supports HE160 (160 MHz bandwidth)
• 1024-QAM
• 4x longer OFDM symbol

• OFDMA

• Omada SDN Integration

• Integrates with the Omada SDN platform for centralized management

• Supports Omada Mesh and Seamless Roaming

• PoE+ Power Options

• 802.3at PoE+ support

• 12 V / 2 A DC input (power adapter not included)

• Flexible Mounting

• Ceiling or wall mounting
• Mounting kits included

Hardware Specifications

Wireless Performance

• Coverage: 185 m² (2000 ft²)***
• Concurrent Clients: 510+**

Wireless Standards

• IEEE 802.11ax/ac/n/g/b/a

Frequency

• 2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: up to 4804 Mbps
• 2.4 GHz: up to 1148 Mbps

Wireless Functions

• 1024-QAM
• 4x longer OFDM symbol
• OFDMA
• Multiple SSIDs (up to 16 SSIDs, 8 per band)
• Enable/Disable wireless radio
• Automatic channel assignment
• Transmit power control (adjust transmit power in dBm)
• QoS (WMM)
• MU-MIMO (4×4 MU-MIMO DL & UL)
• MIMO [4×4 (2.4G and 5G) MU-MIMO; 4×4 (2.4G and 5G) SU-MIMO]
• HE160 (160 MHz bandwidth)
• Seamless Roaming (802.11k/v/r)
• Omada Mesh
• Band steering
• Load balance
• Airtime fairness
• Beamforming
• Rate limit
• Reboot schedule
• Wireless schedule
• Wireless statistics based on SSID/AP/client

Wireless Security

• Captive portal authentication
• Access control
• Wireless MAC address filtering
• Wireless isolation between clients
• SSID to VLAN mapping
• Rogue AP detection
• 802.1X support
• WPA-Personal/Enterprise
• WPA2-Personal/Enterprise
• WPA3-Personal/Enterprise

Transmission Power

CE:

• < 20 dBm (2.4 GHz, EIRP)
• < 23 dBm (5 GHz, band 1 & band 2, EIRP)
• < 28 dBm (5 GHz, band 3, EIRP)

FCC:

• < 26 dBm (2.4 GHz)
• < 26 dBm (5 GHz)

Management Features

• Omada App: Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access

• Yes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Additional Management

• Email alerts
• LED On/Off control
• Management MAC access control
• SNMP v1, v2c, v3
• System logging (local/remote Syslog)
• SSH
• Web-based management (HTTP/HTTPS)
• L3 management
• Multi-site management
• Management VLAN
• Zero-Touch Provisioning (requires Omada Cloud-Based Controller)

Other Information

Certification

• CE
• FCC
• RoHS

Package Contents

• EAP683 UR
• Ceiling/Wall mounting kits
• Installation guide

System Requirements

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Environment

• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH, non-condensing
• Storage Humidity: 5–90% RH, non-condensing
