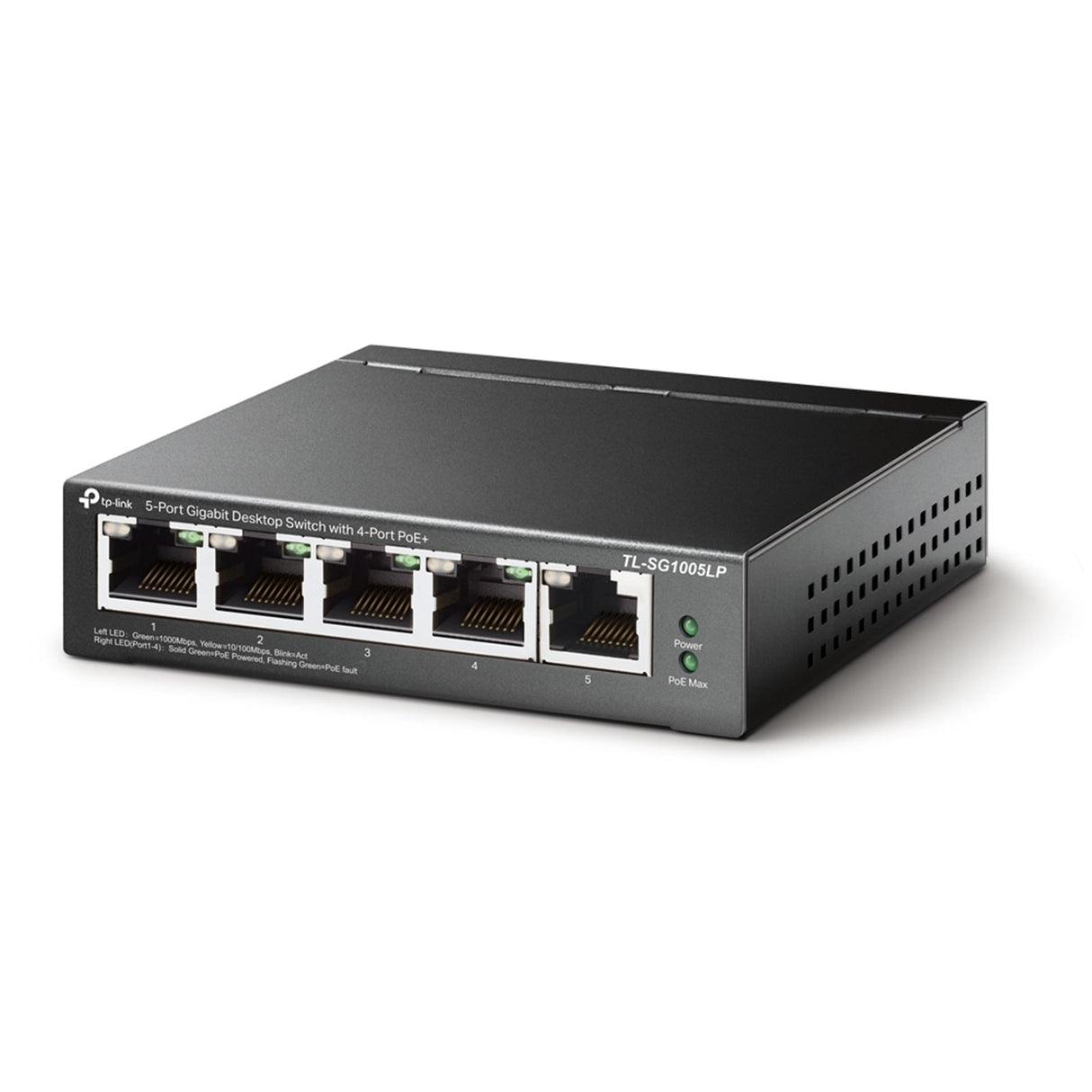

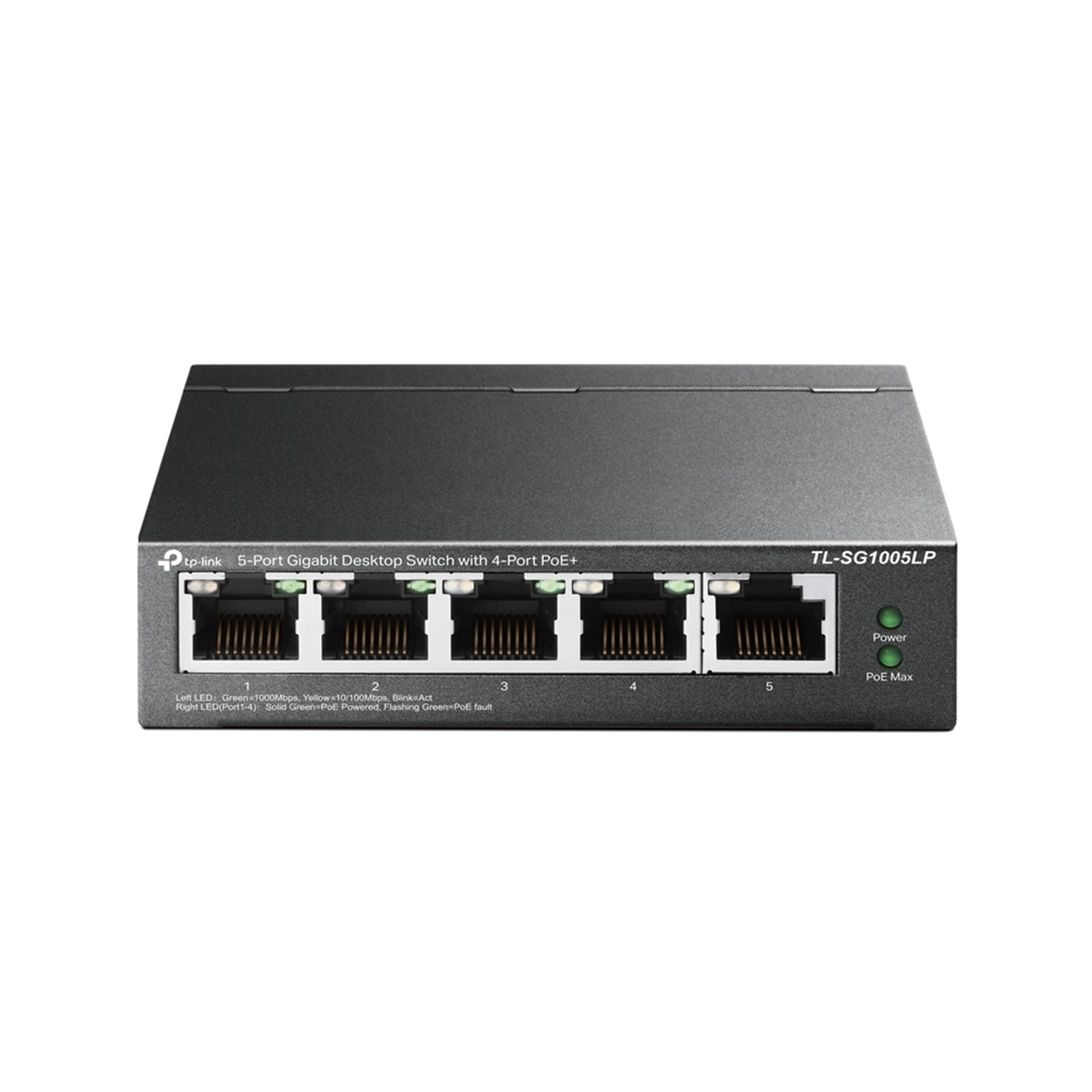

TP-Link TL-SG1005LP 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (40W)
TP-Link TL-SG1005LP 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (40W) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
If You Order In The Next 0hrs 59mins
Delivery and Shipping
Delivery and Shipping
Order Processing
- Orders are typically dispatched within 1-3 working days.
Delivery Options
- Royal Mail 48: £1.50 on orders up to £20.
- Royal Mail Tracked 48: Free on orders over £20.
- DPD Next Day: Free on orders over £50 or £6.99.
- International Shipping: Available at checkout.
You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.
Free Returns
Free Returns
Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.
No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.
Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.
TP-Link TL-SG1005LP 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (40W)
£43.75
Professional 5‑Port Gigabit PoE+ Switch
Enhance your network with a professional 5‑Port Gigabit switch featuring 4 PoE+ ports and plug‑and‑play installation. Designed to deliver reliable PoE power and high‑speed data transfer, it meets the needs of diverse devices and applications.
Dedicated 4‑Port PoE+ with 40 W Budget
- 4 PoE+ ports (Ports 1–4) with a total 40 W PoE power budget
- Compliant with IEEE 802.3af/at PoE+ standard
- Supports up to 30 W on each PoE port
- Suitable for a wide range of PoE applications, such as surveillance for offices, dormitories, and small businesses
Fully compatible with:
- IP cameras
- Access points
- IP phones
- Computers
- Printers
- And more
Intelligent Power Management
Maintain stable and safe power distribution across your network:
- When total power consumption exceeds 40 W, lower‑priority port power is automatically cut to ensure higher‑priority ports remain powered
- Automatically detects and delivers the required power for connected PoE devices
- Protects both PoE and non‑PoE equipment from damage due to incorrect power delivery
Advanced Network Performance
Optimize traffic and ensure smooth, high‑quality applications:
- QoS (802.1p/DSCP) – Administrators can prioritize traffic so voice and video remain clear and lag‑free
- IGMP Snooping – Enhances multimedia traffic delivery and improves network efficiency, especially for IPTV and similar services
Durable Fanless Metal Design
Built for long‑term reliability:
- High‑quality metal casing protects internal components
- Fanless design for quiet operation
- Rigorously tested for dependable switching performance
Specifications
Hardware Features
| Feature | Details |
|---|---|
| Interfaces | 5 × 10/100/1000 Mbps RJ45 ports |
| Auto Features | Auto Negotiation, Auto MDI/MDIX |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Ports | Ports 1–4 |
| PoE Power Supply | 65 W |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Fan Quantity | Fanless |
| External Power Supply | External power adapter (Output: 54 VDC / 1.3 A) |
| Dimensions (W × D × H) | 3.9 × 3.9 × 1.0 in (99 × 98 × 25 mm) |
Network Media
| Standard | Cable Type & Distance |
|---|---|
| 10BASE‑T | UTP Cat 3, 4, 5 (max 100 m); EIA/TIA‑568 100Ω STP (max 100 m) |
| 100BASE‑TX | UTP Cat 5, 5e (max 100 m); EIA/TIA‑568 100Ω STP (max 100 m) |
| 1000BASE‑T | UTP Cat 5, 5e, 6 or above (max 100 m); EIA/TIA‑568 100Ω STP (max 100 m) |
Power & Heat
| Parameter | Value |
|---|---|
| Max Power Consumption | 4.3 W (no PD connected) |
| 74.2 W (with 65 W PD connected) | |
| Max Heat Dissipation | 14.6 BTU/h (no PD connected) |
| 253.2 BTU/h (with 65 W PD connected) |
Software Features
- Compatible with IEEE 802.3af/at compliant power devices
- MAC address auto‑learning and auto‑aging
- IEEE 802.3x flow control
- 802.1p/DSCP QoS
- IGMP snooping
- Store‑and‑forward switching method
Certification
- FCC
- CE
- RoHS
Package Contents
- TL‑SG1005P
- Power adapter
- Installation guide
