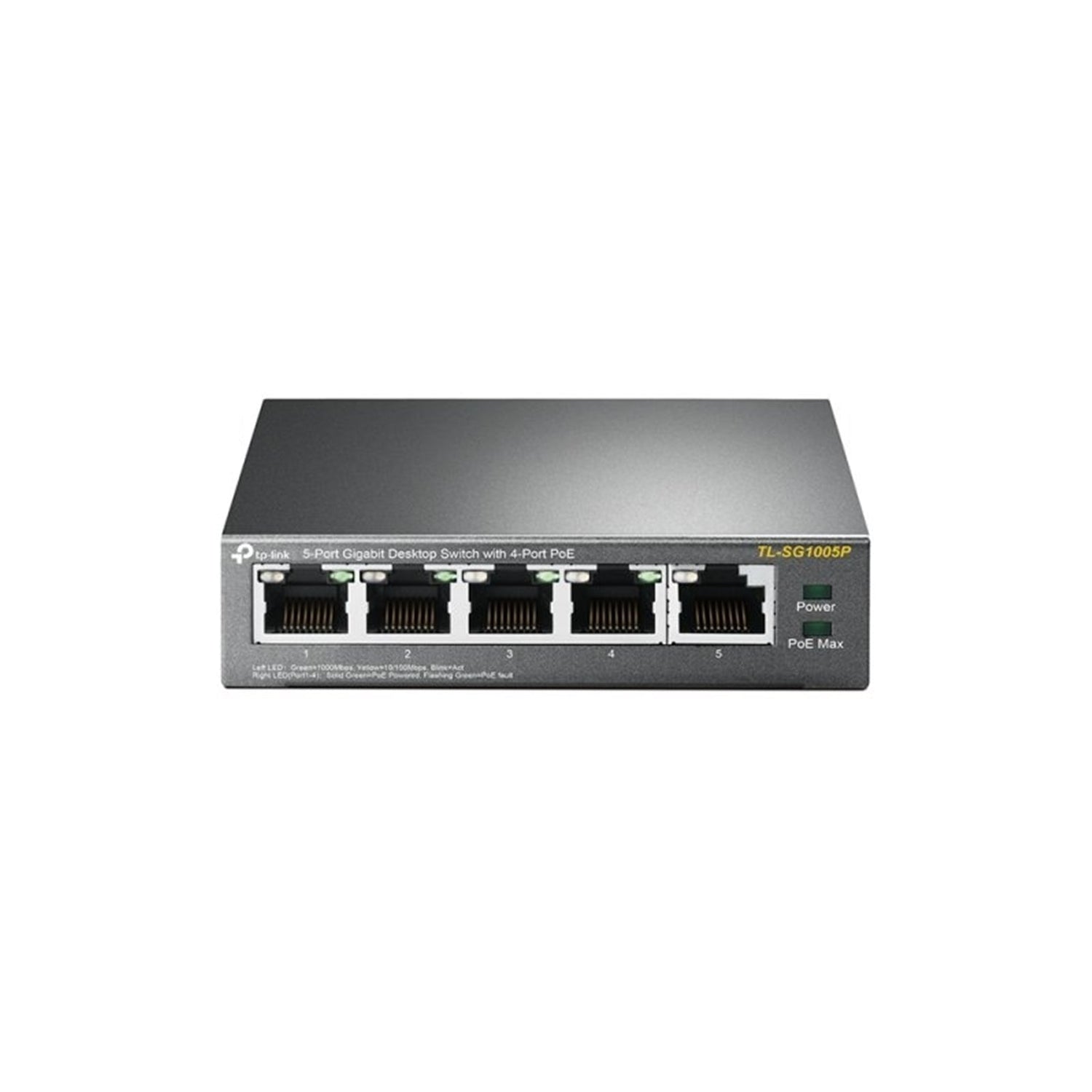

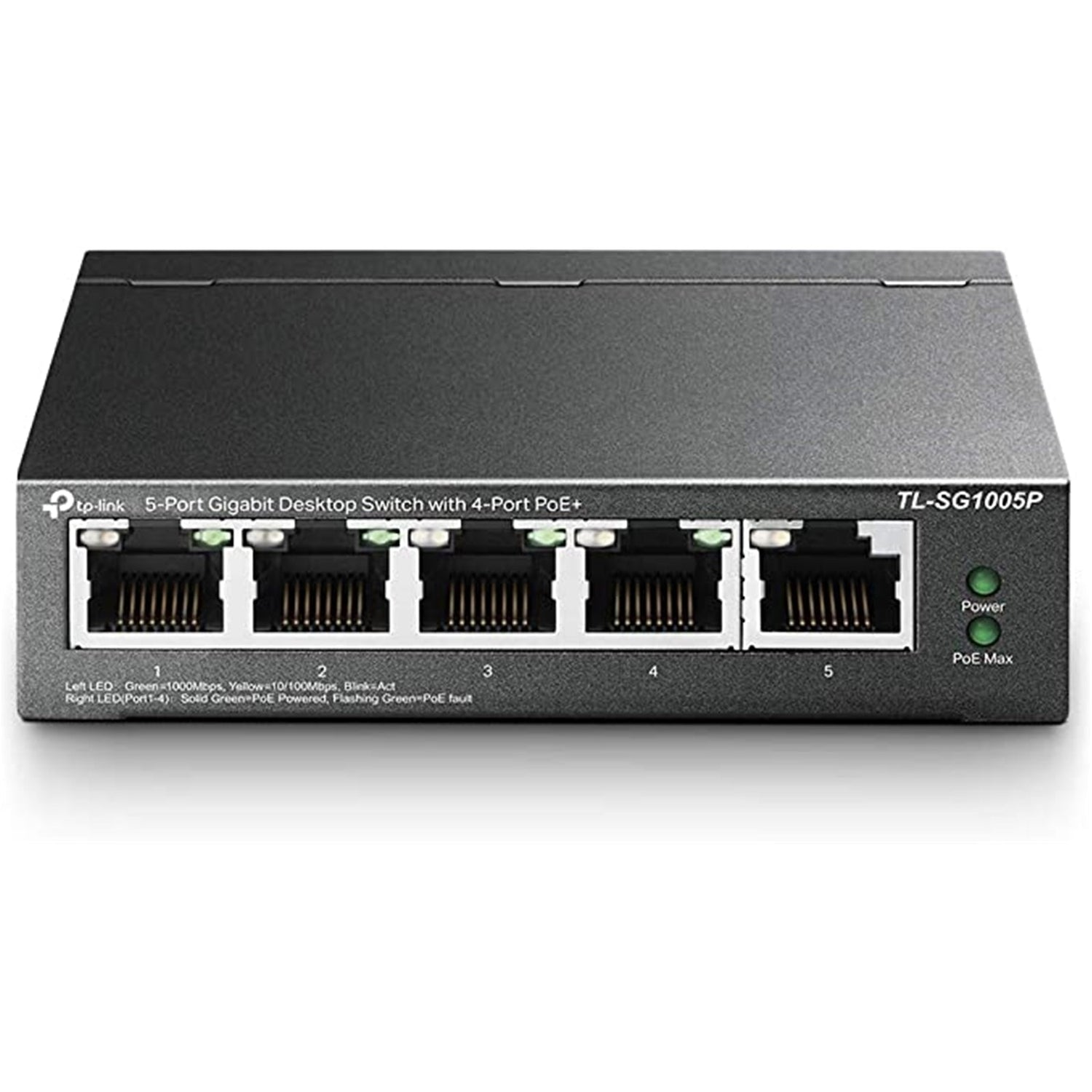

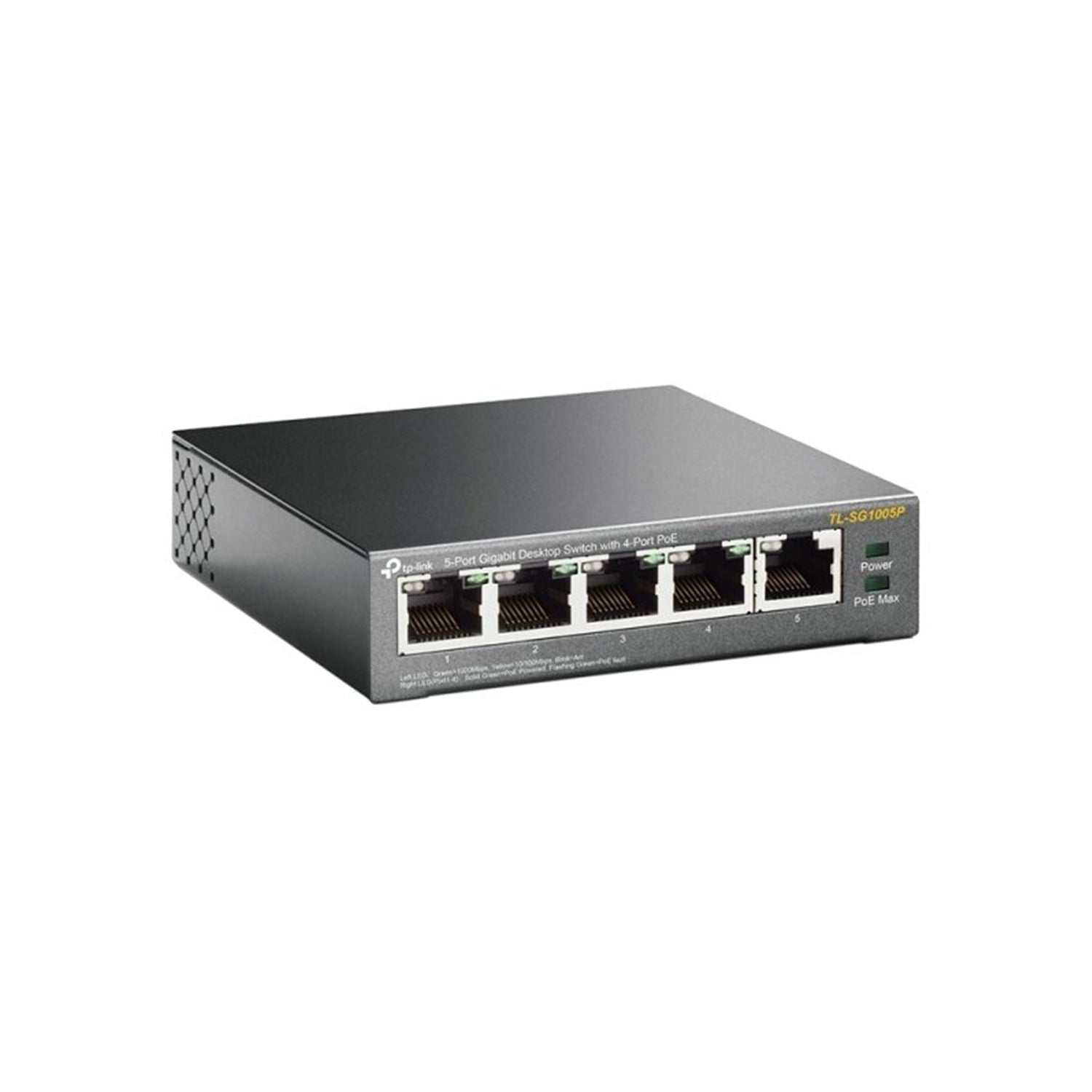

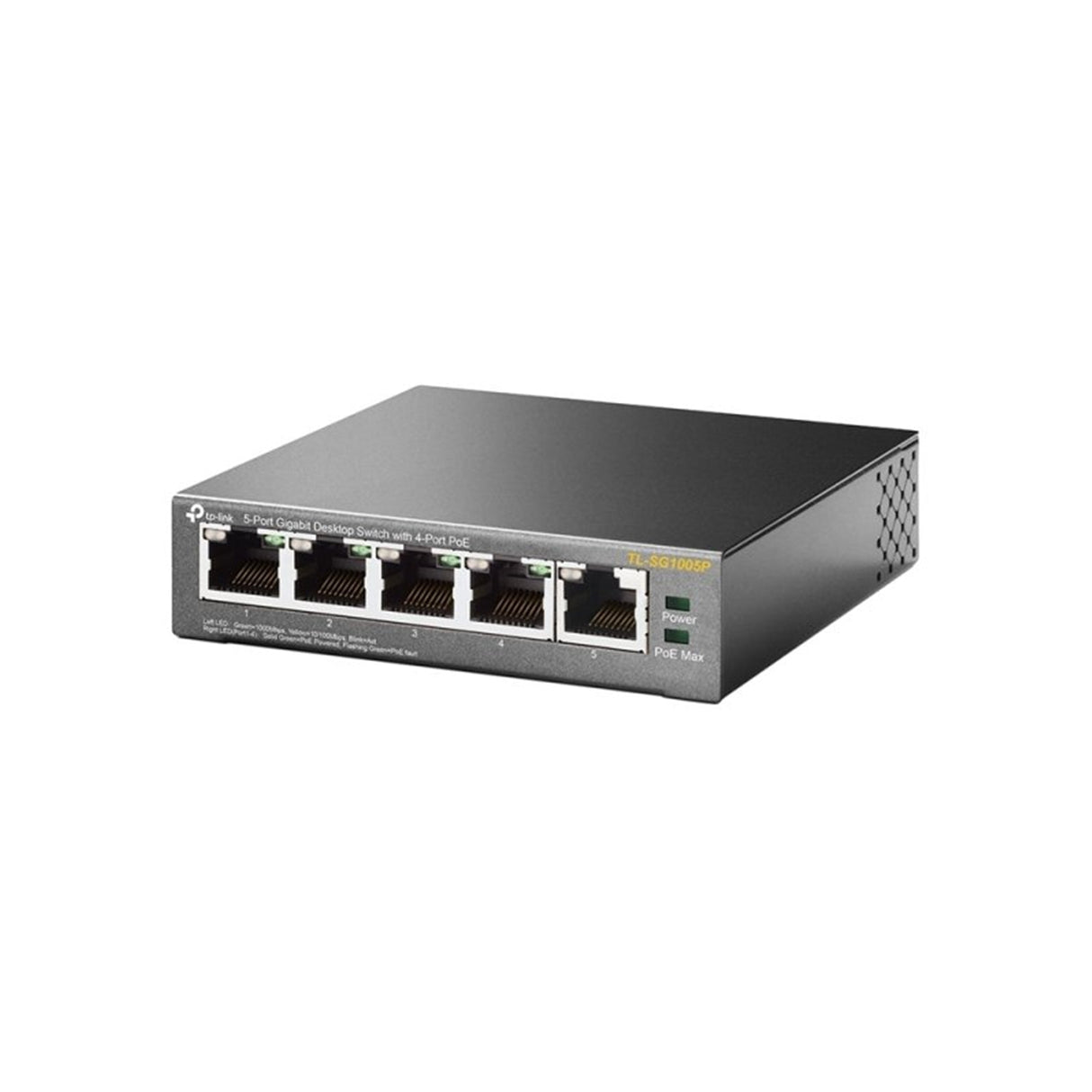

TP-Link TL-SG1005P 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (65W)
TP-Link TL-SG1005P 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (65W) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
If You Order In The Next 1hrs 35mins
Delivery and Shipping
Delivery and Shipping
Order Processing
- Orders are typically dispatched within 1-3 working days.
Delivery Options
- Royal Mail 48: £1.50 on orders up to £20.
- Royal Mail Tracked 48: Free on orders over £20.
- DPD Next Day: Free on orders over £50 or £6.99.
- International Shipping: Available at checkout.
You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.
Free Returns
Free Returns
Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.
No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.
Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.
TP-Link TL-SG1005P 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (65W)
£45.98
Professional High‑Power 5‑Port Gigabit PoE+ Switch (65 W)
The TL‑SG1005P is a professional 5‑port Gigabit desktop switch with 4 PoE+ ports, delivering high‑power performance in a compact, plug‑and‑play design. Ideal for numerous applications, it provides reliable power and data for IP cameras, access points, IP phones, computers, printers, and more.
High‑Power 4‑Port PoE+ (65 W Budget)
- 4 x PoE+ ports with up to 30 W per port
- Total PoE power budget: 65 W for 4 PoE ports
- 802.3af/at PoE+ compliant, supporting a wide range of PoE devices
- Suitable for applications such as surveillance in offices, dormitories, and small businesses
- Fully compatible with:
- IP cameras
- Access points
- IP phones
- Computers
- Printers
- Other IEEE 802.3af/at compliant PDs
Plug and Play Installation
- No configuration required
- Simple plug and play setup
- Automatically detects and supplies required power to connected PoE devices
Intelligent Power Management
- 65 W total PoE power management
- When total consumption exceeds 65 W, power to lower‑priority ports is cut to protect the system
- Ensures high‑priority ports remain powered
- Protects both PoE and non‑PoE devices from damage
- Automatically adjusts power delivery based on device needs
Advanced Network Performance
QoS for Smooth, Latency‑Sensitive Traffic
- Supports 802.1p/DSCP QoS
- Administrators can prioritize traffic to keep voice and video applications clear and lag‑free
IGMP Snooping for Optimized IPTV
- IGMP Snooping optimizes multimedia traffic
- Enhances network performance especially for IPTV and streaming applications
Reliable Switching Architecture
- Store‑and‑forward switching method
- MAC address auto‑learning and auto‑aging
- IEEE 802.3x flow control for stable data transmission
Durable Metal Housing
- High‑quality metal casing protects internal components
- Designed for a long product life
- Tested for reliable, dependable switching performance
Key Features
- 5 x 10/100/1000 Mbps RJ45 ports
- 4 x PoE+ ports for data and power over a single Ethernet cable
- Supports up to 30 W PoE power per PoE port
- Supports up to 65 W total PoE power across all PoE ports
- Plug and play, no installation or configuration required
- 802.1p/DSCP QoS for smooth latency‑sensitive traffic
- Works with IEEE 802.3af/at compliant PDs
Specifications
Hardware
| Item | Details |
|---|---|
| Interfaces | 5 x 10/100/1000 Mbps RJ45 ports |
| Auto Features | Auto Negotiation, Auto MDI/MDIX |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Ports | Ports 1–4 |
| Total PoE Power Budget | 65 W |
| PoE Power per Port | Up to 30 W |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 16 KB |
| Fan Quantity | Fanless |
| External Power Supply | External power adapter (Output: 53.5 VDC / 1.31 A) |
| Dimensions (W x D x H) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Network Media
| Speed | Cable Type (max 100 m) |
|---|---|
| 10BASE‑T | UTP Cat 3, 4, 5; EIA/TIA‑568 100 Ω STP |
| 100BASE‑TX | UTP Cat 5, 5e; EIA/TIA‑568 100 Ω STP |
| 1000BASE‑T | UTP Cat 5, 5e, 6 or above; EIA/TIA‑568 100 Ω STP |
Power & Thermal
| Item | Details |
|---|---|
| Max Power Consumption | 4.29 W (220 V/50 Hz, no PD connected) |
| 74.24 W (220 V/50 Hz, with 65 W PD connected) | |
| Max Heat Dissipation | 14.63 BTU/h (no PD connected) |
| 253.16 BTU/h (with 65 W PD connected) |
Software Features
- Compatible with IEEE 802.3af/at compliant PDs
- MAC address auto‑learning and auto‑aging
- IEEE 802.3x flow control
- 802.1p/DSCP QoS
- IGMP Snooping
- Store‑and‑forward transfer method
Certification
- FCC
- CE
- RoHS
Package Contents
- TL‑SG1005P switch
- Power adapter
- Installation guide
Environment
| Condition | Range |
|---|---|
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | –40–70 °C (–40–158 °F) |
| Operating Humidity | 10–90% RH, non‑condensing |
| Storage Humidity | 5–90% RH, non‑condensing |
